Please read this manual carefully before using the device
and retain it for future reference.
IMILAB EC5
Floodlight Camera
UserManual
EN ESDE FRIT RU PL TR CZ
CONTENTS
English 01-11
12-23Deutsche
24-35Español
36-47Italiano
48-59Français
60-71Pусский
72-83Polski
84-95Türkçe
96-107čeština

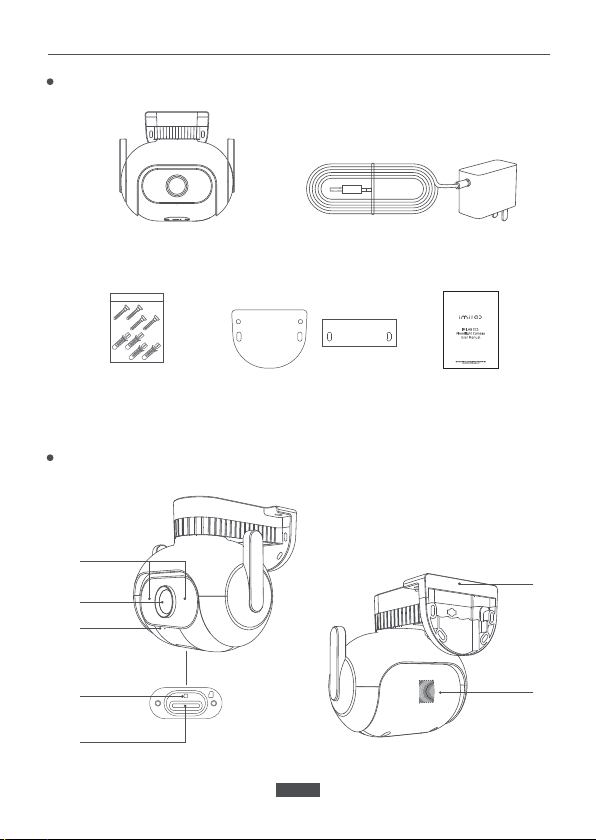

Product Introduction
Wall mounting pack Wall/ceiling mounting
positioning stickers
User manual
IMILAB EC5 Floodlight Camera Power adapter
Package list
Product Appearance
Lens
Mic
Reset button
Flood light
Speaker
Wall bracket
Micro SD card slot
EN-01
Installing the Device
Wall mounting
The device can be wall mounted, ceiling mounted or tied around a
support.
1. Attach the wall mounting positioning sticker on the desired installation
location on a wall. Drill two holes at the positions indicated on the
sticker. Drilling diameter of around 6.0 mm; drilling depth of around
30mm.
2. Insert two plastic expansion nuts into the wall. Put the base plate on the
wall. Secure the base plate by inserting the screws into the expansion
nuts.
EN-02
Ceiling mounting
1. Attach the ceiling mounting positioning sticker on the desired installation
location on the ceiling. Drill two holes at the positions indicated on the
sticker. Drilling diameter of around 6.0 mm; drilling depth of around
30mm.
2. Insert two plastic expansion nuts into the wall. Put the base plate on the
ceiling. Secure the base plate by inserting the screws into the expansion
nuts.
EN-03
Connecting the Device
Turn on the camera
Insert the power supply cable into the camera's power supply port.
Connect the other end of the power supply cable to a power source.
Insert a micro SD card.
Ensure that the camera is disconnected from the power supply. Use a
screwdriver to remove the protective case and expose the micro SD card
slot.
The contact points of the micro SD card should be facing down. Insert the
micro SD card into the slot.
Pole mounting
EN-04
Note: Actual operation may differ due to Mi Home app update. Please follow
the on-screen instructions of the Mi Home app.
64295C5D
Restoring factory settings
Press and hold the reset button to restore the factory settings. The content
inside the micro SD card will not be deleted.
Note:
When inserting or removing the micro SD card, please disconnect the
camera from the power supply. Please use a micro SD card from a reputable
manufacturer (up to 256GB). The recommended read and write speed of the
micro SD card is at least U1/Class 10.
This product works with Mi Home and can be controlled using the Mi Home
app.
Scan the QR code to download and install the Mi Home app. If you already
have Mi Home app installed, you will be directed to the device connection
page. You can also search for "Mi Home" in an app store to download and
install the Mi Home app. Open the Mi Home app. Tap “+” at the top right
corner and following the on-screen instructions to add the device.
Connecting to Mi Home App
EN-05
“works with mijia” signifies that the product herein is designed to connect
and interact with Mi Home app or Mi AI. Please be noted that the product
herein is certified by the app interaction only. Xiaomi and Mijia are not
responsible for anyof the product manufacturing, safety and regulatory
standards, or quality supervision.
Specifications
About works with mijia
Name：IMILAB EC5 Floodlight Camera
Model：CMSXJ55A
Input：12V 1A
Resolution：2304 x 1296
Operating Temperature：-30℃ ～ 60℃
Wireless Connectivity：Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Dimensions：139 x 128 x 135 mm
Net Weight：630 g
Viewing Angle：95°
Aperture：F2.1
IP rating：IP66
FCC ID: 2APA9-CMSXJ55A
EN-06
2021 3 2 20:51:05
Full Color Night Vision
The light sensor can automatically switch the device to night vision mode
through IR-CUT based on changes in the lighting of the environment.
Built-in high power exposure light can present colorful images even in the
darkness.
Video Playback
Past videos can only be viewed when a compatible micro SD card is inserted
in IMILAB EC5 Floodlight Camera. After inserting a micro SD card and turning
on the device, the camera will automatically start
recording.
In the control interface for IMILAB EC5 Floodlight
Camera in the Mi Home app, tap the playback
button to enter the video playback page. You can
also view a recording by selected a time period.
Night vision effect illustration
12MB / s
06:20
IMILAB EC5 Floodlight Camera
EN-07
Sharing a Video
In the control interface for IMILAB EC5 Floodlight Camera in the Mi Home
app, you can set the device as a shared device in the settings menu and
invite others to watch the recordings. Users must download the Mi Home
app and login to their Xiaomi account in order to view the recordings of the
shared device.
Note:
The illustrations are for reference only. The pages may differ based on actual
Mi Home app version and mobile phone operating system.
Share group
Check for firmware updates
Rename IMILAB EC5 Floodlight...
Security settings
Share device
Remove device
Add Home screen shortcut
Feedback
Network info
Share with Mi Account
Share manage
Share...General settings
EN-08
