Impex OLYMPIAN Bedienungsanleitung

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

OLYMPIAN

Retain This

Manual for

Reference

07-20-03

OWNER'S

MANUAL

MARCY WEIGHT BENCH

MWB OLYMPIAN

IMPEX FITNESS PRODUCTS

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN....................................................................................……….. 1

IMPORTANT SAFETY NOTICE.....................................................................……….. 2

HARDWARE IDENTIFIER.....….....................................................................……….. 3

ASSEMBLY INSTRUCTIONS.........................................................................……….. 5

EXPLODED DIAGRAM……….........................................................................………..11

PARTS LIST…………………………………………………………………………………..12

WARRANTY.................................................................................................…………. 13

ORDERING PARTS.......................................................................................…………13

BEFORE YOU BEGIN

Thank you for selecting the MARCY OLYMPIAN BENCH by IMPEX

FITNESS PRODUCTS. For your safety and benefit, read this manual

carefully before using the machine. As a manufacturer, we are committed

to provide you complete customer satisfaction. If you have any questions,

or find there are missing or damaged parts, we guarantee you complete

satisfaction through direct assistance from our factory. To avoid

unnecessary delays, please call our TOLL-FREE customer service

number. Our Customer Service Agents will provide immediate assistance

to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

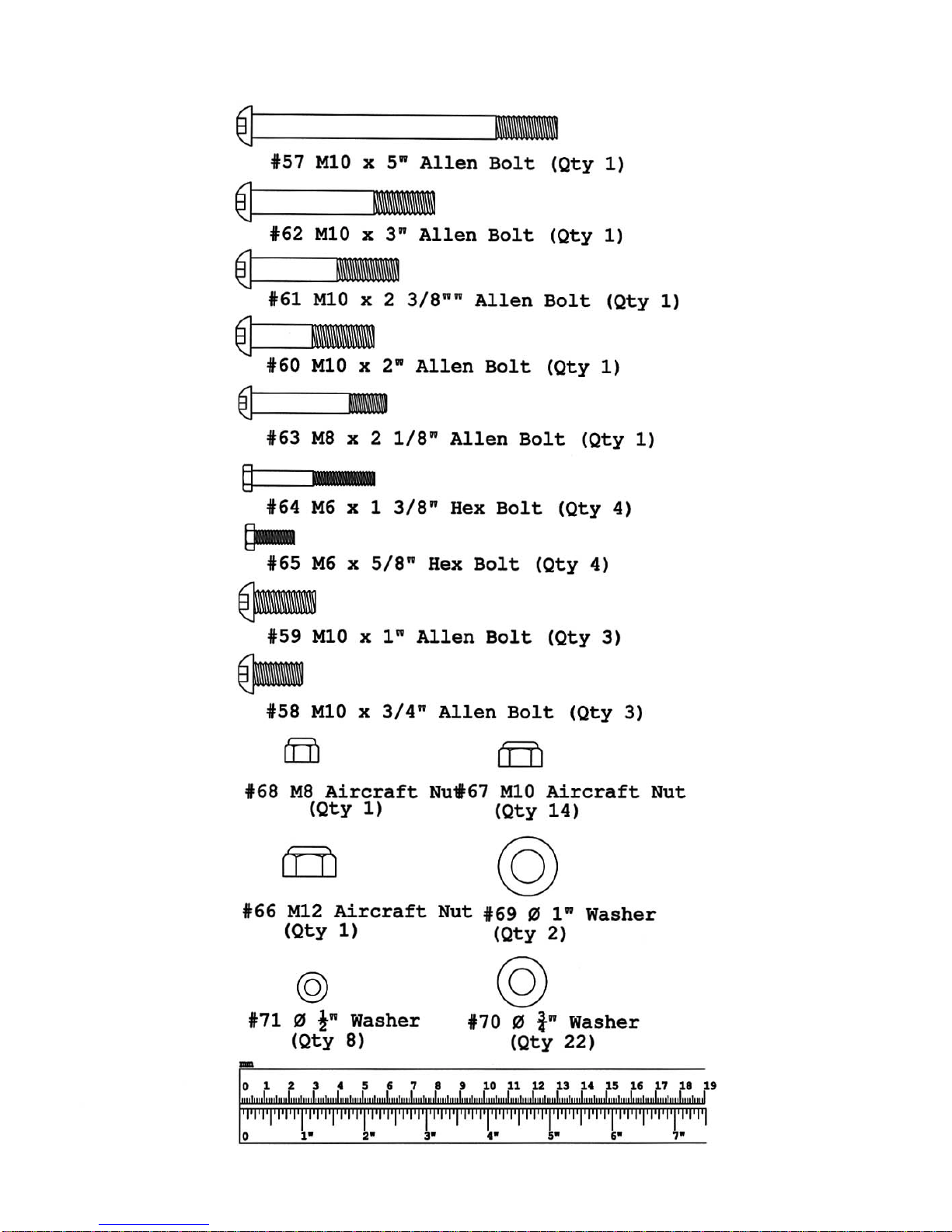

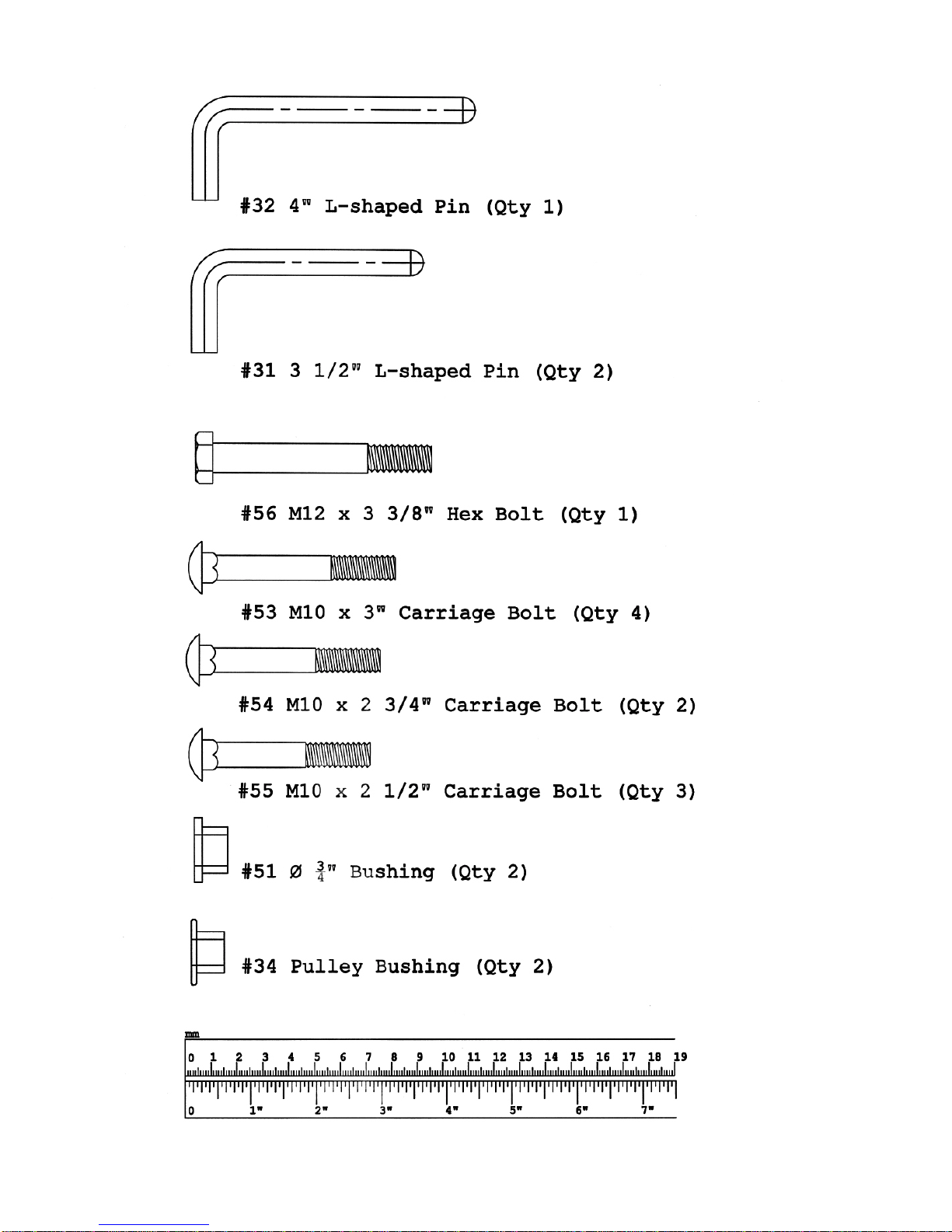

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches.

NOTE: It is strongly recommended two or more people assembling this machine to avoid

possible injury.

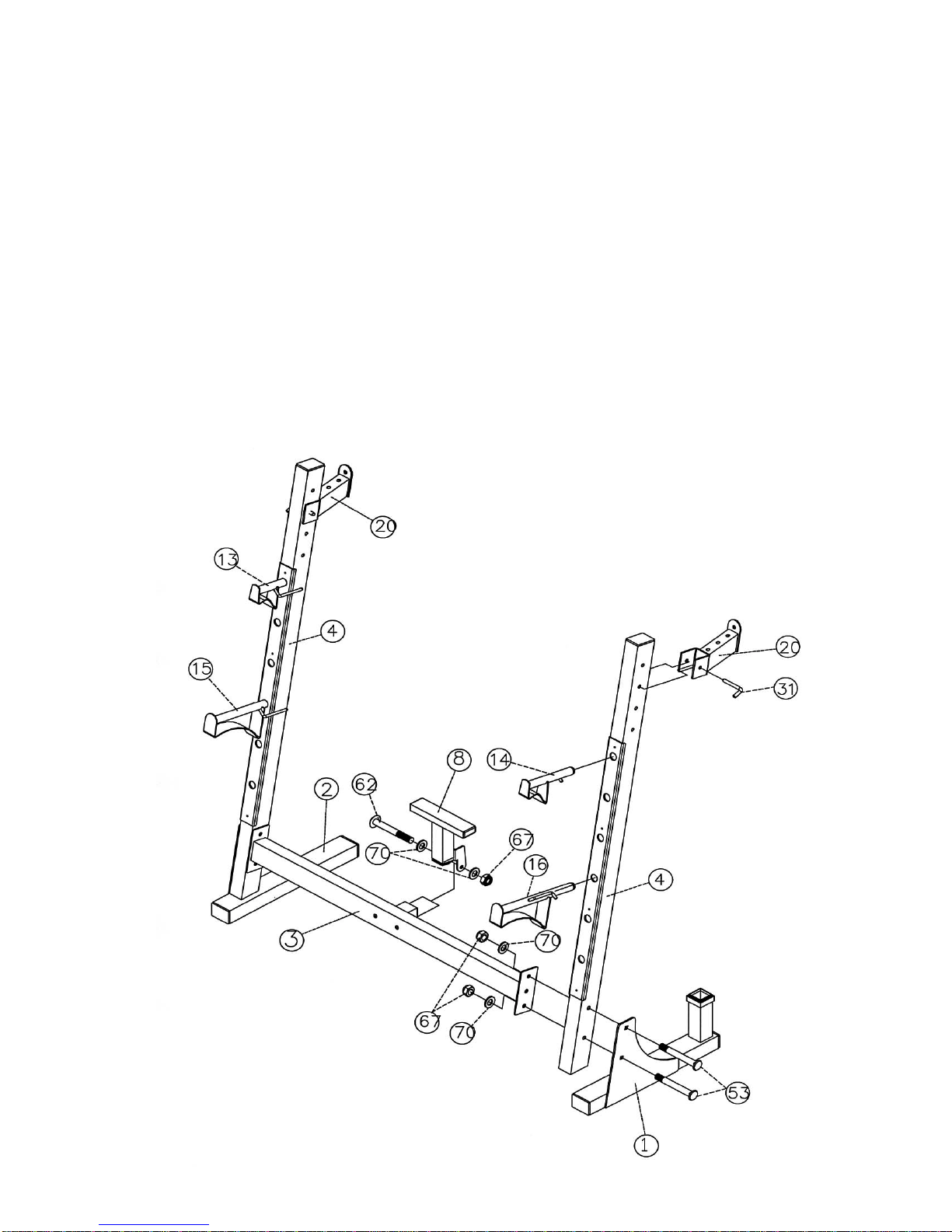

STEP 1 (See Diagram 1)

A.) Attach an Upright Beam (#4) to the Left Stabilizer (#1). Then attach the Cross Brace (#3) to

the Upright Beam. Align the holes and secure them with two M10 x 3” Carriage Bolts (#53), ∅

¾” Washers (#70), and M10 Aircraft Nuts (#67). Repeat the same procedure to install the

other side.

B.) Attach the Backrest Flat Base (#8) to the Cross Brace (#3). Secure it with one M10 x 3” Allen

Bolt (#62), two Ø ¾” Washers (#70), and one M10 Aircraft Nut (#67). Do not over tighten the

nut and bolt. The Base needs to be able to swivel on the bolt. Flip the Base up when setting

the Backrest Board at the flat position.

C.)Attach the two Squat Bar Catches (#20) to the two Upright Beams. Use two 3 ½” L-shaped

Pins (#31) to hold them in position.

D.)Insert the Left & Right Bar Catches (#14 & 13) and the Safety Catches (#15 & 16) into the

Upright Beams.

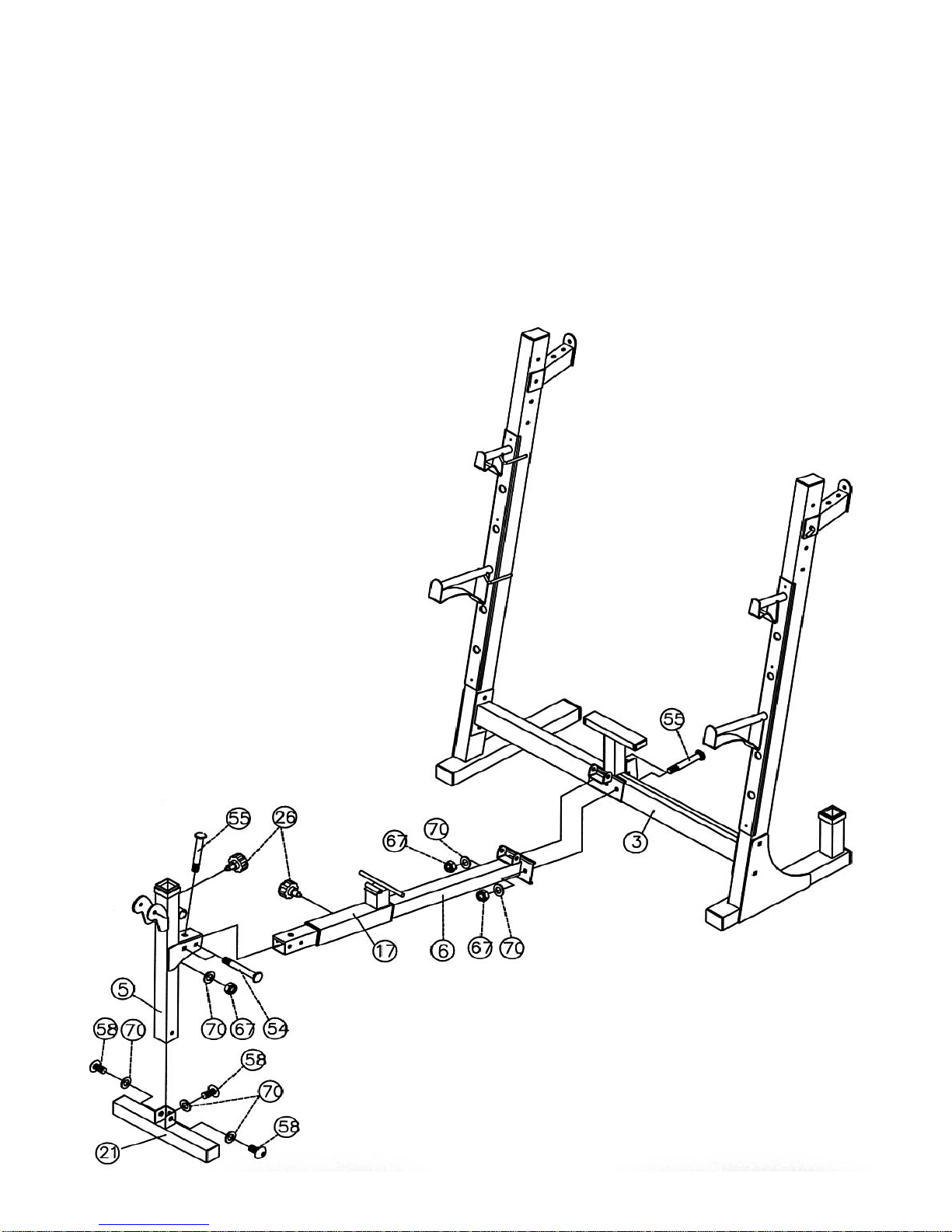

STEP 2 (See Diagram 2)

A.) Attach the Leg Developer Holder (#5) to the Front Stabilizer (#21). Secure them with three

M10 x ¾” Allen Bolts (#58) and ∅¾” Washers (#70).

B.) Slid the Sliding Block (#17) onto the Main Seat Support (#6). Use a M18 Lock Knob (#26) to

hold the Sliding Block in position.

C.)Attach the Leg Developer Holder (#5) to the front of the Main Seat Support (#6). Secure

them with one M10 x 2 ½” Carriage Bolt (#55) from the top, two M10 x 2 ¾” Carriage Bolts

(#54) on the side, three ∅¾” Washers (#70), and three M10 Aircraft Nuts (#67).

D.)Attach the Rear of the Main Seat Support to the Cross Brace (#3). Secure them with two

M10 x 2 ½” Carriage Bolts (#55), ∅¾” Washers (#70), and M10 Aircraft Nuts (#67).

DIAGRAM 2

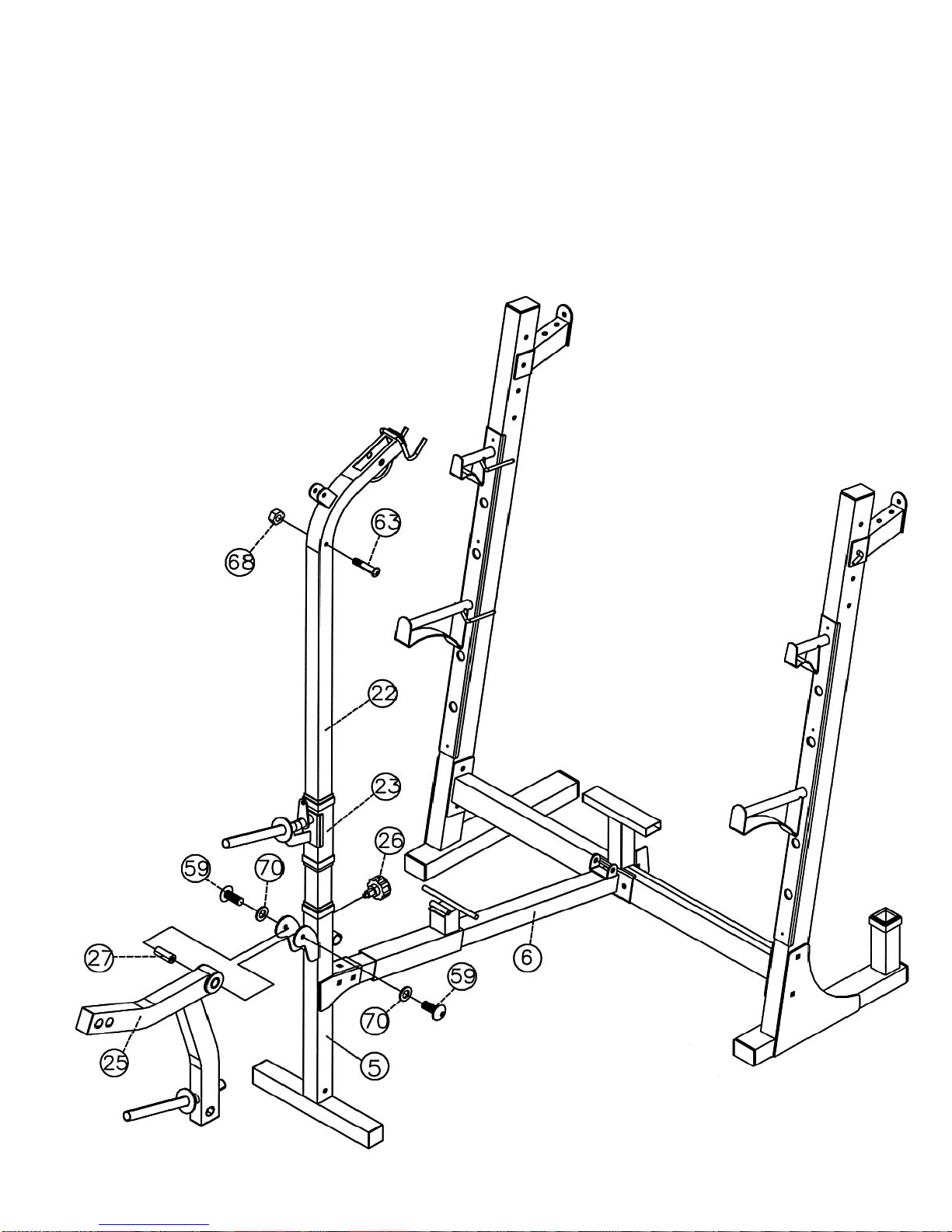

STEP 3 (See Diagram 3)

A.) Attach the Leg Developer (#25) to the Leg Developer Holder (#5). Secure it with an Axle

(#27), two ∅¾” Washers (#70), and two M10 x 1” Allen Bolts (#59).

B.) Insert one M8 x 2 1/8” Allen Bolt (#63) through the hole on the Lat bar Frame (#22) and

secure it with a M8 Aircraft Nut (#68).

C.) Slide the Weight Post (#23) onto the Lat Bar Frame (#22). Insert the Lat Bat Frame into the

top opening on the Leg Developer Holder. Use the M18 Lock Knob (#26) to secure the Lat

Bar. DIAGRAM 3

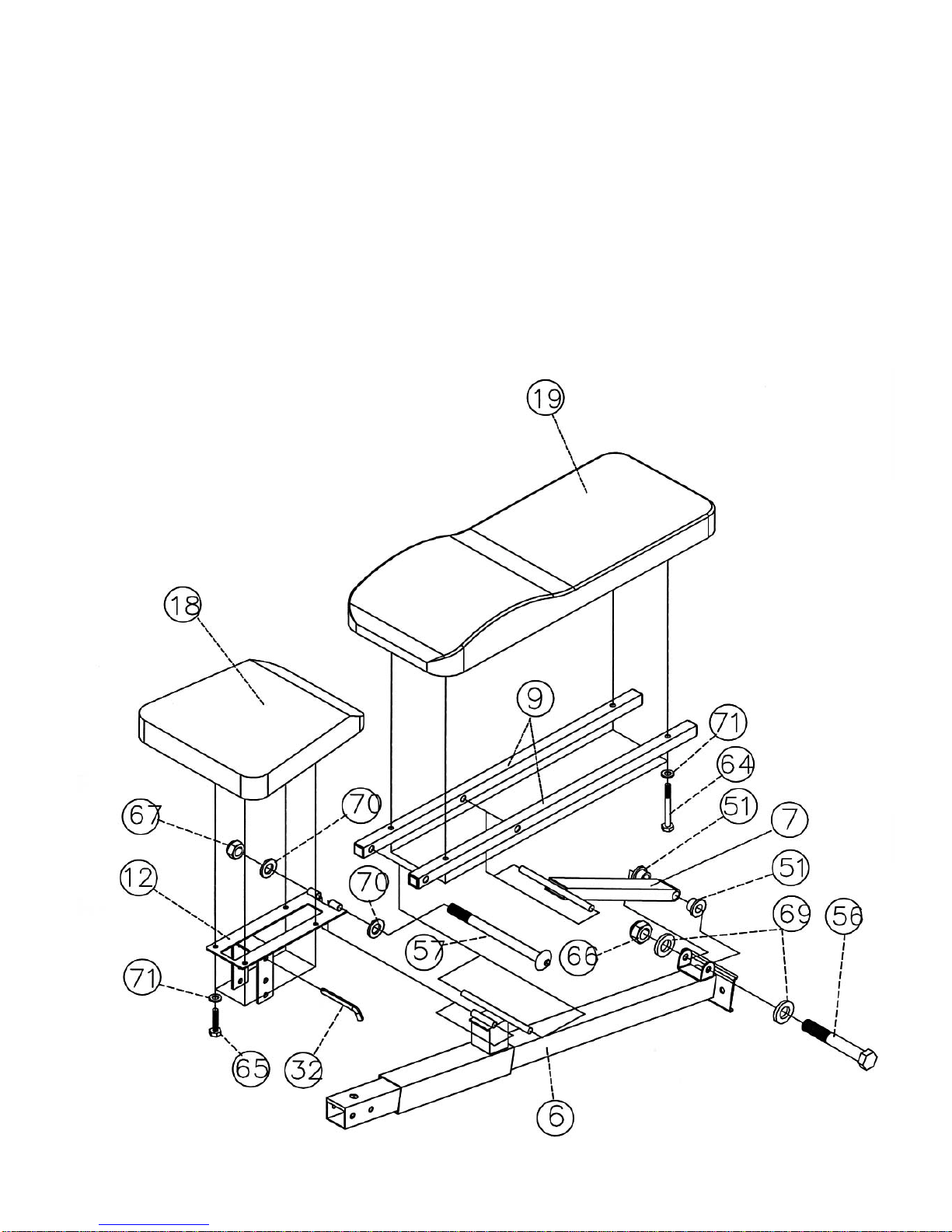

STEP 4 (See Diagram 4)

A.) Attach the Seat Bracket (#12) to the short pivot on the Sliding Block. Secure it with one M10

x 5” Allen Bolt (#57), two ∅¾” Washers (#70), and one M10 Aircraft Nut (#67).

B.) Place the Backrest Incline Support (#7) in between the two Backrest Supports (#9). Attach

the Backrest Supports to the long Pivot on the Sliding Block.

C.)Place the Backrest Board (#19) onto the Backrest Supports. Secure it with four M6 x 1 3/8”

Hex Bolts (#64) and ∅½” Washers (#71).

D.)Push two Ø ¾” Bushings (#51) into the bottom of Backrest Incline Support (#7) and attach it

to the bracket on the Main Seat Support (#6). Secure it with one M12 x 3 3/8” Hex Bolt (#56),

two Ø 1” Washers (#69), and one M12 Aircraft Nut (#66).

E.) Place the Seat Pad (#18) onto the Seat Bracket. Secure it with four M6 x 5/8” Hex Bolts

(#65) and ∅½” Washers (#71). Insert a 4” L-shaped Pin (#32) into the selected hole on the

Seat Bracket to hold the desired seat incline. DIAGRAM 4

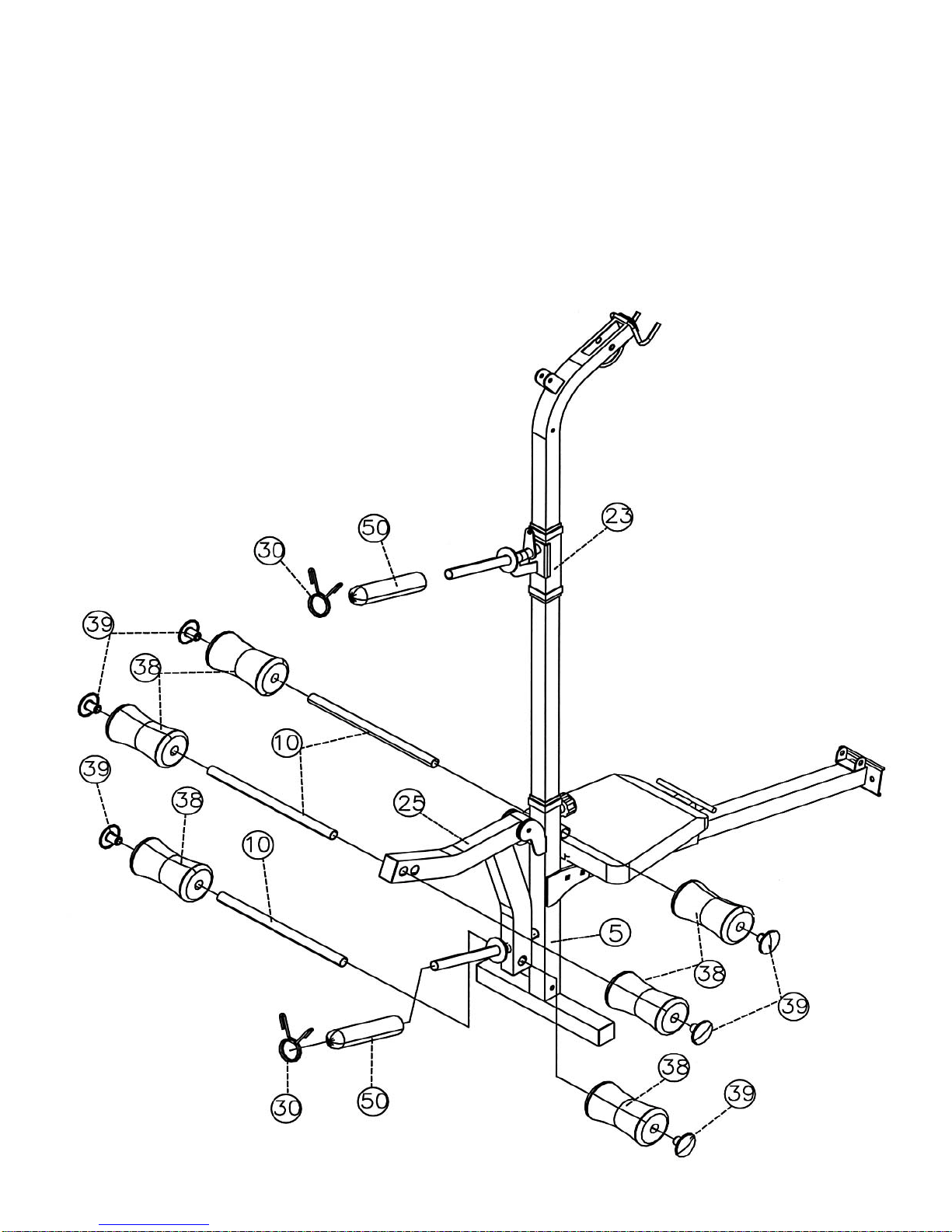

STEP 5 (See Diagram 5)

A.) Insert one Foam Roll Tube (#10) halfway through the hole on the Leg Developer Holder

(#5). Insert two Foam Roll Tubes (#10) halfway through the holes on the Leg Developer

(#25). Push six Foam Rolls (#38) onto the Tubes from both ends. Plug six Foam Roll

End Caps (#39) into the ends.

B.) Attach two Olympic Sleeves (#50) to the weight posts on the Leg Developer and the

Sliding Weight Holder (#23). Attach two Spring Clips (#30) to the Sleeves.

C.)When doing Leg Developer exercises, remove the Lat Bar Frame (#22) and store it

behind the machine.

DIAGRAM 5
