Dwyer Instruments, Inc. I/P Models
Model No. Signal Output Nom. Imped.
IP-40 4-20 mA 3-9 psig 90 Ohms
IP-41 4-20 mA 9-15 psig 90 Ohms
IP-42 4-20 mA 3-15 psig 180 Ohms
IP-43 4-20 mA 3-27 psig 220 Ohms
IP-44 4-20 mA 6-30 psig 220 Ohms
IP-45 4-20 mA 1-17 psig 250 Ohms
IP-46 4-20 mA 2-60 psig 225 Ohms
IP-47 4-20 mA 3-120 psig 260 Ohms
Notes:
1. Installation to be in accordance with the national electric code, NFPA
70, article 504, and ANSI/ISA RP 12.6.
2. Apparatus connected to the system shall not use or generate voltage
greater than 250 VDC.
3. Install intrinsically safe barriers in accordance with barrier instructions.
4. Factory Mutual approved as intrinsically safe for class I, II, and III,
Division 1, Groups C, D, E, F and G, when installed with barriers
shown.
5. Factory Mutual approved as nonincendive for Class I, Division 2,
Groups A, B, C, and D, and suitable for Class II, Division 2, Groups F
and G, and Class III, Divisions 1 and 2. Barriers are not required for
nonincendive rating. Max. V = 29.9 VDC.
6. CAUTION: Substitution of components may void Factory Mutual
approval.
7. Ambient temperature range: -30˚ C to 60˚ C.
8. Factory Mutual approved as intrinsically safe for Class I, II and III,
Division 1, Groups C, D, E, F and G when used with an apparatus
meeting the following entity requirements:
Vmax=29.9 VDC Cl=0 Cl is capacitance by the transducer
Imax=65 mA Li= 35 mH Li is inductance contributed by the transducer

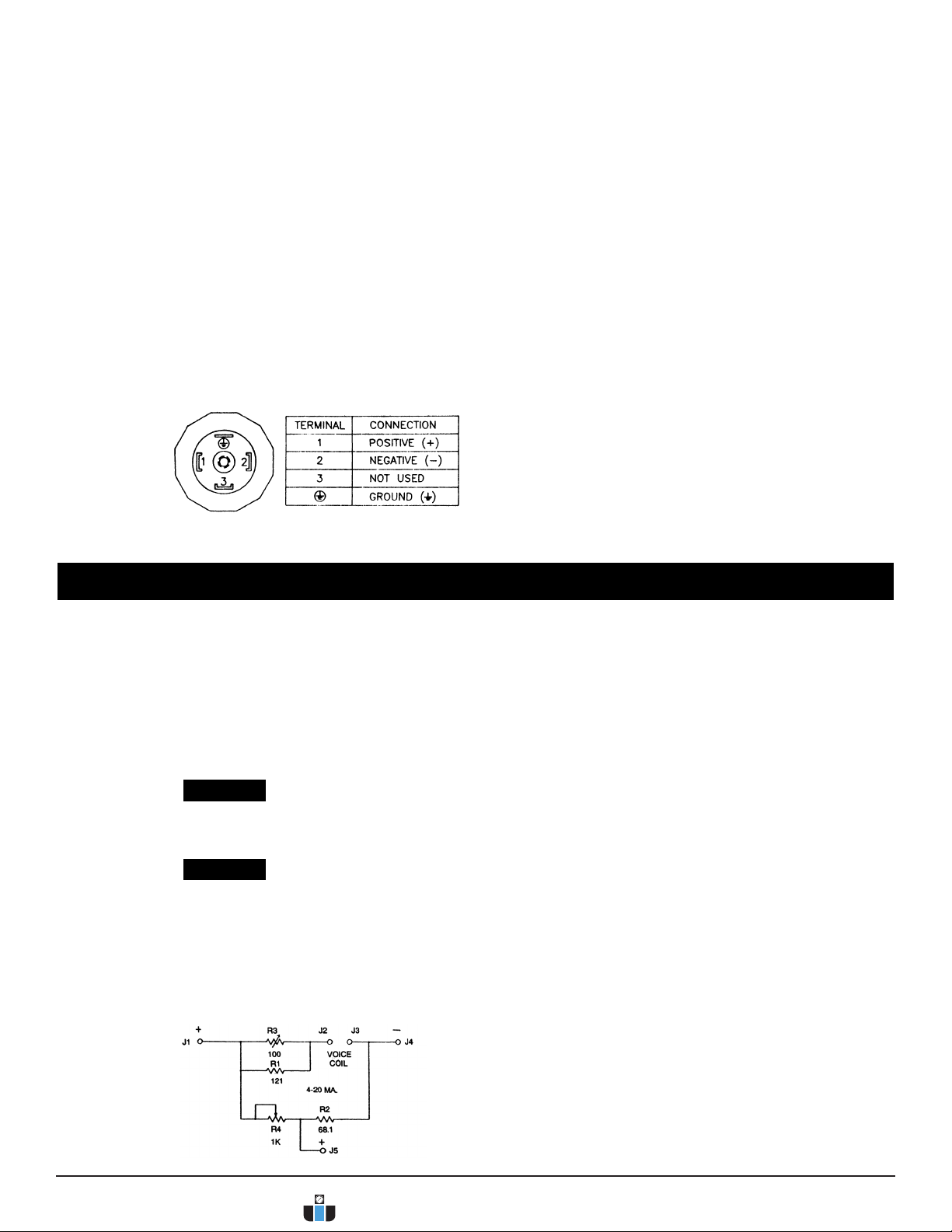

9. For DIN connector option, add D to the model number.
10. For NEMA 4X option, add W to the model number.
11. Models with NEMA 4X are Factory Mutual approved for indoor/out-
door use per the requirements of NEMA 4X as described in the National
Electrical Manufacturers Association Standard No. 250 “ Enclosures for
Electrical Equipment, 1000 Volts Max.”
Drawing No. 531-990-037
Models 728+, 787S+ and 4045, +24 to +26 VDC, Model 728-, -24 to -26 VDC,
available from MTL Inc. 7541 Gary Road, Manassas, VA 221110, USA.
