INetVu 7000 Series Bedienungsanleitung

Beacon Receiver and the iNetVu® 7000 Series Controller

1-877-iNetVu6

www.c-comsat.com

Revision 3.0

May 25, 2015

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 2

1.1 Safety and Warning Information

For your safety and protection the following important safety information should be reviewed before

installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is

also recommended to read the manual in its entirety prior to setup and operation.

Warning: The following general safety precautions must be observed during all phases of setup and

operation of this equipment. Failure to comply with these precautions or with specific warnings

elsewhere in this documentation violates safety standards of design, manufacture and intended use of

the equipment. C-COM Satellites Systems Inc. assumes no liability for the customer’s failure to comply

with these requirements.

This situation or practice might result in property or

equipment damage. Ensure Sensor and Motor cables are

connected prior to powering on 7000 Series Controller. Do not

connect or disconnect cables once controller has been

powered on. It is recommended that controller is properly

grounded at all times.

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 3

1.2 System Overview

The iNetVu™Mobile Satellite Internet system is an automatic scanner, polarizer and beam positioning

system for a foldable two-way satellite antenna. It has been designed to automatically find and acquire

the satellite beam and the position based on both a GPS position reading as well as other positioning

parameters. It is targeted for mobile users that require high speed Internet access in remote locations

where cable and DSL do not exist. It provides two-way, high-speed data communications over satellite.

iNetVu™ empowers mobile users with the ability to stop anywhere there is Satellite coverage and

access Internet at broadband speeds. The iNetVu™ Mobile application consists of the iNetVu™ Mobile

software 7000 software (for the 7000 Series Controller)

iNetVu™ Mobile Application

Key Features:

•Automatic re-peak on satellite upon signal loss.

•Automatic dish stow if Mobile Platform moves

•If the vehicle is moved before the dish is stowed, the dish will sense movement and will

automatically begin stowing itself.

•The dish will not transmit unless it is pointed adequately to meet cross-polarization

specifications.

•The system will automatically find any satellite from any point on the Earth within its coverage

area.

•Displays comprehensive information about the satellite, dish, motors, GPS, compass, control

box, and modem.

•Finds the satellite, peaks the signal strength and selects the optimal path to perform the selected

satellite, allowing the customer’s computer to be online as soon as possible

•Simple to install, configure and operate.

General

All iNetVu™ Mobile Systems have been fully tested with the iNetVu ™ 7000 Controller prior to shipment.

All position feedback; limit sensing, limit switches and motor speeds have been calibrated and preset

prior to shipping. The wave-guide, the boom mounted Radio Transmitter cables and the

Transmission/Receive coaxial cables have all pre-wired. There is no need to re-calibrate the Mobile

Platform unless directed by a C-Com Support Technician.

It is critical that the iNetVu™ Controller stay together with the Mobile Platform it shipped with. You may

refer to the iNetVu™ Shipping Checklist to confirm this.

The iNetVu™ Mobile System has been designed for either roof rack mounting or mounting directly to a

vehicle. The iNetVu ™ Mobile Platform should always be secured to the vehicle.

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 4

1.3 Pre-Configuration Check List

The following items should be completed/known prior to configuring the iNetVu® Mobile System.

Satellite Name and Coordinate

Beacon Frequency

Transmit and Receive Polarization (Horizontal/Vertical)

PLL LNB – 5KHz Accuracy or better is recommended

Ensure the switch next to J1 on the back of the iNetVu® BR300L is set to RS-232.

Ensure to attach the null modem adapter, to the 7000 Controller DB9 port.

Ensure iNetVu Beacon Receiver is set to “REMOTE MODE”

To place the unit in the REM (remote) mode of operation by depressing and holding the LOC/REM

button and depressing and releasing the RESET button. The unit will toggle between the LOCAL and

REMOTE mode of operation. When the REMOTE mode is selected, REM will be displayed in the lower

left corner of the front panel display.

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 5

1.4 iNetVu® Mobile System Wiring

1.5 Option 1: BR300L Stand Alone (modem free) - USB PC Connection

Beacon Receiver and 7000 Controller – Stand Alone USB Connection

GPS

Antenna

Motor

Cable

Sensor

Cable

90 - 264

VAC

90 - 264

VAC

DB9 Male to Female Serial

Cable (Ensure NULL modem

adapter is attached to cable

or controller)

Computer

USB Cable

RX IN

TX Source

Power Pass

The Power to

the LNB may be

sent from the

Beacon

Receiver.

Ensure LNB

Power Switch is

turned ON, and

7000 Controller

LNB Power is

disabled

Motor Control Cable

Sensor Cable

RG6 Coaxial Cable

USB Cable

Power Cable

*Ground

protection

24 VDC Input

(option)

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 6

1.6 Option 2: BR300L Stand Alone (modem free) – PC Network

Connection

Beacon Receiver and 7000 Controller – Stand Alone Network Connection

Motor Control Cable

Sensor Cable

RG6 Coaxial Cable

Network Cable

Power Cable

GPS

Antenna

Motor

Cable

Sensor

Cable

90 - 264 VAC

DB9 Male to Female Serial

Cable (Ensure NULL modem

adapter is attached to cable or

controller)

Note: The Software

Application (The same one

used to communicate with

the USB) or the web

interface could be used to

communicate with the

controller over the network

Network Cable

RX IN

TX Source

Power Pass

The Power to the

LNB may be sent

from the Beacon

Receiver. Ensure

LNB Power

Switch is turned

ON, and 7000

Controller LNB

Power is disabled

IP: 192.168.0.3

SUB: 255.255.255.0

GW: 192.168.0.2

Controller IP

192.168.0.3

SUB: 255.255.255.0

*Ground

protection

24 VDC Input

(option)

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 7

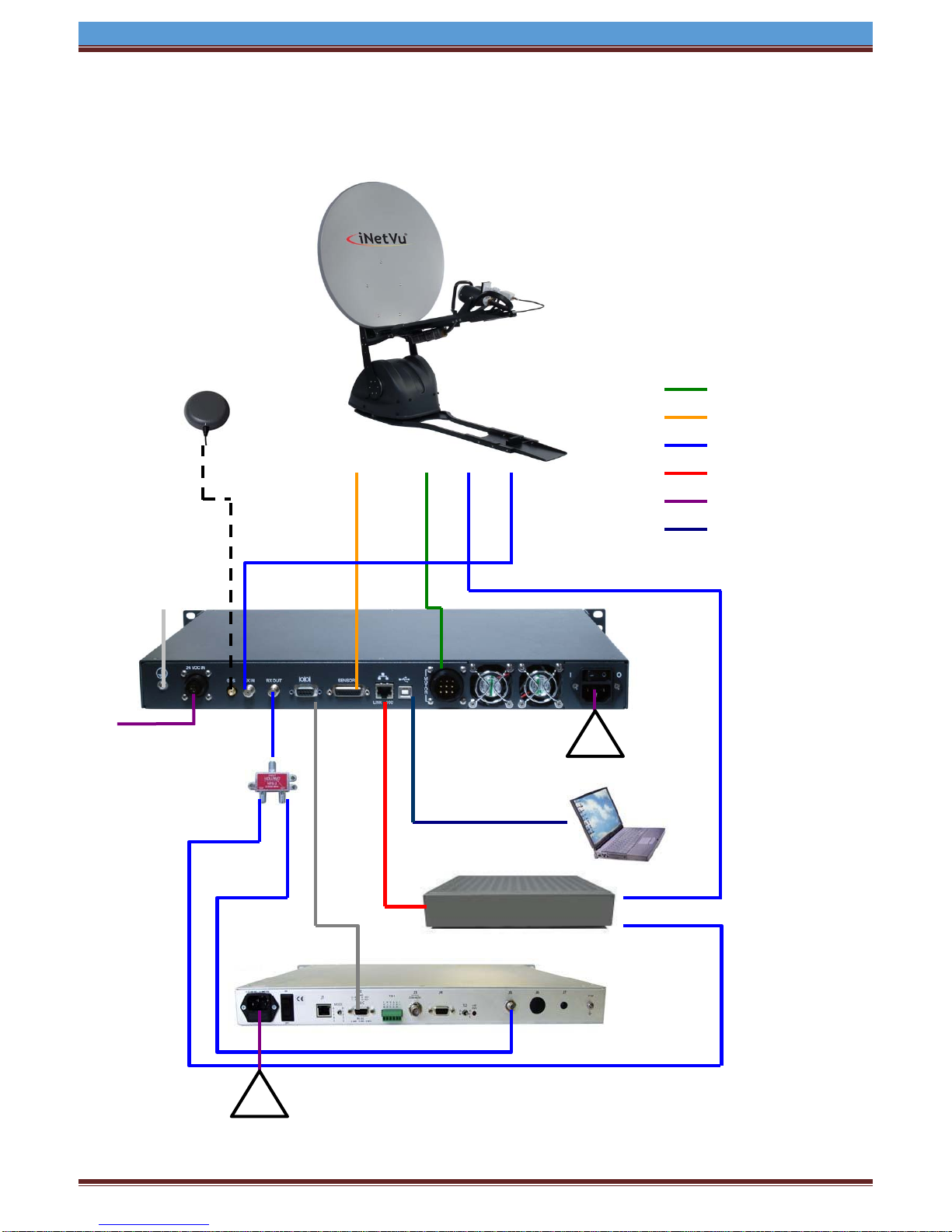

1.7 Option 3: BR300L with MODEM – PC USB Connection

90 - 264 VAC

GPS

Antenna

Sensor

Cable

DB9 Male to

Female Serial

Cable (Ensure NULL

modem adapter is attached

to cable or controller)

RX OUT

SAT OUT

RX IN

Ensure LNB

Power Switch

is TURNED

OFF on the

Beacon

Receiver

Motor Control Cable

Sensor Cable

RG6 Coaxial Cable

Network Cable

USB Cable

Power Cable

LNB should be

powered from the

7000 controller

Motor

Cable

SAT IN

Network

Cable

USB Cable

*Ground

protection

24 VDC Input

(option)

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 8

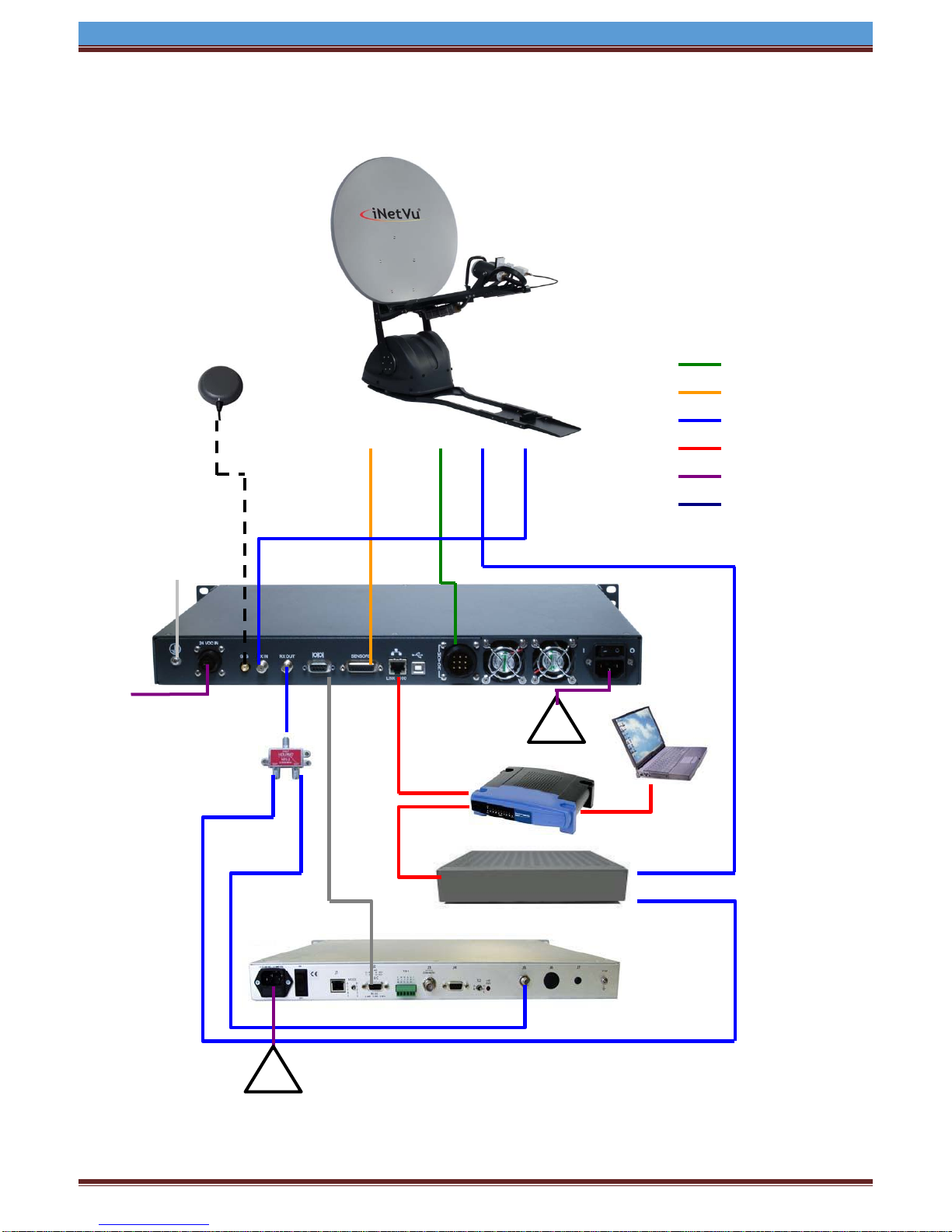

1.8 Option 4: BR300L with MODEM – PC Network Connection

90 - 264 VAC

GPS

Antenna

Sensor

Cable

DB9 Male to

Female Serial

Cable (Ensure NULL

modem adapter is attached

to cable or controller)

RX OUT

SAT OUT

RX IN

Ensure LNB

Power Switch

is TURNED

OFF on the

Beacon

Receiver

Motor Control Cable

Sensor Cable

RG6 Coaxial Cable

Network Cable

USB Cable

Power Cable

LNB should be

powered from the

7000 controller

Motor

Cable

SAT IN

Network

Cable

A.B.C.D+2

255.255.255.X

A.B.C.D+1

255.255.255.X

A.B.C.D

255.255.255.X

*Ground

protection

24 VDC Input

(option)

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 9

1.9 Software Setup and Initial Configuration Procedure with BR300L

1. Power ON your PC/Notebook, 7000 Controller and install the iNetVu® 7000 Mobile Software

from the installation CD/USB Drive. For USB interface please install correct USB drivers and skip

to step (8).

2. If you are using the network interface to communicate with the 7000 Controller, set the

PC/Notebook to the same network as the 7000 Controller. (If you are using the USB interface,

you may skip to step (8).

3. Open Network and Sharing Center\Network

Connections, right-click your network card, and select

Properties.

4. Select Internet Protocol Version 4 (TCP/IPv4) and click

Properties.

5. Select Use the following IP address.

Set your PC to the same subnet as the 7000 Controller.

IP Address: A.B.C.D+2

Subnet Mask: 255.255.255.0

Gateway: A.B.C.D (Modem/Router IP)

The Gateway is usually the Router IP address. If no router is used, it is

usually the VSAT Modem IP Address.

Set the DNS IP Addresses if required.

INETVU® MOBILE SYSTEM QUICK START – BEACON RECEIVER BR300L

C-COM Satellite Systems Inc. Page 10

6. Set the 7000 Controller to the same network as the PC and VSAT Modem.

*Note: The controller IP should be set in the controller through the LCD interface prior to entering

it into the software tool for proper PC to Controller Communication through network interface.

(USB Interface users may skip this step)

To Configure the IP address on the controller, you must navigate to the CONF2 menu using the LCD

Interface. (Default password “password”)

a. Navigate to the “IP” menu and press the “ENTER” button.

b. Press the ‘↑’ button to allow for modification on the C_IP field and set the IP address of the controller.

For example, if the Modem/Router IP is 192.168.0.1 then the controller IP could be set to 192.168.0.2.

Press the “ENTER” button once the change is complete.

c. Press the “Exit” button twice to exit out of the configuration menu. When prompted if you would like to

save configuration, press the ‘↑’ button to select “Y” (yes) and press “Enter”.

d. Click the “reset” button on the controller.

You may view the 7000 Controller IP from the LCD interface via – MONITOR IP(C_IP)

S2 MB EL AZ PL GP

C1 C2 C3 DS SG IP SR

C_IP: 192.168.000.002

M_IP: 192.168.000.001
