User Guide Please read the Important Notice and Warnings at the end of this document 002-37239 Rev. **

www.infineon.com 2023-07-20

KIT_T2G-B-E_LITE user guide



Scope and purpose

This document serves as a guide for using the KIT_T2G-B-E_LITE. This document explains the kit operation,

describes the Sample Driver Library (SDL) and its operation, and the hardware details of the board.

Intended audience

This document is intended for KIT_T2G-B-E_LITE users.

Reference documents

This user guide should be read in conjunction with the following documents:

•AN220118 - Getting started with 

•Entry (CYT2BL series) datasheet


User Guide 2 002-37239 Rev. **
 2023-07-20

KIT_T2G-B-E_LITE user guide

Table of contents


About this document....................................................................................................................... 1
Table of contents............................................................................................................................ 2
Safety and regulatory compliance information .................................................................................. 3
General safety instructions.............................................................................................................. 3
1Introduction .......................................................................................................................... 4
1.1 Getting started.........................................................................................................................................4
1.2 Additional learning resources.................................................................................................................4
1.3 Technical support....................................................................................................................................5
1.4 Documentation conventions ..................................................................................................................5
1.5 Abbreviations and definitions.................................................................................................................5
2Kit details.............................................................................................................................. 7
2.1 Kit contents .............................................................................................................................................7
2.2 Board details ...........................................................................................................................................7
3Kit operation ........................................................................................................................13
3.1 Theory of operation...............................................................................................................................13
3.2 KitProg3: Onboard programmer/debugger .........................................................................................17
3.2.1 Programming and debugging using TRAVEO™ T2G Sample driver library software.....................17
3.2.2 USB-UART bridge .............................................................................................................................19
4Hardware .............................................................................................................................20
4.1 KIT_T2G-B-E_Lite Kit Connections .......................................................................................................20
4.1.1 USER LEDs ........................................................................................................................................20
4.1.2 USER switches..................................................................................................................................20
4.1.3 RESET switch....................................................................................................................................20
4.1.4 MODE switch.....................................................................................................................................20
4.2 System Configuration ...........................................................................................................................21
4.3 Schematics ............................................................................................................................................21
4.4 Layouts ..................................................................................................................................................38
Revision history.............................................................................................................................41



User Guide 3 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Safety and regulatory compliance information



This kit is intended for development purposes only. Users are advised to test and evaluate this kit in an RF

development environment.

Safety evaluation for this kit is done in factory default settings using default accessories shipped with the kit. All

evaluations for safety are carried out using a 5-V (USB 2.0, @ 500 mA) supply. Attaching additional wiring to this

product or modifying the product operation from the factory default may affect its performance and cause

interference with other apparatus in the immediate vicinity. If such interference is detected, suitable mitigating

measures should be taken.

This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all

required authorizations are first obtained. Contact Infineon supportfor details.

These kits contain electrostatic discharge (ESD) sensitive devices.

Electrostatic charges readily accumulate on the human body and any

equipment, which can cause a discharge without detection. Permanent

damage may occur on devices subjected to high-energy discharges. Proper

ESD precautions are recommended to avoid performance degradation or loss

of functionality. Store unused kits in the protective shipping package.

End-of-life/product recycling

The end-of-life cycle for this kit is five years from the date of manufacture

mentioned on the back of the box. Contact your nearest recycler to discard

the kit.



ESD protection

ESD can damage boards and associated components. Infineon recommends that you perform procedures only

at an ESD workstation. If an ESD workstation is unavailable, use appropriate ESD protection by wearing an anti-

static wrist strap attached to the chassis ground (any unpainted metal surface) on your board when handling

parts.

Handling boards

This board is sensitive to ESD. Hold the board only by its edges. After removing the board from its box, place it

on a grounded, static-free surface. Use a conductive foam pad, if available. Do not slide the board over any

surface.

User Guide 4 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Introduction

1

Thank you for your interest in the KIT_T2G-B-E_LITE. The TRAVEO™ T2G Body Entry Lite evaluation kit enables

you to evaluate and develop your applications using the ody Entry MCU (hereafter called

“TRAVEO™ T2G-B-E MCU”).

The TRAVEO™ T2G-B-E MCU is designed for industrial applications and is a true programmable embedded

system-on-chip, integrating up to 160-MHz Arm® Cortex®-M4F as the primary application processors, a 100-MHz

Arm® Cortex®-M0+ that supports low-power operations, up to 4-MB flash and 512-KB SRAM, Secure Digital Host

Controller (SDHC) supporting SD/SDIO/eMMC interfaces, and programmable analog and digital peripherals that

allow faster time-to-market.

The evaluation board features an on-board programmer/debugger (KitProg3), a micro-B connector for the USB

device interface, three user LEDs, one potentiometer, and two push buttons. The board supports operating

voltages from 1.8 V to 5.0 V for the TRAVEO™ T2G-B-E MCU.

You can use ModusToolbox™ software to develop and debug your TRAVEO™ T2G-B-E MCU projects.

 is a set of tools that enable you to integrate these devices into your existing

development methodology.

If you are new to TRAVEO™ T2G-B-E MCU and "Sample Driver Library (SDL)", refer to the application note

AN220118 -  to help you familiarize with the TRAVEO™ T2G-

B-E MCU and help you create your own design using the SDL.

1.1 

This guide helps you to get acquainted with this evaluation kit:

•The Kit details chapter provides the kit and package details and board details.

•The Kit operation chapter describes the major features of the TRAVEO™ T2G-B-E evaluation board and

functionalities such as programming, debugging, and the USB-UART, and USB-I2C bridges.

•The Hardware chapter provides a detailed hardware description, kit schematics, and the bill of materials

(BOM).

•The SDL supports application development using the TRAVEO™ T2G-B-E evaluation kit. The SDL simplified

software development for TRAVEO™T2G devices includes the following:

- Drivers for an extensive set of peripherals.

- Arm® Cortex® Microcontroller Software Interface Standard (CMSIS) core header files directly from the

CMSIS 5.7 release.

- CMSIS compliant device header files, standup code (platform initialization), and device configuration

header files.

- Application programming interface reference manual.

- Examples to evaluate various peripherals.

•SDL is provided as an executable, tested on Windows 10 with a minimum installation size requirement of

around 400 MB.

1.2 

Infineon provides a wealth of data at www.infineon.com/cms/en/product/microcontroller/32-bit-traveo-

t2g-arm-cortex-microcontroller to help you to select the right TRAVEO™ T2G MCU device for your design and

to help you quickly and effectively integrate the device into your design.

User Guide 5 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Introduction

1.3 

For assistance, go to www.infineon.com/support. Visit community.infineon.com to ask your questions in

Infineon developer community.

You can also use the following support resources if you need quick assistance:

•Self-help (Technical documents)

1.4 

Table 1 Document conventions for guides

1.5 

Table 2 Abbreviations

Abbreviation

Definition

ADC

analog-to-digital converter

BOM

bill of materials

CINT

Integration Capacitor

CMOD

Modulator Capacitor

CPU

central processing unit

CSD

capacitive sigma delta

CSX

CAPSENSE™ Crosspoint

CTANK

Shield Tank Capacitor

direct current

ECO

external crystal oscillator

ESD

electrostatic discharge

FPC

flexible printed circuit

GPIO

general-purpose input/output

integrated circuit

IDE

integrated development environment

IoT

Internet of Things

Convention

Usage

Courier New

Displays user-entered text and source code

Italics

Displays file names and reference documentation:

Read about the sourcefile.hex file in the PSoC™Creator user guide.

File > Open

Represents menu paths: File > Open > New Project

Bold

Displays commands, menu paths, and icon names in procedures:

Click the File icon and then click Open.

Times New Roman

Displays an equation:

2 + 2 = 4

Text in gray boxes

Describes Cautions or unique functionality of the product.

User Guide 6 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Introduction

Abbreviation

Definition

I2C

inter-integrated circuit

I2S

Inter-IC Sound

LED

light-emitting diode

LPO

low power oscillator

personal computer

PDL

peripheral driver library

QSPI

Quad serial peripheral interface

SDHC

Secure Digital Host Controller

SDIO

Secure Digital Input Output

SDK

software development kit

SMIF

Serial Memory Interface

SPI

Serial Peripheral Interface

SRAM

static random-access memory

SWD

Serial Wire Debug

UART

universal asynchronous receiver transmitter

USB

Universal Serial Bus

WCO

watch crystal oscillator

User Guide 7 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Kit details

2

2.1 

•KIT_T2G-B-E_LITE board

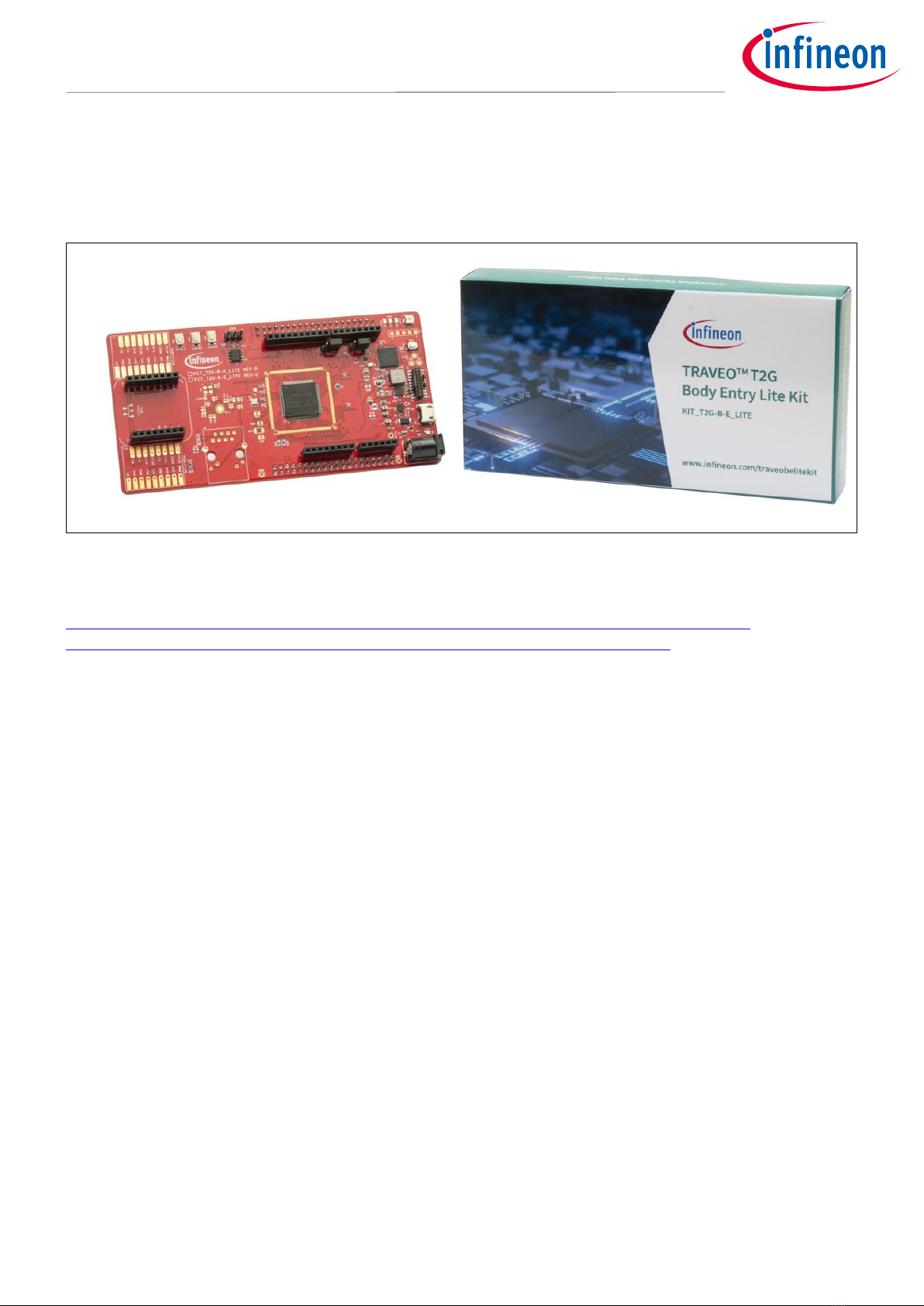

Figure 1 Kit contents

Inspect the contents of the kit; if you find any part missing, go to

https://www.infineon.com/cms/en/product/microcontroller/32-bit-traveo-t2g-arm-cortex-

microcontroller/32-bit-traveo-t2g-arm-cortex-for-body/traveo-t2g-cyt2bl-series.

2.2 

The KIT_T2G-B-E_LITE has the following features:

•TRAVEO™ T2G-B-E MCU. See the device datasheet.

•KitProg3 on-board SWD programmer/debugger, USB-UART, and USB-I2C bridge functionality.

•A micro-B connector for USB device interface

•Selectable input supply voltages of 3.3 V and 5.0 V for the TRAVEO™ T2G-B-E MCU.

•Three user LEDs, two user buttons, and a reset button for the TRAVEO™ T2G-B-E MCU

•A potentiometer which can be used to simulate analog sensor output

•A mode button and a mode LED for KitProg3

User Guide 8 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Kit details

3456 7

2429 28 27 26 222120

Figure 2 KIT_T2G-B-E_LITE board top view

1. Shield2Go connectors (Not Mounted) (J7, J19)

2. MikroBUS connectors (J11, J12)

3. 32.768-kHz oscillator for WCO (Y1)

4. 16-MHz oscillator for ECO (Y2)

5. 8-pin Arduino header (J13)

6. Expansion header 1 (X1)

7. 6-pin Arduino header (J15)

8. DC Power Jack (J1)

9. Power LED (LED2)

10.KitProg3 USB Micro-B Connector (J2)

11.TRAVEO™ T2G microcontroller (U7)

12.MIPI10/20 DEBUG connector (J4)

13.VDDIO current measurement jumper (J21)

14.PSoC™5LP based KitProg3 (U4)

15.Mode switch (SW1)

16.KitProg3 Status LED (LED1)

17.VDD current measurement jumper (J20)

18.8-pin Arduino header (J14)

19.Potentiometer (VR5)

20.USER LED3 (LED5)

21.USER LED2 (LED4)

User Guide 9 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Kit details

22.USER LED1 (LED3)

23.Expansion Header 1 (X2)

24.10-pin Arduino header (J16)

25.CAN FD transceiver (U8)

26.CAN FD connector (J5)

27.USER2 button (SW3)

28.USER1 button (SW2)

29.RESET button (SW1)

KIT_T2G-B-E_LITE board pinout details

GND

P17_1

N.C.

P0_2

P0_3

P2_0

P14_3

N.C.

SPI_CS3

SPI_CS1

P7_6

VIN

3V3

P17_2

N.C.

SPI_MOSI

SPI_CS0

SPI_CLK

SPI_MISO

N.C.

XRES_L_MCU

ADC1_19

SPI_CS2

P7_7

N.C.

GND

UART_RX (D0)

UART_TX (D1)

P0_2 (D2)

P0_3 (D3)

P2_0 (D4)

P2_1 (D5)

P14_3 (D6)

P17_1 (D7)

Shield2Go

AN1

AN2

SDA

SCL

GND

3V3

INT

PWM

RST

GPIO

CLK

MOSI

MISO

Shield2Go

AN1

AN2

SDA

SCL

GND

3V3

INT

PWM

RST

GPIO

CLK

MOSI

MISO

mikro BUS

RST

SCK

MISO

MOSI

3V3

GND

PWM

INT

SCL

SDA

GND

(VIN) VIN

(GND_2) GND

(GND_1) GND

(5V) 5V

(3V3) 3V3

(RST) XRES_L_MCU

(IOREF) 3V3

(P1) N.C.

(AD4/SDA) I2C_SDA

(AREF) 5V

(GND_3) GND

(D13) SPI_CLK

(D12) SPI_MISO

(D11) SPI_MOSI

(D10) SPI_CS3

(D9) P11_0

(AD5/SCL) I2C_SCL

(D8) P17_2

GND

N.C.

P11_0

P11_2

ADC1_6

ADC1_8

N.C.

UART_RX

N.C.

USER_SW1

USER_LED1

USER_LED3

N.C.

VIN

3V3

N.C.

POT_AOUT

P11_1

ADC1_22

ADC1_7

N.C.

P2_1

UART_TX

USER_SW2

USER_LED2

N.C.

GND

POT_AOUT (A0)

ADC1_6 (A1)

ADC1_7 (A2)

ADC1_8 (A3)

ADC1_19 (A4)

ADC1_22 (A5)

Figure 3 KIT_T2G-B-E_LITE board pinout

User Guide 10 002-37239 Rev. **

2023-07-20

KIT_T2G-B-E_LITE user guide

Kit details

Table 3 KIT_T2G-B-E_LITE board pinout

Primary onboard function

Secondary onboard

function

Connection details

-B-E MCU pins

XRES

Hardware reset

–

P12[0]

CAN transmit CAN_TX

–

Connected to TxD of

CAN FD transceiver

TLE9251VSJ

P12[1]

CAN receive CAN_RX

–

Connected to RxD of

CAN FD transceiver

TLE9251VSJ

P6[0]

Potentiometer (POT) output

POT_AOUT

Arduino header (J15.1)

–

P13[0]

D12 –header compatible with Arduino

(J16.5)

Expansion header

(X1.20)

–

P13[1]

D11 –header compatible with Arduino

(J16.4)

Expansion header

(X1.14)

–

P13[2]

D13 –header compatible with Arduino

(J16.6)

Expansion header

(X1.18)

–

P13[6]

D10 –header compatible with Arduino

(J16.3)

Expansion header

(X1.33)

–

P11[0]

D9 –header compatible with Arduino

(J16.2)

Shield2Go Connector

(J7.12)

Expansion header

(X2.26)

–

P17[2]

D8 –header compatible with Arduino

(J16.1)

Shield2Go Connector

(J19.13)

Expansion header

(X1.4)

–

P14[0]

UART_RX

Shield2Go Connector

(J7.10, J19.10)

MikroBUS Connector

(J12.6)

This pin is connected to

the KitProg3 UART Tx

pin.

P14[1]

UART_TX

Pin D1 of connector

J4.2 compatible with

Arduino Shield2Go

Connector (J7.11,

J19.11)

MikroBUS Connector

(J12.5)

This pin is connected to

the KitProg3 UART Rx

pin.

Remove R132 and R142,

and install R136 to

connect to Pin D1 of

connector J4.2

compatible with

Arduino.

P0[2]

Pin D2 of connector J14.3 compatible

with Arduino

–

P0[3]

Pin D3 of connector J14.4 compatible

with Arduino

–

Inhaltsverzeichnis

Andere Infineon Computerhardware Handbücher

Infineon

Infineon BGT60LTR11AIP EBG Bedienungsanleitung

Infineon

Infineon BTN9970 Bedienungsanleitung

Infineon

Infineon EVAL-XMC4800PSOC6M5 Bedienungsanleitung

Infineon

Infineon EiceDRIVER 2EDL803 Series Bedienungsanleitung

Infineon

Infineon DEMO FX3 U3V CAM01 EZ-USB FX3 Bedienungsanleitung

Infineon

Infineon TLE493D-P2B6 MS2GO Bedienungsanleitung

Infineon

Infineon AIROC CYW43022 Bedienungsanleitung

Infineon

Infineon CY8CPROTO-062S2-43439 Bedienungsanleitung

Infineon

Infineon SPI F-RAM FM33256B Bedienungsanleitung

Infineon

Infineon AIROC IFW56810-00 Bedienungsanleitung

Infineon

Infineon CY7113 EZ-PD PMG1-S3 Bedienungsanleitung

Infineon

Infineon EZ-PD PAG2S-2P Bedienungsanleitung

Infineon

Infineon TRAVEO T2G Bedienungsanleitung

Infineon

Infineon TLE4241SYS SHIELD Bedienungsanleitung

Infineon

Infineon AIROC CYBLE-343072-EVAL-M2B Bedienungsanleitung

Infineon

Infineon REF-Vacuum-C101-2ED Bedienungsanleitung

Infineon

Infineon Traveo II CPU board Bedienungsanleitung

Infineon

Infineon BTS3011TE Bedienungsanleitung

Infineon

Infineon CYSBSYSKIT-DEV-01 Bedienungsanleitung

Infineon

Infineon XMC7200 Bedienungsanleitung

Infineon

Infineon TLD5501-2QV Buck Demo Bedienungsanleitung

Infineon

Infineon PSoC CY3290-CYAT8168X Bedienungsanleitung

Infineon

Infineon AIROC CYW9 907 Series Bedienungsanleitung

Infineon

Infineon CYSBSYS-RP01 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
