Infinix X683
User Manual (H)
1
E
Ex
xp
pl
lo
os
si
io
on
n
d
di
ia
ag
gr
ra
am
m
s
sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
n
1
FL(CTP+LCM) 6.78HD+h
2
REC Deco partasm X682
Black
3
F hsg asm X682 Black
4
F CAM frame asm
5
PCBA MB
6
CAM AF 16M S5K3P9SX
7
Distance Sensor rubber
8
Shield Seal Cop foil
X682 PA
9
Waterproof label
paper 3mm RoHS
10
CAM FF 8M
11
R CAM Con foams
microspur
12
REC con foam
13
TOP seal mylar
14
machine screw M1.4*
L3.5*D2.5*H0.5 black
15
card holder asm X682
16
F CAM Con Sealrubber
17
UP frame X682
18
R CAM rubber X682 2M
2
microspur Black
19
R CAM rubber X682 2M Grey
20
R CAM lens X682
21
MAIN CAM radiating Cop foil
22
F CAM con fb
23
REC_1206W_H20
9.4*3.5*0.75 black
24
FPC REC X682
25
Shield graphite film
26
Bat cover asm
27
CAM_FF_2M_OV2685
28
CAM_FF_2M_GC02M1B
29
CAM_FF_8W
30
Shield Seal Cop foil X682 BB
31
FPC Side key
32
Vignette R CAM Con
Sealrubber
33
FM(SW9008)
34
R CAM Con foams 8W
35
BAT con imp steelAds
36
BAT con imp steel asm
37
R CAM rubber X682 8W Black
38
FP support PC slice
39
FP support PC slice
40
LCM FPCcon rubber
41
Shield Seal Cop foil X682 RF
42
Speaker
43
PCBA SUB
44
Vibrate
45
Fragile label paper
2.5mm general
46
coaxial cable
47
mc screw M1.4*L2.5*
D2.5*H0.5 silver glue
48
SPK frame asm
49
Battery
50
MAIN FPC con rubber
3
Know your phone
1. Front camera
2. Volume + key
3. Volume - key
4. Power key
①
4
SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card
installation.
5

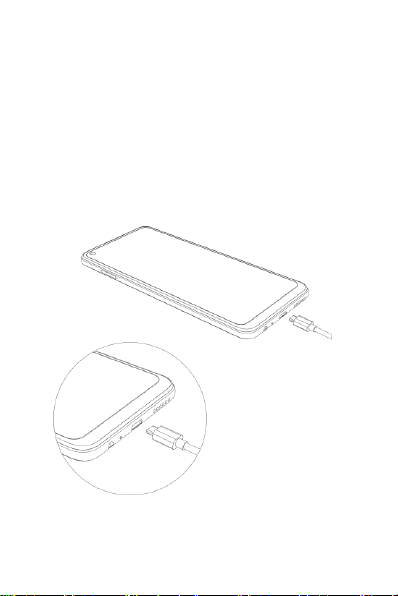

Charging the phone
You can charge your device using a charger or by connecting
it to the computer using a USB cable (comes with the
phone).
1. Please remind the front and back of the plug.
2. Use only INFINIX charger and cables. Other chargers or
cables may damage the device. This will invalidate your
phone warranty.
6
FCC Statement
1. This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference.
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
7
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter
and receiver. It is designed and
manufactured not to exceed the emission
limits for exposure to radiofrequency (RF)
energy set by the Federal Communications
Commission of the U.S. Government. These
limits are part of comprehensive guidelines
and establish permitted levels of RF energy
8
for the general population. The guidelines
are based on standards that were developed
by independent scientific organizations
through periodic and thorough evaluation of
scientific studies. The standards include a
substantial safety margin designed to
assure the safety of all persons, regardless
of age and health. The exposure standard for
wireless mobile phones employs a unit of
measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set
by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its
highest certified power level in all tested
frequency bands. Although the SAR is
determined at the highest certified power
level, the actual SAR level of the phone
while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels
so as to use only the power required to reach
the network. In general, the closer you are
to a wireless base station antenna, the
lower the power output. Before a phone model
is available for sale to the public, it must
be tested and certified to the FCC that it
