Infinix X659B

User Manual (Av&Aw)

FL(CTP+LCM)

REC DECO

Fornt housing Assembly

Fornt CAM rubber

Front Camera

2in1 receiver spk

LT sensor Seal rubber

FPC REC SPK

PCBA Main

Back CAM Conn foam

Fingerchip

Back main Camera

Back sub Camera

Sub Cam rubber

REC SPK con fb

Front cam con fb

UP frame asm

M1.4xL3.5 SCREW

Finger frame

M1.4*L1.2*D3.5 SCREW

3in1 card holder

Batttery cover asm

Side key

Back Cam Lens

M1.4xL3.5 SCREW

Down frame asm

Bat con rubber

Finger Con foams

LCM FPC con rubber

USB rubber

Side key FPC

Ear rubber

Battery

SUB PCBA

Coaxial cable

Moto

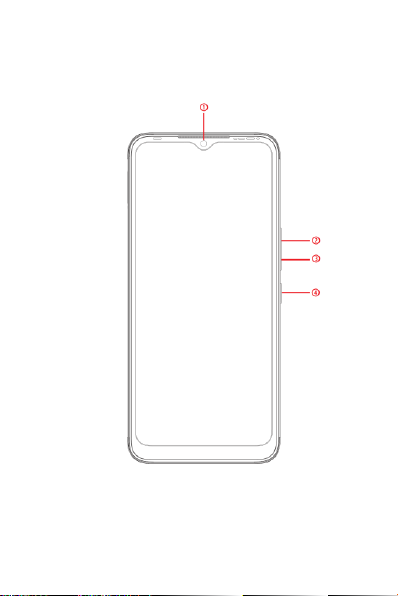

Know your phone

1. Front camera

2. Volume + key

3. Volume - key

4. Power key

①

SIM/SD card installation

1. Power off mobile.

2. Refer to the following picture for SIM / SD card

installation.

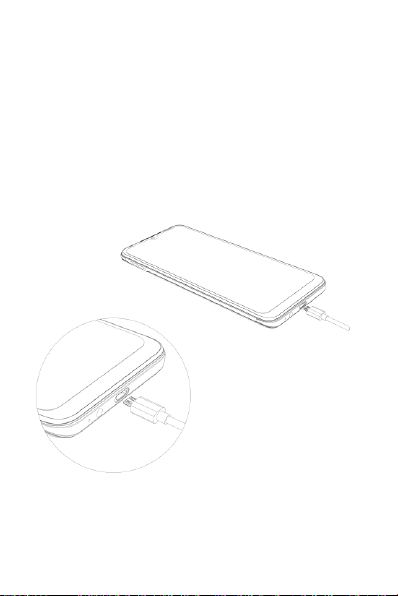

Charging the phone

You can charge your device using a charger or by connecting

it to the computer using a USB cable (comes with the

phone).

1. Please remind the front and back of the plug.

2. Use only INFINIX charger and cables. Other chargers or

cables may damage the device. This will invalidate your

phone warranty.

FCC Statement

1.This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

2.Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate

the equipment.

NOTE:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.`

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

SAR Information Statement

Your wireless phone is a radio transmitter and receiver. It is designed

and manufactured not to exceed the emission limits for exposure to

radiofrequency (RF) energy set by the Federal Communications

Commission of the U.S. Government. These limits are part of

comprehensive guidelines and establish permitted levels of RF energy

for the general population. The guidelines are based on standards that

were developed by independent scientific organizations through

periodic and thorough evaluation of scientific studies. The standards

include a substantial safety margin designed to assure the safety of all

persons, regardless of age and health. The exposure standard for

wireless mobile phones employs a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6

W/kg. * Tests for SAR are conducted with the phone transmitting at its

highest certified power level in all tested frequency bands. Although

the SAR is determined at the highest certified power level, the actual

SAR level of the phone while operating can be well below the

maximum value. This is because the phone is designed to operate at

multiple power levels so as to use only the power required to reach

the network. In general, the closer you are to a wireless base station

antenna, the lower the power output. Before a phone model is

available for sale to the public, it must be tested and certified to the

FCC that it does not exceed the limit established by the government

adopted requirement for safe exposure. The tests are performed in

positions and locations (e.g., at the ear and worn on the body) as

required by the FCC for each model. The highest SAR value for this

model phone when tested for use at the ear is 0.429W/Kg and when

worn on the body, as described in this user guide, is

0.225W/Kg(Body-worn measurements differ among phone models,

depending upon available accessories and FCC requirements). The

maximum scaled SAR in hotspot mode is 0.265W/Kg. While there may

be differences between the SAR levels of various phones and at

various positions, they all meet the government requirement for safe

exposure. The FCC has granted an Equipment Authorization for this

model phone with all reported SAR levels evaluated as in compliance

with the FCC RFexposure guidelines. SAR information on this model

phone is on file with the FCC and can be found under the Display

Grant section of http://www.fcc.gov/ oet/fccid after searching on

FCC ID: 2AIZN-X659B Additional information on Specific Absorption

Rates (SAR) can be found on the Cellular Telecommunications Industry

Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the

United States and Canada, the SAR limit for mobile phones used by the

public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The

standard incorporates a sub-stantial margin of safety to give additional

protection for the public and to account for any variations in

measurements.

Body-worn Operation

This device was tested for typical body-worn operations. To comply

with RF exposure requirements, a minimum separation distance

of 10mm must be maintained between the user’s body and the

handset, including the antenna. Third-party belt-clips, holsters,

and similar accessories used by this device should not contain any

metallic components. Body-worn accessories that do not meet these

requirements may not comply with RF exposure requirements and

should be avoided. Use only the supplied or an approved

For DTS patents, see http://patents.dts.com. Manufactured under license

from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol

together are registered trademarks or trademarks of DTS, Inc. in the

Operating System：AndroidTM

Android is a trademark of Google LLC.
