InFocus LP 650 Bedienungsanleitung

650

Simply designed to be shared

User’s Guide

InFocus Corporation

27500 SW Parkway Avenue

Wilsonville, Oregon 97070-9215

1-800-294-6400 •503-685-8888

Fax: 503-685-8887

http://www.infocus.com

In Europe:

Olympia 1 • NL-1213 NS

Hilversum, The Netherlands

Phone: (31) 35 6474000

Fax: (31) 35 6423999

In Asia:

238A Thomson Road

#18-01/04 Novena Square

Singapore 307684

Telephone: (65) 6334-9005

Fax: (65) 6333-4525

Printed on

recycled

paper.

650

5703LP650COVER.qxd 5/30/02 11:00 AM Page 1

This entire user’s guide is available on the enclosed CD as an Adobe Acrobat pdf file in the following languages: English, French, German, Italian, Norwe-

gian, Portuguese, Spanish, Russian, Japanese, Korean, Traditional Chinese, Simplified Chinese. Before using this projector, please read these instructions.

LP650 User's Guide.fm Page 1 Monday, June 3, 2002 9:25 AM

Declaration of Conformity

Manufacturer: InFocus Corporation, 27500 SW Parkway Ave. Wilsonville, Oregon

97070 USA

European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands

We declare under our sole responsibility that the LP650 projector conforms to the fol-

lowing directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

July, 2002

Australian Certification C-tick mark

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. InFocus, ProjectorNet, and LP are trademarks

or registered trademarks of InFocus Corporation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-

vide reasonable protection against harmful interference when the equipment is oper-

ated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme àla norme NMB-003 du Canada.

Safety Certifications

UL, CUL, TÜV, N OM, I RA M, G OS T

Remote Control Warning

Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote

control complies with applicable requirements of 21 CFR 1040.10 and 1040.11.

Remote control complies with applicable requirements of EN 60 825-1: 1994 +A11.

LP650 User's Guide.fm Page 2 Monday, June 3, 2002 9:25 AM

Table of Contents

Introduction 5

Included items 5

Projector components and features 6

Connecting a computer 7

Optional computer connections 7

Displaying a computer image 9

First-time projector use with Windows 98 10

Adjusting the image 12

Connecting a video device 13

Standard video connections 13

Optional video connections 13

Displaying a video image 14

Shutting down the projector 16

Troubleshooting your setup 16

Using the remote control 25

Troubleshooting the remote 25

Using the audio 26

Troubleshooting audio 26

Connecting external speakers 26

Optimizing computer images 27

Presentation features 27

Optimizing video images 28

Customizing the projector 28

Using the menus 29

Picture menu 30

Settings menu 33

Maintenance 36

Cleaning the lens 36

Replacing the projection lamp 37

Resetting the lamp timer 38

Using the security lock 39

Appendix 40

Specifications 40

Accessories 40

Projected image size 41

If you are experienced in setting up presentation systems, use the Quick

Start card that was included in the carry case. For complete details on con-

necting and operating the projector, refer to this User’s Guide. Electronic

versions of this user’s guide in multiple languages are available on the

included CD and on our website at www.infocus.com.

The website also has technical specifications (an interactive image size cal-

culator, laptop activation commands, connector pin outs, a glossary, the

product data sheet), a web store to buy accessories, and a page for online

registration.

Important Operating Considerations

Do not place the projector on a tablecloth or other soft covering that may

block the vents. Vents are placed along the left and right sides of the LP650,

as well as across the front of the projector. Do not use a non-approved ceil-

ing mount. In the unlikely event of the lamp rupturing, discard any edible

items placed in the surrounding area and thoroughly clean the area along

the sides and in the front of the projector.

2 ft (.6m) 2 ft (.6m)

2 ft (.6m)

Do not place objects in the areas along the side and in front of the projector

LP650 User's Guide.fm Page 3 Monday, June 3, 2002 9:25 AM

LP650 User's Guide.fm Page 4 Monday, June 3, 2002 9:25 AM

Introduction

Your new digital projector is easy to connect, easy to use, easy to maintain

and has XGA 1024x768 resolution.

The projector comes in a carry case that offers ample room for InFocus

accessory items such as the projector remote, color-coded cables, documen-

tation and CD. The color-coded cable straps and cables they contain make

your setup experience quick and easy, while the case’s design helps you

find and put away all items without the fear of anything becoming lost.

Online Registration:

receive product updates, announcements, and registration incentives.

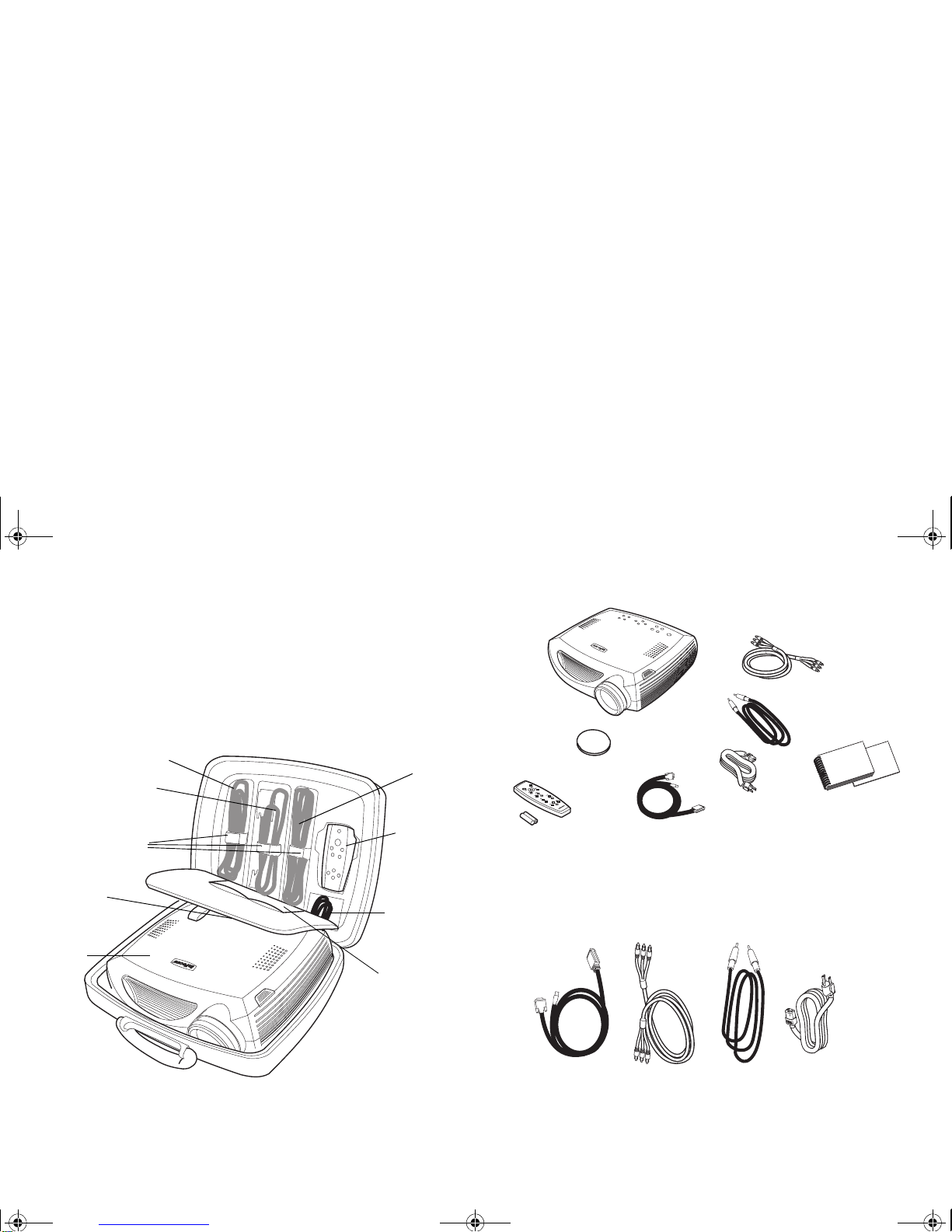

Included items

computer cable

power cable

video cable

remote

audio

cable

projector

user’s guide

quick start card

color-coded cable straps

and support

card *

* also holds business card

with CD,

and safety

card

user’s guide and CD,

remote computer

cable

projector

lens cap

power

cable

video cable

audio cable

quick start card,

safety card, support

card

computer

cable

video

cable

audio

cable

power

cable

LP650 User's Guide.fm Page 5 Monday, June 3, 2002 9:25 AM

Projector components and features

keypad

speakers

zoom

focus

elevator foot release

remote

control

receiver (IR)

air intake

vent

carrying

handle

remote control

receiver (IR)

connectors

leveling

foot

heat vent

remote control

receiver (IR)

computer 1 computer 2

video

monitor out network

serial control

audio in

audio in audio in

audio out

s-video

computer in

lock

remote control

receiver (IR)

power

connector network

compu

monitor

s-video video

connector

component

video

computer

1 & 2

computer 1

& 2 audio

serial

connector

external

speakers

(audio out)

LP650 User's Guide.fm Page 6 Monday, June 3, 2002 9:25 AM

Connecting a computer

Required computer connections

Connect the black end of the computer cable to the Computer 1 connector

on the projector. Connect the blue end to the video port on your computer.

If you are using a desktop computer, you first need to disconnect the moni-

tor cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To control your computer’s mouse using the projector’s remote control, con-

nect the USB connector on the computer cable to the computer. USB drivers

must be installed to use the USB feature. For more information, see page 11.

To have sound with your presentation, connect the audio cable to your com-

puter and to the computer Audio In connector on the projector.

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor out connector on the projector.

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

connect computer cable

connect power cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

connect computer cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

connect audio cable

computer1 computer 2

video

monitor network

serial control

audioin

audioin audio in

audioout

s-video

computer in

connect monitor cable

LP650 User's Guide.fm Page 7 Monday, June 3, 2002 9:25 AM

If you prefer connecting your computer to the projector with an optional

VESA cable, connect one end of the cable to the VESA port on your com-

puter, and connect the other end of the cable to the blue Computer 2 con-

nector on the projector.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s Serial connector. Specific

RS-232 commands can be found in the Service and Support section of our

website at www.infocus.com.

The projector can be managed by ProjectorNet networking software

through its Network connector.

Contact an authorized InFocus dealer or visit the ProjectorNet website at

www.infocus.com/projectornet for information on ProjectorNet.

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computerin

connect VESA cable

connect RS-232 cable

computer1 computer2

video

monitor network

serial control

audioin

audioin audioin

audioout

s-video

computer in

computer1 computer 2

video

monitor network

serialcontrol

audioin

audioin audioin

audioout

s-video

computerin

Network

connect network cable

LP650 User's Guide.fm Page 8 Monday, June 3, 2002 9:25 AM

Displaying a computer image

Remove the lens cap.

Press the Power button on the top of the projector or the remote.

The LED flashes green and the fans start to run. When the lamp comes on,

the startup screen is displayed and the LED is steady green. It can take a

minute for the image to achieve full brightness.

? No startup screen? Get help on page 17.

Turn on your computer.

The computer’s image should appear on the projection screen. If it doesn’t,

press the Computer button on the projector’s keypad.

Make sure your laptop’s external video port is active.

Many laptops do not automatically turn on their external video port when a

projector is connected. Usually a key combination like FN + F5 is used to

turn the external display on and off. Refer to your computer’s documenta-

tion to learn your computer’s key combination.

? No computer image? Try pressing the Auto Image

button on the keypad. Get help on page 17.

remove lens cap

press Power

turn on computer

activate laptop’s external port

LP650 User's Guide.fm Page 9 Monday, June 3, 2002 9:25 AM

Andere Handbücher für LP 650

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere InFocus Projektor Handbücher

InFocus

InFocus LPX9 Bedienungsanleitung

InFocus

InFocus LP 815 Kurzanleitung zur Einrichtung

InFocus

InFocus SP7205 Bedienungsanleitung

InFocus

InFocus IN5122 Bedienungsanleitung

InFocus

InFocus SP8600 series Bedienungsanleitung

InFocus

InFocus LP 740 LiteMount Bedienungsanleitung

InFocus

InFocus Work Big IN32 Bedienungsanleitung

InFocus

InFocus IN20 Series Bedienungsanleitung

InFocus

InFocus IN5110 Bedienungsanleitung

InFocus

InFocus SP7200 Bedienungsanleitung

InFocus

InFocus LP 640 Bedienungsanleitung

InFocus

InFocus Work Big IN2102 Bedienungsanleitung

InFocus

InFocus Work Big IN12 Bedienungsanleitung

InFocus

InFocus LP335 DRAGONFLY Bedienungsanleitung

InFocus

InFocus Proxima DP6870 Bedienungsanleitung

InFocus

InFocus IN114xv Bedienungsanleitung

InFocus

InFocus IN5122 Bedienungsanleitung

InFocus

InFocus in32 in34 Bedienungsanleitung

InFocus

InFocus LiteBoard IN3902LB Bedienungsanleitung

InFocus

InFocus IN2114 Bedienungsanleitung

InFocus

InFocus LP425z Bedienungsanleitung

InFocus

InFocus LP630 Bedienungsanleitung

InFocus

InFocus LP 840 Bedienungsanleitung

InFocus

InFocus RP10S Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung

Asus

Asus ZenBeam Latte Bedienungsanleitung
