Welcome

Congratulations on your purchase of a high-quality Insignia product.

Your NS-C2114 under-counter clock radio represents the state of the

art in clock radio design and is designed for reliable and trouble-free

performance.

Contents

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Setting up your radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Using your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Safety information

This symbol, located on back or bottom of the unit, is intended to

alert you to the presence of uninsulated, dangerous voltage within

your radio’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock.

This symbol is intended to alert you to the presence of important

operating and maintenance (servicing) instructions in the literature

accompanying your radio.

Warning To prevent fire or shock hazards, do not expose this unit to rain or

moisture.

Warning This product utilizes a Class 1 laser to read compact discs. This

laser compact disc player is equipped with safety switches to avoid

exposure when the CD tray is open and the safety interlocks are

defeated. Invisible laser radiation is present when the CD player's

tray is open and the system's interlock has failed or been defeated.

It is very important that you avoid direct exposure to the laser beam

at all times. Do not attempt to defeat or bypass the safety switches.

Any use of the controls or an adjustment to the procedures other

than those specified herein may result in hazardous radiation.

Warning To reduce the risk of fire, do not place any heating or cooking

apparatus beneath your radio.

NS-C2114.fm Page 1 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

Features

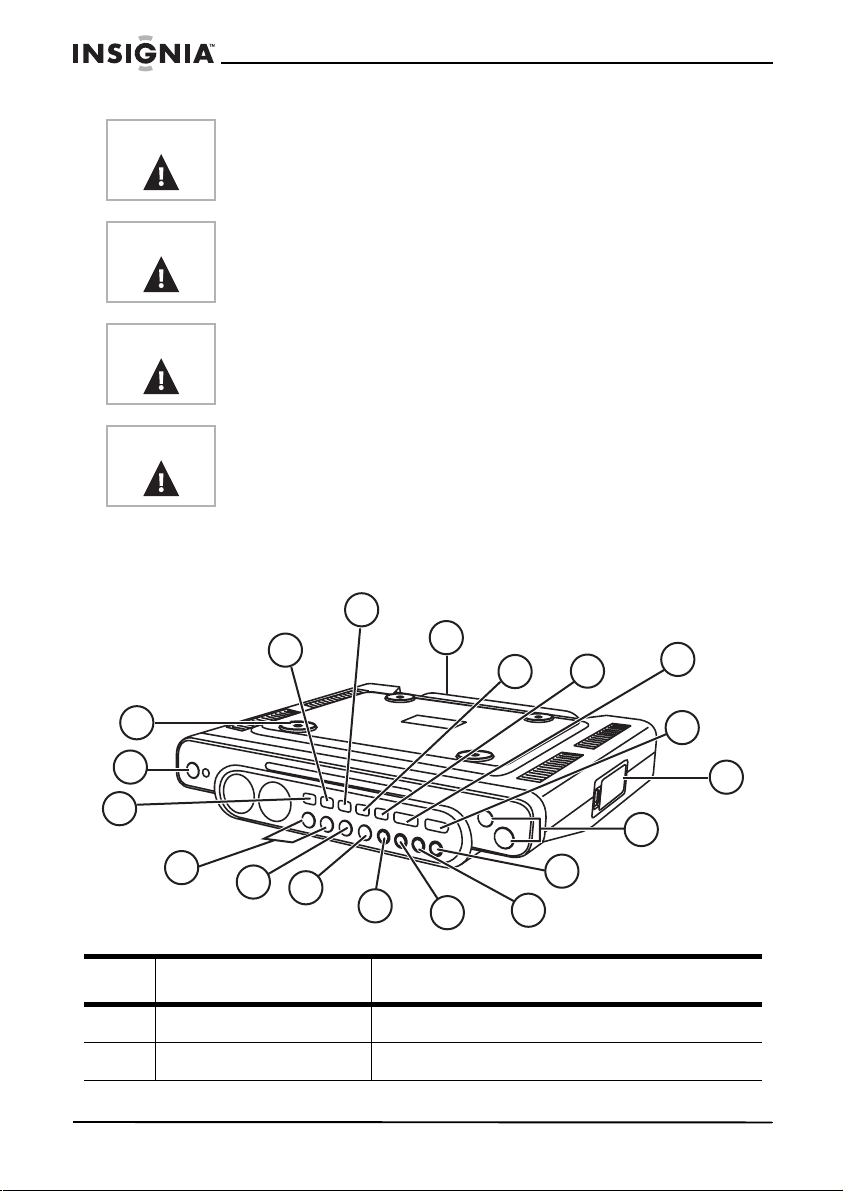

Front

Warning To reduce the risk of electric shock, do not remove the cover or

back. There are no user-serviceable parts inside. Refer all

servicing to qualified service personnel.

Warning To prevent electric shock, match the wide blade on the power cord

plug to the wide slot in the electrical outlet, and fully insert the plug.

Caution Batteries contain mercury. Do not put batteries in the trash.

Recycle or dispose of batteries as hazardous waste.

Caution When placing your unit on a lacquered or natural finish, protect

your furniture with a cloth or other protective material.

Feature Description

1 DISPLAY button Press to turn on the display.

2 TIMER button Press to set the kitchen timer.

456

NS-C2114.fm Page 2 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

3 DC jack Connect the optional cigarette lighter power

adapter into this jack on the back of your

radio.

4 PROG./MEM. button Press to program radio station presets. For

more information, see “Programming radio

station presets” on page 11.

5 FM ST. button When listening to an FM station broadcast in

stereo, press this button to switch between

STEREO and MONO.

6 FUNCTION button Press to select the play mode. You can select:

• WB–Weatherband radio

• CD–CD player

• TUNER–Radio

• AUX–External audio device

7 OPEN/CLOSE button Press to open and close the CD tray.

8 Battery compartment Insert two AAA batteries into this

compartment. Your radio uses the batteries to

save your settings when your radio is not

connected to another power source. You

cannot use the batteries to power your radio.

9 VOLUME buttons Press to increase or decrease the volume.

10 EQ button Press to select the equalizer mode. You can

select CLASSIC, JAZZ, ROCK, or POP.

11 MEM UP button Press to go to a higher preset station.

12 MEN DN button Press to go to a lower preset station.

13 REPEAT button Press to repeat a CD track or an entire CD.

14 PLAY/PAUSE button Press to pause CD playback. Press again to

resume playback.

15 STOP/BAND button If you are listening to a CD, press to stop

playback.

If you are listening to the radio, press to select

the AM or FM band.

Feature Description

NS-C2114.fm Page 3 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

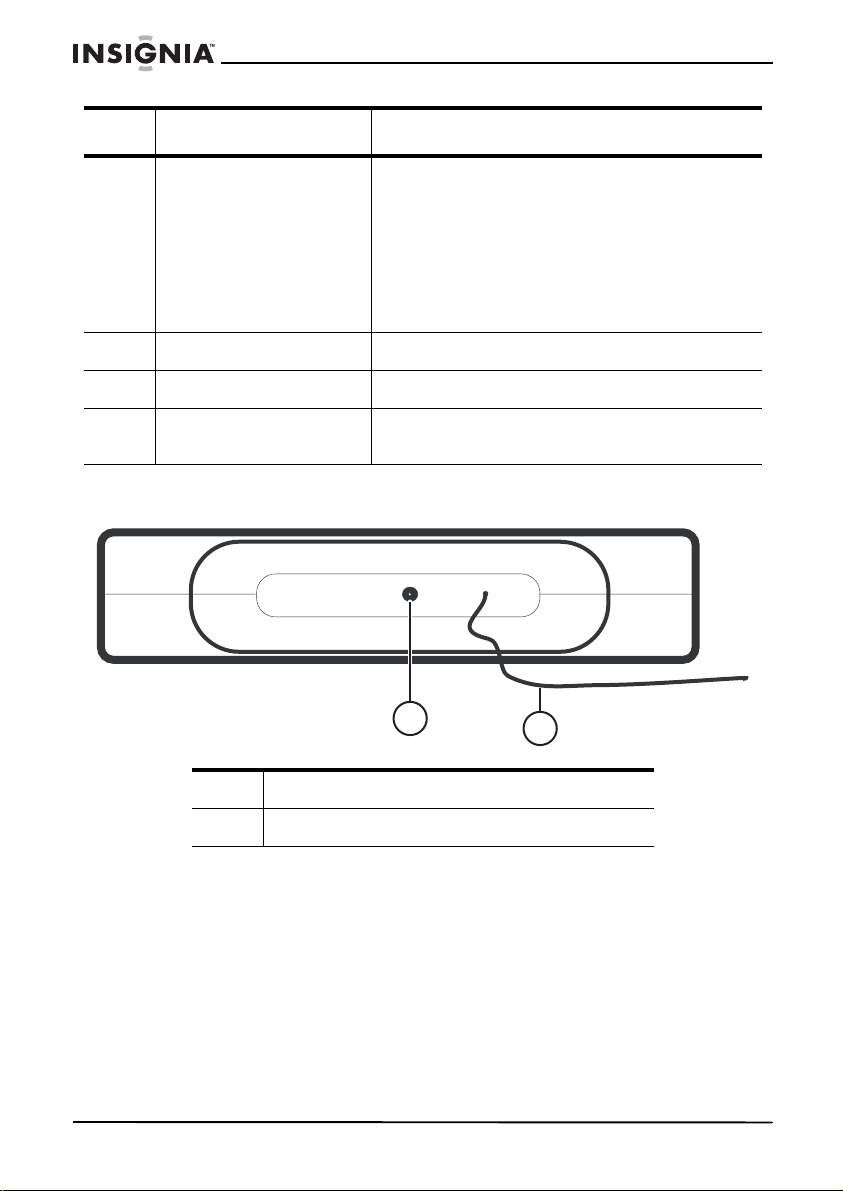

Back

16 SKIP/TUNING buttons If you are listening to a CD, press to go to the

previous or next track on the CD.

If you are listening to the radio, press to go to

a higher frequency station.

If you are setting the kitchen timer, press to

add additional minutes to the time.

If you are setting up a CD playlist, press to

select a track for the playlist.

17 CLOCK SET button Press to set the time.

18 POWER button Press to turn your radio on and off.

19 Mounting bracket Use this bracket to mount your radio under a

counter.

1 DC power connector

2 FM antenna

Feature Description

DC 12V FM ANT

NS-C2114.fm Page 4 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

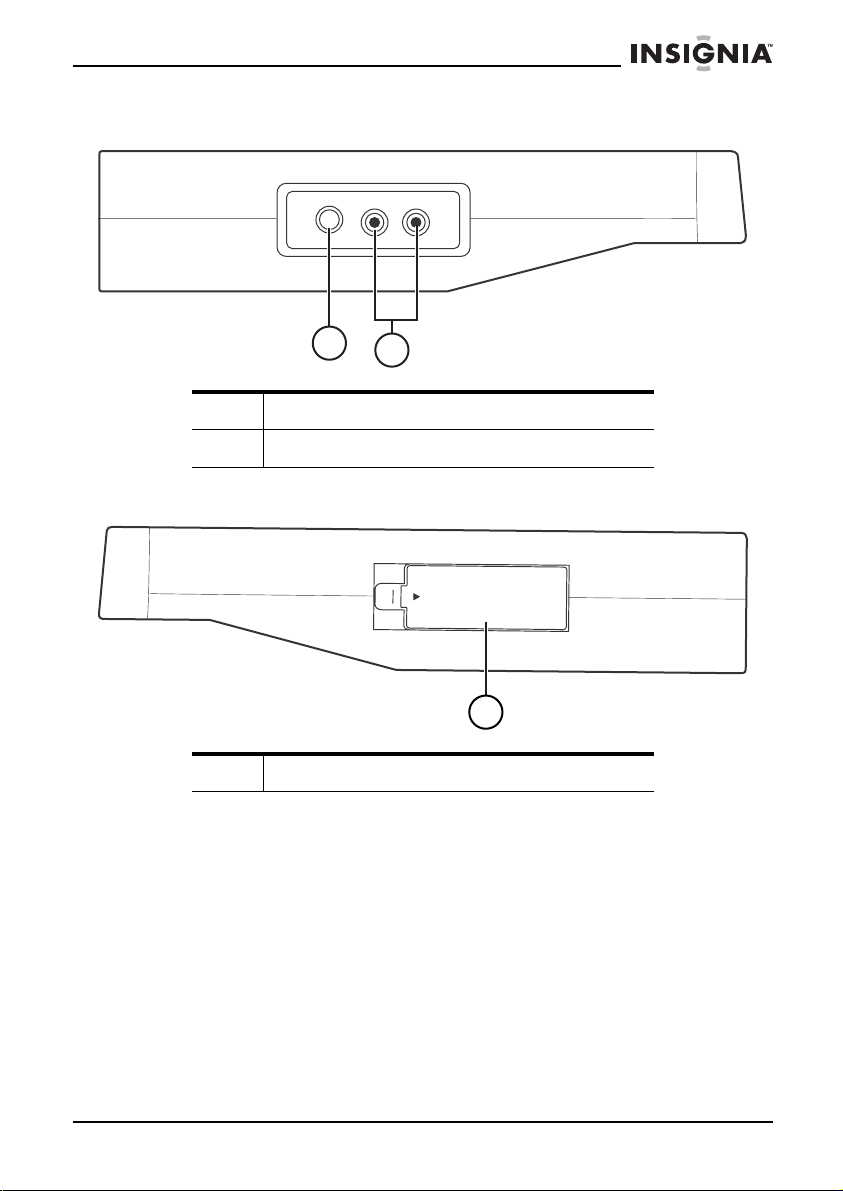

Left

Right

1 WB TUNING knob

2 Audio input jacks

1 Battery compartment

WB TUNING AUX IN

EPO

NS-C2114.fm Page 5 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

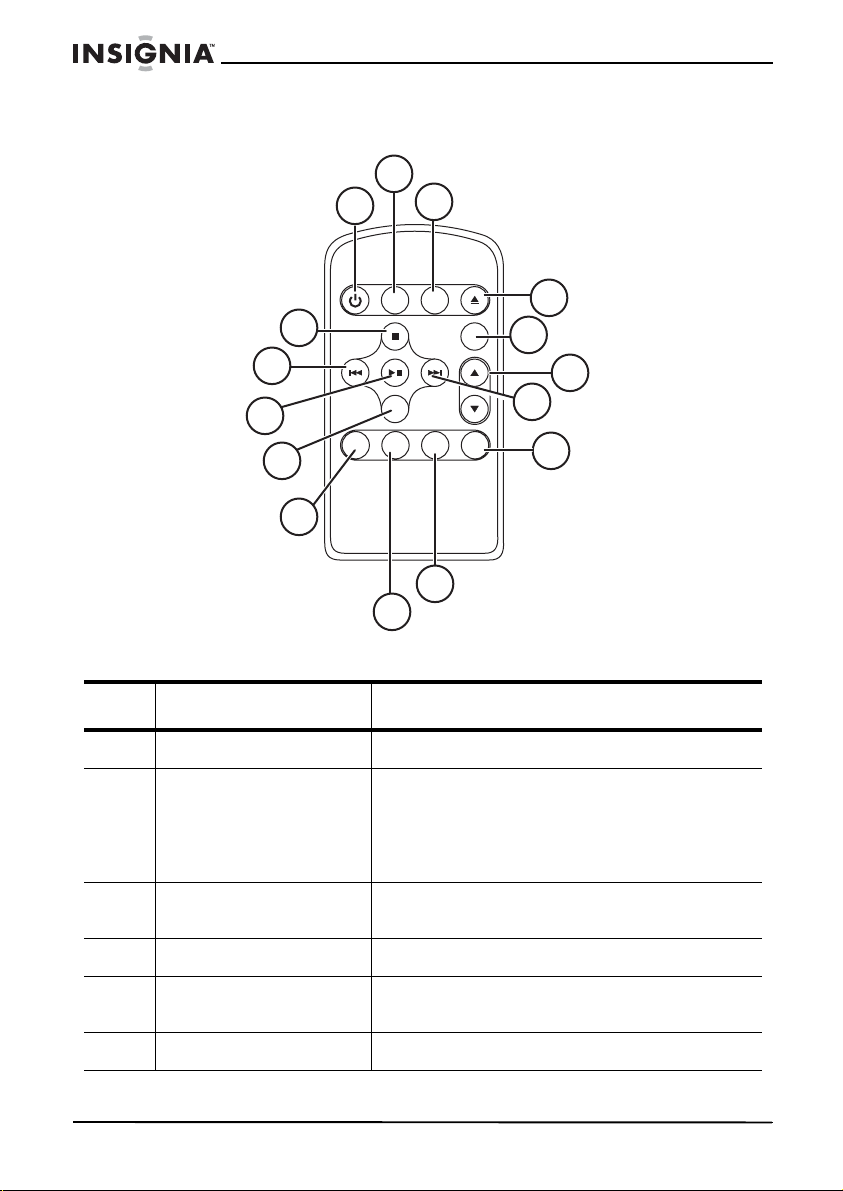

Remote control

Button Description

1 POWER Press to turn your radio on and off.

2 FUN Press to select the play mode. You can select:

• WB–Weatherband radio

• CD–CD player

• TUNER–Radio

• AUX–External audio device

3 EQ Press to select the equalizer mode. You can

select CLASSIC, JAZZ, ROCK, or POP.

4 OPEN/CLOSE Press to open and close the CD tray.

5 MUTE Press to mute the volume. Press again to

unmute the volume.

6 VOL Press to increase or decrease the volume.

P.NUF Q

FREM

OMER

LPS

ENUT

.TPR

NS-C2114.fm Page 6 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

Setting up your radio

For instructions on mounting your radio, see the mounting template

that came with your radio.

Checking AM radio reception

Your clock radio has a built-in antenna for AM radio. To improve

reception, you need to rotate your clock radio.

Before you mount your clock radio under a counter, tune to an AM

station and rotate your clock radio until you get the best reception.

This is the orientation you need to use when you mount your clock

radio. For more information, see “Improving reception” on page 10.

7 TUNE (Up) If you are listening to the radio, press to go to

a higher frequency station.

If you are listening to a CD, press to go to the

next track on the CD.

8 DISPLAY Press to turn on the display.

9 TIMER Press to set the kitchen timer.

10 FM ST. When listening to an FM station broadcast in

stereo, press this button to switch between

STEREO and MONO.

11 PROG./MEM. Press to program radio station presets. For

more information, see “Programming radio

station presets” on page 11.

12 RPT Press to repeat a single CD track or the entire

CD.

13 MEM.UP If you are listening to the radio, press to go to

the next higher radio station preset.

If you are listening to a CD, press to play or

pause the CD.

14 TUNE (Down) If you are listening to the radio, press to go to

a lower frequency station.

If you are listening to a CD, press to go to the

previous track on the CD.

15 BAND If you are listening to the radio, press to select

the AM or FM band.

If you are listening to a CD, press to stop

playback.

Button Description

NS-C2114.fm Page 7 Friday, March 17, 2006 4:40 PM

NS-C2114 Under-Counter Clock Radio

www.insignia-products.com

Installing the backup batteries

Your clock radio uses two AAA backup batteries that store your

settings. You cannot use the batteries to power your clock radio.

If your clock radio does not save your settings, you may need to

replace the batteries.

To install the backup batteries:

1Open the battery compartment located on the right side of your

radio.

2Insert two AAA batteries (not included) into the battery

compartment. Make sure that the + and – symbols on the

batteries align with the + and – symbols in the battery

compartment.

3Close the battery compartment.

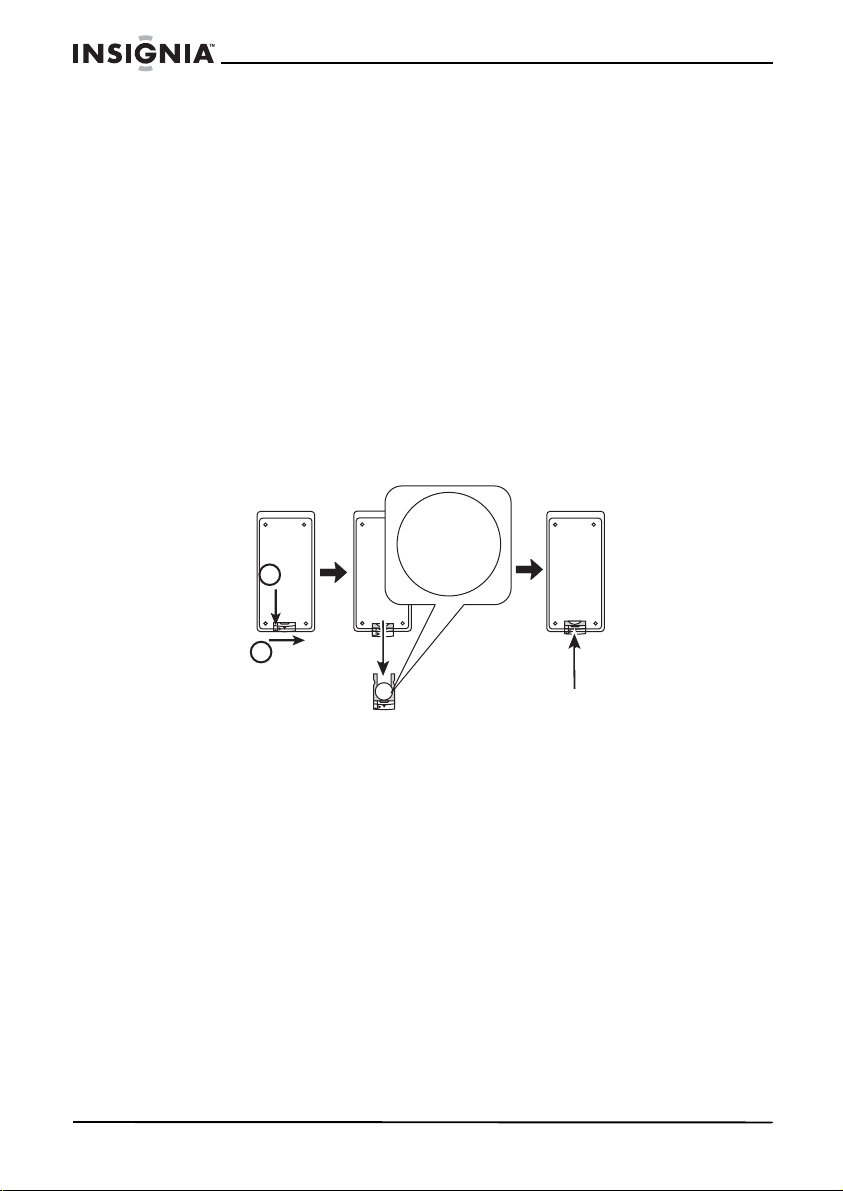

To install the remote control battery:

1Remove the battery cover.

2Insert one CR2025 (3-volt) battery into the battery compartment.

Make sure that the +/– symbols on the battery match the +/–

marks inside the battery compartment.

3Replace the battery cover.

Connecting to AC power

To connect the power:

• Plug the AC power cord into a power outlet.

TTA

MUIHTI

520

NS-C2114.fm Page 8 Friday, March 17, 2006 4:40 PM
