Intel NUC 13 Pro Desk Edition Bedienungsanleitung

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi7

Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi5

User Guide

May 2023

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products

described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject

matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product

specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published

specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by

visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation.

Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.





Intel® NUC 13 Pro Desk Edition Kit NUC13VYK
User Guide –May 2023
Contents
0 Introduction .........................................................................................................................................................5
1 Before You Begin ...............................................................................................................................................5
2 Installation Precautions ..................................................................................................................................5
3 Observe Safety and Regulatory Requirements ....................................................................................6
0 Open the Chassis...............................................................................................................................................7
0 Install and Remove System Memory ........................................................................................................8
1 Install SO-DIMMs...............................................................................................................................................8
2 Remove SO-DIMMs...........................................................................................................................................9
0 Install an M.2 SSD........................................................................................................................................... 10
0 Close the Chassis............................................................................................................................................ 12
0 Connect Power ................................................................................................................................................ 13
0 Install an Operating System....................................................................................................................... 14
0 Install the Latest Device Drivers and Software.................................................................................. 15




Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

Revision History

Date

Revision

Description

May 2023

1.0

Initial release.

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi7

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi5

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and

with the safety practices and regulatory compliance required for using and

modifying computer equipment.

Disconnect the computer from its power source and from any network before

performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open

the computer or perform any procedures can result in personal injury or equipment

damage. Some circuitry on the board can continue to operate even though the front

panel power button is off.

Follow these guidelines before you begin:

•Always follow the steps in each procedure in the correct order.

•Create a log to record information about your computer, such as model,

serial numbers, installed options, and configuration information.

•Electrostatic discharge (ESD) can damage components. Perform the

procedures described in this chapter only at an ESD workstation using an

antistatic wrist strap and a conductive foam pad. If such a station isn’t

available, you can provide some ESD protection by wearing an antistatic wrist

strap and attaching it to a metal part of the computer chassis.

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the

installation instructions.

To avoid injury, be careful of:

•Sharp pins on connectors

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

•Sharp pins on circuit boards

•Rough edges and sharp corners on the chassis

•Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

•Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing

to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility

of noncompliance with regional laws and regulations.

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

2.0 Open the Chassis

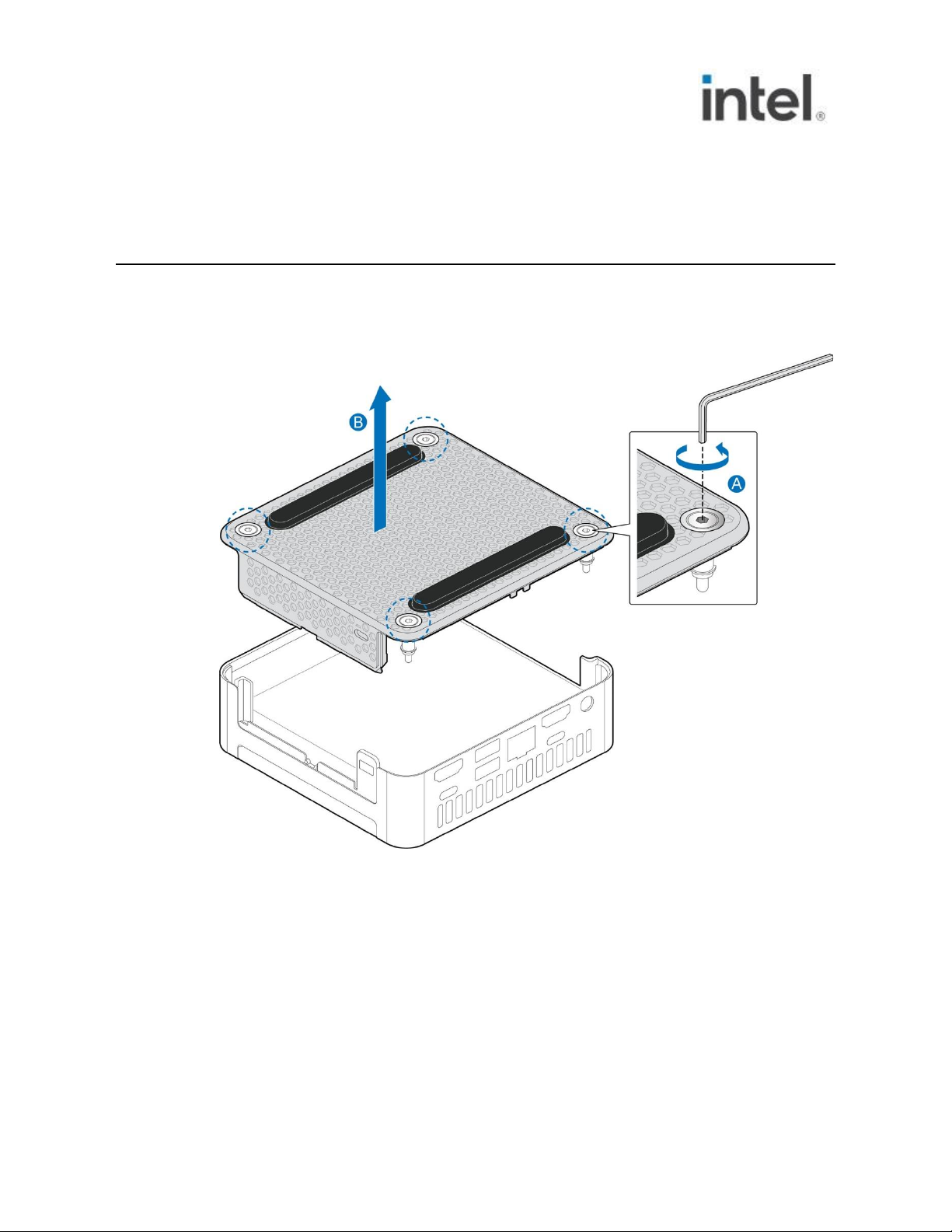

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

3.0 Install and Remove System Memory

Intel® NUC 13 Pro Desk Edition Kit NUC13VYKhas two 260-pin DDR4 SO-DIMM

memory slots

Memory requirements:

•1.2V low voltage memory

•2400/2666/3200 MHz SO-DIMMs

•Non-ECC

•Up to 64GB of system memory supported with 2 SO-DIMMs using 32GB memory

modules

Find compatible system memory modules at the Intel® Product Compatibility Tool:

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi7

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi5

3.1 Install SO-DIMMs

If you plan to install just one SO-DIMM, install it in the lower memory socket.

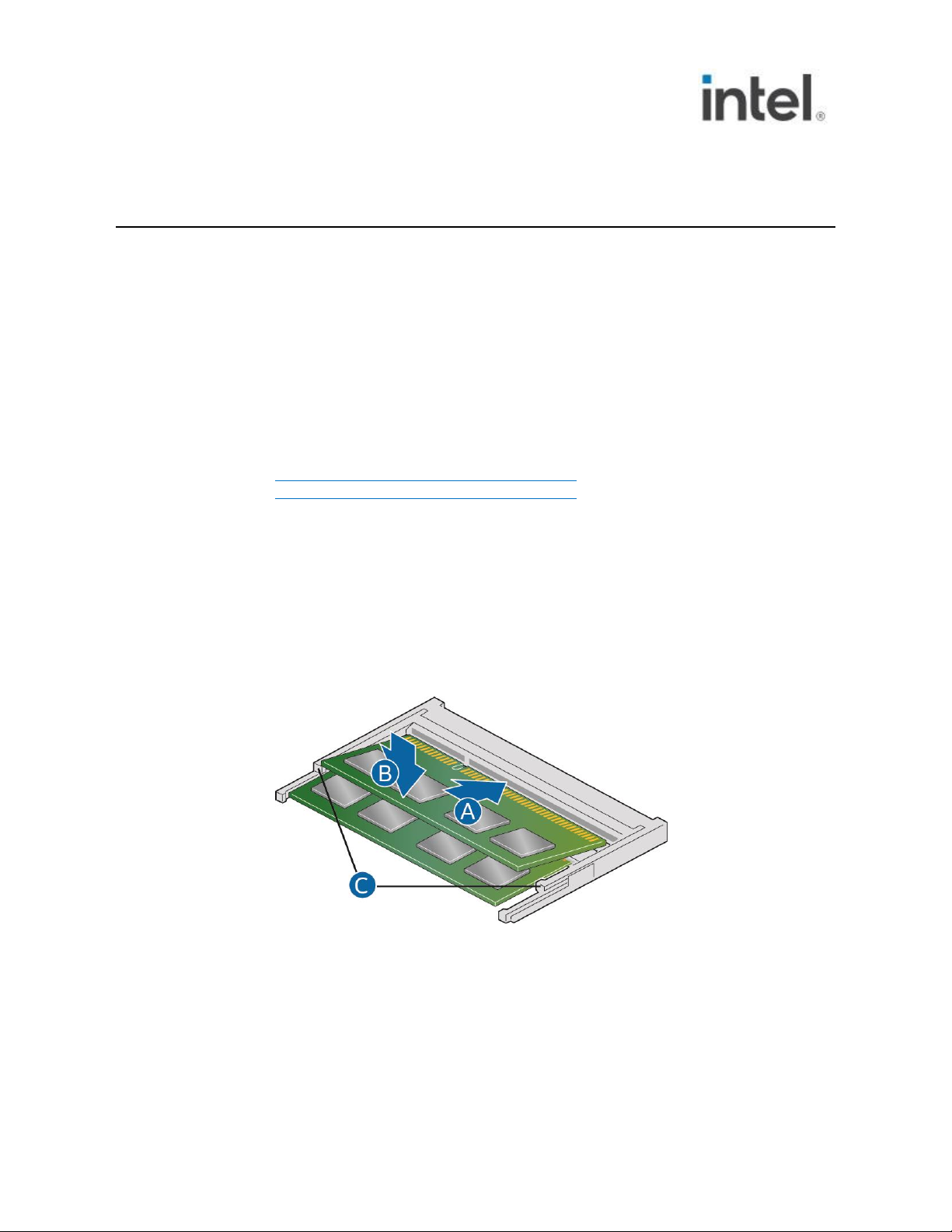

To install the SO-DIMMs, follow these steps:

1. Observe the precautions in "Before You Begin" in Section 1.1.

2. Turn off all peripheral devices connected to the computer. Turn off the

computer and disconnect the AC power cord.

3. Align the small notch at the bottom edge of the SO-DIMM with the key in

the socket.

4. Insert the bottom edge of the SO-DIMM into the socket.

5. When the SO-DIMM is inserted, push down on the outer edge of the

SO-DIMM until the retaining clips snap into place. Make sure the clips

are firmly in place.

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

3.2 Remove SO-DIMMs

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" in Section 1.1.

2. Turn off all peripheral devices connected to the computer. Turn off the

computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the SO-DIMM socket. The

SO-DIMM pops out of the socket.

6. Hold the SO-DIMM by the edges, lift it away from the socket, and

store it in an anti-static package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the

SO-DIMM sockets.

8. Replace the computer’s cover and reconnect the AC power cord.

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK

User Guide –May 2023

4.0 Install an M.2 SSD

Intel® NUC 13 Pro Desk Edition Kit NUC13VYK contains

•one 80mm connector supporting NVMe and

•one 42mm connector supporting SATA SSD

Find compatible M.2 SSDs at the Intel® Product Compatibility Tool:

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi7

•Intel® NUC 13 Pro Desk Edition Kit NUC13VYKi5

If you’re installing an 80mm M.2 SSD:

1. Remove the small silver screw from the 80mm metal standoff on the

motherboard (A).

2. Align the small notch at the bottom edge of the M.2 card with the key in the

connector.

3. Insert the bottom edge of the M.2 card into the connector (B).

4. Secure the card to the standoff with the small silver screw (C).
