Thank you for buying an Intel® RAID Maintenance Free Backup Unit 4. The Intel® RAID

Maintenance Free Backup Unit 4 supports the Intel® RAID Controller RS3DC040 and

RS3DC080. The following information will help you assemble your Intel®RAID

Maintenance Free Backup Unit 4 and install components.

Perform all installation work at an electrostatic discharge (ESD)-safe workstation that

meets the requirements of EIA-625, Requirements for Handling Electrostatic

Discharge Sensitive Devices. You must perform all actions in accordance to the latest

revision of the IPC-A-610 ESD-recommended practices.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

H24048-001

Intel® RAID Maintenance Free Backup

Unit 4 Quick Installation User's Guide

Проконсультироваться икупить данное оборудование вы можете вкомпании «АНД-Системс»

адрес: 125480, г.Москва, ул.Туристская, д.33/1; site: https://andpro.ru тел: +7 (495) 545-4870 email: [email protected]

При обращении используйте промокод AND-PDF иполучите скидку.

(This page is intentionally left blank.)

Table of Contents

General Installation Process ........................................................................................................ 2

Reference Documents .................................................................................................................... 7

Unpack the RMFBU4 Module ......................................................................................... 2

Prepare the Host Computer ........................................................................................... 2

Remove the RAID Controller from the Computer .............................................. 2

Attach the RMFBU4 Module to the RAID Controller ......................................... 2

Install the Clip on the Remote Mount Board .......................................................... 3

Attach the Super Capacitor Pack Module to the Clip ........................................ 3

Connect the RMFBU4 Module to the Remote Super Capacitor Pack

Module (Valid for Remote Mount Board) ................................................................ 4

Reinstall the RAID Controller on the Motherboard (Valid for Remote

Mount Board) ......................................................................................................................... 4

Install the Remote Mount Board on the Motherboard ..................................... 5

Mount the Super Capacitor Pack Module to the Intel® Server Chassis....5

Connect the RMFBU4 Module to the Remote Super Capacitor Pack

Module (Valid for Intel® Server Chassis) ................................................................. 6

Reinstall the RAID Controller on the Motherboard (Valid for Intel®

Server Chassis) ..................................................................................................................... 6

Product Overview ............................................................................................................................. 1

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualiﬁed service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Intel®is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as

Product Overview

The Intel®RAID Maintenance Free Backup Unit 4 (RMFBU4) is an Open NAND Flash Interface (ONFI) ﬂash module that provides

cache off-load capability to protect cached data in case of host power loss or server failure. The RMFBU4 module connects to a

Super Capacitor Pack module, which provides power for the backup of your data.

The RMFBU4 module attaches directly to the RAID controller, and then it connects by cable to a Super Capacitor Pack module

that is attached to a remote mount board or an Intel®Server Chassis.

The following ﬁgure shows the front view and the back view of the RMFBU4 module. The front view is the side that you can see

when the unit is installed on a RAID controller.

Connector

H2-25444-041

SN : SR228P0365 ABCD J2

Connector

Front View Back View

J1: 9-pin Connector to the Remote Super Capacitor Pack Module

J2: 70-pin Board-to-Board Connector

General Installation Process

Unpack the RMFBU4 Module

Unpack the RMFBU4 module in a static-free environment. Remove the

module from the antistatic bag, and inspect it for damage. If the

module appears to be damaged, contact Intel or your reseller support

representative.

CAUTION: It is good practice to back up your data before

adding hardware, such as an RMFBU4 module, to your

system.

Prepare the Host Computer

CAUTION: Before you install the RMFBU4 module, make

sure that the host computer is disconnected from the

power and from any networks.

Turn off the host computer, and unplug the power cords from the rear

of the power supply. Remove the cover from the host computer to

permit access to the RAID controller.

Remove the RAID Controller from

the Computer

Unplug all cables from the RAID controller, remove the screw that

attaches the bracket to the computer chassis, and carefully remove

the RAID controller from the slot.

Place the RAID controller on a flat, clean, static-free surface.

Attach the RMFBU4 Module to the

RAID Controller

Ground yourself, and make sure that the system is grounded.

Place the RMFBU4 module front-side-up on a flat, clean, static-free

surface.

Mount the two standoffs on the front side of the RAID controller by

screwing in two screws from the back side of the RAID controller, as

shown in the following figure.

The standoffs are threaded at both ends, and the screws thread from

the back side of the RAID controller into the board-to-board

standoffs.

Center the screwdriver carefully to avoid stripping the screw heads.

Do not over-tighten the screws.

Hold the RMFBU4 module so that the front side faces upward, and

align the J2 connector on the RMFBU4 module with the connector

on the RAID controller.

Carefully press the RMFBU4 module onto the RAID controller so

that the two connectors are firmly joined.

RMFBU4

Connector

J4B1

Connector

Intel

RAID Controller

RS3DC080 as shown

Secure the RMFBU4 module to the RAID controller by screwing in

the two screws from the top side of the RAID controller.

The standoffs are threaded at both ends, and the screws thread from

the back side of the RAID controller into the board-to-board

standoffs.

Center the screwdriver carefully to avoid stripping the screw heads.

Do not over-tighten the screws.

NOTE: If the Super Capacitor Pack module is to be attached to

a remote mount board, continue to follow the steps 5 to 9. If

the Super Capacitor Pack module is to be attached to an Intel®

Server Chassis, continue to follow the steps 10 to 12.

General Installation Process

Attach the Super Capacitor Pack

Module to the Clip

Ground yourself, and make sure that the system is grounded.

Place the Super Capacitor Pack module and the clip front-side-up

on a flat, clean, static-free surface.

Press the Super Capacitor Pack module into the clip until the

module clicks firmly into place, as shown in the following figure.

Super Capacitor Pack

module

Clip

Install the Clip on the Remote Mount

Board

Ground yourself, and make sure that the system is grounded.

Place the clip and the remote mount board module front-side-up on

a flat, clean, static-free surface.

Hold the clip so the screw holes on the clip line up with the screw

holes on the remote mount board, as shown in the following figure.

Secure the clip to the remote mount board in three screw holes with

the screws and the nuts.

The screws thread through the front of the clip and the remote

mount board.

Center the screwdriver carefully to avoid stripping the screw heads.

Do not over-tighten the screws.

Clip

General Installation Process

Reinstall the RAID Controller on the

Motherboard (Valid for Remote Mount

Board)

Make sure that the power to the chassis is still turned off, the power

cords are unplugged, and the chassis is grounded and has no AC

power.

Install the RAID controller in a PCIe slot on the motherboard, as

shown in the following figure.

Press down gently, but firmly, to seat the card correctly in the slot.

Secure the RAID controller to the computer chassis with the bracket

screw.

NOTE: This RAID controller is a PCIe x8 card, and it can

operate in x8 or x16 slots. Some PCIe slots, however, support

only PCIe graphics cards; if a RAID controller is installed in

one of these slots, the RAID controller will not function. Refer

to the guide for your motherboard for information about the

PCIe slot.

Intel

RAID Controller

RS3DC080 as shown

Press

Here

Edge of

Motherboard

PCIe Slot

Bracket

Screw

Press

Here

Remote Mount

Board

RMFBU4 module

Super Capacitor Pack

module

Connect the RMFBU4 Module to the

Remote Super Capacitor Pack Module

(Valid for Remote Mount Board)

Ground yourself, and make sure that the system is grounded.

Place the RAID controller on a flat, clean, static-free surface.

Remove the cable that is included in the RAID controller box.

Insert one 9-pin cable connector on the cable into the 9-pin J1

connector on the RMFBU4 module, as shown in the following

figure (the cable is blue).

Insert the other 9-pin cable connector into the 9-pin connector on

the remote Super Capacitor Pack module.

Align the cable connectors to make sure that they are connected

correctly.

Intel

RAID Controller

RS3DC080 as shown

RMFBU4 module

Super Capacitor Pack

module

Remote Mount

Board

General Installation Process

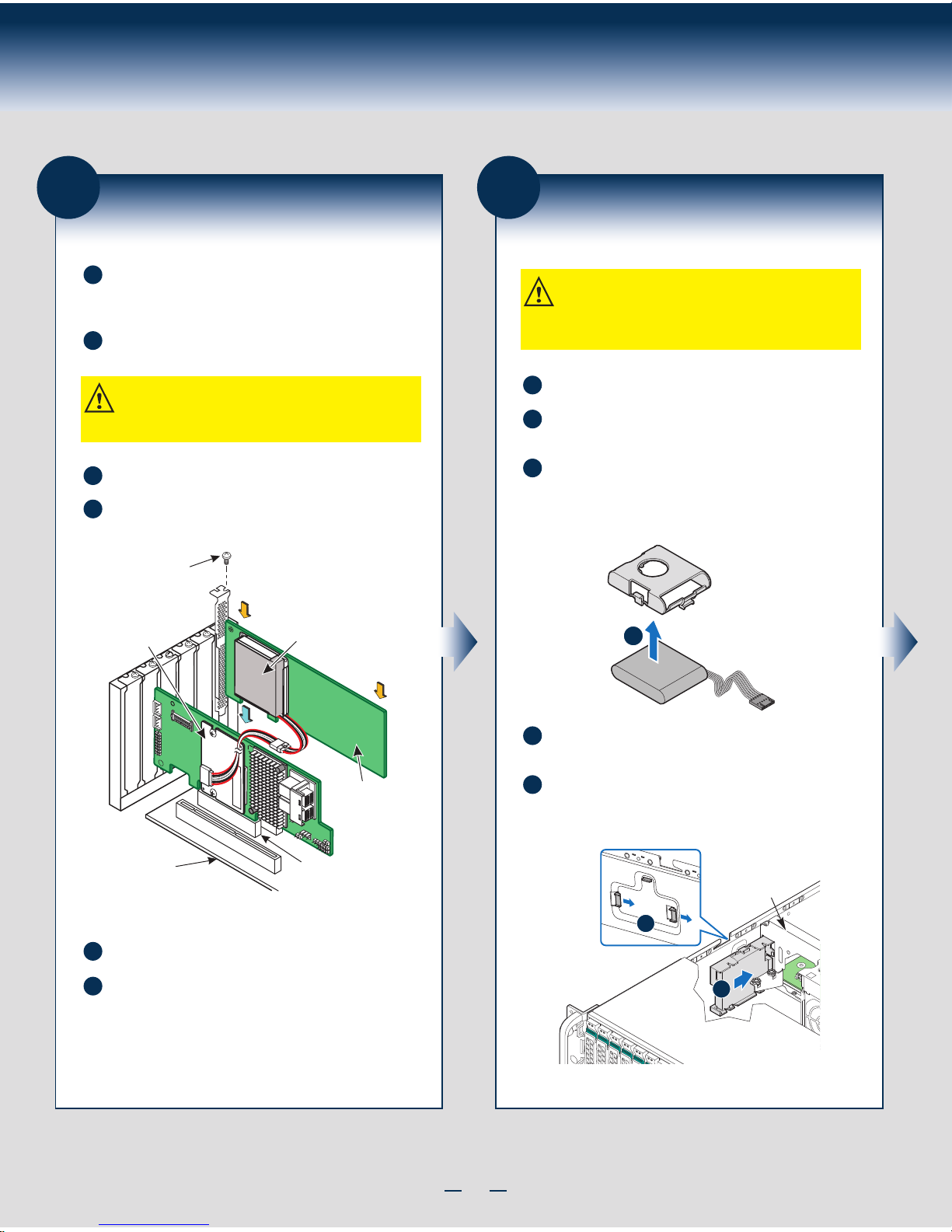

Mount the Super Capacitor Pack Module

to the Intel® Server Chassis

Ground yourself, and make sure that the system is grounded.

Place the Super Capacitor Pack module and the clip front-side-up

on a flat, clean, static-free surface.

Press the Super Capacitor Pack module into the clip until the

module clicks firmly into place, as shown in the following figure

(for reference only; actual shape of the product may vary from the

figure).

Locate the mounting holes for the Super Capacitor Pack module

clip in the Intel®Server Chassis.

NOTE: Most of the Intel®Server Chassis provide a position to

mount the Super Capacitor Pack module clip; the remote

mount board is not needed in this kind of scenario. Refer to the

Intel®Server System User Guide for details of the position

where the Super Capacitor Pack module clip can be mounted.

Align the tabs on the clip with the mounting holes in the Intel®

Server Chassis and slide the clip until the clip engages with the

mounting holes.

Fan Bulkhead

Install the Remote Mount Board on the

Motherboard

Make sure that the power to the chassis is still turned off, the power

cords are unplugged, and the chassis is grounded and has no AC

power.

Insert the remote mount board in a PCIe slot on the motherboard,

as shown in the following figure.

Press down gently, but firmly, to seat the board correctly in the slot.

Use the bracket screw to secure the remote mount board to the

system chassis.

NOTE: Some PCIe slots support only PCIe graphics cards. If a

remote mount board is installed in one of these slots, the

remote mount board will not function. Refer to your computer

documentation for information about the PCIe slot.

Intel

RAID Controller

RS3DC080 as shown

Edge of

Motherboard PCIe Slot

Bracket

Screw

Press

Here

Press

Here

Remote Mount

Board

RMFBU4 module

Super Capacitor Pack

module

Reinstall the computer cover, and reattach the power cords.

Turn on the power to the computer.

Refer to the

Intel

RAID Software User Guide

for information about

running the RAID configuration utility and installing the software

drivers.

General Installation Process

Reinstall the RAID Controller on the

Motherboard (Valid for Intel® Server

Chassis)

Make sure that the power to the chassis is still turned off, the power

cords are unplugged, and the chassis is grounded and has no AC

power.

Install the RAID controller in a PCIe slot on the motherboard, as

shown in the following figure.

Press down gently, but firmly, to seat the card correctly in the slot.

Secure the RAID controller to the computer chassis with the bracket

screw.

NOTE: This RAID controller is a PCIe x8 card, and it can

operate in x8 or x16 slots. Some PCIe slots, however, support

only PCIe graphics cards; if a RAID controller is installed in

one of these slots, the RAID controller will not function. Refer

to the guide for your motherboard for information about the

PCIe slot.

Reinstall the computer cover, and reattach the power cords.

Turn on the power to the computer.

Refer to the

Intel

RAID Software User Guide

for information about

running the RAID configuration utility and installing the software

drivers.

Intel

RAID Controller

RS3DC080 as shown

Press

Here

Edge of

Motherboard PCIe Slot

Bracket

Screw

Press

Here

RMFBU module

Connect the RMFBU4 Module to the

Remote Super Capacitor Pack Module

(Valid for Intel® Server Chassis)

Ground yourself, and make sure that the system is grounded.

Place the RAID controller on a flat, clean, static-free surface.

Remove the cable that is included in the RAID controller box.

Insert one 9-pin cable connector on the cable into the 9-pin J1

connector on the RMFBU4 module, as shown in the following

figure (the cable is blue).

Insert the other 9-pin cable connector into the 9-pin connector on

the remote Super Capacitor Pack module.

Align the cable connectors to make sure that they are connected

correctly.

Intel

RAID Controller

RS3DC080 as shown

RMFBU4 module

Inhaltsverzeichnis

Andere Intel Computerhardware Handbücher

Intel

Intel BX80562QX6700 - Core 2 Extreme 2.66 GHz... Bedienungsanleitung

Intel

Intel LGA1155 SOCKET - THERMAL MECHANICAL S AND DESIGN GUIDELINES... Bedienungsanleitung

Intel

Intel SRCZCR - RAID Controller Storage Bedienungsanleitung

Intel

Intel Core 2 Duo Processor Bedienungsanleitung

Intel

Intel NUC Kit NUC1ATKPE Bedienungsanleitung

Intel

Intel Pentium 4 mPGA478 Bedienungsanleitung

Intel

Intel ETHEREXPRESS PRO/100 Bedienungsanleitung

Intel

Intel PCI-6886 Bedienungsanleitung

Intel

Intel AXXRMS2AF080 Installationshandbuch

Intel

Intel BX80532PG3200D Bedienungsanleitung

Intel

Intel BX80623G530 Bedienungsanleitung

Intel

Intel Stratix 10 Bedienungsanleitung

Intel

Intel NUC 13 Extreme Kit NUC13RNGi9 Bedienungsanleitung

Intel

Intel SL6NQ - Xeon 2.4 GHz/533MHz/512 KB CPU Processor... Bedienungsanleitung

Intel

Intel PXA255 Bedienungsanleitung

Intel

Intel SL8K2 - Pentium 4 3.20EGHz 800MHz 1MB Socket 478... Bedienungsanleitung

Intel

Intel CORE 2 DUO E4000 - 3-2008 Bedienungsanleitung

Intel

Intel DP45SG - CARACTERISTIQUES TECHNIQUES Bedienungsanleitung

Intel

Intel EM64T - Celeron D 336 Boxed Ena Bedienungsanleitung

Intel

Intel 500 - DATASHEET REV 003 Bedienungsanleitung

Intel

Intel SRCU42X Installationshandbuch

Intel

Intel SRCU42L - RAID Controller Bedienungsanleitung

Intel

Intel KOTETSU Mark II Bedienungsanleitung

Intel

Intel I7-900 DEKSTOP SPECIFICATION Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung

Advantech

Advantech ASMB-935 Series Bedienungsanleitung

Jupiter

Jupiter RAM PACK Bedienungsanleitung
