Intel®Management Module

Installation and User’s Guide

Document P/N C81751-002

2 Intel® Management Module Installation and User’s Guide

Legal Information

Intel Corporation

This Intel Management Module Installation and User Guide as well as the software described in it is furnished under license

and may only be used or copied in accordance with the terms of the license. The information in this manual is furnished for

informational use only, is subject to change without notice, and should not be construed as a commitment by Intel

Corporation. Intel Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in this

document or any software that may be provided in association with this document.

Except as permitted by such license, no part of this document may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means without the express written consent of Intel Corporation.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED

BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH

PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED

WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES

RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,

saving, life sustaining applications.

Intel may make changes to specifications and product descriptions at any time, without notice.

The Intel® Server Board SE7520AF2, Intel® Server Board SE7520BD2, Intel® Server Board SE7520JR2, Intel®

Management Module—Professional Edition, and Intel® Management Module—Advanced Edition may contain design

defects or errors known as errata which may cause the product to deviate from published specifications. Current

characterized errata are available on request.

Intel, Pentium, Itanium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries in the United States

and other countries.

*Other names and brands may be claimed as the property of others.

Intel® Management Module Installation and User’s Guide 3

Contents

Introduction 5

Intel®Management Module Features.....................................................................................5

Getting the Latest Information and Support............................................................................6

Platform Compatibility and System Requirements..................................................................6

Installation Procedures 8

Before You Begin....................................................................................................................8

Location of Intel Management Module Header.......................................................................8

Installing the Intel Management Module—Professional Edition............................................11

Removing the Intel Management Module—Professional Edition..........................................12

Installing the Intel Management Module—Advanced Edition................................................13

Removing the Intel Management Module—Advanced Edition..............................................16

Intel Advanced Remote Server Control 17

Email Alerting 18

Embedded SNMP 19

Configuring SNMP ................................................................................................................19

Using the BMC-Resident SNMP Agent.................................................................................19

Embedded CLI (Telnet) 21

Configuring the Embedded CLI (Telnet) Feature..................................................................21

Using the Embedded CLI (Telnet) Feature...........................................................................21

Embedded Web Server 22

Configuring the Embedded Web Server ...............................................................................22

Using the Embedded Web Server.........................................................................................22

Appendix A: Command Line Interface Syntax 26

References 31

Glossary 32

4 Intel® Management Module Installation and User’s Guide

Intel® Management Module Installation and User’s Guide 5

Introduction

The Intel®Management Module is an upgrade to the National Semiconductor PC87431 mini-BMC

management controller on the Intel®Server Board SE7520AF2, Intel®Server Board SE7520BD2,

Intel®Server Board SE7520JR2, and Intel®Server Board SE8500HW4. The Intel Management

Module plugs into a connector on the server board. The Intel Management Module is available in

two versions:

•Professional Edition

•Advanced Edition

Intel®Management Module Features

Professional Edition Features

The Professional Edition includes the following features:

•All the features provided by the mBMC

•Support for IPMI v2.0 specification

•Additional sensors

•Temperature-based fan speed control by the BMC

•Additional FRU records are visible to the management controller and management software

applications (for example, Power Supply, DIMM, and hot-swap controller FRU’s).

•The size of the System Event Log (SEL) is increased from 92 entries to 3276 entries

•The number of BMC users is increased from one anonymous user to four users (each with

configurable user names and passwords on each LAN or Serial channel)

•The IPMI 2.0 serial features are supported. The serial port can be used for console

redirection, Terminal-mode CLI, dial paging, Serial Over LAN (SOL), and other

management functions.

•The Intelligent Chassis Management Bus (ICMB) is supported

•PCI SMBus is accessible to the management controller. This allows PCI add-in cards that

support manageability to log events to the System Event Log (SEL).

•BIOS logging of POST progress codes is added to the existing capability of logging only the

BIOS POST errors

•Front panel functionality is enhanced (See: Secure Mode Button Actions in the platform

Technical Product Specification)

•For systems with the SATA or SCSI hot-swap controller (HSC), the HSC sensors are visible

to server management software and HSC events are logged in the SEL.

6 Intel® Management Module Installation and User’s Guide

Advanced Edition Features

The Advanced Edition adds all the features listed above for the Professional Edition, plus the

following features:

•BMC-resident SNMP support for out-of-band access using 3rd party applications such as

Hewlett-Packard* OpenView*

•Embedded web server to access system health, view the SEL, and issue IPMI commands

•Embedded Command Line Interface (using a Telnet server running on the BMC) to allow

direct terminal access to the BMC

•Alerting via Email

•Intel®Advanced Remote Server Control adds remote KVM functionality

•High-speed access to a dedicated NIC for the BMC on the Advanced Edition module

The Intel Advanced Remote Server Control, email alerting, embedded CLI, embedded web,

BMC-resident SNMP agent, SOL, and other firmware-resident features are available Out-of-Band

(OOB). This means that these features are available even when the Operating System is not

running or the AC power is off.

Getting the Latest Information and Support

The latest information on each server board and Intel software is available at:

http://support.intel.com/support/motherboards/server

Platform Compatibility and System Requirements

The Intel Management Modules are compatible with the following Intel server boards:

•Intel Server Board SE7520AF2

•Intel Server Board SE7520BD2

•Intel Server Board SE7520JR2

•Intel Server Board SE8500HW4

Table 1 on page 7 lists the minimum system requirements.

Intel® Management Module Installation and User’s Guide 7

Table 1. Minimum System Requirements

To use this feature… You will need…

Intel Advanced Remote

Server Control ISM 8.20 Intel Advanced Remote Server Control component installed on the

Administration Console

Intel Management Module Advanced Edition installed on the managed

server

Embedded Web Server Intel Management Module Advanced Edition installed on the managed

server

Embedded CLI (Telnet

Server) Intel Management Module Advanced Edition installed on the managed

server

Email Alerting Intel Management Module Advanced Edition installed on the managed

server

Serial Over LAN Intel Management Module Advanced Edition or Professional Edition

installed on the managed server

8 Intel® Management Module Installation and User’s Guide

Installation Procedures

Before You Begin

Read the “Warnings and Safety Cautions” section in the user’s guide for your server baseboard.

Location of Intel Management Module Header

The following illustrations show the location of the Intel Management Module header on the Intel

Server Board SE7520AF2, Intel Server Board SE7520BD2, Intel Server Board SE7520JR2, and

Intel Server Board SE8500HW4.

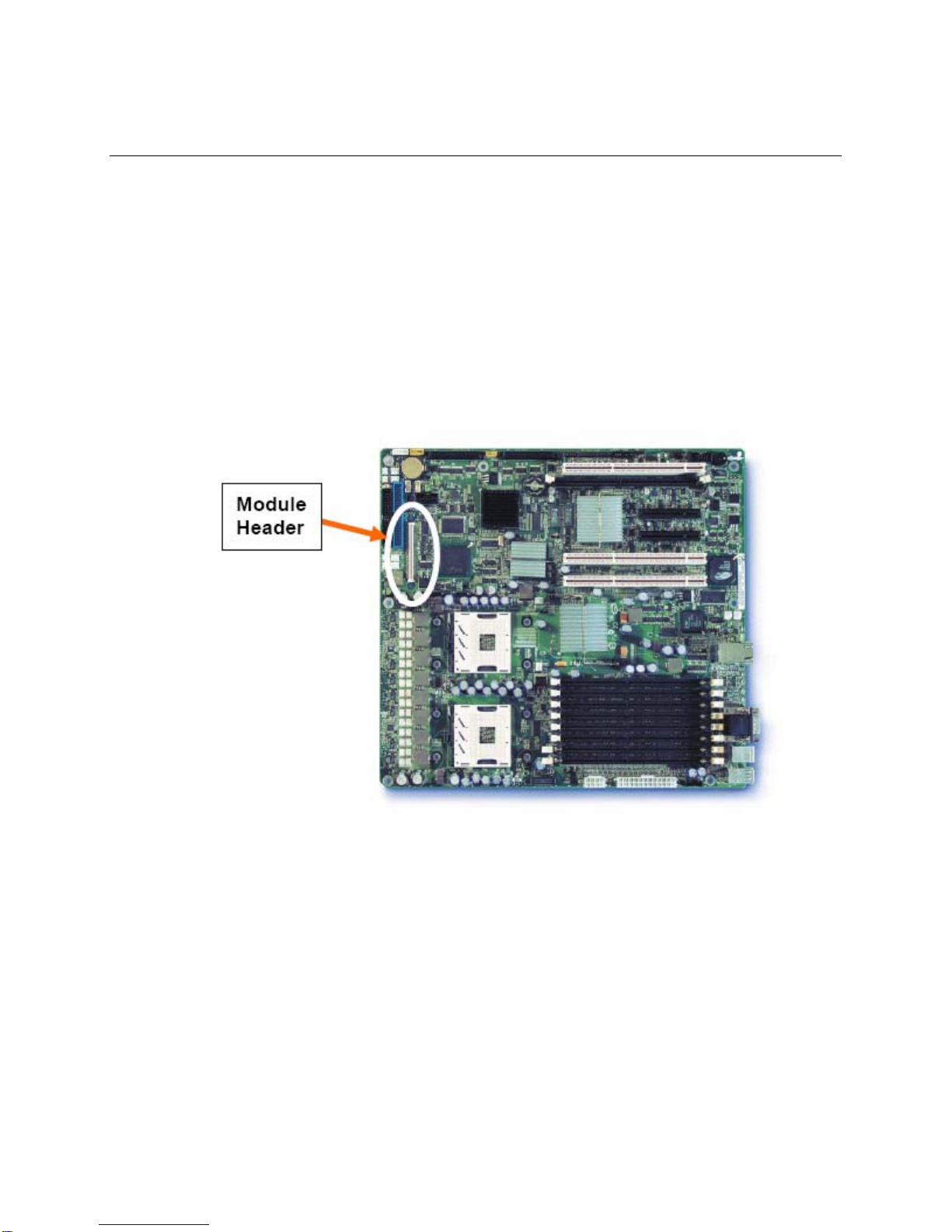

Figure 1. Location of Intel Management Module Connector on

the Intel Server Board SE7520AF2

Intel® Management Module Installation and User’s Guide 9

Figure 2. Location of Intel Management Module Connector on

the Intel Server Board SE7520BD2

Figure 3. Location of Intel Management Module Connector on

the Intel Server Board SE7520JR2

10 Intel® Management Module Installation and User’s Guide

Figure 4. Location of Intel Management Module Connector on

the Intel Server Board SE8500HW4

Module

Header
