DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

EEE

80 Port Frequently Asked Questions

Below is a list of some basic POST Codes possible problems and solutions. For

more detailed information about POST Codes refer to Appendix D in this manual.

POST CO DE Problem Soluti on

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. Mainboard problem

4. dd-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VG

BIOS

2. VG card inserted

incorrectly

1. Replace VG card

2. Reinsert the VG

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

Table of Contents

Section 1 Introduction

Package Contents ................................................ 1-1

Overview

AthlonTM 64 Processor ......................................... 1- 2

Chipset Overview ................................................. 1- 2

Accelerated Graphics Port ................................... 1- 3

Ultra ATA66/100/133 ............................................ 1- 3

Hardware Monitoring ........................................... 1- 3

LAN (Optional)..................................................... 1- 3

Serial ATA ............................................................ 1- 3

Mainboard Form-Factor ....................................... 1- 4

I/O Shield Connector ............................................ 1- 5

Power-On/Off (Remote) ........................................ 1- 5

System Block Diagram .......................................... 1- 6

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Layout ............................................... 3- 2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings .................................................... 3- 6

System Memory Configuration ............................ 3- 7

Expansion Slots .................................................... 3- 9

Device Connectors ............................................... 3- 11

STR (Suspend To RAM) Function....................... 3- 17

CPU Overheating Protection ................................ 3- 18

Page

Section 4 BIOS Setup

Main Menu........................................................... 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features..................................... 4-3

Advanced Chipset Features ................................ 4-7

Integrated Peripherals .......................................... 4-11

Power Management Setup ................................... 4-16

PNP/PCI Configuration Setup .............................. 4-20

PC Health Status .................................................. 4-22

Power BIOS Features............................................ 4-24

Defaults Menu ..................................................... 4-26

Supervisor/User Password Setting ...................... 4-27

Exit Selecting ........................................................ 4-28

Section 5 S-A A RAID Configuration

Introduction ......................................................... 5-1

Key Features ........................................................ 5-3

BIOS Configuration Utility ................................... 5-4

Section 6 Driver Installation

Easy Driver Installation ........................................ 6-1

Realtek Sound Manager Quick User-guide .......... 6-2

Appendix Appendix A

Realtek Media Player Users Guide ...................... A-1

Appendix B

Update Your System BIOS ................................... B-1

Appendix C

EEPROM BIOS Remover ..................................... C-1

Appendix D

POST Codes ........................................................ D-1

Page Left Blank

Introduction

Page 1-1

USERS

MANUAL

Section 1

INTRODUCTION

Package Contents

Contents

A. Mainboard

B. Users manual

C. Floppy drive cable

D. HDD ribbon cable

E. CD or diskette (drivers and

utilities

F. I/O Shield

G. S-ATA data and power cables

Deluxe Pack Items

H. S-ATA with Game port bracket

(for SATA3 ~ SATA6 connector only)

Other Optional Items

I. Extra USB2.0 port cable

If you need the other optional item,

please contact your dealer for

assistance.

Introduction

Page 1-2

AthlonTM 64 Processor

The AMD AthlonTM 64 (ClawHammer processor family is designed to support

performance desktop. It provides a high performance HyperTransportTM link to I/O,

as well as a single 64-bit high-performance DDR memory controller. Main key

features such as:

AMD64 technology enables the industry to advance software development

on all fronts, with x86 compatibility, while providing the capability of deliver-

ing 64-bit technology benefits.

HyperTransport technology helps reduces the number of buses in a system,

which can reduces system bottlenecks and enable todays faster micropro-

cessors to use system memory more efficiently in high-end multiprocessor

systems.

The memory controller provides a programmable interface to a variety of

standard DDR SDRAM DIMM configuration.

For more information about all the new features AthlonTM 64 Processor deliver, check out

the AMD website at http://www amd com

Chipset Overview

The board is designed with VIA chipset, K8T800 as North Bridge and VT8237 as

South Bridge, providing a feature rich and scalable platform. The K8T800 North

Bridge is designed with an ultra fast HyperTransport link to the AthlonTM 64 and

comes equipped with AGP 8X features for VGA card expansion.

The K8T800 North Bridge connects to the VT8237 South Bridge through the fast

Ultra V-Link connection at 1.06GB/s. With support for two Serial ATA channels at

150MB/s bandwidth, integrated RAID (0, 1, 0+1 & JBOD capability as well as up to

eight USB 2.0 ports, the VT8237 offers the highest possible peripheral performance

for professional users. To extend flexibility to the system integrator, the VT8237

features dual channel Parallel ATA-133 allowing for configurations that leverage the

existing technology standard. Additional features include a VIA MAC for 10/

100Mbps Fast Ethernet, integrated PCI support.

Introduction

Page 1-3

Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 3.0 specification. This

new specification enhances the functionality of the original AGP specification by

allowing 8X data transfers ( 8 data samples per clock resulting in maximum band-

width of 2.1GB/s. In addition, it defines 1.5 volt power supply operation. Complying

with this specification, this board supports external AGP-8X/4X cards with Fast

Write Transactions. Only 1.5V AGP cards are supported.

Ultra ATA/66/100/133

This mainboard provides two independent ATA133 IDE controllers, supporting

standard programmable input/output (PIO and Direct Memory Access (DMA

mode operations, as well as UltraDMA-133/100/66/33 standards for a maximum data

transfer rate of 133MB/sec per channel.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system operation

and status. The features include CPU temperature, voltage and fan speed in RPMs.

LAN (Optional)

This mainboard is optionally mounted with LAN chipset. It allows the mainboard to

connect to a local area network by means of a network hub.

Serial ATA

The evolutionary serial ATA interface replaces the standard parallel ATA physical

storage interface. The serial ATA specification provides scalability and allows

future enhancements to the computing platform. Serial technology overcomes

performance limits of parallel interface architecture, meeting the escalating need for

faster data throughput in servers and storage devices.

Serial ATA is completely software compatible with parallel ATA, requiring no

modification to your operating system. The serial ATA interface cable requires lower

voltages and uses smaller cable connectors, providing ease of installation. You can

easily upgrade storage devices that are compatible with the serial ATA interface

specification.

Introduction

Page 1-4

Mainboard Form-Factor

This board is designed with ATX form factor - the latest industry standard for

chassis design. The ATX form factor is essentially a Baby-AT baseboard rotated

90 degrees within the chassis enclosure and a new mounting configuration for

the power supply. With these changes the processor is relocated away from the

expansion slots, allowing them all to hold full length add-in cards. ATX defines a

double height aperture to the rear of the chassis which can be used to host a

wide range of onboard I/O. Only the size and position of this aperture is defined,

allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,

joystick, modem, LAN, audio, etc. to systems. This will help systems integrators

differentiate their products in the marketplace, and better meet your needs.

 By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors, material cost of cables and add-in cards are

reduced.

 By reducing the number of cables and components in the system, manufac-

turing time and inventory holding costs are reduced and reliability will

increase.

 By using an optimized power supply, it's possible to reduce cooling costs

and lower acoustical noise. An ATX power supply, which has a side-

mounted fan, allows direct cooling of the processor and add-in cards making

a secondary fan or active heatsink unnecessary in most system applications.

PCI slots

Expandable I/O

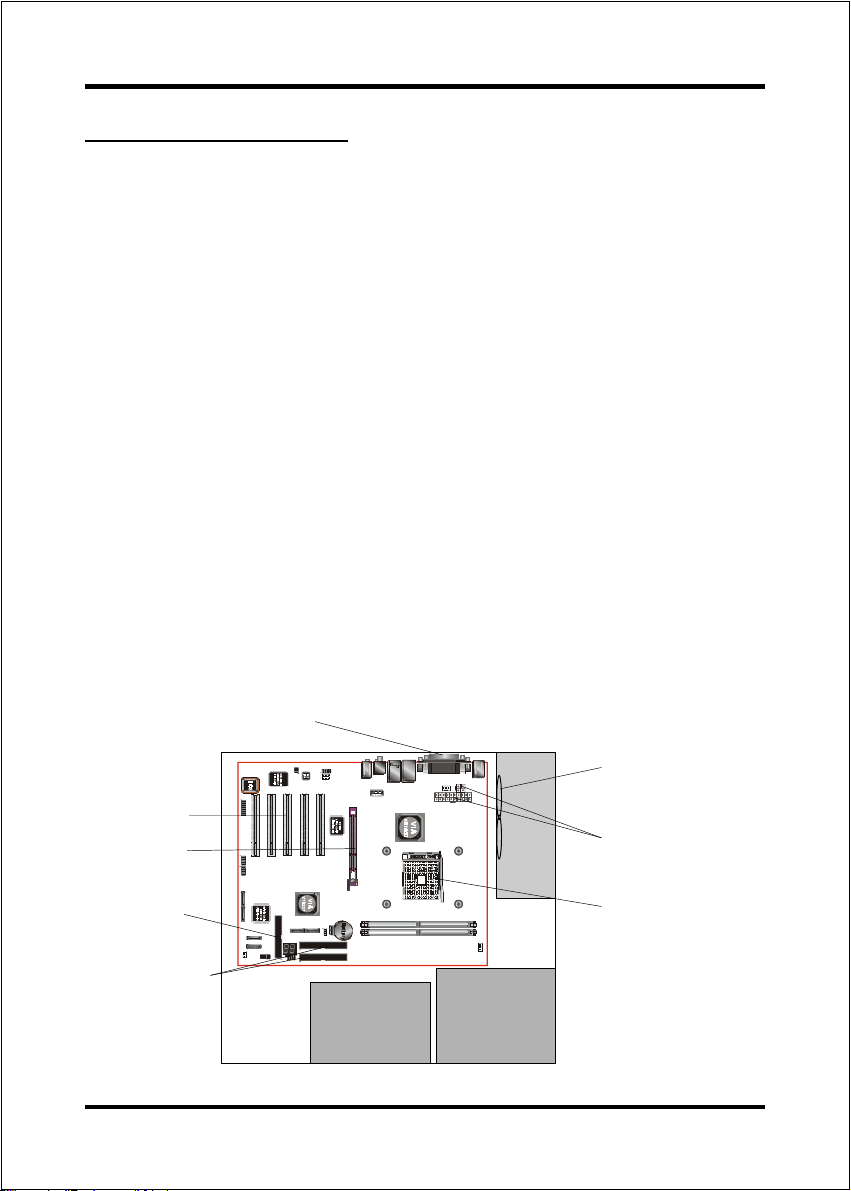

Figure 2: Summary of ATX chassis features

CPU socket

Single chassis

fan for system

AT X

Power

Supply ATX power connectors

IDE connectors

AGP slot

3 1/2-inch

Bay

5 1/4-inch

Bay

Floppy

connector

Andere Handbücher für VIA K8T800

Inhaltsverzeichnis

Andere Intel Computerhardware Handbücher

Intel

Intel 5100 Series Bedienungsanleitung

Intel

Intel RS2BL040 - Raid Controller Installationshandbuch

Intel

Intel D2550DC2 Bedienungsanleitung

Intel

Intel I7-900 DEKSTOP SPECIFICATION Bedienungsanleitung

Intel

Intel Quad-Core Xeon Bedienungsanleitung

Intel

Intel E5345 - Xeon 2.33 GHz 8M L2 Cache 1333MHz FSB LGA771 Active Quad-Core... Bedienungsanleitung

Intel

Intel BX80613I7980 Bedienungsanleitung

Intel

Intel RES2SV240 Installationshandbuch

Intel

Intel E42249-003 Betriebsanleitung

Intel

Intel VROC Bedienungsanleitung

Intel

Intel RMSP3AD16OF Installationshandbuch

Intel

Intel PENTIUM PRO Bedienungsanleitung

Intel

Intel KOTETSU Mark II Bedienungsanleitung

Intel

Intel NetBurst Bedienungsanleitung

Intel

Intel DZ77GAL-70K Kurzanleitung zur Einrichtung

Intel

Intel AXXROMBSASMR Installationshandbuch

Intel

Intel LGA1155 SOCKET - THERMAL MECHANICAL S AND DESIGN GUIDELINES... Bedienungsanleitung

Intel

Intel H110 Express Bedienungsanleitung

Intel

Intel BX80605I5760 Bedienungsanleitung

Intel

Intel 3100C - SERVICE Bedienungsanleitung

Intel

Intel GD82559ER Bedienungsanleitung

Intel

Intel SRCS28X - RAID Controller Bedienungsanleitung

Intel

Intel 12Gb/s Bedienungsanleitung

Intel

Intel Quark SoC X1000 Leitfaden

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung

Advantech

Advantech ASMB-935 Series Bedienungsanleitung

Jupiter

Jupiter RAM PACK Bedienungsanleitung
