Thank you for buying an Intel® Server System. The following information will help you

assemble your Intel®Server System and install components.

If you are not familiar with ESD [Electrostatic Discharge] procedures used during

system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/support.

G54451-002

Intel® Server System H2000JF & H2000WP

Quick Installation User's Guide

Intel® Server System H2000JF & H2000WP

Quick Installation User's Guide

*12 x 3.5" hard drive bay system as shown

( This page is intentionally left blank. )

Table of Contents

Reference .......................................................................................................................................... 12

Intel® Server Board S2600JF Component Layout............................................ 12

Intel® Server Board S2600WP Component Layout ........................................ 12

Front Panel Controls and Indicators ........................................................................ 13

Cable Routing inside Server System H2000JF Node Tray

...................................... 13

Optional Accessories

............................................................................................................ 13

Cable Routing inside Server System H2000WP Node Tray

.................................. 14

Optional Accessories

............................................................................................................ 14

Intel® Server System RAID Options ........................................................................ 14

Intel® Server System RAID Options ........................................................................ 15

System Overview (Intel® Server System H2000JF Family)..........................................1

System Overview (Intel® Server System H2000WP Family) ......................................2

General Installation Process ..........................................................................................................3

Preparing the System ...................................................................................................... 3

Install/Remove the Power Supply Unit .................................................................. 3

Install/Remove Computer Node Tray ...................................................................... 3

Install/Remove Node Tray Air Duct .......................................................................... 4

Remove Processor Heat Sink(s) .................................................................................. 4

Install the Processor(s) .................................................................................................... 5

Install Processor Heat Sink(s) ...................................................................................... 6

Install Memory Modules .................................................................................................. 6

Install/Remove the Front Bezel .................................................................................. 7

Install Hard Drives .............................................................................................................. 7

Installing PCI Riser Assembly and Add-in Card on Riser Slot 1 .................. 8

Install I/O Module Riser and Carrier Assembly on Riser Slot 2 .................. 9

Install Intel® RAID C600 Upgrade Key (optional) ................................................ 9

Install Intel® Remote Management Module 4 (optional) ................................ 9

Remove the Top Cover .................................................................................................. 10

Install Top Cover ................................................................................................................ 10

Software ................................................................................................................................ 10

Assembling the Server System with Server Chassis H2000 .................. 11

Removing a Node Tray from a Chassis.................................................................. 11

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Flat Blade

screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

Thermal Operation and Conﬁguration Requirements for Server System H2000WP

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and

configuration guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time.

Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed first. The CPU-2 heatsink must be installed at all times, with or

without a processor installed.

• Memory Slot population requirements:

NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank. Memory population rules

apply when installing DIMMs.

▪ DIMM Population Rules on CPU-1

Install DIMMs in order: channels A1, B1, C1, D1, A2, B2, C2, and D2. Remove only DIMM blanks when populating

▪ DIMM Population on CPU-2

Install DIMMs in order: Channels E1, F1, G1, H1, E2, F2, G2, and H2. Only remove DIMM blanks when populating

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied

drive blank.

• The air duct must be installed at all times.

• The empty power supply bay must have the supplied filler blank installed at all times.

• The system top-cover must be installed at all times. Remove the top cover only when the system is in power-off state.

the slot with a DIMM.

iii

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Flat Blade

screwdriver

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

Thermal Operation and Conﬁguration Requirements for Server System H2000JF

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and

configuration guidelines:

• Ambient in-let temperature cannot exceed 35º C and should not remain at this maximum level for long periods of time.

Doing so may affect long term reliability of the system.

• The CPU-1 processor + CPU heatsink must be installed first. The CPU-2 heatsink must be installed at all times, with or

without a processor installed.

• Memory Slot population requirements:

NOTE: Specified memory slots either can be populated with a DIMM or supplied DIMM Blank. Memory population rules

apply when installing DIMMs.

▪ DIMM Population Rules on CPU-1

Install DIMMs in order; Channels A, B, C, and D. Only remove DIMM blanks when populating the slot with a DIMM.

▪ DIMM Population on CPU-2

Install DIMMs in order; Channels E, F, G, and H. Only remove DIMM blanks when populating the slot with a DIMM.

• All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied

drive blank.

• The air duct must be installed at all times.

• The empty power supply bay must have the supplied filler blank installed at all times.

• The system top-cover must be installed at all times. Remove the top cover only when the system is in power-off state.

System Overview

Intel® Server System H2000JF Family

System Features and Components

* 3.5" Hard Drive Bay system as shown

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

Compute

Node 3 Tray

Upper/Lower

Power Distribution

Boards

Common

Redundant

Power Supply

Compute

Node 1 Tray

Front Control Panel

HDD bays with

Hot Swap

Backplane

Compute

Node 4 Tray

Compute

Node 2 Tray

System Overview

Intel® Server System H2000WP Family

* 3.5" Hard Drive Bay system as shown

System Features and Components

Compute

Node 3 Tray

Upper/Lower

Power Distribution

Boards

Common

Redundant

Power Supply

Compute

Node 1 Tray

Front Control Panel

HDD bays with

Hot Swap

Backplane

Compute

Node 4 Tray

Compute

Node 2 Tray

Intel® Server System H2000JF and H2000WP Hard Drive Numbering Diagram

Intel® Server System H2000JF and H2000WP Compute Node Numbering Diagram - Rear View

Node 4

Node 2

Node 3

Node 1

PSU 2

PSU 1

12X3.5” Hard Drive Bay Option - Front View

NODE 4

NODE 2

NODE 3

NODE 1

Node3/HDD0

Node3/HDD2

Node1/HDD0

Node3/HDD1

Node1/HDD2

Node1/HDD1

Node4/HDD0

Node4/HDD2

Node2/HDD0

Node4/HDD1

Node2/HDD2

Node2/HDD1

Node3/HDD1

Node1/HDD2

Node1/HDD1

16X2.5” Hard Drive Bay Option - Front View

NODE 4

NODE 2

NODE 3

NODE 1

Node1/HDD2

Node1/HDD0

Node3/HDD2

Node3/HDD0

Node1/HDD3

Node1/HDD1

Node3/HDD3

Node3/HDD1

Node2/HDD2

Node2/HDD0

Node4/HDD2

Node4/HDD0

Node2/HDD3

Node2/HDD1

Node4/HDD3

Node4/HDD1

General Installation Process

The installation instructions in this section are for common components of Intel® Server System

H2000JP and H2000WP family.

Minimum Hardware Requirements

•Memory Type:

Minimum of one 1GB DDR3 1066/1333/1600 MHz RDIMM.

•Processor:

Intel® Xeon® processor E5-2600 product family (TDP 130W or below).

•Hard Disk Drives: SATA/SAS

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/p/en_US/support (post-production only)

To avoid integration difﬁculties and possible board damage, your system must

meet the following minimum requirements:

Preparing the System

Observe normal ESD (Electrostatic Discharge)

procedures.

Place your Intel®Server System on a ﬂat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

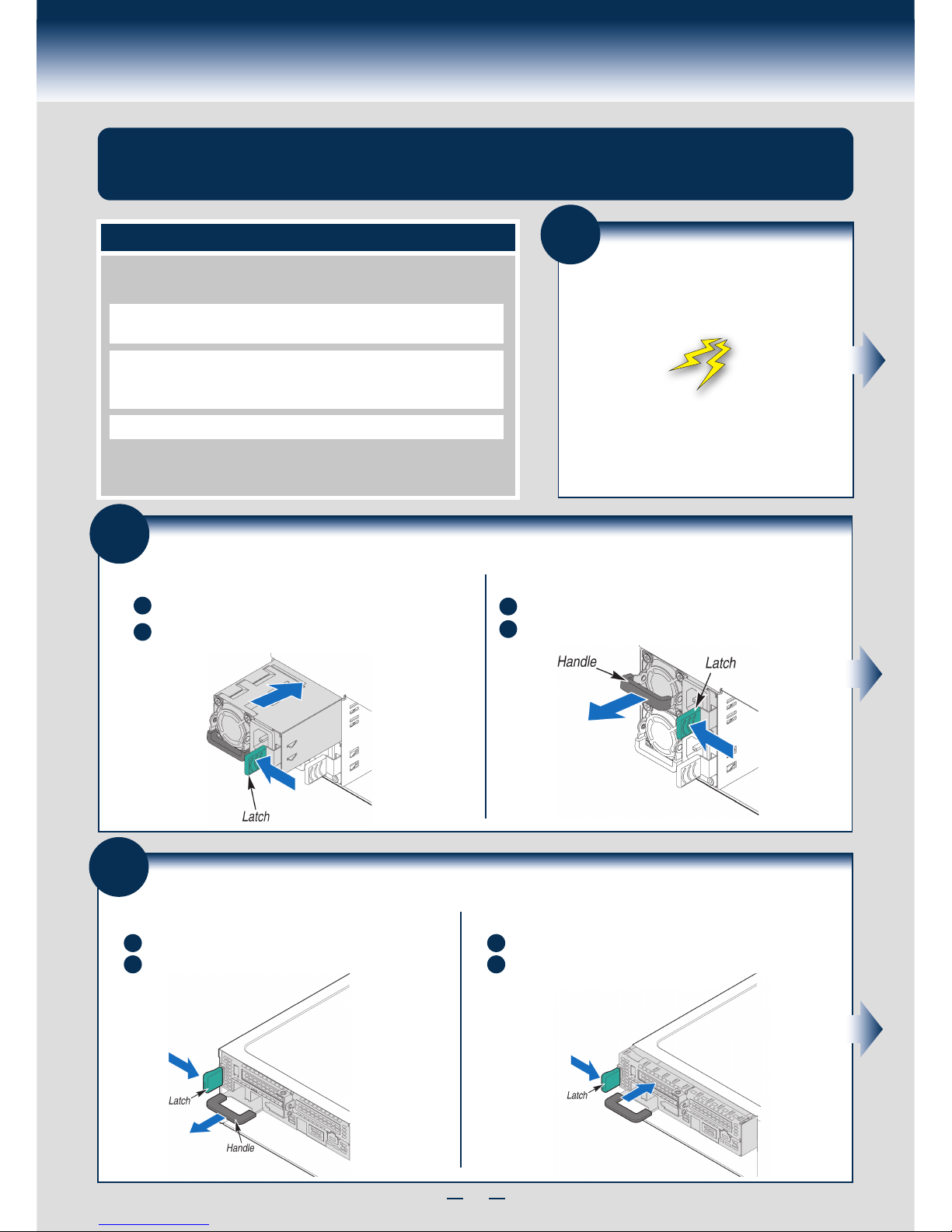

2Install/Remove the Power Supply Unit

AAlign and slide in the Power Supply Unit to the power cage rail.

Carefully push in the latch on the right hand of PSU.

Pull the handle with the PSU while still press the latch.

Push the Power Supply Unit along the rail until the latch locks in

position with a “tick” sound.

Install the Power Supply Unit: Remove the Power Supply Unit:

3Remove/Install Computer Node Tray

Push-in the latch on the left hand of Node Tray.

To Remove Node Tray: To Install Node Tray:

BPull the handle of the Node Tray while pushing the latch.

Align and slide in the Node Tray to the chassis rail.

BPush the Node Tray along the rail until the latch locks in position

with a tick sound.

General Installation Process

The installation instructions in this section are for common components of Intel® Server System

H2000JP and H2000WP family.

IMPORTANT!

Before proceeding

further, check your

Intel®Server System

for disconnected or

loose cables and

components that

may have occurred

during shipping.

Remove Processor Heatsink(s)

The heatsink is attached to the server board / processor socket with captive fasteners.

Lift the heatsink straight up.

OPEN 1st

CLOSE 1st

Processor

Socket

CAUTION: The heatsink has thermal interface material (TIM) on the underside

of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four screws located on the

heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by

giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)

Proceed to screw 2 and loosen it by giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time

until all screws are loosened.

Remove/Install Node Tray Air Duct

Press and hold both left and right side of rear air duct (see letter “A”).

Align the front-end of air duct to chassis ﬁxture (see letter “A”).

Removing the Air Duct

Installing the Air Duct

BLift the rear end of the air duct slowly (see letter “B”).

Rotate the airduct to more than 45 degrees up,

and pull it out.

Low down the rear side of the air duct to ﬁxture

until a “tick” sound is heard (see letter “B”).

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

General Installation Process

6Install the Processor(s)

A. Open the Socket Lever B. Open the Load Plate

BRepeat the steps to release the lever on the other side.

Push down the lever handle on the OPEN 1st side and

away from the socket to release it. A

BOpen the load plate all the way.

Press the locking lever slightly to raise the

load plate .

NOTE: Release

the levers in the

order as shown.

OPEN 1st

CLOSE 1st

REMOVE

OPEN 1st

CLOSE 1st

OPEN 1st

CLOSE 1st

Install the Processor(s) ... continued

C. Install the Processor

Take the processor out of the box and remove the protective shipping cover.

CAUTION: When unpacking a processor,

hold by the edges only to avoid touching

the gold contact pins.

Save the

protective

cover.

CAUTION: The underside of the processor has

components that may damage the socket pins

if installed improperly.

Processor must align correctly with the socket opening before installation.

DO NOT DROP processor into socket!

Components

Note location of gold key at corner of processor.

Orient the processor with the socket so that the processor cutouts match the four orientation

posts on the socket.

Install the Processor(s) ... continued

D. Remove the Cover

Press the cover to

remove it. Carefully lower the load plate over

the processor.

E. Close the Load Plate

Push down on the locking lever on the CLOSE 1st side.

F. Latch the Locking Lever

BSlide the tip of the lever under the notch in the load plate.

Make sure the load plate tab engages under the socket lever

when fully closed.

CRepeat the steps to latch the locking lever on the other side.

OPEN 1st

CLOSE 1st

REMOVE

CLOSE 1st

OPEN 1st

CLOSE 1st

Save the

protective

cover. NOTE: Latch the levers in

the order as shown.

Andere Handbücher für H2000WP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intel Server Handbücher

Intel

Intel R2000WF series Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel SC5650HCBRP Bedienungsanleitung

Intel

Intel R1000WF Series Konfigurationshandbuch

Intel

Intel MB440LX Benutzerhandbuch

Intel

Intel MFSYS35 Bedienungsanleitung

Intel

Intel SPSH4 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel D40AMP Series Bedienungsanleitung

Intel

Intel SR870BN4 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel AXX6DRV3GEXP Bedienungsanleitung

Intel

Intel SR1530CL - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1600UR - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel P4000IP Series Konfigurationshandbuch

Intel

Intel R2000LT2 Konfigurationshandbuch

Intel

Intel MFSYS25 - AXXPSU 1000W Power Supply Module Bedienungsanleitung

Intel

Intel SR6850HW4M Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Bedienungsanleitung

Intel

Intel SR1325TP1 - Entry Server Platform Bedienungsanleitung

Intel

Intel SR1560SFHS - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel SR2520SAFRNA - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel R2000SC Bedienungsanleitung

Intel

Intel AC450NX Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
