Intel®Server System SR870BH2 Quick

Start Guide

Order Number: C43207-001

This guide contains basic instructions for setting up the system and accessing

the Product Guide from the Resource CD.

Important Safety Instructions

Read all caution and safety statements in this document before performing any of the instructions.

See Intel®Server Boards and Server Chassis Safety Information on the Resource CD and/or at

http:\\support.intel.com.

Wichtige Sicherheitshinweise

Lesen Sie zunächst sämtliche Warn- und Sicherheitshinweise in diesem Dokument, bevor Sie eine

der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu Intel-

Serverplatinen und -Servergehäusen auf der Ressourcen-CD oder unter http:\\support.intel.com.

Consignes de sécurité

Lisez attention toutes les consignes de sécurité et les mises en garde indiquées dans ce document

avant de suivre toute instruction. Consultez Intel Server Boards and Server Chassis Safety

Information sur le CD Resource CD ou bien rendez-vous sur le site http:\\support.intel.com.

Instrucciones de seguridad importantes

Lea todas las declaraciones de seguridad y precaución de este documento antes de realizar

cualquiera de las instrucciones. Vea Intel Server Boards and Server Chassis Safety Information en

el CD Resource y/o en http:\\support.intel.com.

重要安全指导

在执行任何指令之前，请阅读本文档中的所有注意事项及安全声明。参见 Resource

CD（资源光盘）和/或 http:\\support.intel.com 上的

Intel Server Boards and

Server Chassis Safety Information

（《Intel 服务器主板与服务器机箱安全信息》）。

any form, or by any means without prior written consent of Intel.

Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied

warranties of merchantability and fitness for a particular purpose. Intel assumes no responsibility for any errors that may

appear in this document. Intel makes no commitment to update nor to keep current the information contained in this

document.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required

to correct the interference at his/her own expense.

Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.

* Other names and brands may be claimed as the property of others.

iii

Contents

Intel®Server System SR870BH2 Specifications.................................................................... 5

Regulatory Specifications and Disclaimers............................................................................. 6

FCC Electromagnetic Compatibility Notice (USA).......................................................... 6

Electromagnetic Compatibility Notices (International).................................................... 7

Removing the Server from the Box ......................................................................................... 8

Selecting a Site ....................................................................................................................... 8

Checking Power Cords ...........................................................................................................9

Connections and Controls..................................................................................................... 10

Connecting the Monitor, Keyboard, and Mouse.................................................................... 14

Powering On the Server for the First Time............................................................................ 14

Mounting the DVD/CD-RW Device ....................................................................................... 15

The Intel®Server System SR870BH2 Resource CD ...........................................................15

The Intel®Server System SR870BH2 Product Guide .......................................................... 16

iv Intel®Server System SR870BH2

Quick Start Guide

Intel®Server System SR870BH2 5

Quick Start Guide

Intel®Server System SR870BH2 Specifications

Table 1. Intel®Server System SR870BH2 Physical Specifications

Specification Value

Height 3.4 inches (87 mm)

Width 17.7 inches (449 mm)

Depth 29.4 inches (747 mm)

Front clearance 3 inches (76 mm)

Side clearance 1 inch (25 mm)

Rear clearance 6 inches (152 mm)

Weight165 lbs (30 kg)

Note: 1. The system weight listed above is an estimate for a fully configured system and will vary depending on number

of peripheral devices and add-in cards, as well as the number of processors and DIMMs installed in the system.

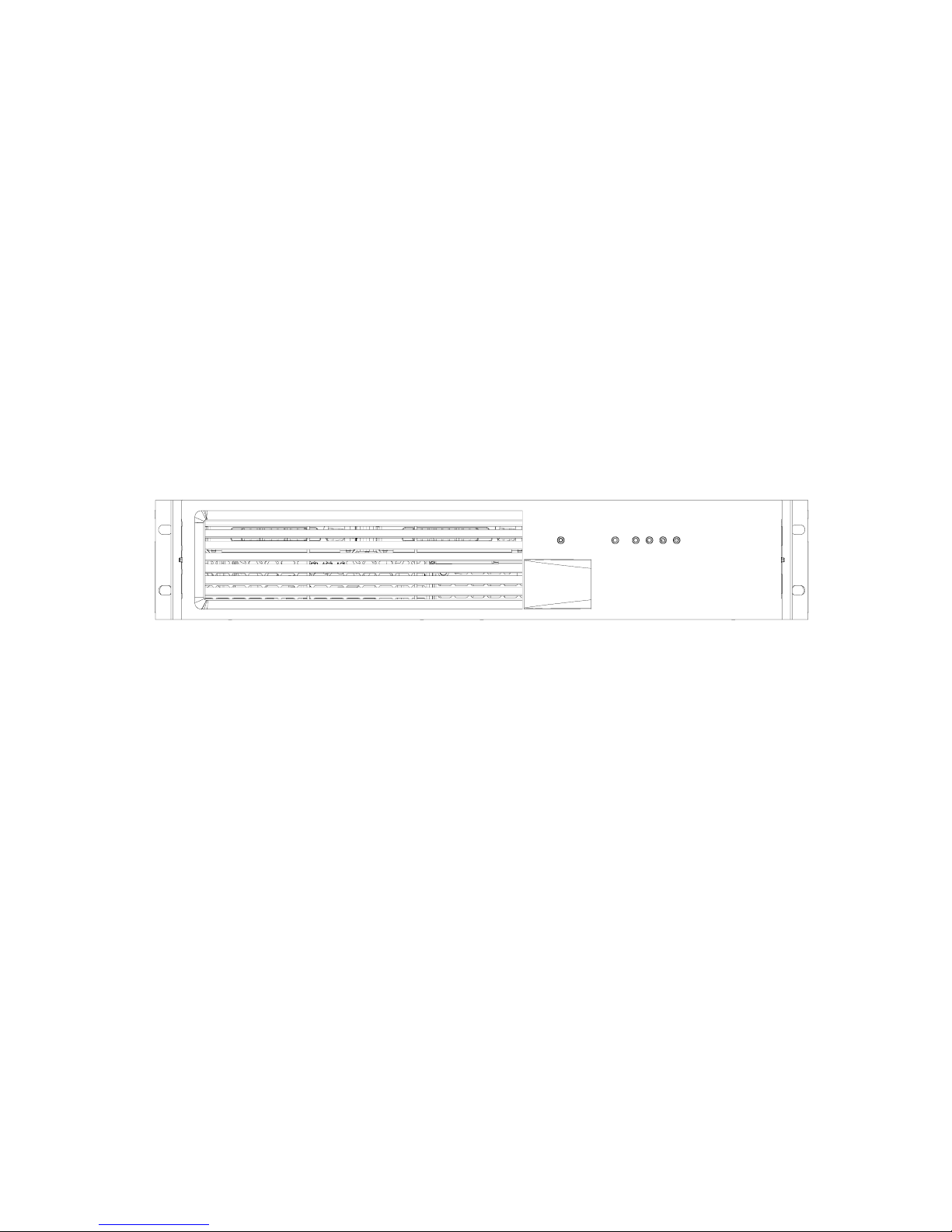

Figure 1. Intel®Server System SR870BH2

6 Intel®Server System SR870BH2

Quick Start Guide

Regulatory Specifications and Disclaimers

FCC Electromagnetic Compatibility Notice (USA)

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operating in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference. In this

case, the user is required to correct the interference at his/her own expense. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on; the user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the grantee of this device could void the

user’s authority to operate the equipment. The customer is responsible for ensuring compliance of

the modified product.

FCC Declaration of Conformity

Product Type: SR870BH2

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation

2800 Center Drive

DuPont, WA 98327 USA

Laser Compliance Notice

Intel products that use laser technology comply with Class 1 laser requirements.

Class 1 Laser Product

Luokan 1 Laserlaite

Klasse 1 Laser Apparat

Intel®Server System SR870BH2 7

Quick Start Guide

Laser Klasse 1



NOTE

Class A device definition: If a Class A device is installed within this system,

then the system is to be considered a Class A system. In this configuration,

operation of this equipment in a residential area is likely to cause harmful

interference.

Electromagnetic Compatibility Notices (International)

Europe (CE Declaration of Conformity)

This product has been tested in accordance too, and complies with the Low Voltage Directive

(73/23/EEC) and EMC Directive (89/336/EEC). The product has been marked with the CE Mark to

illustrate its compliance.

Japan EMC Compatibility

English translation of the notice above:

This is a Class A product based on the standard of the Voluntary Control Council for Interference

by Information Technology Equipment (VCCI). If this equipment is used in a domestic

environment, radio disturbance may arise. When such trouble occurs, the user may be required to

take corrective actions.

ICES-003 (Canada)

Cet appareil numérique respecte les limites bruits radioélectriques applicables aux

appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, NMB-003 édictée par le Ministre Canadian des

Communications.

English translation of the notice above:

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the interference-causing equipment standard entitled “Digital Apparatus,”

ICES-003 of the Canadian Department of Communications.

8 Intel®Server System SR870BH2

Quick Start Guide

BSMI (Taiwan)

The BSMI Certification number and the following warning is located on the product safety label

which is located visibly on the external chassis.

Removing the Server from the Box

Carefully unpack the server. Be sure to use two people to lift the server. Do not attempt to lift or

move the server by the handles on the power supplies. If you need to move the server from one

location to another, use a hand-truck or other mechanical assist unit.

WARNINGS

AVOID INJURY: To avoid personal injury when unpacking the server,

use only a mechanical assist unit to lift it off the shipping pallet. The

maximum server configuration weighs 65 lbs (30 kg).

Selecting a Site

The server operates reliably within normal office environmental limits. Select a site that meets

these criteria:

•Near a properly earthed, grounded three-pronged power outlet

⎯In the United States and Canada: a NEMA-compliant, 110-208 V∼outlet rated for 15 amps

⎯In other geographic areas: a properly grounded, earthed outlet in accordance with the local

electrical authorities and electrical code of the region

•Clean and relatively free of excess dust

•Well ventilated and away from sources of heat, with the ventilating openings on the server kept

free of obstructions

•Away from sources of vibration or physical shock

•Isolated from strong electromagnetic fields and noise caused by electrical devices such as

elevators, copy machines, air conditioners, large fans, large electric motors, radio and TV

transmitters, and high-frequency security devices

CAUTION, ESD Precautions

Electrostatic discharge (ESD) can damage disk drives, add-in boards, and other

parts. This server can withstand normal levels of environmental ESD.

However, we recommend doing all procedures in this guide only at an

ESD-protected workstation. If one is not available, you can provide some ESD

Intel®Server System SR870BH2 9

Quick Start Guide

protection by wearing an anti-static wrist strap attached to chassis ground of the

server when handling components (e.g., any unpainted metal surface).

CAUTION

Grounded outlet: Make sure that the power service connection is through a

properly grounded outlet.

Temperature: The range of temperatures in which the server operates when

installed in an equipment rack, must not go below 5 °C (41 °F) or rise above

35 °C (95 °F). Extreme fluctuations in temperature can cause a variety of

problems in your server.

Ventilation: The equipment rack must provide sufficient airflow to the front

of the server to maintain proper cooling. The rack must also include

ventilation sufficient to exhaust a maximum of 650 Watts (or 2300 BTUs)

for each server. The rack selected and the ventilation provided must be

suitable to the environment in which the server will be used.

Checking Power Cords

WARNING

The Power button on the front control panel of the server does not

completely remove AC power. To completely remove AC power from

the server, you must unplug both AC power cords from the system or

from the wall outlet. Unplugging the cords removes the +12 Volt

standby power that is present when the server is powered down.

WARNING

Do not attempt to modify or use an AC power cord that is not the exact

type required. You must use a power cord that meets the following

criteria:

1. Rating: For U.S./Canada cords must be UL Listed/CSA Certified,

16/3, 75C type, VW-1, SJT/SVT, with NEMA 5-15P or

NEMA 6-15P attachment plug and IEC 320 C13 input power

connector rated 15 amps. For outside U.S./Canada cords must be

flexible harmonized (<HAR>) rated 250V, 1.0 mm minimum

conductor size with IEC 320 C13 input power connector and rated

for no less than 10 amps.

2. AC Attachment Connector, wall outlet end for outside U.S./Canada:

The AC wall attachment plug should be a three conductor grounding

type, rated at 125 V, 15 amps and must be for the configuration of

the specific region or country. The AC wall attachment plug must

bear at least an accepted safety agency certification mark for the

specific region or country.

10 Intel®Server System SR870BH2

Quick Start Guide

3. Input Power Connector, server end: The connectors that plug into

the AC receptacles on the server must be an IEC 320, sheet C13, type

female connector and are rated for 125 V/250 V, 15 A.



NOTES

Surge Suppressor Recommendations: In geographic regions that are

susceptible to electrical storms, we highly recommend that you plug the

server into a surge suppressor.

EMI Information: For information about complying with electromagnetic

interference regulations, see “Electromagnetic Compatibility” in the

Intel® Server System SR870BH2 Product Guide.

Connections and Controls

Figure 2 and Figure 3 show the chassis front view and the peripheral bay module.

Figure 2. Chassis Front View

Andere Handbücher für SR870BH2 - Server Platform - 0 MB RAM

Inhaltsverzeichnis

Andere Intel Server Handbücher

Intel

Intel IP Network server NSI2U Bedienungsanleitung

Intel

Intel R1000BB Family Bedienungsanleitung

Intel

Intel STCK1A32WFC Bedienungsanleitung

Intel

Intel SR6850HW4M Bedienungsanleitung

Intel

Intel AC450NX Bedienungsanleitung

Intel

Intel TIGPT1U - Carrier Grade Server Bedienungsanleitung

Intel

Intel SR2612UR - Server System - 0 MB RAM Betriebsanleitung

Intel

Intel TSRMT2 Bedienungsanleitung

Intel

Intel R2000WF series Bedienungsanleitung

Intel

Intel P4000IP Series Bedienungsanleitung

Intel

Intel R2000WF series Bedienungsanleitung

Intel

Intel R1000RP Series Original Betriebsanleitung

Intel

Intel H2000G Series Bedienungsanleitung

Intel

Intel Dialogic Bedienungsanleitung

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Bedienungsanleitung

Intel

Intel R2600SR Series Bedienungsanleitung

Intel

Intel P4308CP4MHEN Bedienungsanleitung

Intel

Intel SR2625UR - Server System - 0 MB RAM Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Bedienungsanleitung

Intel

Intel R1000WF Series Konfigurationshandbuch

Intel

Intel TIGH2U - Carrier Grade Server Bedienungs- und Sicherheitshinweise

Intel

Intel SR1695WB Bedienungsanleitung

Intel

Intel SR1500 - AXXMINIDIMM DDR-2 RAID Controller Cache... Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
