Intel®PRO/Wireless 2011

Access Point

Quick Installation Guide

Additional documentation is on the

Intel CD. See page 2 for details.

ap_guide.fm Page 1 Tuesday, June 20, 2000 1:13 PM

Contents

More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Mounting the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Access Point Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Connecting the Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . .4

LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Configuring the Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installing the WLAN Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Intel Automated Customer Support . . . . . . . . . . . . . . . . . . . . . .10

Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497

Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel

make any commitment to update the information contained herein.

* Other product and corporate names may be trademarks of other companies and are used only for

explanation and to the owners’ benefit, without intent to infringe.

ap_guide.fm Page 2 Tuesday, June 20, 2000 1:13 PM

More Information

Online User’s Guide

The full Product Reference Guide and other user documenta-

tion is located on the Intel CD. Use Adobe Acrobat* to view or

print topics from the guide. The guide covers additional configu-

ration topics, and site setup information. To view the guide, put

the CD in your drive and wait for the Autorun screen to display.

Click the Product Reference Guide link.

Online Services

You can use the Internet to download software updates, trouble-

shooting tips, installation notes, and more. Online services are

on the World Wide Web at: http://support.intel.com

Late Breaking News

Look for the

Late Breaking News

document in your shipping

container. This printed document provides useful information

about adapter compatibility and gives special installation

release notes.

Installation Requirements

Before installing the Intel®PRO/Wireless 2011 Access Point verify the

following:

•The intended location of the access point is dry and dust free. Install

in wet or dusty areas only with additional protection.

•The installation environment is between -30°C and 70°C.

•The access point can be installed on a different subnet if mobile IP is

enabled.

The minimum installation requirements for a single-cell, peer-to-peer

network are:

•Power outlet

•Access point

•Null modem serial cable.

Network Connection

Locate connectors for Ethernet and power on the back of the access

point. Ethernet configurations vary according to the environment.

ap_guide.fm Page 3 Tuesday, June 20, 2000 1:13 PM

Mounting the Access Point

The access point rests on a flat surface or attaches to any hard, flat, sta-

ble surface. Use the mounting kit provided to secure the access point.

Select an access point mounting option based on its intended operating

environment.

•Resting flat

The access point rests on four rubber pads on the underside of the AP.

Place on a surface clear of debris and away from office traffic.

•Attached to the wall

The access point attaches to a wall and can be oriented in any position.

Access Point Antenna

The access point (AP) contains a built-in dual antenna assembly provid-

ing diversity, improved performance and increased signal strength over

single antenna applications. Antenna coverage resembles lighting in that

an area lit from far away might not be bright enough. An area lit sharply

minimizes coverage and creates dark areas where no light exists. Uni-

form AP placement provides even, efficient coverage. Position the

access point and antenna using the following guidelines:

•Install the access point as high as practical

•Orient the access point vertically for best reception

•Point the antenna downward if attaching the access point to the ceil-

ing.

Connecting the Power Adapter

The power adapter connects to the rear of the AP and to a power outlet.

1. Verify that the power adapter matches the country-of-use require-

ments.

2. Plug the power adapter cable into the socket at the back of the access

point.

3. Plug the adapter into an outlet.

The AP functions without user intervention after setup. Refer to the

LED Indicators section of this document to verify that the unit is func-

tioning correctly.

ap_guide.fm Page 4 Tuesday, June 20, 2000 1:13 PM

LED Indicators

The top-panel LED indicators provide a status display indicating trans-

mission, error conditions and other activity. They are shown here:

Power LAN Wireless

Power: Flashing indicates AP initialization. Appears steady Green dur-

ing operation.

LAN: Flashing indicates data transfer on the wired network.

Wireless: Flickering indicates beacons and MU data transfer.

Configuring the Access Point

Prior to using the AP with a laptop PC Card, it must be configured for

most installations. Some of the default values may suit your installation,

however, other values may need changing. Typically this is done by a

Network Administrator who has knowledge of your entire network

setup.

There are several methods of attaching to the AP and configuring it.

Refer to Chapter 2 of the Intel PRO/Wireless 2011 Access Point Product

Reference Guide for instructions and password information.

ap_guide.fm Page 5 Tuesday, June 20, 2000 1:13 PM

Installing the WLAN Utilities

The WLAN Utilities consists of WLAN Monitor, WLAN Info, WLAN

Update, Access Point Discovery, and My Wireless LAN Places utilities.

Use the WLAN Utilities to view PC Card signal quality, power manage-

ment status, diagnostic information, upgrade system firmware and view

the properties of neighboring access points.

To install the WLAN Utilities from the Intel CD:

1. Insert the installation CD in the computer CD-ROM drive.

2. Click Start and select Run.

3. Enter x:\Setup.exe

Where x represents the letter assigned to the CD-ROM drive.

4. Click OK.

5. Complete the installation following the instructions displayed by the

Windows operating system.

6. Restart the computer when prompted by the Windows operating sys-

tem.

WLAN Monitor appears in the system task tray when the system

restarts. Use the WLAN Monitor signal strength indicator to view the

signal strength between the PC Card and access point once the PC Card

driver is installed.

For instructions on using the WLAN utilities, refer to the WLAN Utili-

ties User’s Guide contained on the installation CD.

ap_guide.fm Page 6 Tuesday, June 20, 2000 1:13 PM

Troubleshooting

If you cannot link to an Access Point, refer to the Troubleshooting sec-

tion in the PRO/Wireless Access Point Product Reference Guide.

Specifications

Table 1: Physical Specifications

Feature Value

Drop Withstands up to a 30-inch (76 cm) drop to con-

crete with possible surface marring

LEDs Power, LAN, Wireless

Dimensions 1.75" H x 6" L x 8.5" W

4.45"cm H x 15.24"cm L x 21.59"cm W

Weight 1 lb. (0.454 kg)

Operating temperature

Storage temperature 4°F to 131°F (-20°C to 55°C)

40°F to 149°F (-40°C to 65°C)

Humidity 0% to 95% non-condensing

Shock

Vibration 40 G, 11 ms, half-sine

2 G peak, sine; 0.02 G peak random (5-2000 Hz)

Altitude Storage: 15,000 ft (4.6 km)

Operating: 8,000 ft (2.4 km)

ESD Meets CE mark

ap_guide.fm Page 7 Tuesday, June 20, 2000 1:13 PM

Radio Characteristics

Frequency Range Country dependent; within 2400 MHz to 2500 MHz

11 Mbps range Open environment, over 100 ft.

Typical office/retail environment, 30 - 50 feet

TX Max. Radiated EIRP US: FCC part 15.247

Europe: ETS 300 320

Japan: RCR STD-33

Modulation Binary GFSK

Emissions Europe: ETS 300 320

Japan: RCR STD-33

Network Characteristics

Driver Support NDIS v4.0 and v5.0

Ethernet Frame DIX, Ethernet II and IEEE 802.3

Filtering Packet Rate 14,400 frames per second filtering and forwarding

Ethernet Connection 10Base-T (RJ-45)

Serial PC/AT serial port - DB9 Male RS-232 using a DTE

termination, 19,200 bps

SNMP Version 1, Intel MIB, 802.11 MIB

and MIB-11

Table 2: Frequency Chart

Country Frequency Channels

United States 2412-2470 1-11

Israel 2430-2447 5-8

Spain 2457-2463 10-11

France 2458-2472 10-13

Japan 2483-2485 1

ap_guide.fm Page 8 Tuesday, June 20, 2000 1:13 PM

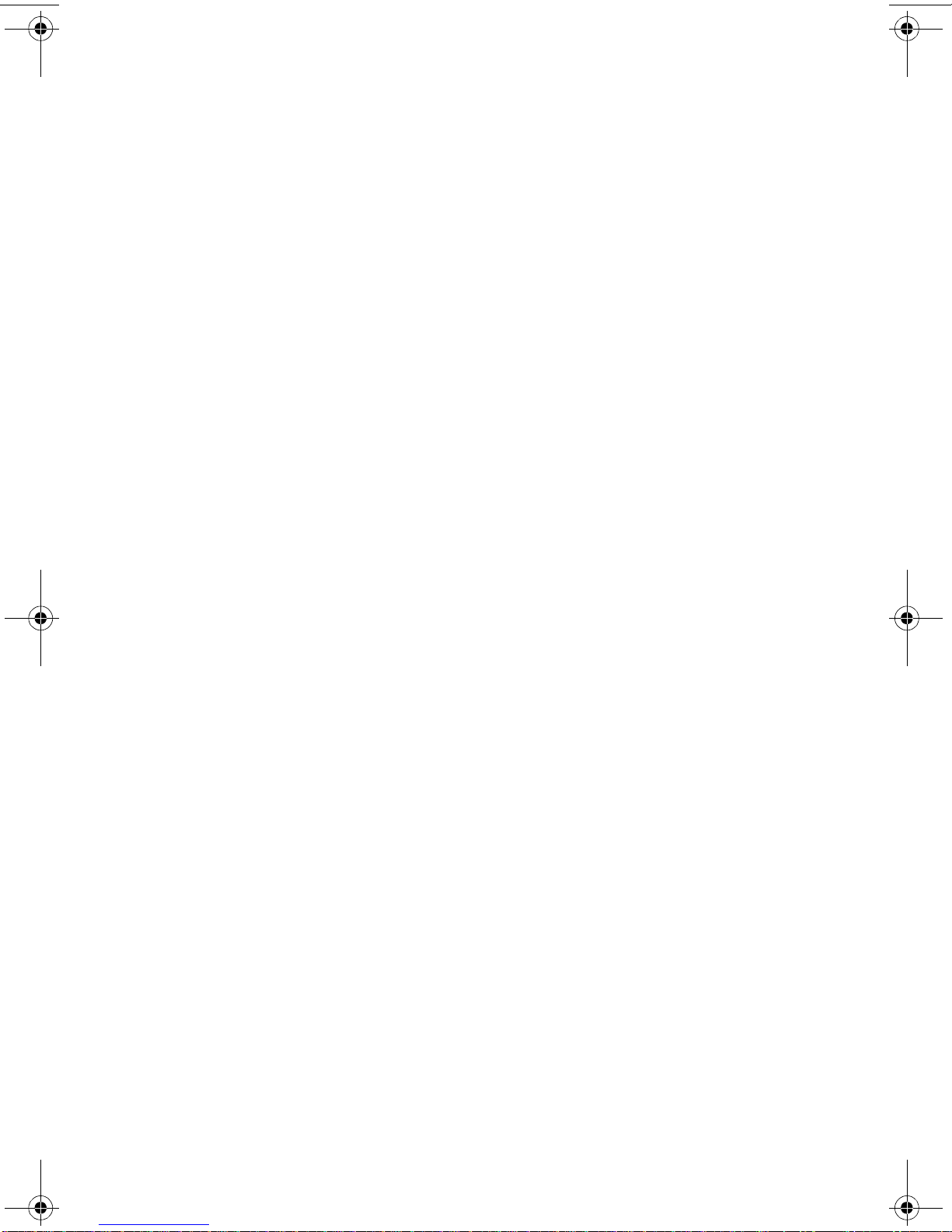

Blank Page

ap_guide.fm Page 9 Tuesday, June 20, 2000 1:13 PM

Intel Automated Customer Support

You can reach Intel’s automated support services 24 hours a day, every day at no charge.

The services contain the most up-to-date information about Intel products. You can access

installation instructions, troubleshooting information, and general product information.

Supplemental Documentation on Your Product CD-ROM

For more information about installing drivers or troubleshooting other topics, see the

online documentation. To view the documentation, insert the Intel CD in your drive and

wait for the Autorun to display. A list of documents appears. Click the desired link to view

the guide. Note that Adobe Acrobat is required to view the PDF files. Acrobat is included

on the Intel CD in the Acrobat folder.

Web and Internet Sites

Support: http://support.intel.com

Network Products: http://www.intel.com/network

Corporate: http://www.intel.com

FTP Host: download.intel.com

FTP Directory: /support/network/adapter/

Customer Support Technicians

US and Canada: 1-916-377-7000 (7:00 - 17:00 M-F Pacific Time)

Worldwide access: Intel has technical support centers worldwide. Many of the centers are

staffed by technicians who speak the local languages. For a list of all Intel support centers,

the telephone numbers, and the times they are open, visit http://www.intel.com/support/

9089.htm.

Product Warranty

This product is covered by a Limited Warranty. See the online manuals for details.

Regulatory Notices

All regulatory notices are provided in the online manuals.

Software License Agreement

Software included with this product is protected by a specific Software License Agree-

ment, provided in the online manuals. By using this software you agree to the provisions

in the Software License Agreement.

A27287-001

ap_guide.fm Page 10 Tuesday, June 20, 2000 1:13 PM

Inhaltsverzeichnis

Andere Intel Drahtloser Zugangspunkt Handbücher

Intel

Intel WEAP2011BRW Bedienungsanleitung

Intel

Intel PRO/Wireless 5000 Bedienungsanleitung

Intel

Intel Content Bedienungsanleitung

Intel

Intel WRTD-303N Bedienungsanleitung

Intel

Intel Wireless EthernetAccess Point Bedienungsanleitung

Intel

Intel WAPD-235N Bedienungsanleitung

Intel

Intel Education Content Access Point Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
