ACL805SUW-BS - Biometric Swipe capacitive

Keypad Wiegand Reader - Installation Manual

Description / Operation

ACL805SUW-BS is a Wiegand biometric reader for outdoors

access control applications. It offers storage up to 100

fingerprints, programmable Wiegand output (24 to 80 bits) and

selectable PIN code length.

Configuration of the readers and fingerprint enrollment is done

through PC software.

When used with third party controllers, the connection between

the Biometric readers and the PC is done through ACL800FL-

CONV-W converter (RS485 to TCP/IP). Only one converter is

needed per system (one converter for 1, 2, 3...30, 31 biometric

readers).

The tamper switch output can trigger the alarm system, if an

attempt is made to open or remove the unit from the wall.

The sensor incorporates dedicated sensing hardware to

facilitate the detection of “spoofing” attacks based on fake

fingers. This data is embedded into the image data stream,

and is processed on the processor. The system is capable of

detecting and defeating well-known fake finger mechanisms,

such as molded “gummy” fingers.

The coating on the surface of the swipe chip sensor provides

protection from scratching and abrasion due to normal contact

with fingertips and any incidental contact with fingernails.

Specifications

Fingerprint capacity

Up to 100 fingerprints

Technology

Biometry and keypad

Use

Outdoors

Authentication

Finger, PIN code, finger or/and PIN code

Fingerprints per user

1-10 fingerprints

Interface

Wiegand 24 to 80 bits; default: Wiegand 26bit

Protocol programming

Via ACL800 BioManager software

Cable distance

50 m

Fingerprint Sensor

Type

Swipe capacitive

1:1000 identification

time

970 msec, including feature extraction time

Fingerprint enrolment

On the reader or from the USB desktop reader

Panel Connection

Cable, 1 m

Green and Red LED

Externally controlled

Orange LED

Idle mode

Buzzer ON/OFF

Yes

Backlight ON/OFF

Yes, by software setting

Tamper

Yes

Consumption

150 mA

IP Rating

Power supply

9 to 14 VDC

Operating

Temperature

-20 to +50°C noncondensing

Dimensions

100 x 94 x 30 mm

Housing

Moulded aluminium

Mounting

Figure 1: Mounting instructions

If the biometric reader is installed and used outdoor, the reader

MUST be fitted with a cover in order to protect the sensor from

direct rainfall. The operating temperature of the product is

between -15 to + 50ºC. If the reader is installed in an

environment where the temperature can drop below -10ºC

or/and if the sensor could only be exposed to direct sunlight, it

is strongly recommended to install the reader inside a third

party sealed wall mount box (fitted with additional heater if very

low temperature) to keep a constant sensor level performance.

2 / 7 P/N 1073513A• REV 00.00 • ISS 4JUL18

We cannot guarantee the functionality of the product if

measures and advice before are not followed.

It is also strongly recommended to use double technology

biometric readers when use outdoor to offer first higher

security but also the possibility to use different readers

depending on users.

Wiring

Figure 2: Wiring

Wiring description

Connecting biometric readers to controllers

Figure 3: Wiring instructions

•Connect the lines D0, D1, LR-, LG-, GND and +12V to the

TruPortal controller.

•Connect the RS485 Line (A, B) to the converter. Connect

the converter in the PC.

•Fingerprint enrollment is done from the ACL800

BioManager Software. Connection between the Biometric

readers and the PC must be established.

•The Biometric readers communicate with each other with

a RS485 and with the ACL800 BioManager Software through a

Converter.

•The RS485 Line should be configured in the form of a

daisy chain, NOT in a form of a star. Keep the stubs from the

RS485 backbone as short as possible (not more than 5

meters)

•Only one converter per installation is needed, not per

reader.

RS485 tuning

Figure 4: RS485 tuning

•Terminate both ends of the line with 120 Ohm resistor

•If the communication is not established and stable, use the

external resistors provided in the hardware kit.

Enrollment

Figure 5: Enrollment

Follow the below instructions for correct finger swiping Starting

from the first finger joint, place the selected finger on the swipe

sensor and move it evenly towards oneself in one steady

movement.

Result:

For a valid swipe: Tricolour status LED turns green + OK

beep(short +long beep)

For an invalid or misread swipe: Tricolour status LED turns red

+ error beep ( 3 short beeps)

12 VDC

Red

+12 VDC

GND

Black

Ground

Pink

A (RS485)

Violet

B (RS485)

Tamp

Blue

Tamper

Tamp

Green

Tamper

LG-

Yellow

LED green -

LR-

Orange

LED red -

White

Data 1

Green

Data 0

P/N 1073513A• REV 00.00 • ISS 4JUL18 3 / 7

Configuring the biometric readers in

ACL800 BioManager

ACL800 BioManager is software for fingerprint management of

biometric readers, when used with third party access

controllers.

Main functions:

o Fingerprint enrollment

It can be done by ANY biometric reader in the network or by

desktop (USB) biometric reader

o Fingerprint transfer

Finger templates can be sent to any reader in the network.

Different users can be sent to different biometric readers

o Wiegand output configuration

The Wiegand output of the biometric reader can be customized

bitwise

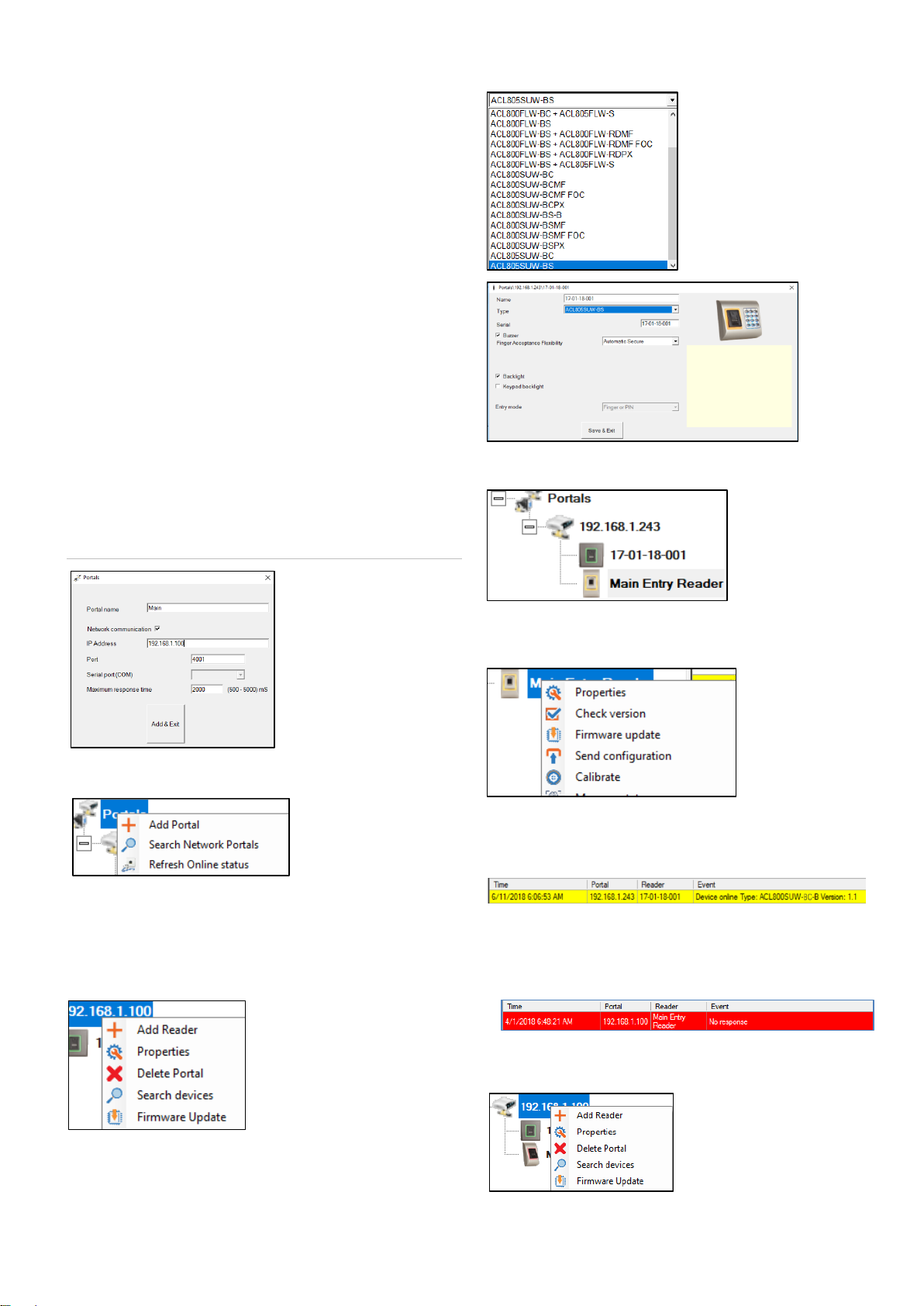

Add portal

•Right-click on “Portals” and select “Add Portal”.

•If the converter used for the biometric readers is RS485 to

TCP/IP, then create a portal by adding the IP Address of the

converter. (Figure 5)

Figure 6: Add Portal

Note: The portal can be added automatically with the “Search”

function.

Add reader

•Right-click on the portal connected to the reader and

select “Add Reader”

•Select the type of the reader and fill the reader form. Put

the serial number of the biometric reader. The serial number is

written on the back side of the reader, but also can be

searched from the software

Click on “Save”and the reader icon appears under

the selected portal

Right-click on reader and select “Check version”to

see if the reader is online

If reader is online, new line is added on top of the

event table

If reader is not online, following line is added on top of

the event table

Note: The reader can be added automatically with the

“search” function

4 / 7 P/N 1073513A• REV 00.00 • ISS 4JUL18

Edit Reader

Right-click on the reader and select Properties

Edit reader properties and click “Save”button.

Check at event table if the configuration was successful.

Delete reader

Right-click on the reader and select Delete reader

ADD user

1. Open the Users Window and create a new user.

Click on “New User”, put a name and ID (card number).

2. Select the reader (with left click) from which the enrollment

will be done.

3. Right click on the fingertip and select enroll.

4. Swipe the finger min. 5 times. . If the enrollment is

successful, the fingertip will turn green.

In these 25 sec. the reader will continuously blink.

5. Repeat point 3 & 4 for each finger that should be enrolled.

P/N 1073513A• REV 00.00 • ISS 4JUL18 5 / 7

6. Click on “Save New” and the fingerprint will be sent

automatically to all biometric readers where that user has

access, i.e. to all the readers according to the Access Level

assign to that user.

Example:

If the user has “Unlimited” Access level then the fingerprints

will be sent to all readers, if the user has Access level only for

Reader1 and Reader 3 then the fingerprints will be sent only to

those two readers.

Note:

To check if all the fingerprints are sent to the reader, right click

on the reader and select “Memory Status”.

In the event window, a line will appear indicating the number of

fingerprints stored in the reader.

Note:

If more fingerprints are added for one user, all fingerprints will

send the same Wiegand code to the controller, the one written

in the field User ID (card Number).

Note:

Users can be imported from Excel file or from TruPortal

Deleting fingerprints

In G

general, the fingerprints are stored in the biometric reader and

in the software.

Deleting one user from the biometric reader

Select the User

Click on “Delete User”. The User, together with its

fingerprints will be deleted from both the software and

the fingerprint readers

Deleting all users from the biometric reader

Right click on the reader and select “Delete all users

from reader”

Delete one or more fingerprints

Select the User and click “Edit”.

Go to the fingertip that needs to be deleted, right click and

select ”Delete” for one finger or “Delete All” for all fingers of the

User

Click “Save”.

6 / 7 P/N 1073513A• REV 00.00 • ISS 4JUL18

With this procedure, the fingerprints are deleted from the

software and from the reader.

Uploading the fingerprints to the biometric

readers

Right click on the biometric reader

Select “Upload all users to reader”

While receiving the fingerprints, the reader will blink.

Note: Use this feature when you change or add a

reader, if pending tasks are deleted in the software or

if there are doubts that fingerprints in the reader

memory are not synchronized with the software

database.

In normal usage, the fingerprints are sent

automatically and this feature is not used.

Wiegand output selection

Select the Wiegand output format of the reader in

Settings/Wiegand

Select among the predefined Wiegand outputs or create

custom one.

Send the configuration to the biometric reader

Safety precautions

Do not install the device in a place subject to direct sun light

without protective cover.

Do not install the device and cabling close to a source of

strong electro-magnetic fields like radio-transmitting antenna.

Do not place the device near or above heating equipment.

If cleaning, do not spray or splash water or other cleaning

liquids but wipe it out with smooth cloth or towel.

Do not let children touch the device without supervision.

Note that if the sensor is cleaned by detergent, benzene or

thinner, the surface will be damaged and the fingerprint can't

be entered.

In the event window a line will appear indicating the number of

fingerprints stored in the reader.

Note: If more fingerprints are added for one user, all

fingerprints will send the same Wiegand code to the controller,

the one written in the field User ID (Card numbers).

P/N 1073513A• REV 00.00 • ISS 4JUL18 7 / 7

Regulatory information

Trademarks and

patents

The trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacturer

Interlogix.

2955 Red Hill Avenue, Costa Mesa, CA 92626

5923, USA

Authorized EU manufacturing representative:

UTC Fire & Security B.V.

Kelvinstraat 7, 6003 DH Weert, The Netherlands

Certification

European Union

directives

This product and - if applicable - the supplied

accessories too are marked with "CE" and

comply therefore with the applicable harmonized

European standards listed under the EMC

Directive 2014/30/EU, the RoHS Directive

2011/65/EU.

2012/19/EU (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

2013/56/EU & 2006/66/EC (battery directive):

This product contains a battery that cannot be

disposed of as unsorted municipal waste in the

European Union. See the product documentation

for specific battery information. The battery is

marked with this symbol, which may include

lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the

battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Product warnings

and disclaimers

THESE PRODUCTS ARE INTENDED FOR

SALE TO AND INSTALLATION BY QUALIFIED

PROFESSIONALS. UTC FIRE & SECURITY

CANNOT PROVIDE ANY ASSURANCE THAT

ANY PERSON OR ENTITY BUYING ITS

PRODUCTS, INCLUDING ANY “AUTHORIZED

DEALER” OR “AUTHORIZED RESELLER”, IS

PROPERLY TRAINED OR EXPERIENCED TO

CORRECTLY INSTALL FIRE AND SECURITY

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
