Interlogix IFS ANT-PNL-18DB-2G Bedienungsanleitung

P/N 1073059 • REV A • 16OCT15 1

IFS ANT-PNL-18DB-2G Quick Start Guide

Content

Package Contents 1

Installation Steps 1

Specifications 1

Contact information 2

This is the IFS ANT- PNL-18DB-2G Quick Start Guide. This

document provides basic instructions for installing and using

the IFS ANT- PNL-18DB-2G.

Package Contents

Thank you for purchasing the IFS ANT- PNL-18DB-2G.

Open the box of the IFS ANT- PNL-18DB-2G and carefully

unpack it. The box should contain the following items:

• ANT-PNL-18DB-2G x 1

• Assemble Package x 1

If any item is found missing or damaged, please contact your

local reseller for replacement.

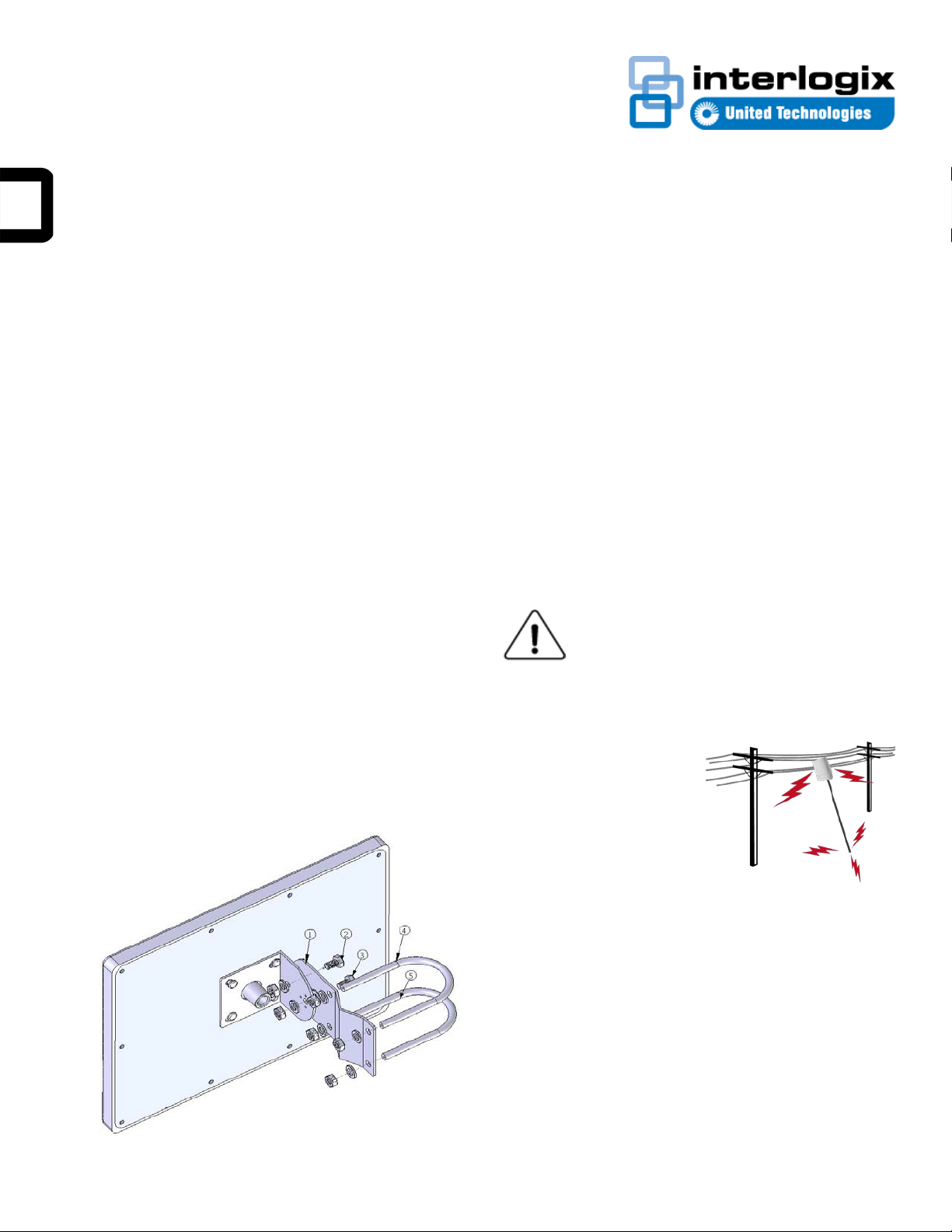

Installation Steps

Specifications

OUTDOOR INSTALLATION WARNING

IMPORTANT SAFETY PRECAUTIONS:

LIVES MAY BE AT RISK! Carefully observe

these instructions and any special instructions that

are included with the equipment you are installing.

CONTACTING POWER LINES CAN BE LETHAL

Make sure no power lines are

anywhere where possible

contact can be made. Avoid

contact with antennas, masts,

towers, guy wires or cables

that may lean or fall. You may

be injured or killed if you are

touching or holding any part of

equipment that comes in

contacts with electrical lines.

Make sure that equipment or personnel must not come in

contact directly or indirectly with power lines.

Assuming all overhead lines are power lines:

The horizontal distance from a tower, mast or antenna to the

nearest power line should be at least twice the total length of

the mast/antenna combination. This will ensure that the mast

will not contact power if it falls either during installation or later.

TO AVOID FALLING, USE SAFE PROCEDURES

WHEN WORKING AT HEIGHTS ABOVE GROUND

Select equipment locations that will allow safe, simple

equipment installation.

• Frequency: 2.4 ~ 2.5GHz

• Max Gain: 18dBi

• VSWR: <= 1.5

• Beam Width-H Plane: 30 °(Vertical)

• Beam Width-E Plane: 20° (Horizontal)

• Polarization: Vertical (Linear)

• Connector: N-type female

• Input impedance: 50 ohm

2 IFS ANT-PNL-18DB-2G Quick Start Guide

 Don’t work alone. A friend or co-worker can save your life if

an accident happens.

 Use approved non-conducting lasers and other safety

equipment. Make sure all equipment is in good repair.

 If a tower or mast begins falling, don’t attempt to catch it.

Stand back and let it fall.

 If anything such as a wire or mast does come in contact

with a power line, DON’T TOUCH IT OR ATTEMPT TO MOVE

IT. Instead, save your life by calling the power company.

 Don’t attempt to erect antennas or towers on windy days.

MAKE SURE ALL TOWERS AND MASTS ARE

SECURELY GROUNDED, AND ELECTRICAL

CABLES CONNECTED TO ANTENNAS HAVE

LIGHTNING ARRESTORS.

This will help prevent fire damage or human injury in case of

lightning, static build-up, or short circuit within equipment

connected to the antenna.

 The base of the antenna mast or tower must be connected

directly to the building protective ground or to one or more

approved grounding rods, using 1 OAWG ground wire and

corrosion-resistant connectors.

 Refer to the National Electrical Code for grounding details.

IF A PERSON COMES IN CONTACT WITH

ELECTRICAL POWER, AND CANNOT MOVE:

 DON’T TOUCH THAT PERSON, OR YOU MAY BE

ELECTROCUTED.

 Use a non-conductive dry board, stick or rope to push or

drag them so they no longer are in contact with electrical

power.

 Once they are no longer contacting electrical power,

administer CPR if you are certified, and make sure that emer-

gency medical aid has been requested.

Contact information

www.interlogix.com or www.utcfssecurityproducts.eu.

For customer support, see www.interlogix.com/customer-

support .
