NS3562-8P-2S Quick Installation Guide

Figure 1: NS3562-8P-2S

Package contents

Thank you for purchasing the IFS NS3562-8P-2S

Industrial Wall-mount Managed Gigabit Switch. The

table below shows the model with the number of ports:

Model Name 10/100/1000T

Copper Ports

802.3at

PoE Ports 100/1000 SFP

Fiber Optical

Interface

NS3562-8P-2S 8 8 2

Unless specified, the term “wall-mount managed switch”

mentioned in this quick installation guide refers to the

NS3562-8P-2S.

Open the box of the wall-mount managed switch and

carefully unpack it. The box should contain the following

items:

The wall-mount managed switch × 1

Quick installation guide × 1

3-pin terminal block connector × 1

Wall-mounted kit × 1

RJ45 dust cap × 8

SFP dust cap × 2

If any item is found missing or damaged, please contact

your local reseller for replacement.

Requirements

Workstations running Windows®

XP/2003/Vista/7/8/2008/10, MAC OS X or later,

Linux, UNIX, or other platforms are compatible with

TCP/IP protocols

Workstations are installed with Ethernet NIC

(Network Interface Card)

Ethernet Port Connection

Network cables - Use standard network (UTP)

cables with RJ45 connectors.

The above workstation has a Web browser and

JAVA runtime environment plug-in installed.

Note: We recommend using Internet Explorer 11.0 or

later to access the wall-mount managed switch. If the

Web interface of the wall-mount managed switch is not

accessible, turn off the anti-virus software or firewall and

then try it again.

Wiring the power inputs

The wall-mount managed switch features a strong dual

power input system (terminal block and DC jack) to

enhance system reliability and uptime.

Range model

Power Input

3-pin terminal block DC jack

NS3562-8P-2S 48~56 VDC 48~56 VDC

2 NS3562-8P-2S Quick Installation Guide

Figure 2: DC power input

V+ = Positive / V- = Negative / Ground

Terminal block connector pinout

To install the 3-pin terminal block connector on the wall-

mount managed switch, follow these steps:

1. Insert positive DC power wire into V+, negative DC

power wire into V-, and grounding wire into Ground.

2. Tighten the wire-clamp screws for preventing the

wires from loosening and plug into the wall-mount

managed switch.

Note:

1. The wire gauge should be in the range from 12 to 24

AWG.

2. The device must be grounded.

Mounting

Note: Ensure that the wall-mount managed switch is

mounted vertically with the air holes on the top and a

minimum of three inches above and below the switch to

allow for proper air flow. This device uses a convection

flow of hot air which rises and brings cold air in from the

bottom and out of the top of the device. Do not mount

the switch horizontally as this does not allow air to flow

up into the device and will result in damage to the

switch. Do not tie DC1 to DC2. DC2 is for secondary

power redundancy. Do not plug DC power into the

device while the AC power cord is plugged in. This is not

a hot-swappable switch. Hot-swapping this device will

result in damage.

Wall mount installation

To install the wall-mount managed switch on the wall,

follow these steps:

1. There are four holes with an 8 mm diameter on the

wall; the distance between the two holes is 133 mm

and the line through them must be horizontal.

2. Install a conductor pipe inside the board hole and

flush the edge of the conductor pipe with the wall

surface.

3. Screw the bolts into the conductor pipe. The wall-

mount managed switch is between the bolts and

conductor pipe, as shown below.

Figure 3: Wall mount installation

DIN-rail mount installation

The DIN-rail kit is included in the package. When the

wall-mount application for the wall-mount managed

switch needs to be replaced with a DIN-rail application,

refer to the following illustrations to screw the DIN-rail on

the wall-mount managed switch. To hang up the wall-

mount managed switch, follow the steps below:

1. Screw the DIN-rail on the wall-mount managed

switch.

2. Lightly insert the button of the DIN-rail into the track.

NS3562-8P-2S Quick Installation Guide 3

3. Ensure that the DIN-rail is secured tightly on the

track.

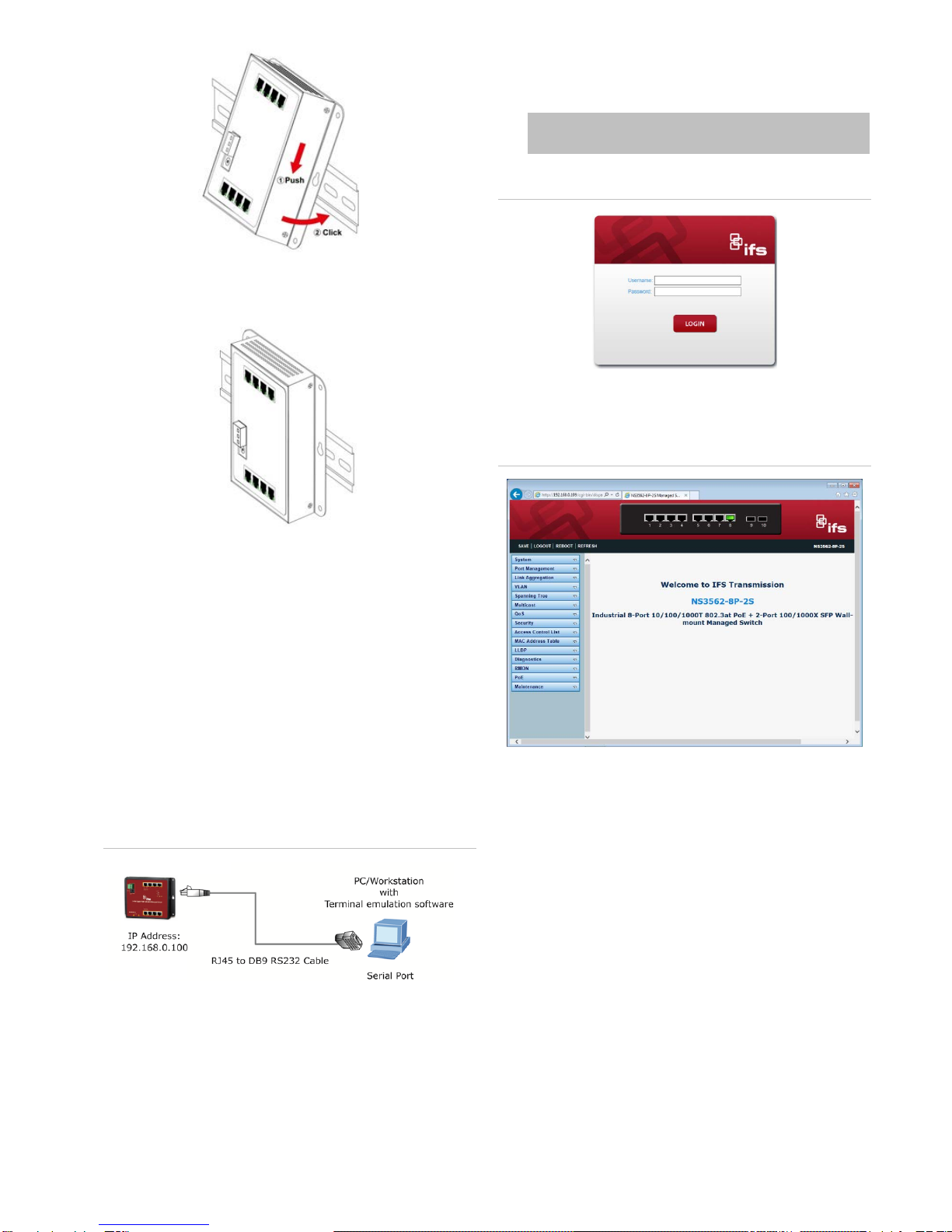

Starting Web management

The following section describes how to start up the Web

management function of the wall-mount managed

switch. Note that the wall-mount managed switch is

configured through an Ethernet connection. Ensure that

the manager computer is set to the same IP subnet

address.

For example, if the default IP address of the wall-mount

managed switch is 192.168.0.100, then the manager

computer should be set to 192.168.0.x (where x is a

number between 1 and 254, except 100) and the default

subnet mask is 255.255.255.0.

Figure 4: IP management diagram

Logging in to the wall-mount managed switch

1. Use the Internet Explorer 11.0 or later Web browser

and type the IP address http://192.168.0.100 to

access the Web interface.

2. When the following dialog box appears, type “admin”

in both the default user name and password fields.

The login screen in Figure 5 below appears.

Default Username: admin

Default Password: admin

Figure 5: Web login screen

3. Click LOGIN. The main screen appears as shown in

Figure 6 below.

Figure 6: Main web screen of the wall-mount managed switch

The switch menu on the left side of the Web page

permits access to all of the commands and statistics

provided by the wall-mount managed switch.

4 NS3562-8P-2S Quick Installation Guide

Figure 7: Switch menu

Refer to the User Manual for further information about

using the Web management interface.

Saving configuration via the Web

In the wall-mount managed switch, the running

configuration file is stored in the RAM. In the current

version, the running configuration sequence of running-

config can be saved from the RAM to FLASH by the

”Save Configurations to FLASH” function, so that the

running configuration sequence becomes the startup

configuration file (i.e., the saved configuration).

To save all applied changes and set the current

configuration as a startup configuration; the startup-

configuration file will be loaded automatically across a

system reboot.

1. Select Save > Save Configurations to FLASH to

2. Click Apply to save the running configuration to a

start up configuration.

Reset to default configuration

If an IP address has been changed or an admin

password has been forgotten, the IP address can be

reset.

To reset the IP address to the default IP address

“192.168.0.100” or reset the login password to default

value, press the RESET button on the front panel for

about five seconds.After the device is rebooted, log in to

the management Web interface within the same subnet

of 192.168.0.xx.

Figure 8: NS3562-8P-2S Reset Button
