3400, 4420, and 4440 Cutter Tray Instruction Sheet

You can use two different cutter trays to collect cut labels from your 3400, 4420,

and 4440 printers:

•The basic cutter tray (Part No. 067324)

•The deluxe cutter tray (Part No. 066369)

Both trays hook easily onto the cutter. On the deluxe cutter tray, you can adjust

the angle of the tray and the depth of the tray to match the amount of labels

you plan to cut.

To attach the basic cutter tray

1. Attach the cutter to your printer. For help, see the 3400, 4420, and 4440

Cutter User’s Manual (Part No. 066391).

2. Slide the tray arms under the mounting plate hinges and hook the tray arms

onto the hinges. The tray rests against the front of the printer.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

Cutter

cover

44XXT.002

Basic

tray

Mounting

plate hinge

All manuals and user guides at all-guides.com

all-guides.com

3400, 4420, and 4440 Cutter Tray Instruction Sheet

To attach the deluxe cutter tray

Note: Depending on the angle of the tray, it may hang down below the bottom of the

printer. If you want the tray to rest at a steep angle, move your printer so that the front

is at the edge of the surface it is sitting on.

1. Attach the cutter to your printer. For help, see the 3400, 4420, and 4440

Cutter User’s Manual (Part No. 066391).

2. Loosen the base thumbscrew, slide the base up or down to the position you

want, and tighten the base thumbscrew.

3. If you have a 3400 printer, attach the 3400 adapter to the back of the tray

with the two Phillips screws that came with the adapter.

44XXT.003

3400

Adapter

Screw (2)

Thumbscrew

4. Loosen the eight thumbscrews on the sides of the tray so that you can adjust

the angle of the tray as you hang it.

5. Hang the deluxe tray on the mounting plate hinges.

All manuals and user guides at all-guides.com

067548-001

Attaching the Deluxe Cutter Tray

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

Cutter

cover

44XXT.001

Deluxe

tray

Tray base Thumbscrew

Base

thumbscrew

6. Making sure that the top of the tray rests against the cutter cover, adjust the

tray to the angle you choose.

7. Tighten the thumbscrews to secure the angle of the tray.

All manuals and user guides at all-guides.com

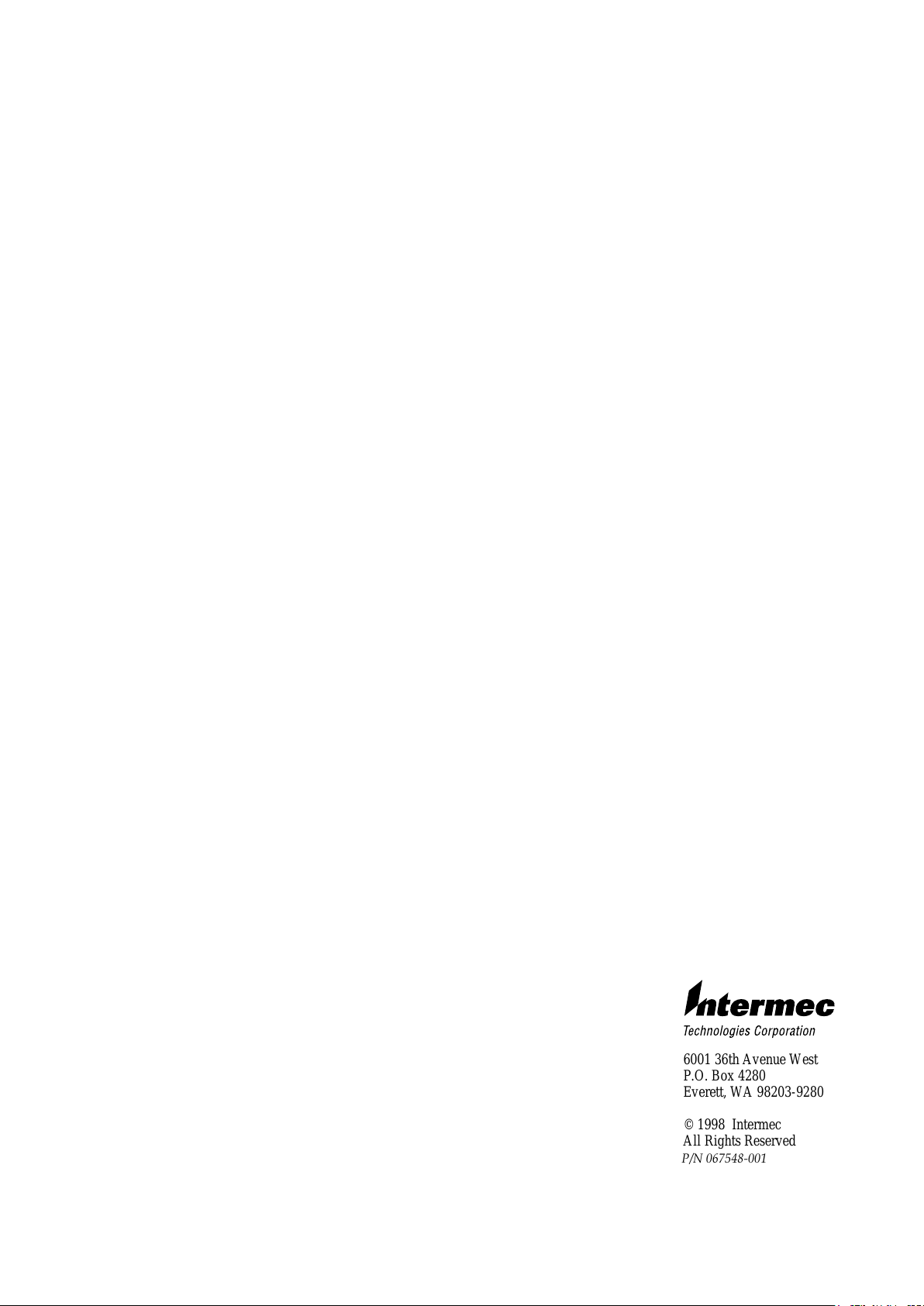

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

P/N 067548-001

All manuals and user guides at all-guides.com
