What is the CN30 Charge Dock?

The CN30 Charge Dock is an accessory for the CN30 Mobile Computer. Use the dock for

serial or USB Client connectivity (to a host PC, for example) and the charger to recharge a

spare module or battery. Before using the charge dock, please read this guide thoroughly

and save it for future reference.

To use the charge dock, you need:

• a DC power supply (p/n: 851-082-XXX)

•anACpowercord.

It is important to purchase the appropriate power cord for your location. For more

information, contact your Intermec sales representative

The charge dock charges:

• 56-Key Module (p/n: VE00009-60028)

• 14-Key Module (p/n: VE00009-60029)

• Battery (p/n: VE00009-60007)

Attention: Vous devez utiliser la source d’alimentation Intermec adéquate avec cet

appareil sinon vous risquez d’endommager l’équipement.

The CN30 Dock supports USB 1.1 connectivity from a CN30 Mobile Computer to a USB

host. RS-232 communications is supported via the serial port.

Note: Insert module with keys facing back.

Understanding the Status Indicators

Battery Charging

You must use the appropriate Intermec power supply with this device or

equipment damage may occur.

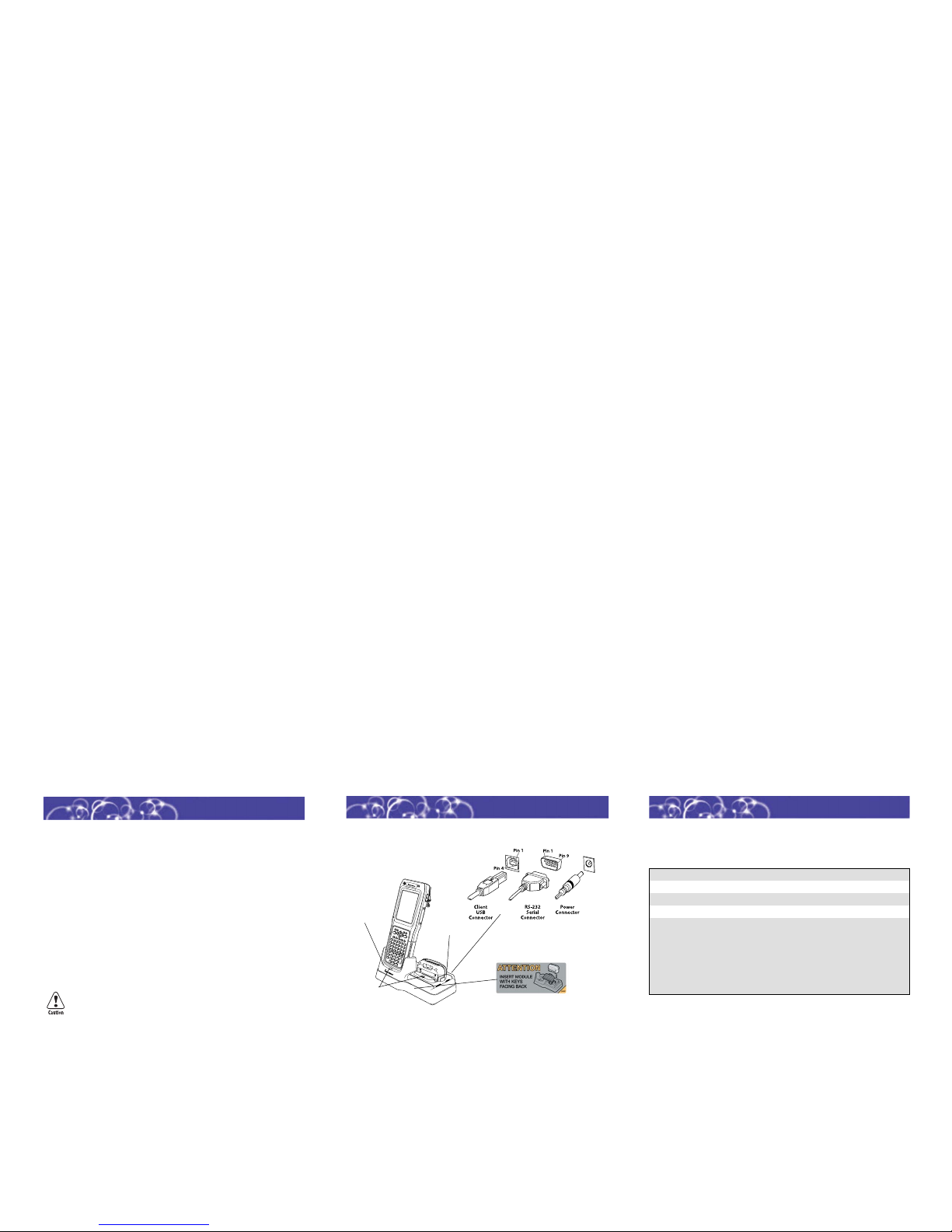

CN30 Charge Dock Connectors

Docking

Bay Charging

Bay

Status

Indicators

Description Color

No battery or module installed. Off

Charge cycle in progress Red

Charge cycle complete. Green

The battery is not charging.

Try these solutions:

Make sure the battery or module is firmly installed in the

charger.

Make sure the power supply is connected properly to a powered

AC outlet.

Make sure the room temperature is between 5 C and 35 C (41 F

and 95 F).

Yello w

Charging

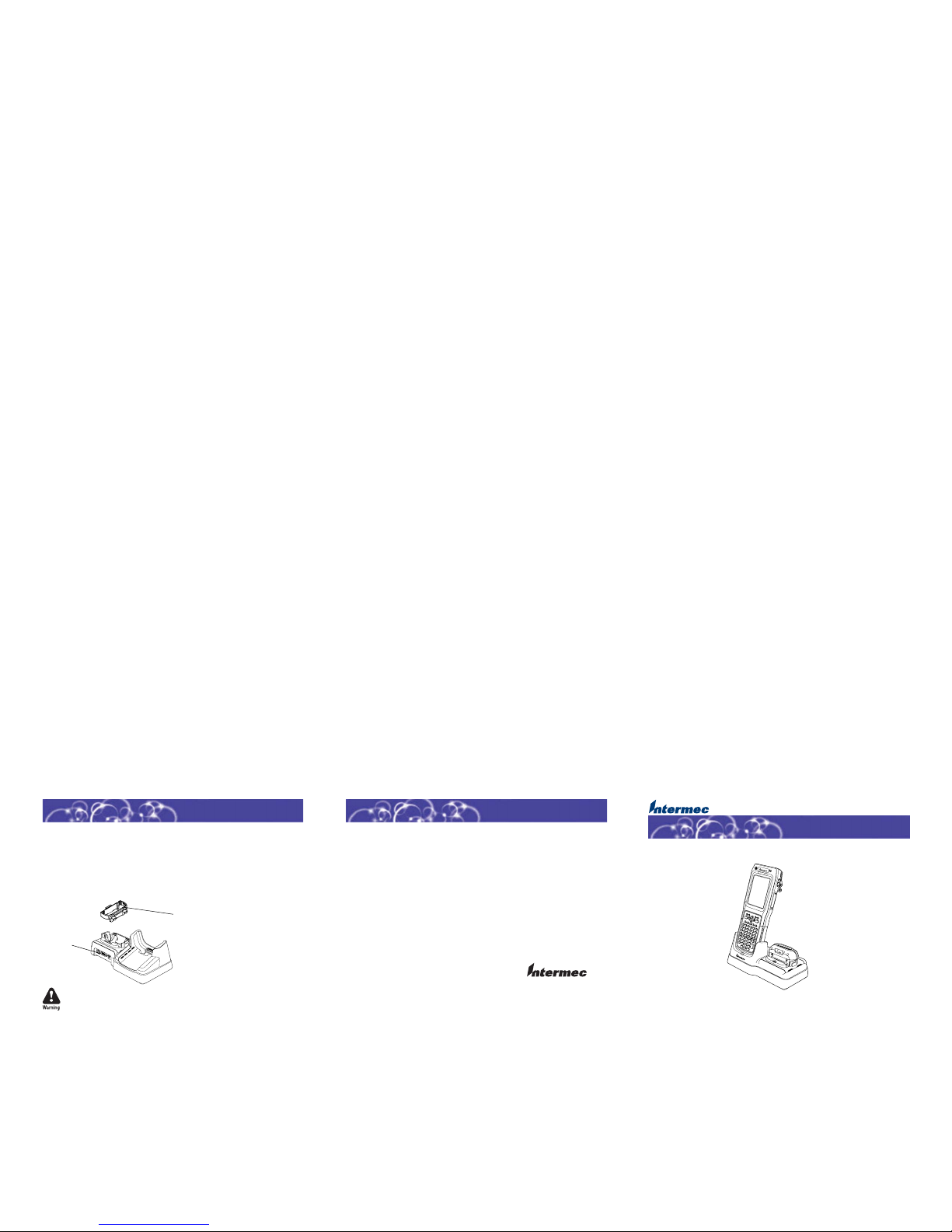

Installing the CN30 Charge Dock

Connect the DC power supply to the power connector on the charge dock. Connect the AC

power cord to an AC power outlet.

The CN30 Charge Dock is factory configured to charge a module in the charging bay. To

chargea batteryin the chargingbay,removethe modulealignment clipand insert battery.

Do not discard the module alignment clip.

Physical Dimensions

Length: 20.32 cm (8 in)

Width: 11.43 cm (4.5 in)

Electrical Specifications

Electrical rating: 12 VDC, 4A

Temperature and Humidity Specifications

Charging temperature: +5°C to +35°C (41°F to 95°F)

Operating temperature: +0°C to +50°C (32°F to 122°F)

Storage temperature: -30°C to +70°C (-22°F to 158°F)

Relative Humdity, non-condensing 5%-95%

Patent Information

Product is covered by one or more of the following

patents: 5,052,943 ,5,195,183, 5,317,691, 5,331,580, 5,544,010, 5,644,471

There may be other U.S. and foreign patents pending.

CN30 Charge Dock Quick Start Guide

*962-000-060A*

P/N: 962-000-060A

CN30 Model AD9 Charge Dock

To prevent fire or electric shock, do not expose the CN30

Charge Dock to rain or moisture.

Avertissement: Pour éviter des risques d’incendie ou de choc

électrique, ne pas exposer le CN30 Charge Dock à la plui ou

l’humidité.

Installation

Power

Connector

Module Alignment Clip

Remove to Charge Battery

Specifications

Corporate Headquarters

6001 36th Avenue West

Everett, Washington 98203 U.S.A.

tel 425.348.2600

www.intermec.com

Quick Start Guide
