Trakker Antares®

243X Handheld

Terminal

Quick Start Guide

Cd39nuggetfont

ii Trakker Antares 243X Handheld Terminal Quick Start Guide

Intermec Technologies Corporation

Corporate Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided solely

for the purpose of allowing customers to operate and service Intermec-

manufactured equipment and is not to be released, reproduced, or used

for any other purpose without written permission of Intermec.

Information and specifications contained in this document are subject

to change without prior notice and do not represent a commitment on

the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar,

Data Collection Browser, dcBrowser, Duratherm, EasyCoder,

EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics,

INCA (under license), InterDriver, Intermec Printer Network

Manager, IRL, JANUS, LabelShop, Mobile Framework, MobileLAN,

Nor*Ware, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000,

Trakker Antares, UAP, Universal Access Point, and Virtual Wedge are

either trademarks or registered trademarks of Intermec Technologies

Corporation.

Throughout this manual, trademarked names may be used. Rather

than put a trademark (or ) symbol in every occurrence of a

trademarked name, we state that we are using the names only in an

editorial fashion, and to the benefit of the trademark owner, with no

intention of infringement.

There are U.S. and foreign patents pending.

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

Microsoft, Windows, and the Windows logo are registered trademarks

of Microsoft Corporation in the United States and/or other countries.

This product includes software developed by the OpenSSL Project for

use in the OpenSSL Toolkit. (http://www.opensssl.org/).

This product includes cryptographic software written by Eric Young

(EAY@cryptsoft.com)

Cd39nuggetfont

Trakker Antares 243X Handheld Terminal Quick Start Guide iii

Contents

About This Guide................................................................ 5

Introducing the Trakker Antares 243X Terminals................ 5

Equipment You Need to Get Started ................................... 6

Using the Terminal for the First Time ................................. 6

Unpack the Terminal ............................................ 7

Charge and Install the Battery Pack ....................... 7

Turn On the Terminal .......................................... 9

Set the Time and Date ........................................ 10

(Optional) Configure the Serial Port Parameters.. 11

(2435 Only) Configure the Network Parameters . 12

(2435 Only) Configure the Radio Parameters...... 13

Choosing Your TE 2000 Configuration............................. 14

Using the Keypad .............................................................. 15

Learning About the Bar Code Symbologies........................ 15

Changing the Beep Volume ............................................... 16

Learning About the Status Icons ........................................ 16

Useful Bar Codes............................................................... 17

Specifications..................................................................... 18

Where to Go From Here ................................................... 19

Cd39nuggetfont

iv Trakker Antares 243X Handheld Terminal Quick Start Guide

Cd39nuggetfont

Trakker Antares 243X Handheld Terminal Quick Start Guide 5

About This Guide

This guide describes how to set basic parameters to start using

the Trakker Antares®2430 and 2435 terminals. You may need

to refer to additional Intermec documents to configure the 243X

for your data collection network. For a list of documents see

“Where to Go From Here” on page 19.

Introducing the Trakker Antares 243X

Terminals

The Trakker Antares 243X terminals are ergonomically

designed handheld data collection terminals. You can use these

programmable terminals to run custom applications or terminal

emulation applications.

2435

243XQ010.eps

Trakker Antares 243X Handheld Terminal

2430

This programmable terminal runs custom batch applications.

You create applications for the terminal using the Trakker

Antares Programmer’s Software Kit (PSK) and Microsoft C/C++

functions. The 2430 has an integrated input/output (I/O) port

to transmit data to and accept data from a host computer or

other serial device using RS-232 communications.

Cd39nuggetfont

6 Trakker Antares 243X Handheld Terminal Quick Start Guide

2435

This terminal has all the capabilities of the 2430 with the

additional ability for real-time communications through an RF

network. The 2435 can communicate with a host either through

the access points and the Intermec Gateway or Data Collection

Server (DCS) 30X, or directly through the access points. The

2435 can also run client/server applications, TE 2000terminal

emulation applications, and Data Collection Browser

(dcBrowser), which lets you run web-based applications.

The 2435 with an IEEE 802.11b radio installed

is Wi-Fi certified for interoperability with other

802.11b wireless LAN devices.

Equipment You Need to Get Started

To use the terminal, you need the following equipment:

•Lithium-ion battery pack (P/N 073152)

•External power supply (P/N 065236) or Z2400 battery

charger (P/N Z2400A) and external power supply

Note: Intermec recommends that you keep at least

two battery packs on hand so that you can use one

battery pack while the other is charging. You should

keep a battery pack in the 243X at all times to

prevent loss of data.

Using the Terminal for the First Time

Once you have the required equipment, follow these steps to

start using your new terminal:

1 Unpack the terminal.

2 Charge and install the battery pack (sold separately).

3 Turn on the terminal.

4 Set the time and date.

5 (Optional) Configure the serial port parameters.

6 (2435 only) Configure the network parameters.

Cd39nuggetfont

Trakker Antares 243X Handheld Terminal Quick Start Guide 7

7 (2435 only) Configure the radio parameters.

These steps are described in detail in the next sections.

Note: The steps in this guide describe how to

configure the 243X using the keypad. However, it

may be easier to use the terminal’s scanner to scan

the bar codes in Chapter 6, “Configuration

Command Reference,” in the Trakker Antares 2400

Family System Manual (P/N 071389).

Unpack the Terminal

When you remove the terminal from its box, save the box

and shipping material in case you need to ship or store the

terminal. Check the contents of the box against the invoice for

completeness. If there is a problem, contact your local Intermec

service representative.

Charge and Install the Battery Pack

The lithium-ion battery pack that is used in this

device may present a fire or chemical burn hazard

if it is mistreated. Do not disassemble it, heat it

above 100°C (212°F), or incinerate it.

Attention: Le paquet de piles d’ions de lithium

qui est utilisé dans cet appareil peut presenter un

risque feu ou un risque chimique de brûlure s’il

est maltraité. Il ne faut pas le désassembler, le

réchauffer à une température plus élevée que

100°C (212°F), ou l’incinérer.

You must fully charge the lithium-ion battery pack before you

can use the terminal. The terminal will not operate without a

battery pack.

To charge the battery pack

•Place the battery pack in an empty slot in the battery charger.

The battery pack is fully charged in about 3 to 4 hours. For

help, see the documentation that came with your battery

charger.

Cd39nuggetfont

8 Trakker Antares 243X Handheld Terminal Quick Start Guide

•Install the battery in the 243X. For help, see the next

procedure. Connect one end of the external power supply

adapter cable (P/N 071776) to the external power supply,

and connect the other end of the external power supply

adapter cable to the power port on the 243X. The battery

pack is fully charged in about 3 to 4 hours.

Replace the main battery pack with P/N 073152

only. The use of any other battery pack may

present a risk of fire or explosion.

Attention Danger: Remplacez le bloc-batterie

principal par la pièce réf. n° 073152 seulement.

L’utilisation de tout autre bloc-batterie présente

un risque d’incendie ou d’explosion.

Contact your local Intermec sales representative for a

replacement battery pack. DISPOSE OF USED BATTERY

PACKS PROMPTLY. KEEP THEM AWAY FROM

CHILDREN.

To install the battery pack

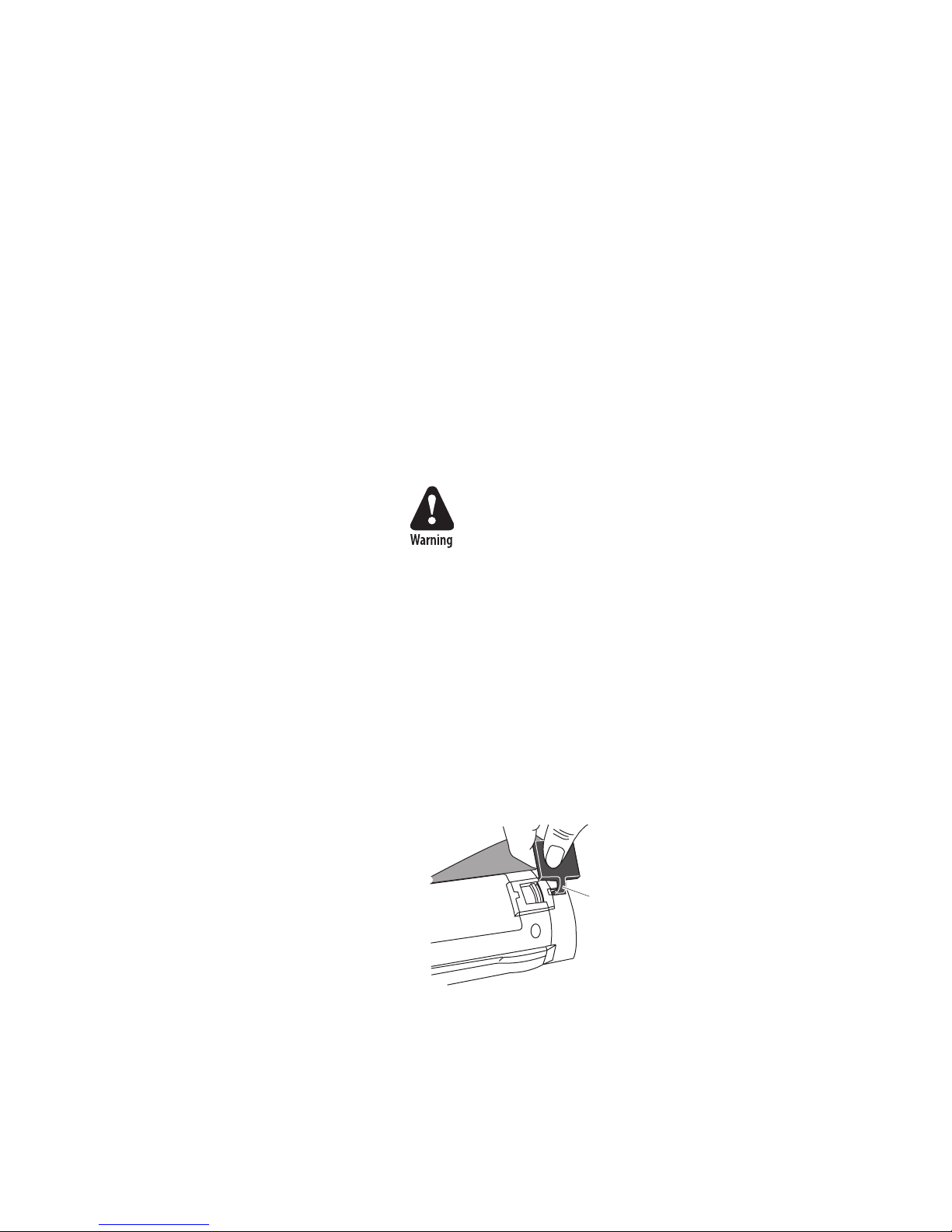

1 Remove the handstrap by rotating the handstrap hook 90

degrees left or right and unhooking it from the 243X.

Handstrap

hook

243XQ011.eps

2 Open the battery door. You may need to gently pry the door

open with a pointed object. Remove the foam insert if

necessary.

3 Place the main battery pack into the battery compartment

with the contacts pointed toward the bottom of the 243X,

and push the main battery pack down towards the bottom of

the 243X until it locks into the connectors in the battery

compartment.

Cd39nuggetfont

Trakker Antares 243X Handheld Terminal Quick Start Guide 9

243XQ005.eps

4 Replace the battery door and handstrap.

Turn On the Terminal

Before turning on the terminal, you should familiarize yourself

with the terminal’s keypad. For help, see “Using the Keypad” on

page 15.

The Suspend/Resume key is the fkey on the keypad. When

you press fto turn off the terminal, the terminal does not

actually shut off, but it goes into a Suspend mode. You can

configure the terminal so that when you press fto turn it on,

it either to resumes exactly where it was when you turned it off

or to boots and restarts your application.

To turn on the terminal for the first time

1 Press the fkey. The terminal runs POST (power-on self

test), and then the Boot Menu appears.

BOOT MENU

1 - Boot System

2 - Run Loader

3 - Power Down

POWER DOWN IN 60 SEC

243XQ058.eps

2 Press 1to boot the terminal and initialize the firmware.

Cd39nuggetfont

10 Trakker Antares 243X Handheld Terminal Quick Start Guide

If you have a 2435 with TCP/IP or UDP Plus, the radio is

enabled. The next screen or message you see depends on the type

of application loaded on the 243X.

2430 or 2435 Programmable Terminal

A sample application screen appears with information about the

radio, if you have one. The terminals ship loaded with at least

these two applications stored on drive C: APPTSK.BIN and

EM9560.BIN.

APPTSK.BIN is the default application. If you exit an

application or if certain errors occur, the terminal resets and runs

APPTSK.BIN. EM9560.BIN emulates a subset of the

functionality available on the Intermec 95XX terminals. You can

use either application to scan, enter, transmit, and display data.

For help, see Appendix D in the 2400 Family system manual.

2435 Terminal With TE 2000 Application

The 2435 attempts to connect to the Intermec Gateway,

DCS 30X, or directly to the host. Before you can start a TE

session, you need to configure the radio parameters and the

network parameters. You may also need to choose your TE

configuration. For help, see “Choosing Your TE 2000

Configuration” on page 14.

Set the Time and Date

1 Depending on your keypad, press lt248,

lx248, or the orange >key and then *

248to access the TRAKKER Antares 2400 Menu

System. The Main Menu appears.

MAIN MENU

Configuration Menu

Diagnostics Menu

System Menu

About TRAKKER 2400

_` Select item

[Enter] Next screen

[F1] Help

[Esc] Exit

243XQ050.eps

Andere Handbücher für Trakker Antares 2430

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Intermec PDA Handbücher

Intermec

Intermec CK61 Handbuch

Intermec

Intermec PEN*KEY 6400 Bedienungsanleitung

Intermec

Intermec 6110 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2400 Bedienungsanleitung

Intermec

Intermec 70 Bedienungsanleitung

Intermec

Intermec NORAND 6642 Gebrauchs- und Pflegehandbuch

Intermec

Intermec 751G Handbuch

Intermec

Intermec JANUS JG2050 Bedienungsanleitung

Intermec

Intermec CN51 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2425 Handbuch

Intermec

Intermec 700 Series 730B Handbuch

Intermec

Intermec PEN*KEY 6200 Bedienungsanleitung

Intermec

Intermec PEN*KEY 6400 Handbuch

Intermec

Intermec NORAND 6642 Bedienungsanleitung

Intermec

Intermec 700 Series 730B Bedienungsanleitung

Intermec

Intermec 6651 Bedienungsanleitung

Intermec

Intermec JANUS JG2010 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2420 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2480 Bedienungsanleitung

Intermec

Intermec CN70 RFID Bedienungsanleitung

Intermec

Intermec Trakker Antares 2455 Bedienungsanleitung

Intermec

Intermec 5023 Montage- und Bedienungsanleitung

Intermec

Intermec Trakker Antares 2460 Bedienungsanleitung

Intermec

Intermec Trakker Antares 2455 Bedienungsanleitung

Beliebte PDA Handbücher anderer Marken

SPOT

SPOT SPOT Bedienungsanleitung

Palm

Palm handheld Bedienungsanleitung

Winmate

Winmate E500QK Bedienungsanleitung

Getac

Getac PS236 Bedienungsanleitung

Sharp

Sharp CE-1600P Bedienungsanleitung

HTC

HTC PHAR100 Bedienungsanleitung

Mindeo

Mindeo M40 Bedienungsanleitung

Acer

Acer n30 Bedienungsanleitung

ASCOM

ASCOM 9D24 EX Bedienungsanleitung

Unitech

Unitech PA520BTNF Bedienungsanleitung

HandHeld

HandHeld Nautiz X3 Bedienungsanleitung

Casio

Casio PALM Bedienungsanleitung

Sharp

Sharp TM-20 Kurzanleitung

Atid

Atid AT870 Bedienungsanleitung

AML

AML M7225 Bedienungsanleitung

Audiovox

Audiovox Maestro Technisches Handbuch

Casio

Casio PV-750 Plus Gebrauchsanweisung

Unitech

Unitech PT630 Bedienungsanleitung
