Intermec EasyCoder 4420 Bedienungsanleitung

4420 and 4440 Printer

Self-Strip/Batch Takeup

P/N 066393-002

User’s Manual

Intermec Technologies Corporation

6001 36th Avenue West

P.O. Box 4280

Everett, WA 98203-9280

U.S. service and technical support: 1-800-755-5505

U.S. media supplies ordering information: 1-800-227-9947

Canadian service and technical support: 1-800-688-7043

Canadian media supplies ordering information: 1-800-268-6936

Outside U.S. and Canada: Contact your local Intermec service supplier.

The information contained herein is proprietary and is provided solely for the purpose of allowing

customers to operate and/or service Intermec manufactured equipment and is not to be released,

reproduced, or used for any other purpose without written permission of Intermec.

Information and specifications in this manual are subject to change without notice.

1998 by Intermec Technologies Corporation

The word Intermec, the Intermec logo, JANUS, IRL, TRAKKER, Antares, Adara, Duratherm,

EZBuilder, Precision Print, PrintSet, Virtual Wedge, and CrossBar are either trademarks or

registered trademarks of Intermec Technologies Corporation. Throughout this manual, trademarked

names may be used. Rather than put a trademark (or ) symbol in every occurrence of a

trademarked name, we state that we are using the names only in an editorial fashion, and to the

benefit of the trademark owner, with no intention of infringement.

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

Introduction to the Self-Strip/Batch Takeup Option

The self-strip/batch takeup option enables the 4420 or 4440 printer to operate in

Self-Strip or Batch mode. When you use the printer in Self-Strip mode, the

printer strips each label off of the backing as it leaves the printer. When you use

the printer in Batch mode, the printer can collect an entire roll of media on the

media takeup hub.

This manual explains how to:

•load media to use self-strip.

•load media to use batch takeup.

•configure the printer for Self-Strip or Batch mode.

•clean the self-strip roller and sensors.

•troubleshoot the self-strip/batch takeup option.

Loading Media for Self-Strip

Self-strip allows you to apply labels as soon as they are printed by having the

printer peel the media backing away from individual labels one at a time. The

label taken sensor signals the printer that a label has been removed so that it

will print the next label.

For optimal performance, load your printer with Intermec self-strip media.

Fanfold media is not recommended because the backing might tear along the

perforation.

Note: After the printer prints the last label and passes the end of the media roll through

the printhead, the takeup hub will turn for a few revolutions before stopping.

To load media for self-strip

1. Turn off the printer.

2. Load media into the printer, leaving the media cover off. For help, see your

printer user’s manual.

3. Turn the head lift lever clockwise to raise the printhead.

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

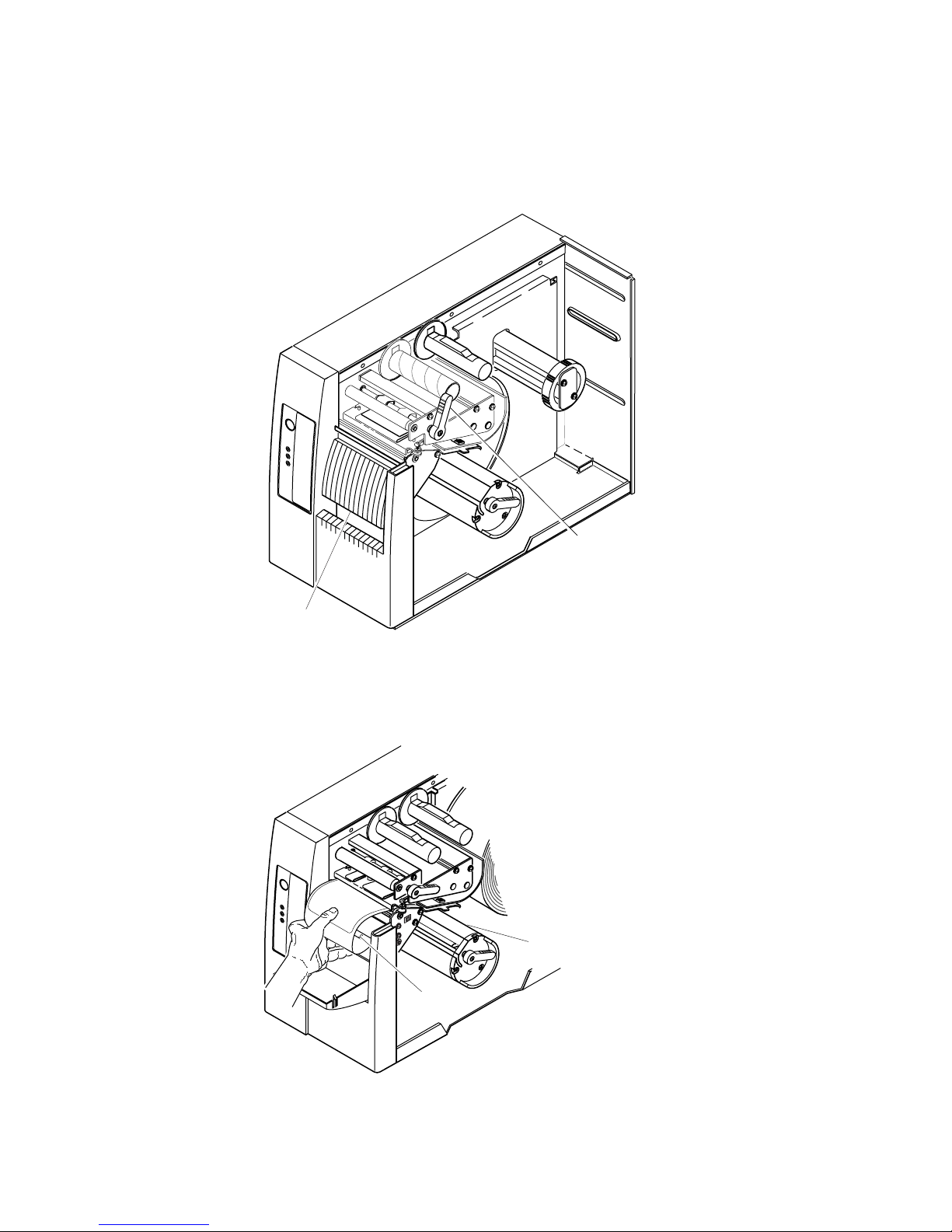

4. Open the media access door.

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXI.009

Media

access

door

Head

lift lever

5. Route the media below the self-strip roller.

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXI.001

Self-strip

roller

Takeup hub

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

6. Place the end of the media in the media slot.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

44XXI.002

Media lock

Media slot

7. Turn the media lock clockwise to lock the media in place.

8. Turn the takeup hub counterclockwise until the media fits snugly against

the takeup hub.

9. Turn the head lift lever counterclockwise to secure the printhead.

10. Close the media access door and replace the media cover.

11. On the back of the printer, turn on DIP switch number 8 on the top bank of

DIP switches.

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8

44XXI.003

12. Turn on the printer.

13. Configure the printer for Self-Strip mode. For help, see “Configuring Your

Printer for Self-Strip or Batch” later in this document.

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

Loading Media for Batch Takeup

Use batch takeup to collect printed media onto the takeup hub. The media can

spool directly onto the takeup hub or onto a core.

Note: After the printer prints the last label and passes the end of the media roll through

the printhead, the takeup hub will turn for a few revolutions before stopping.

To load media for batch takeup

1. Turn off the printer

2. Load media into the printer, leaving the media cover off. For help, see your

user’s manual.

3. Turn the head lift lever clockwise to raise the printhead.

4. Hook the batch guide over the top of the media access door and push down

on the bottom of the batch guide to latch it into place.

Feed/Pause

Power/Data

Alert

Empty/Pause

IntermecIntermec

4420

44XXI.004

Batch

guide

Head lift

lever

Media

access

door

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

5. Route the media around the batch guide.

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXI.005

Takeup

hub

6. To have the media rolled onto the takeup hub, place the end of the media in

the media slot and turn the media lock clockwise to lock the media into

place.

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXI.006

Media

lock

Media

slot

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

To have the media rolled onto an empty core, place the core onto the takeup

hub, turn the media lock clockwise to lock the core into place, and tape the

end of the media to the core.

Feed/Pause

Power/Data

Alert

Empty/Pause

Intermec

4420

44XXI.007

Intermec

4420

Empty

core

Media

lock

7. Turn the media takeup hub counterclockwise until the media fits snugly

against the takeup hub.

8. Turn the head lift lever counterclockwise to secure the printhead.

9. Replace the media cover.

10. In the back of the printer, turn on DIP switch number 8 on the top bank of

DIP switches.

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8

44XXI.003

11. Turn on the printer.

12. Configure the printer for batch. For help, see “Configuring Your Printer for

Self-Strip or Batch” later in this document.

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

Configuring Your Printer for Self-Strip or Batch

The following procedure explains how to use PrintSet to enable either Self-Strip

or Batch mode. To operate in Self-Strip mode, the media must be loaded onto

the takeup hub. The printer can operate in Batch mode without the media being

loaded onto the takeup hub; the printed media will collect in front of the

printer instead of into a roll on the takeup hub.

This procedure also explains setting the label width and configuring the printer

for a hot and humid environment.

To configure your printer for Self-Strip or Batch mode

1. Connect the printer to your PC and start PrintSet.

Note: Under the Printer Select menu, check that PrintSet is set up for your printer

(4420 or 4440). To customize the configuration for your printer, see the Help

menu.

2. Click the Paper Handling button.

3. From the Paper Handling dialog box, select Self-Strip or Batch.

4420 and 4440 Printer Self-Strip/Batch Takeup User’s Manual

4. If you work in a hot or humid environment (temperature at or above 104°F

[40°C] and humidity at or above 90 percent), select the Hot/Humid

Environment box.

5. Choose OK.

6. Click the Paper Type button.

7. From the Paper Type dialog box, set the Label Width to match the width of

the media in the printer. The default setting is 4 inches.

8. For Self-Strip mode, make sure you select Gap under Label Stock.

9. Choose OK.

Note: If you want to change other configuration settings, you should do so before

going to Step 10. For help changing the configuration, see the Help menu.
