Installation,AssemblyandOperatingInstructions

I.V. ROD TELESCOPING KIT

9000XT RECLINER - KIT NO. 1074656

2000, 4000 AND 9000 RIDELITE

RECLINER - KIT NO. 1029598

NOTE:CheckALLpartsforshippingdamage.Incaseof

shipping damage, DO NOT use. Contact Carrier/Dealer

forfurther instruction.

SAFETY SUMMARY

Thefollowingrecommendationsaremadeforsafeinstal-

lationandadjustmentoftheI.V.RodTelescopingKit:

GENERAL WARNINGS

DO NOT install or use this equipment with-

out first reading and understanding this

instruction sheet. If you are unable to un-

derstand the Warnings, Cautions or Instruc-

tions, contact a healthcare professional,

dealer or technical personnel before at-

tempting to install this equipment - other-

wise, injury or damage may occur.

DO NOT pull/push the wheelchair by the

I.V. rod assembly. Injury to the assistant/

occupant and/or damage to the I.V. rod

assembly may occur.

DO NOT place any other objects on the

I.V. rod assembly other than those deter-

mined by a healthcare professional.

INSTALLATION WARNINGS

After ANY adjustments, repair or service

and BEFORE use, make sure all attaching

hardware is securely tightened - other-

wise injury or damage may result.

Use EXTREME caution when the I.V. rod

holder for MODELS 2000, 4000 and 9000

Ridelite is installed. When installed, the rear

arm release lever is removed and will NOT

lock the arm in place.

NOTE: If installing the telescoping I.V. rod holder onto

a 2000, 4000 or 9000 RIDELITE, refer to INSTALL-

INGTHETELESCOPINGI.V. ROD HOLDER - 2000,

4000 or 9000 RIDELITE in this instruction sheet.

INSTALLING THE TELESCOPING

I.V. ROD HOLDER - 9000XT ONLY

(FIGURE 1)

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

1. Removetherearwheelfromthewheelchair.Referto

REMOVING/INSTALLING THE REAR WHEELS

in this instruction sheet.

2. Remove the arm from the wheelchair. Refer to RE-

MOVING/INSTALLING THE ARMRESTSinthisin-

struction sheet.

3. Remove the locknut and hex screw that secure the

arm socket to the wheelchair frame.

4. Removethelocknutthatsecuresthebacktubetothe

clevis bracket.

5. Position the I.V. holder on the existing pivot bolt as

shown in FIGURE 1.

FIGURE 1 - INSTALLING THE

TELESCOPING I.V. ROD HOLDER

Arm Socket

(OUTSIDE of

Wheelchair

Frame)

Locknut

Outside of

Wheelchair

Frame

Locknut

(STEP 8,9,11)

Mounting

Screw

(STEP 7)

I.V. Holder

(STEP 5)

Hex

Screw

STEP 3

Clevis

Bracket

(STEP 4)

Pivot Bolt

(STEP 5)

Back Tube

(STEP 4)

Locknut

(STEPS 4,6,11 )

FlatPortion

(STEP 5)

Front

Cylinder

Side Frame

6. Reinstall locknut onto pivot bolt.DO NOT tighten.

7. Installtheprovidedmountingscrewthroughthelower

holeonthefrontcylindersectionoftheI.V.holderand

into the side frame.

8. Installlocknutontomountingscrew.

9. Turnlocknutuntilsnugfitisobtained.DONOTtighten.

10. Reinstall the arm to ensure proper fit. Refer to RE-

MOVING/INSTALLINGTHEARMRESTSinthisin-

struction sheet.

11. Securely tighten both locknuts of STEPS 6 AND 9.

12. Install the I. V. rod support tube. Refer to INSTALL-

ING THE I.V. ROD SUPPORT TUBE in this instruc-

tion sheet.

INSTALLING THE I.V. ROD

SUPPORT TUBE (FIGURE 2)

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

NOTE: The I.V. holder must already be mounted to the

sideframeofthewheelchair.

1. InserttheI.V.rodsupporttubeintotherearcylinderof

theI.V.rodholder.

NOTE: When installing the I.V. rod support tube, ensure

theadjustmentknobispointingoutawayfromthewheel-

chair.

2. TurntheI.V.rodsupporttubeuntiltheholesintheI.V.

rodsupporttubealign with the holesintherearcylin-

deroftheI.V.rodholder.

3. Pressthelargenylonwasherintothebackholeofthe

rear cylinder so that it is flush with outside surface.

4. Insert mounting screw through rear cylinder, large

nylonwasher,smallnylonwasher,andsteelwasher.

5. Installlocknutontomountingscrew.Securelytighten.

6. Reinstalltherearwheelontothewheelchair.Referto

REMOVING/INSTALLING THE REAR WHEELS

in this instruction sheet.

7. Adjust I.V. rod to desired height. Refer to ADJUST-

ING THE I.V. ROD in this instruction sheet.

ADJUSTING THE I.V. ROD

(FIGURE 2)

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

1. Loosen adjustment knob.

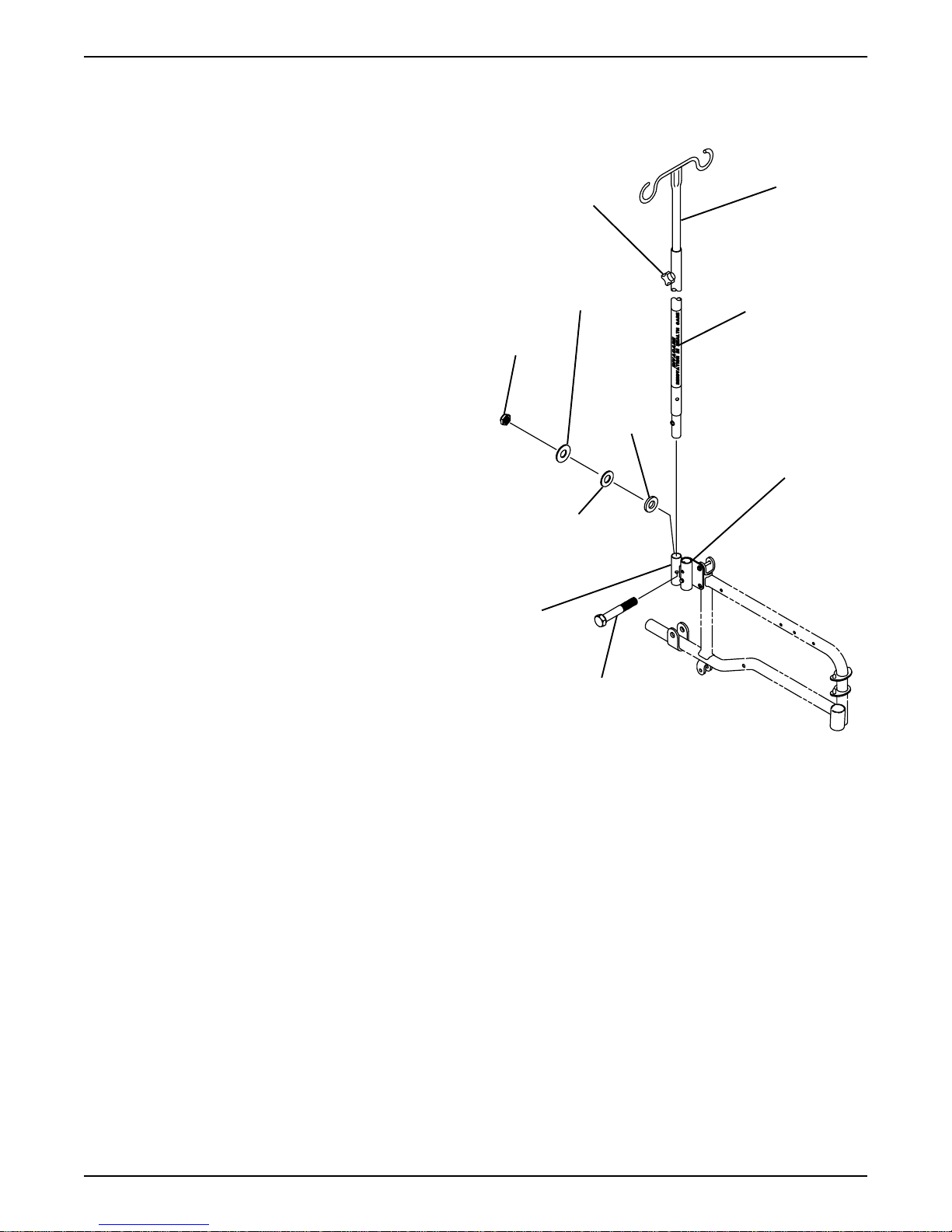

FIGURE 2 - INSTALLING I.V. ROD

SUPPORT TUBE/ADJUSTING THE I.V. ROD

NOTE: Attaching hardware

enlarged 3X scale for clarity.

I.V. Rod

Holder

(STEP 1)

Adjustment

Knob

Steel

Washer

(STEP 4)

Rear

Cylinder

Large

Nylon

Washer

(STEPS 3

AND 4)

Small Nylon

Washer

(STEP 4)

Locknut

(STEP 5)

Mounting Screw

(STEP 4)

I.V. Rod

Support Tube

(STEPS 1,2)

I.V. Rod

REMOVING/INSTALLING THE

REAR WHEELS

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

Recliners With Patient Operated Wheel

Locks (FIGURE 3)

REMOVING.

1. Remove the axle mounting screw and locknut that

securethepatientoperatedwheellock,spacers,and

rear wheel to the wheelchair frame.

2. Adjust I.V. Rod to desired height.

3. Securely tighten adjustment knob.

Spacers

Axle

Mounting

Screw

Patient Operated

Wheel Lock

Rear

Wheel

Wheelchair Frame

Locknut

FIGURE 3 - REMOVING/INSTALLING THE

REAR WHEELS - RECLINERS WITH

PATIENT OPERATED WHEEL LOCKS

Recliners With Attendant Operated

Wheel Locks (FIGURE 4)

REMOVING.

1. Remove the axle mounting screw and locknut that

secure the rear wheel and spacer to the wheelchair

frame.

FIGURE 4 - REMOVING/INSTALLING THE

REAR WHEELS - RECLINERS WITH

ATTENDANT OPERATED WHEEL LOCKS

Locknut

Wheelchair

Frame

Rear

Wheel

Axle

Mounting

Screw

Spacer

REMOVING/INSTALLING THE

ARMRESTS (FIGURE 5)

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

WARNING

Make sure the armrest release lever is in the

locked position before using the wheelchair.

Removing the Armrests

1. Unlock the armrest by turning the armrest release

levers towards the outside of the wheelchair.

2. Lift armrest completely out of arm sockets from the

wheelchair.

Installing the Armrests

NOTE:Armrestreleaselevers MUST be in theunlocked

position when placing armrests into the arm sockets.

1. Placearmrestintoarmsocketslocatedonthesideof

thewheelchair.

2. Lock the armrest by turning the armrest release le-

vers towards the inside of the wheelchair.

Armrest

Release

Lever

Arm Socket

Arm

Socket

Armrest

Release

Lever

FIGURE 5 - REMOVING/INSTALLING THE

ARMRESTS

Armrest

NOTE:Only the adjustableheight armrest is shown

for clarity. The fixed height armrest remove/install

in the same manner.

INSTALLING.

1. Secure rear wheel and spacer to wheelchair frame

withaxlemountingscrewandlocknut.Securelytighten.

INSTALLING.

1. Secure rear wheel, patient operated wheel lock, and

spacers to wheelchair frame with axle mounting

screw and locknut. Securely tighten.

INVACARE CORPORATION lONE INVACARE WAY lP.O. Box 4028 lElyria, Ohio 44036-2125

lPhone 1-(800)-333-6900

Form No. 91-199 Part No. 1029377 Rev. (2) - 8/98 Printed in U.S.A.

INSTALLING THE TELESCOPING

I.V. ROD HOLDER - 2000, 4000

AND 9000 RIDELITE (FIGURE 6)

NOTE: Refer to INSTALLATION WARNINGS in the

SAFETY SUMMARY in this instruction sheet.

1. Removetherearwheelfromthewheelchair.Referto

REMOVING/INSTALLING THE REAR WHEELS

in this instruction sheet.

2. Remove the arm from the wheelchair. Refer to RE-

MOVING/INSTALLINGTHEARMRESTSinthisin-

struction sheet.

3. Do one (1) of the following:

A. If arm tube does NOT contain arm release lever,

proceed to STEP 4.

B. Ifarmtubecontainsarmreleaselever,thespring

buttonandarmreleaseleverMUSTberemoved

toensureproper fit byperformingthefollowing:

a. Depress the spring button on the arm.

b. Slide the arm release lever to remove from

the arm.

c. Removetheplugbuttononthebottomofthe

arm.

d. Depress the spring button on the arm.

e. Remove the spring from the arm.

f. ReinstallEXISTINGplugbuttontothebottom

of the arm.

g. Proceed to STEP 4.

4. RemovetheEXISTINGpivotboltandlocknutthatse-

curetherecliningbacktubetotherear upright.

5. Install the NEW pivot bolt through the reclining back

tubeandrearupright.

NOTE:TheI.V.rodholdercanbemountedoneitherside

ofthewheelchair.

WARNING

Before installing the I.V. rod holder, en-

sure that the flat portion of the I.V. holder

is closest to the side frame of the wheel-

chair - otherwise injury or damage may

result.

6. Position the I.V. rod holder onto the EXISTING arm

socket as shown in FIGURE 6.

7. Securely tighten the I.V. rod holder to the wheelchair

withEXISTINGlocknut.

NOTE: When installing the I.V. rod support tube, en-

sure the adjustment knob is pointing out away from

thewheelchair.

8. InstalltheI.V.rodsupporttubeintotheI.V.rodholder.

9. AligntheholesintheI.V.rodsupporttubewiththeI.V.

rodholder.

10. Installthemountingscrew through theI.V.holder

and I.V. support rod support tube.

11. Install the locknut that secures the I.V. rod sup-

port tube and I.V. rod holder to the wheelchair.

12. Reinstall the arm to ensure proper fit. Refer to RE-

MOVING/INSTALLINGTHEARMRESTSinthisin-

struction sheet.

13. Securely tighten both locknuts of STEPS 5 AND 8.

14. Reinstalltherearwheelontothewheelchair.Re-

fer to REMOVING/INSTALLING THE REAR

WHEELS in this instruction sheet.

15. AdjustI.V.rodtodesiredheight.RefertoADJUST-

ING THE I.V. ROD in this instruction sheet.

FIGURE 6 - INSTALLING THE TELESCOPING

I.V. ROD HOLDER - 2000, 4000 and 9000

RIDELITE

DETAIL “A”

Arm Release

Lever

Spring

Button

Arm

Tube

PlugButton

Pivot Bolt

EXISTING

Locknut

Reclining Back Tube

Rear

Upright

I.V. Rod

Support

Tube

I.V.Rod

Holder

Arm Socket

Locknut

Mounting

Screw

Adjustment

Knob

Andere Handbücher für Action 2000

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Invacare Mobilitätshilfe Handbücher

Invacare

Invacare Dolomite Step Up Bedienungsanleitung

Invacare

Invacare 1335 Bedienungsanleitung

Invacare

Invacare Aquatec Ocean E-VIP Bedienungsanleitung

Invacare

Invacare DELTA P429/2 Bedienungsanleitung

Invacare

Invacare Izzo Bedienungsanleitung

Invacare

Invacare Spartan 65420 Bedienungsanleitung

Invacare

Invacare 6007 Montageanleitung

Invacare

Invacare Dolomite HP Bedienungsanleitung

Invacare

Invacare DELTA P429/2 Bedienungsanleitung

Invacare

Invacare Esprit Action Bedienungsanleitung

Invacare

Invacare Dolomite Alpha Series Bedienungsanleitung

Invacare

Invacare Personal Seat and Cushion Rigidizer Bedienungsanleitung

Invacare

Invacare Brio 6291-E Bedienungsanleitung

Invacare

Invacare Solara Jr. Bedienungsanleitung

Invacare

Invacare P402 Aventia Bedienungsanleitung

Invacare

Invacare TRHD22HR Bedienungsanleitung

Invacare

Invacare DBA Stücklistenhandbuch

Invacare

Invacare 1144492 Gebrauchsanweisung

Invacare

Invacare 65550 Montageanleitung

Invacare

Invacare P402 Aventia Bedienungsanleitung

Invacare

Invacare Lynx Bedienungsanleitung

Invacare

Invacare IVC Heavy Duty Shower Chair 9780 Handbuch

Invacare

Invacare Basica H330/1 Bedienungsanleitung

Invacare

Invacare Dolomite Melody Series Bedienungsanleitung

Beliebte Mobilitätshilfe Handbücher anderer Marken

Alber

Alber Scalamobil iQ Bedienungsanleitung

Ferno

Ferno CCT-PX Bedienungsanleitung

HEPRO

HEPRO Gripo Bedienungsanleitung

Otto Bock

Otto Bock Pheon 3R62 Bedienungsanleitung

NRS Healthcare

NRS Healthcare M11090 Bedienungsanleitung

Medline

Medline MDS86835DSHEC Installationsanleitung

Guldmann

Guldmann Twin Turner II Bedienungsanleitung

Drive

Drive ROOMBA Bedienungsanleitung

Gate

Gate Balder Bedienungsanleitung

Decon wheel

Decon wheel TNS Notos Bedienungsanleitung

ExoAtlet

ExoAtlet ExoAtlet-II Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare B3800F Bedienungsanleitung

AMF-BRUNS

AMF-BRUNS PROTEKTOR Bedienungsanleitung

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Bedienungsanleitung

Rhythm Healthcare

Rhythm Healthcare C500U Bedienungsanleitung

Lumex

Lumex RJ4200A Bedienungsanleitung

Rebotec

Rebotec Jumbo Bedienungsanleitung

Rehaforum MEDICAL

Rehaforum MEDICAL PR50548 Bedienungsanleitung
