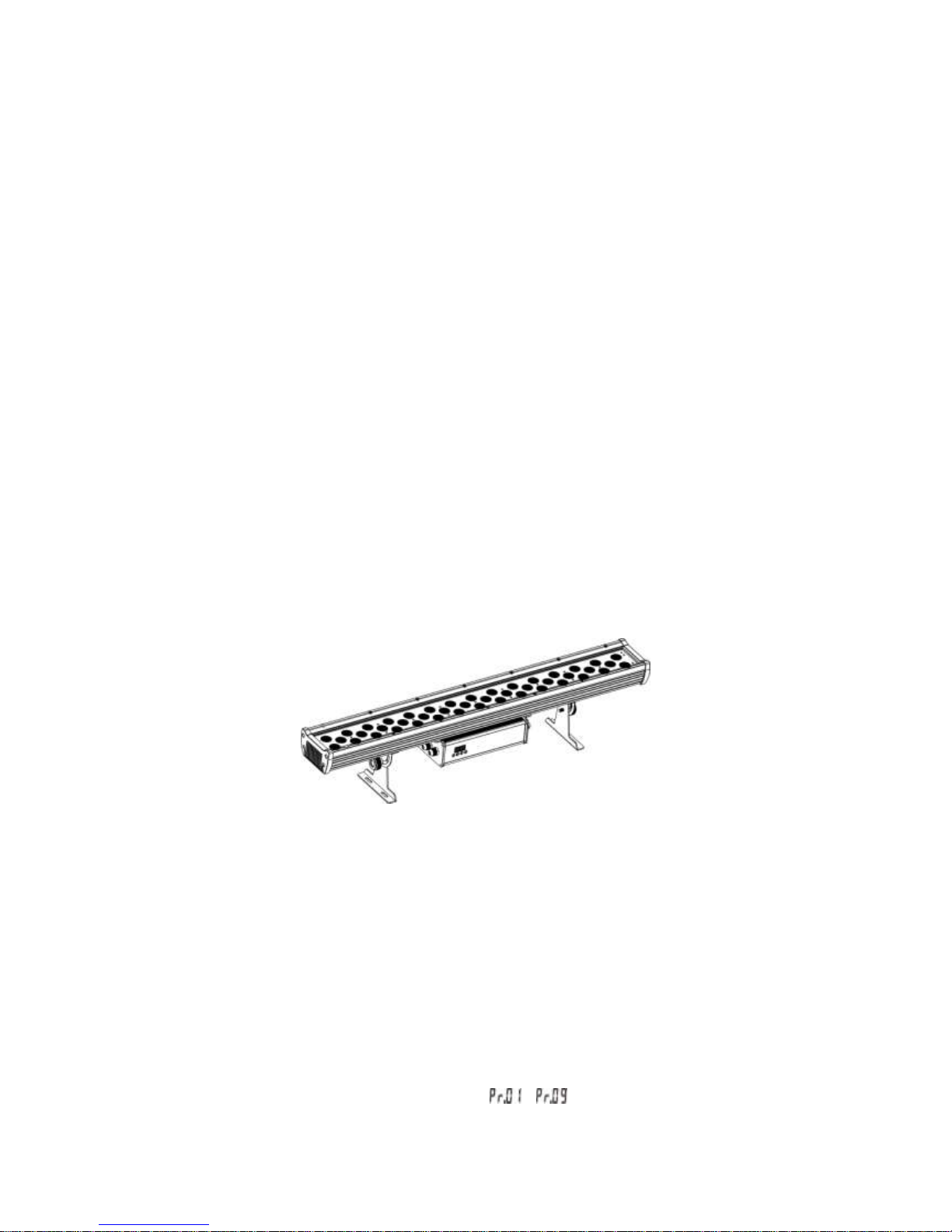

Involight LEDBAR500 Bedienungsanleitung

Outdoor DMX Flood Bar, 44*Tri-3W RGB

User Manual

Our Outdoor LED Flood bar offers many possibilities to achieve the effects which you want. It is for DJs, bands,

nightclubs and other performers who want a complete LED wash light system. Please read the manual before

operation.

A. SPECIFICATION

1. Power input: 110~240VAC 50/60Hz

2. Power consumption: 152W

3. Fuse choosing: 1.5A/250V@240V, 3A/125V@110V

4. LED: 44pcs tri-3w

5. Beam angle: 40 degree

6. Working Temperature: -10~40℃

7. DMX channel: 5CH, 8CH, 9CH

8. DMX connection type: 3-pin

9. IP rate: IP65

10. Working mode：DMX mode, master/slave mode, built-in programs, auto running, static color

11. Power out connect the fixture quantity: 9pcs@240V, 4pcs@110V

12. The buttons can be locked

13. Weight: 11.3kg

14. Size: 1027*160*212.7mm

B. OPERATION

There are many kinds of effects for this item, it is easy to operate, and there are six kinds of working mode as

below:

·built-in programs

·auto running

·DMX mode

·master/slave mode

·single fixture controlled static color mode

·whole fixture static color mode

1. Built-in Programs Mode

1. Press the “MODE” to enter into the manual choosing menu “Pr.xx”.

2. Press the “UP “or “DOWN” to choose the program from ~ .

3. When the LED display shows ~ , first time to press the “SETUP”, it will shows the “SP.XX”, then

setup the program running speed ～(SP100). through the “UP” or “DOWN”; second time to press

the “SETUP”, it will shows the “FSxx”, then setup the speed of the strobe ～through the “UP” or

“DOWN”.

2. Auto Running Mode

Press the “MODE” to enter into the auto running working mode “AUTO”, the fixture will perform the 9 kinds of

working mode from Pr.01~Pr.09, the user can setup the running speed, strobe speed under the program of

Pr.01~Pr.09, the finished effects would be perform in order under the auto running working mode.

3. DMX Mode

1. Press the “MODE”, enter the DMX working mode menu “d.×××”.

2. Press the “UP” or “DOWN” to setup the DMX address value ～.

3. Press the “SETUP”, enter the DMX working mode menu X-ch.

4. Press the “UP” or “DOWN” to set up the DMX working mode, there are three kinds of working mode as ,

, .

DMX working mode 1：

CHANNEL

VALUE

FUNCTION

CH1

0-255

Master dimmer

CH2

0-255

Red

CH3

0-255

Green

CH4

0-255

Blue

CH5

0-255

Strobe

DMX working mode 2:

CHANNEL

VALUE

FUNCTION

CH1

0-255

Master dimmer

CH2

0-255

Red 1

CH3

0-255

Green 1

CH4

0-255

Blue 1

CH5

0-255

Red 2

CH6

0-255

Green 2

CH7

0-255

Blue 2

CH8

0-255

Strobe

DMX working mode 3: （9 channels）

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

CH9

0-255

0-127

MASTER

DIMMER

RED

GREEN

BLUE

USE

STROBE

Function

USE

1-255

TABLE

USE

1-255

TABLE

0-255

SPEED

0-255

RED 1

0-255

GREEN

0-255

BLUE 1

0-255

RED 2

0-255

GREEN

0-255

BLUE 2

128-255

Function

D. Master/slave Mode

Press the “MODE”, enter the master/slave mode “SLAV”.

E. Single fixture controlled static color mode

1) Press the “MODE”, enter the single fixture controlled static color mode“COL1”

2) Press the “SETUP”, it will show“1.xxx”（first fixture: red）, “2.xxx”(firs fixture: green), “3.xxx”(first fixture:

blue), “4.xxx”(second fixture: red), “5.xxx”(second fixture: green), “6.xxx”(second fixture: blue)

3) Press the “UP “or “DOWN” to adjust the brightness of the static color.\

TABLE 1

CH5

DMX

value

FUNCTIO

1-22

red

23-45

green

46-68

blue

69-91

blueness

92-114

yellow

115-137

orange

138-160

pink

161-183

purple

184-206

Dark blue

207-229

Pale green

230-252

white

253-255

Warm

white

TABLE 2

CH6

DMX

value

FUNCTIO

1-15

red

16-31

green

32-47

blue

48-63

yellow

64-79

blueness

80-95

purple

96-111

white

112-127

Pr01

128-143

Pr02

144-159

Pr03

160-175

Pr04

176-191

Pr05

192-207

Pr06

208-223

Pr07

224-239

Pr08

240-255

Pr09

F. Whole fixture static color

1) Press the “MODE” enter the whole fixture static color mode“COL2”

2) Press the “SETUP”, it will show “r.xxx”（red）, “g.xxx”(green), “b.xxx”(blue)

3) Press the “UP” or “DOWN” to adjust the brightness of the static color.

NOTE:

1. If there is no press within 20 seconds, the LED display will turn off. At the same time, the button would be

locked to avoid any disoperation from irrelevant personnel. Then if press any button, the LED Display will show

“Lock”, it means the button has been locked. After you press the “MODE”+ “DOWN” two buttons more than 1

second, The LED display will recover the display, then every button will recover its function.

2. This fixture has the function of self-protection from the high temperature, when the fixture under the whole

lighting for a long time, the fixture would adjust the power consumption by itself according to the heat dissipation.

If the user needs the fixture working under the whole power consumption, please keep unobstructed for the heat

dissipation.

3. When the fixture get power, it will show the version, such as V1.0, it will keeps about 2 seconds, then perform

the working mode of the user’s setting.

ООО «ИНВАСК»

Адрес: 143406, Московская область, Красногорск, ул. Ленина, дом 3-Б

Тел. (495) 565-0161 (многоканальный)

Факс (495) 565-0161, доб. 105

http://www.invask.ru e-mail: [email protected]

Сервис-центр «ИНВАСК»

Адрес: 143400, Московская область, Красногорск, Коммунальный квартал,

дом. 20

Тел. (495) 563-8420, (495) 564-5228

e-mail: [email protected]
