IPazzPort KP-810-19BTT Bedienungsanleitung

Bluetooth Handheld Keyboard

User Manual

Rev. 1.0

Model(型号):KP-810-19BTT

手持蓝牙键盘

www.i P a z z P o r t . c o m

Introduction:

this Bluetooth Handheld keyboard consists of keyboard, mouse touchpad, and laser

pointer(optional) which is designed small and portable size. It provides people a unique &

capable tool to operate their personal computer wirelessly. it is widely used for:

■ the people who need to be apart from their personal computer yet must control it for their

presentation, teaching, and lecturing with large screen or projector, up to 33 feet wireless

operation distance provides you big free space to communicate with your audience.

■ the people who want to sit at their easy and comfortable chair to view the internet content,

network television, such as IPTV, or internet movies instead of physically change its channel,

it is a really computer remote controller, of course not a TV remote controller.

■ as an external keyboard for iPAD, iPhone4, and Samsung Galaxy Tab

What's in your Package?

In the package with Bluetooth Handheld Keyboard you will find a USB cable for charging the

Bluetooth Handheld Keyboard and this manual.

Features and specifications:

Bluetooth connection,

Portable size: 158*56*15mm

 Working voltage: 3.7V

 QWERTY keyboard

Google TV keyboard

Multi-language support

Multi-touch

Battery: 2 x 3A

Page Up/Down

Touchpad

Power Switch

Computer stand by

Pair with USB receiver Press Fn+ F1

Press Fn+ 1

Function

PrtSc

1. Pairing and establishing connection with computor.

Windows XP/2000

Let's take Microsoft Bluetooth Software as an example to describe Bluetooth Search,Pairing and

Connection, other Bluetooth software please refer to its own user manual.

Insert Bluetooth adaptor into any vacant USB port on your computor, please be patient to wait

system search and install new hard driver. Then bluetooth icon will appear on the taskbar.

If your computing device has integrated bluetooth receiver refer to the user manual to enable

that receiver

Note: during operation, do not press this key, or your bluetooth keyboard will

be disconnected from your computor

1, 3 Click “Start”, “Control Panel” (make sure you're in Classic View), and then double-click

Bluetooth Devices. Select “Add”.

1.4, In the Add Bluetooth Device Wizard, select the “My device is set up and ready to be found

check box”, and then click “Next”.

1.5, After icon of “Bluetooth keyboard” appear, click “Bluetooth keyboard”, and then click “Next”.

1.2 Turn on unit by moving the power switch to ON, (see arrow 10), press key BLUETOOTH RESET

indicated by arrow 4 till LED3 blink then release it(about 2-5 seconds) , that means your unit is

ready and searching other Bluetooth device for pairing.

Bluetooth icon

Bluetooth keyboard

New Device

1.6, When the wizard asks you which passkey you want to use, click “Choose a passkey for me”.

Then click “Next”.

1.7 After you are prompted to enter your passkey, please type the passkey with keys on Bluetooth

Handheld Keyboard, and then press Enter. You also can choose no passkey to go next step.

PLEASE DO REMEMBER TO USE THE KEY OF BLUETOOTH HANDHELD KEYBOARD

WHEN INPUT PASSKEY

1.8, In the final page of the wizard, click Finish, it maybe take a few seconds for new hardware driver

installation before click finish. So please be patient.

Your Bluetooth Handheld Keyboard should now be successfully paired with your PC and ready to use.

1.9 LED3 will goes out when connection is established successfully

Bluetooth Reset

Windows 7

Plug bluetooth receiver into any vacan USB port on your computor, please be patient to wait

the system recognize your device, it maybe take several minutes. When new hardware has

finished driver installation, an icon will appear in the task bar.

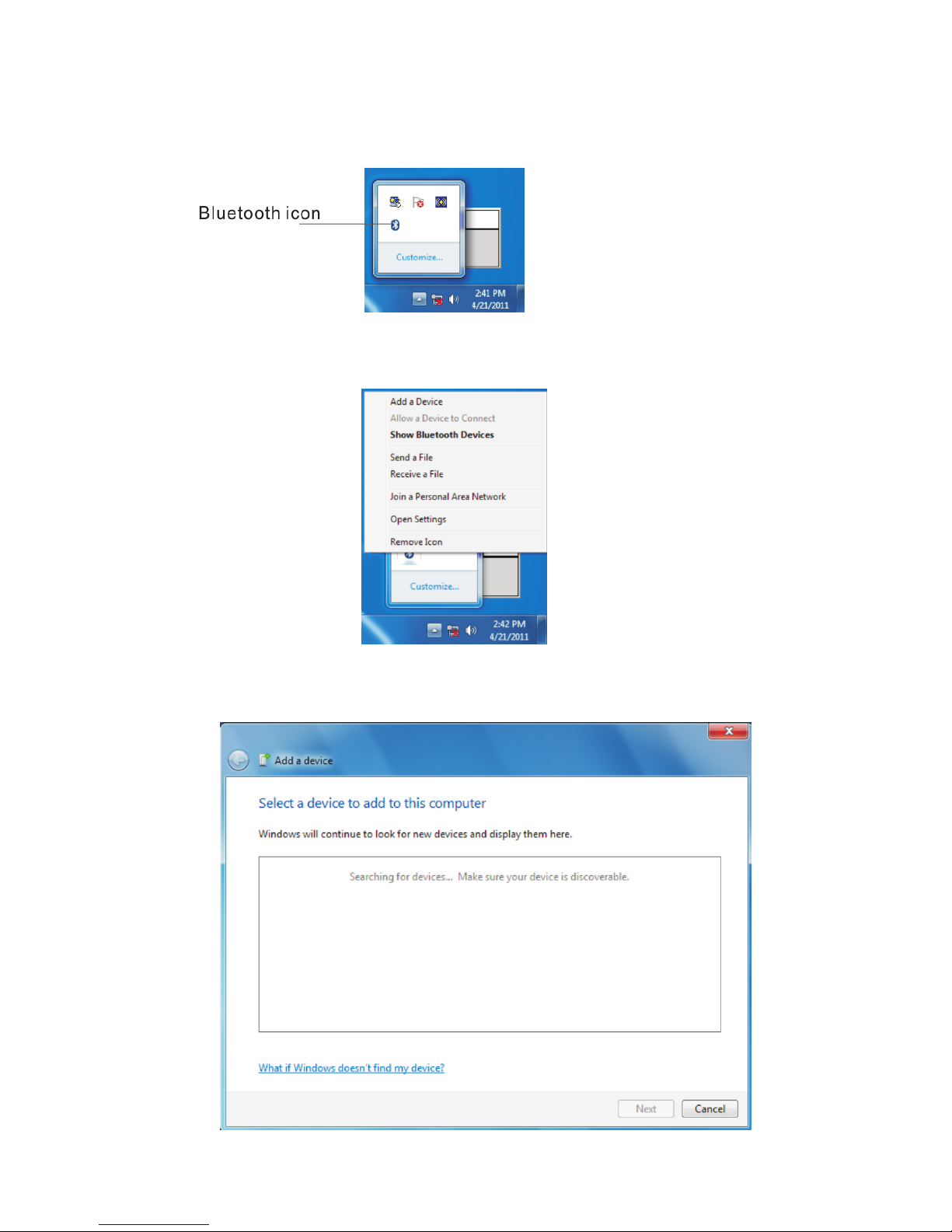

Right click icon of bluetooth, select “Add a Device”

An window like below will popup indicating that system is search a devie to add...

Turn Bluetooth keyboard on by sliding the power switch to ON, LED3 will flash one time, then press

key “bluetooth reset” till LED3 flash. Bluetooth iPazzPort and Bluetooth Keyboard will appear

in the window. Select it and click “Next”

Then you will be promoted to input a pass code for your device, please do type the code with

Mini bluetooth keyboard, then press Enter

NOTE:1.

2. keyboard functions WILL NOT work until a bluetooth connection with the computing

device is completed.

Do not tap key “Bluetooth Reset” or you will disconnect its connection during

operation.

Bluetooth keyboard

Bluetooth

keyboard

Bluetooth Reset

CONNECT TO iPAD/ iPhone 4

1.Turn your Bluetooth Keyboard on by switch button to on, press Bluetooth Reset key till

LED3 flash.

2.Turn on your iPhone 4, tap “settings” => “General” => “Bluetooth” then you

you will find device list, tap “Bluetooth ...” to on, then your iPhone will search the other

Bluetooth for pairing, “Bluetooth keyboard” will be listed when system find your Bluetooth

keyboad.

3. Tap “Bluetooh keyboard”, then system will install driver and prompt you to input pass code

you must type the pass code with your Bluetooth keyboard.

4. When it is connected to your iPhone, Bluetooth iPazzPort will appear in the list.

5. For re-connect to your iPhone: turn your Bluetooth keyboard on, then go to “Bluetooth”

device list, and tap “ Bluetooth keyboard”, then connection will be built again.

Bluetooth keyboard would

like to pair with your iPad

Enter the passkey”136956 on

“bluetooth keyboard”, followed by

the return or enter key.

Cancel

Connect to other smart mobile with Android O.S

1. Activate bluetooth device of your mobile and make sure it is searchable and be able to pair

2. Tap search menu to make it in searching state.

3. Turn on keyboard and press bluetooth Reset key till LED3 flash,

4. Icon of Bluetooth iPazzPort will appear in the list when bluetooth keyboard is found, tap

this icon to pair

5. Type 0000 or 1234 with your mobile virtual keyboard when you are asked for a pass code.

6. Type 0000 or 1234 with bluetooth keyboard and press Enter to confirm. Which must be the

same with step 5.

7. When them pair successfully, tap icon of Bluetooth iPazzPort ==> wireless keyboard to

connect.

Please be noted that your mobile can’t be connected and can’t be used if your mobile have

no HID profile.

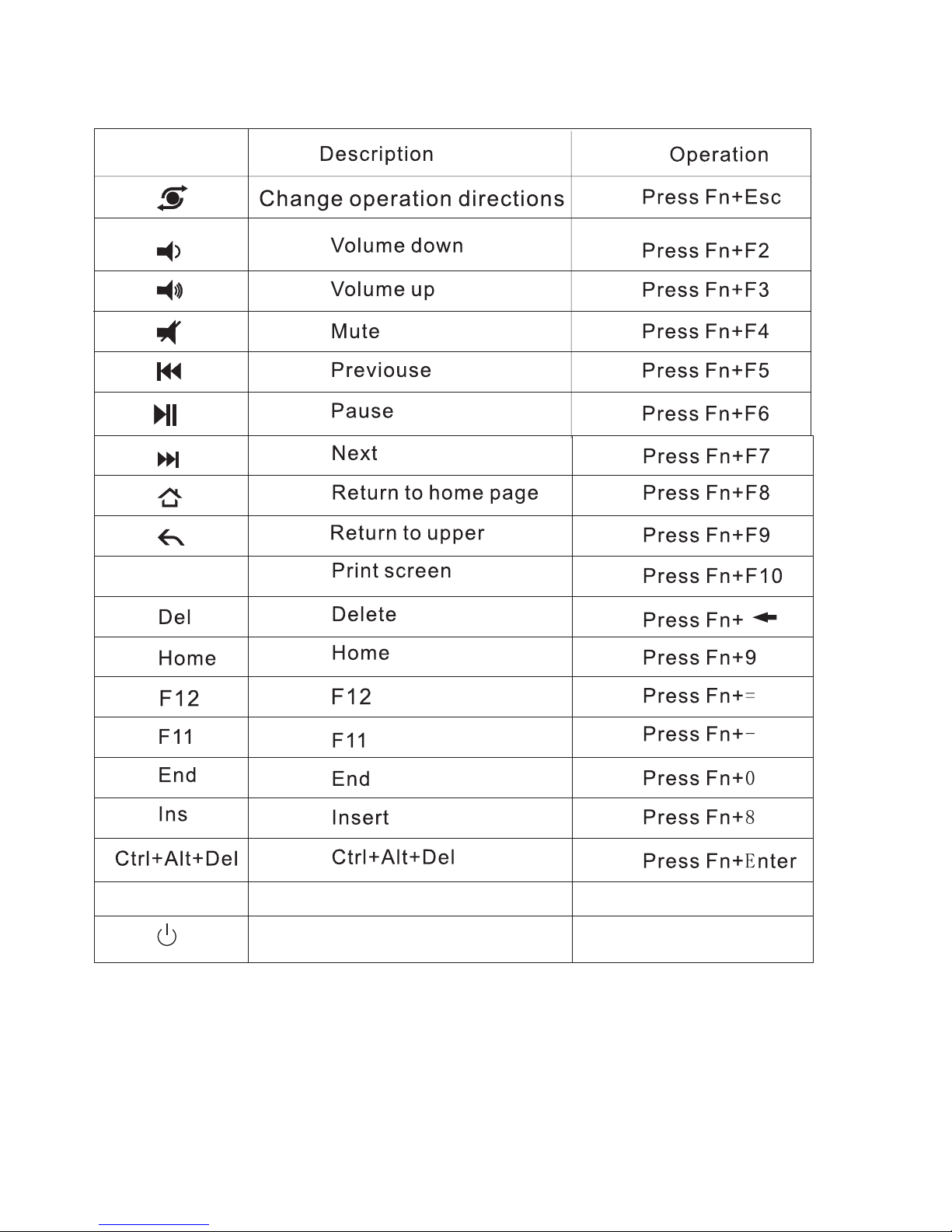

2 Arrow 14 points to the Fn key.

In order to bring users more convenience, the Bluetooth Handheld Keyboard also provides F1,

F2,F3...F12 which operate like those keys on the standard keyboard. Please press Key Fn

together with the key you want to operate them, but if you only press FX on the Bluetooth

Handheld Keybaord , that will make no sense. The following keys need to be used with key

Fn: F1,F2...F12, combo key of CTRL+ALT+DEL, Ins, Prt Scr, Home, End, Del, and Touchpad

rotation key( see arrow 21)

1. The Bluetooth Handheld Keyboard has a battery saving feature.

This feature puts the device into sleep mode if you do not use it for a long time.

You can wake up the unit by pressing any key for one second.

Starting Bluetooth Handheld Keyboard

4. Arrow 21 points to key of touchpad rotation.

As we know, some times, we want to operate the Bluetooth keyboard vertically, and some times

horizontally, when operation direction is rotated from vertical to horizontal, but touchpad will not

for example, if the operate direction is rotated, when you slide your finger on the touchpad

vertically, and the mouse cursor on the screen of computor will move horizontally, so please

press key Fn together with key of touchpad rotation to rotate the touchpad, this way, mouse

curosr will move in corresponding direction.

3. Arrow 13 points to Ctrl+Alt+Del key

As we know, in many occasions we need to use keys: Ctrl+Alt+Del on standard keyboard when

operate computer, such as restart system, lock users, terminate applications.... But now with

Bluetooth Handheld Keyboard you only press key Fn together with key “Enter” to complete

your mission.

5. When the backlit light up without any operation , this indicates your battery voltage has a low

charge and needs to be recharged. The Bluetooth Handheld Keyboard is equipped with a

re-chargeable battery. We have supplied you with a USB cable, which is plugged into a vacant

USB slot on your computer and the bottom of the Bluetooth Handheld Keyboard, as indicated

by arrow 20 . During charging LED1 will light up with steady on. When fully charged, LED 1

will go out and LED2 will on, unplug the Bluetooth Handheld Keyboard from the USB cable

and LED2 will go out too..

6. If you wish to operate this Bluetooth Handheld Keyboard in a darkened room then you

will want to use the Backlight Keyboard feature. In order to activate the Backlight feature

please press backlit button indicated by arrow 5 to turn on/off the backlight.

9. The Touch Mouse Pad (TMP) is quite versatile. To create input with the TMP place your

finger on the pad. Just move your finger on the TMP as though you were using your mouse

pad. Watch the mouse move to where you want it, and then use the keyboard for whatever

action you desire. You can draw patters using the TMP if you have installed MS Paint ,

ScreenPen or other Paint software.

7. Bluetooth Handheld Keyboard has an option of built-in Laser Pointer, which provide

an enhanced tool for your presentation, training, conference. press the Laser Pointer button

indicated by arrow19 to operate it, you can use this feature whenever the unit is on or off.
