IPSO - LSG n.v.

To prograù and change wash

programs

Nieuwstraat 146 - B-8560 Wevelgem (Belgium)

Tel. 056/41 20 54 - Fax 056/41 86 74

Part No. D1051

Contents

0 Hardware setting ................................................................................ 5

1 Installation hardware 'eprom programmer' ...................................... 6

General ........................................................................................... 6

Installation adapter card .................................................................. 6

Installation 'eprom programmer' ....................................................... 7

2 Installation software 'eprom programmer' ....................................... 8

General ........................................................................................... 8

Installation software ........................................................................ 8

3 Installation software 'to program wash programs' ........................... 14

General ........................................................................................... 14

Installation software ........................................................................ 14

4 Programmation ten wash programs ................................................. 15

General ........................................................................................... 15

To start up the program ................................................................... 16

Programming the configuration menu of the machine ...................... 17

Programmation of the wash programs ............................................. 24

5 To save and change data .................................................................. 34

Saving data ..................................................................................... 34

Creating a BIN-file ........................................................................... 35

Loading data ................................................................................... 36

Printing out data .............................................................................. 36

Splitting up 'systeemsoft' from 'datasoft' (decompose) ..................... 37

List with files under DIR "MICRO9" ................................................. 37

Converting to DOS .......................................................................... 38

Deleting BIN and DAT-files ............................................................. 38

Programming with mouse ................................................................ 38

6 Programmation eprom ...................................................................... 39

General ........................................................................................... 39

Programmation eprom ..................................................................... 39

To read in and change old eproms .................................................. 41

7 Deleting eproms ................................................................................ 43

Code: 249/00073/01

22/02/01

5

0

Computer : PC 386 or larger

Control system :

IBM compatible MS-DOS

with hard disk

Hardware setting

Printer :

to print out the programs

Eprom programmer

Type eprom : 27C 256A 12.5V

Adapter card SAC 201:

to be built in the PC

Screen type VGA colour

: necessary

:option

Luminous source ultraviolet light :

to delete the programmed eproms

Drive 5 1/4" DISKS A

Drive 3 1/2" DISKS B

Mouse

Keyboard

6

1

Installation hardware 'eprom programmer'

The computer has to be disconnected during the execution of

the following acts. Ignoring this instruction can lead to physical

injury (electrocution) ; damage of the SAC 201 card or damage

of the eprom programmer.

General

❺

The SAC 201 adapter card as well as the 'eprom programmer' have to be

installed in order to program the desired wash programs on the eproms.

Disconnect the computer, pull the plug out of the plug switch .

Remove the cover of the computer .

Check the position of the DIP-switches on the adapter card :

SW1: all switches 'OFF'

SW2: switch 7 'ON'

other switches 'OFF'

SW3: switch 2 'ON'

other switches 'OFF'

Put the SAC 201 card carefully in the computer. Use the supplied screw to

lock it.

Installation of the adapter card

7

1

Installation of the 'eprom programmer'

Close the cover of the computer .

Make a connection between the port of the SAC 201 card and the 'eprom

programmer' with the supplied cable.

❺

Switch on the computer. When the connections are correct, the led 'ON' of

the eprom programmer lights. The led 'BUSY' stays extinguished.

❺

Eprom programmer

Card port

Computer

8

2

EPROMP

MD

CD EPROMP

EPP8M1

A:\*.* C:\EPROMP

COPY

Installation software 'eprom programmer'

General

Used symbols

: space bar

: return

: cursor control keys

Installation of the software

Create a directory on the hardware of the PC, named 'EPROMP':

type

press

type

Start directory 'EPROMP' :

press

type

Put supplied disks in the computer drive

Copy the files of the supplied software to directory 'EPROMP'

A: drive of supplied disks

C: hard disk

The nomation of the drives (A or B) depends on the available drivestations

of the computer.

press

type

the menu appears on the display

to confirm

This software has to be installed in order to use the 'eprom programmer'.

❺

9

2

Y

BUFFSIZE:256K GANG SIZE: 1

BUFFSTART: 00000 I/O ADDR:2EOH

BUFF END: 01FFF

PROMSTART:00000COUNTER:00000

PROM END:01FFF

CHECK SUM:48F7

Mfr:27/27C GeneralEPROM

TYPE:X256A VPP:12.5V

SPEED:Intelligent

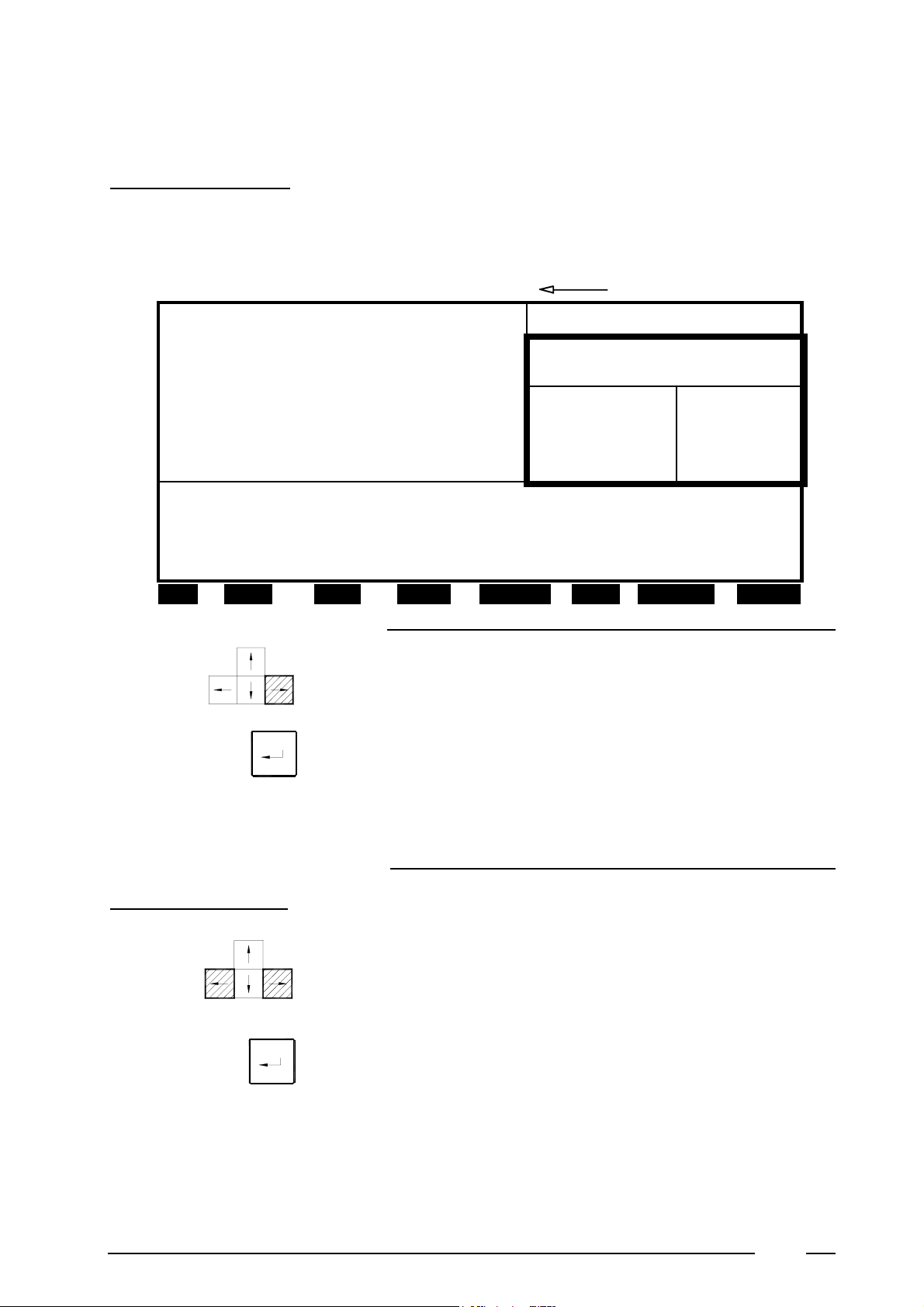

File Edit Setup Mfr Type Quit le menu

Help Blank Read Verify Program Auto Compare Display

press

Step 1:

to go to 'Quit' of the menu bar

press

Check all data on the display. When everything corresponds with below data

(in defined frame), go on with step 1. If the data are different, go to step 2.

to leave the program

Step 2:

When Mfr. (manufacturer) is not equal to '27 / 27 C GENERAL

EPROM':

to go to Mfr of the menu bar

the different Mfr. possibilities appear

to confirm

press

❺

10

2

1

❺

press to go to '27 / 27 C General EPROM'

press to confirm

'Type' of the menu bar is automatically activated.

(*) press the different eprom types appear

press to select 'X256A 12.5V'

press to confirm

When 'TYPE' is not equal to 'X256A12.5V':

❺

to go to 'Type' of the menu bar

press

press to go to 'Setup' of the menu bar

When 'SPEED' (program speed) is not equal to 'Intelligent':

❺

Follow the instructions mentioned above (*).

press the different speed possibilities appear

to go to 'Speed select'

press

the different speeds appear

press

to select 'Intelligent'

type

to confirm

press

Opmerking:

When on the EPROM next to the type specification F1 is menotioted, 'Quick Pulse' can be chosen

instead of 'Intelligent'

11

2

00000

01FFF

00000

When 'BUFFER START' is not equal to 00000

'BUFFER END' is not equal to 07FFF

'CHIP START' is not equal to 00000:

❺

to go to 'Setup' of the menu barpress

press the different buffer possibilities appear

press to go to 'Modify buffer'

'Buffer start address' appears on the display:

type

press to confirm

'Buffer end address' appears on the display:

type

press to confirm

'Chip start address' appears on the display:

type

press to confirm

If the SAC 201 card is programmed according to the instructions on pg. 2, then

'I/O ADDR'has to be equal to '2EOH'.

When 'I/O ADDR' is not equal to '2EOH':

❺

to go to 'Setup' of the menu barpress

press the different setup possibilities appear

12

2

E

Y

press to go to 'I/O select'

press

type which corresponds with '2EO'

to confirm

press

When the following message appears on the display:

'error identification on hardware'

This means that in the computer a card has been put with the same I/O

address as the SAC 201 card.

Act as follows:

❺

press

press to go to 'Quit' of the menu bar

Disconnect the computer, pull the plug out of the plug switch.

Remove the cover of the computer.

Remove the SAC 201 card from the computer.

Change the position of the DIP-switches:

❺

type to leave the program

the list of addresses appears on the display

to confirm

press

SW1: select one switch 'ON'

other switches 'OFF'

SW2: switch 7 'OFF'

select one switch 'ON' when SW1 is completely 'OFF'

others 'OFF'

SW3: switch 2 ALWAYS 'ON'

❺
