Iqinvision IQ540SI-V9 Bedienungsanleitung

IQinVision

IQeye 5 Series™

IQeye 540SI, 541SI and 542SI

Quick Install Guide

When you can’t afford to miss a thing.

Part of the IQeye BASIC LINE of Network Surveillance Products

Plug the IQeye camera into the network.

a. If using PoE, plug your camera into an IEEE 802.3af

PoE injector or switch.

b. If using direct power, con-

nect a 12-24 VDC or 24 VAC

power supply to the supplied

terminal block.

NOTE: Power supply polarity is not important.

IQeye 5 Series field of view and focus adjustments

can be performed using a browser or analog monitor.

To focus using the analog video out connect a field service

monitor to the “Video Out” (RCA Connector) of the IQeye

5 Series camera. The analog video will be available for 30

minutes or until the first digital image is requested via the

Ethernet port.

IQeye 5 Series Power Options

Open the Iris adjustment on the lens to full open, and move

the focus ring on the lens until the image is in focus.

If the IQeye 5 Series field of view and focus adjust will

be performed using a browser, insert the IQtools CD into the

CD drive of the PC. Once the CD starts, you can run IQfinder

either from the CD by clicking “Scan for IQeye cameras on

my network” or you can install IQfinder on your local

machine by selecting “Install IQfinder”.

IQeye 5 Series RCA Connection

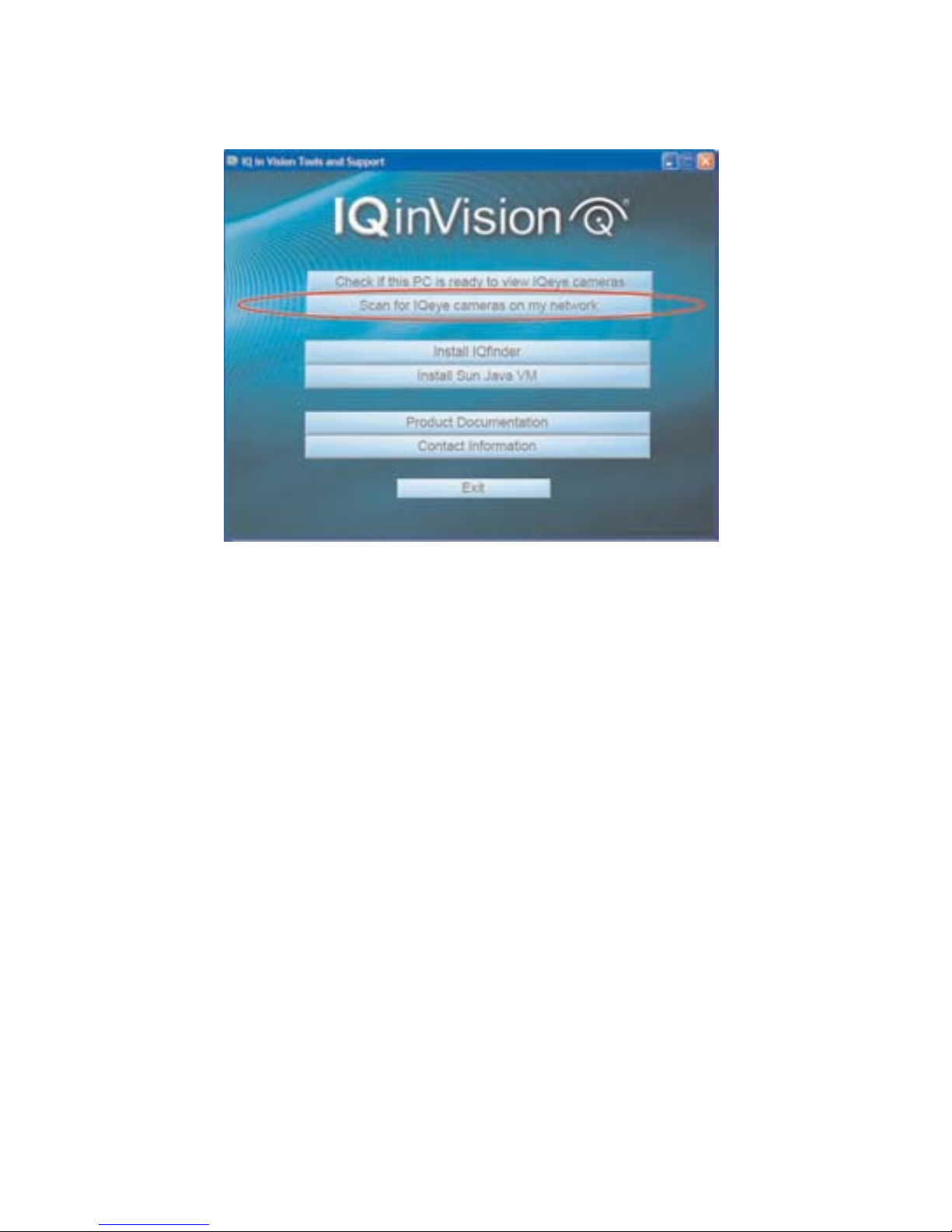

Click “Scan for IQeye cameras on my network” to

find IQeye cameras. The detected cameras will be dis-

played in the IQfinder window. Highlight a camera from

the list and click “Assign IP” to edit the selected cameras

IP settings.

IQtools CD

The “Assign IP” window

allows the IP address, Subnet

and Gateway of the camera to be

changed. It also allows the camera

to be configured for DHCP. Click

the “Apply” button after making

the desired changes

Note: Changing between a static IP address and

DHCP will require the camera to be rebooted.

To view a camera “Double click” a camera entry or high-

light a camera in the list and click the “Web Page” button.

The “Live” page will be displayed through your default

browser (IE recommend-

ed). It’s also possible to

open Internet Explorer,

and enter the IP address

of the IQeye camera in

the address field of the

browser.

IQfinder - Assign IP Address

IQfinder - Web Page

IQ541S

To perform further configuration of the camera click

on the “Setup” tab.

Note: The default username is “root” and the default

password is “system”.

For further information see the IQeye documentation

on the installation CD or at http://www.iqeye.com.

IQinVision, Inc.

33122 Valle Road

San Juan Capistrano, CA 92675-4853 USA

Part Number:

901-0180 Rev A
