Irenis BLANKOM BMM-1716 Bedienungsanleitung

User Manual BMM-1716

Bedienungsanleitung

User Manual

19” 17 –> 16 L-Band-Switch-Matrix



Inputs / Eingänge

Outputs / Ausgänge

Impedance In- & Outputs / Impedanz

75 Ohm

Frequency range / Frequenzbereich SAT

950-2150 MHz

Frequency range / Frequenzbereich terr.

5-862 MHz

Max. Output level / Max. Ausgangspegel SAT

98 dBµv

Max. Output level / Max. Ausgangspegel Terr.

passiv

Insertion loss / Anschlussdämpfung Terr.

18dB

Isolation / Entkopplung H/V

30dB

Return loss Inputs - Outputs / Rückflussdämpfung

> 10dB

LNB supply voltage / LNB Spannung

15 VDC per trunk line / je Stammleitung

Max. LNB supply current / max. LNB Strom

500 mA per trunk line / je Stammleitung

Wide Band LNB support

No/ Nein

Power consumption / Stromaufnahme

4.7W

Netzteilredundanz / Power supply redundancy

2x 90...265 VAC (47...63 Hz), 15 VDC / 3,3 A

Dimension / Abmessungen (LxBxH)

482,6 x 310 x 44,5 mm

Weight / Gewicht

4kg

Operating temperature range / Temperaturbereich



Ethernet, Webserver

RJ45 / 100 BaseT

Connector type / Steckverbinder

F-Connector

PSU-Status signalling / Netzteil-Statusanzeige

2x Red/Green LEDs at the front

User Manual BMM-1716



The high compact BLANKOM Satellite –L-Band-Switch Matrix BMM-1716 is equipped with a Web-Interface

which can be operated by a normal browser via an Ethernet IP connection also remotely to flexible adjust and

select every SAT-Input-port (incl. terrestrial pathway) to any of the 16 output ports to be routed or multiplied. With

the inbuilt RF-level monitoring circuit the user always gets the qualitative information about the signal and

displayed in the web-interface. In parallel the LNC powering is monitored and shown. This Matrix comes with dual

redundant power supplies for securing highest reliability.

               

installations. This SAT/T(2) matrix is an ideal equipment for a flexible SAT/T distribution as a Headend-Input

selection from max 4 SAT-positions. Even useful by using several units for the pre-selection of more than 4 SAT

positions (incl. DVB-T/T2) to active or passive distribution equipment like splitter/taps or cascadable Multiswitch

devices, it allows a flexible combination also for an almost complex SAT/T network serving multiple Signal-Input

combinations.



Diese äußerst kompakte Blankom Satelliten- L-Band Matrix BMM-1716 verfügt über einen WEB-Controller,

der von einem Internet-Browser über einen Ethernet-Anschluß durch ein IP-Netzwerk - auch aus der Ferne -

eingerichtet werden kann um flexibel jeden SAT-Eingang inkl. einem terrestrischen Signaleingang auf einen

beliebigen Ausgangs-Port zu schalten (routen) oder zu multiplizieren. Mit einem internen RF-Signal-

Überwachungsschaltkreis wird jeder Eingangs-Signalpegelstatus von den jeweiligen Satelliteneingängen

gemessen und im Web-Interface ersichtlich abgebildet. Parallel dazu werden die Versorgungsspannungen der

LNBs überwacht. Diese Matrix ist mit 2 Netzteilen in Redundanzschaltung ausgestattet, um eine hohe

Verfügbarkeit zu gewährleisten.

Diese Hoch performante Matrix arbeitet autark und ist als 19“- 1HE Gerät speziell für den Einsatz in 19 Zoll

Schränken entworfen worden. Damit ist diese SAT/T-Matrix für eine individuelle flexible Eingangs-

Signalversorgung von Kopfstellen, Aufbereitungs- und Verteilanlagen, Überwachungs- und Aufnahmesystemen

als auch für Test- und Laborprüfplätze optimal einsetzbar. Eine multiple Anwendung ermöglicht z.B. eine flexible

Zusammenschaltung und Programmierung von nachfolgenden passiven und gemischten SAT/T2 -

Multischaltersystemen ermöglicht eine konzeptionelle Erweiterung auf Anlagen mit mehr als den herkömmlichen

4 SAT-Positionen.

User Manual BMM-1716



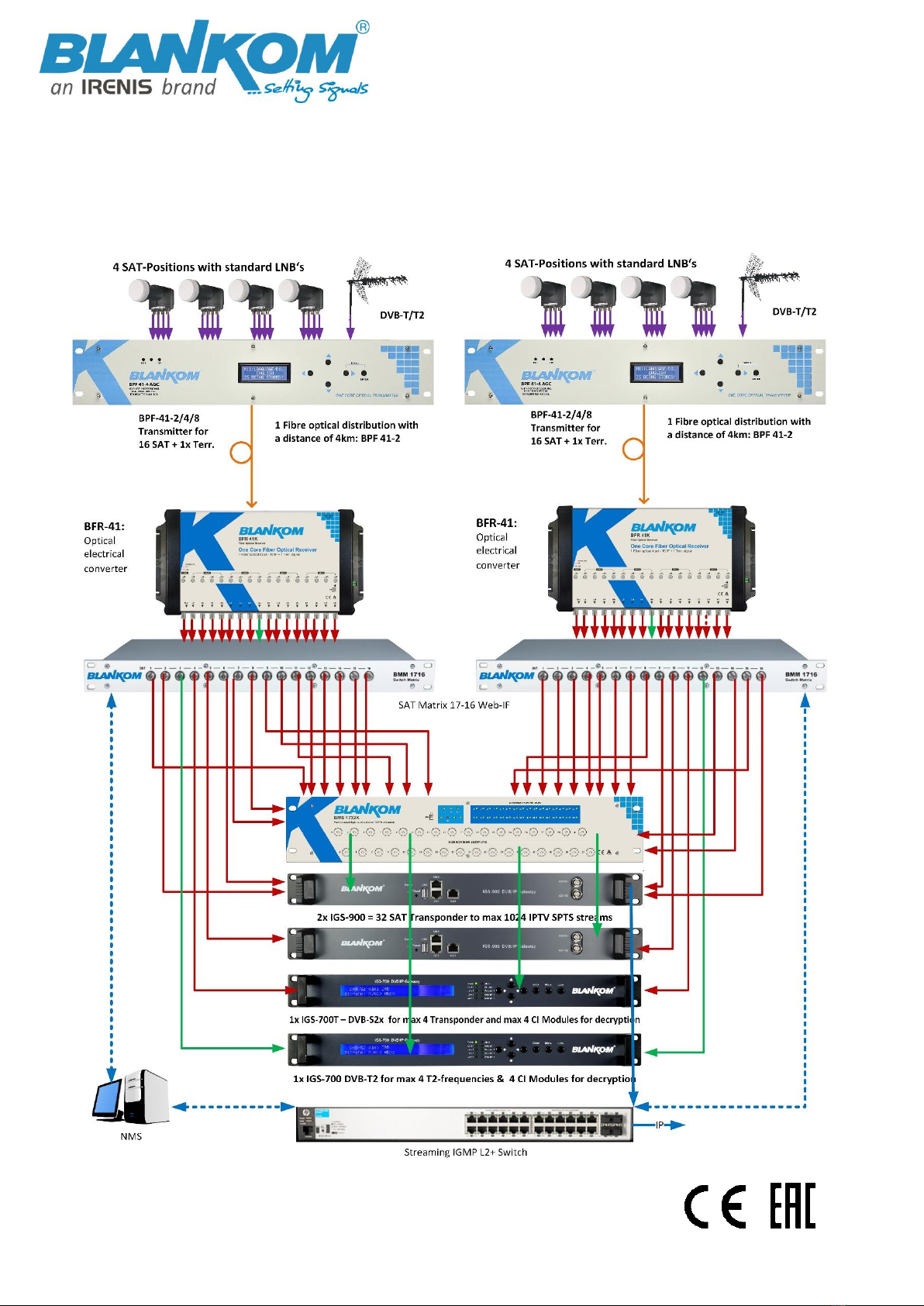

Applikationsbeispiel Master- und Backup Satellitensystem Zuführungen zum Headend:

User Manual BMM-1716
All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021
Table of Content / Inhalt
Technical Specification...................................................................................................................1
Brief Description: ...........................................................................................................................2
Kurzbeschreibung...........................................................................................................................2
Application example Master / Backup Satellite stations to Headend:...........................................3
Statement / Anmerkungen:............................................................................................................6
Default settings (Factory settings): ................................................................................................6
Description of Ports and Status LEDs:............................................................................................7
Block diagram.................................................................................................................................7
Network connection to the computer...........................................................................................8
Menu item ‘Overview’ (Menu Overview) ......................................................................................9

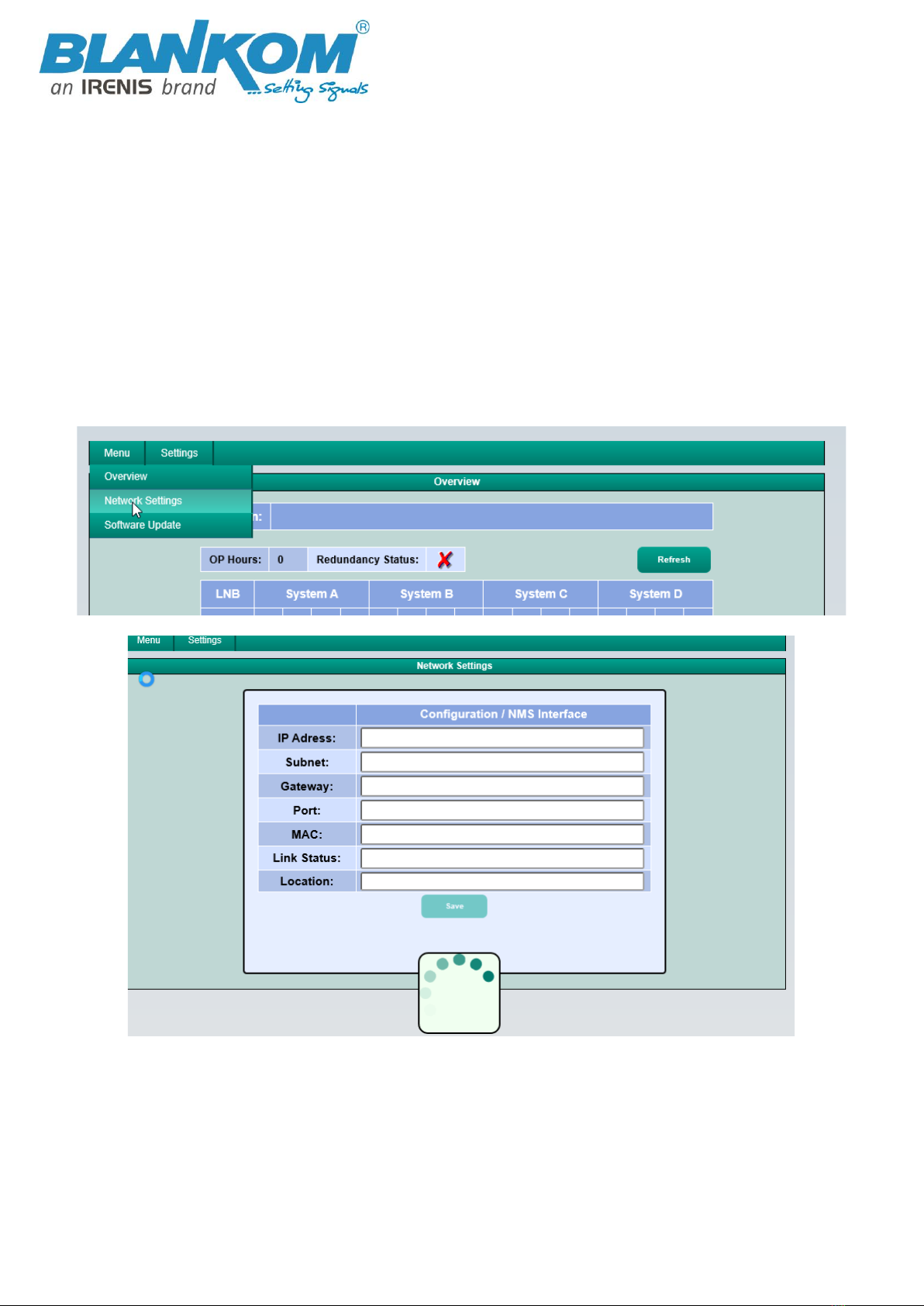

Menu item ‘Network Settings’ (Menu Network Settings) ...........................................................10
Menu item 'Software Update’  (Menu Software Update) ...........................................................11
Menu item ‘Device Settings’ (Settings Save/Load Settings).........................................................12
Saftey and Mounting instructions................................................................................................18
Montage und Sicherheitshinweise:..............................................................................................19
Measurements:............................................................................................................................20
Frequency Range TERR receiver output port:..............................................................................21
Frequency Range SAT User-Ports Out:.........................................................................................22
Isolation / Schirmung H/V............................................................................................................23
ISOLATION / Schirmung TERR.......................................................................................................24
Appendix DB.................................................................................................................................25
Appendix A...................................................................................................................................27
Safety instructions .......................................................................................................................28
Sicherheitshinweise .....................................................................................................................30
1. Installation.........................................................................................................................30
2. Betrieb ...............................................................................................................................30
4. Wartung.............................................................................................................................31
5. Reparatur...........................................................................................................................31
6. Verkauf.....................................................................................................................................31
7. Entsorgung...............................................................................................................................31
Installation guide for F-connectors: .............................................................................................32
/ Installationshinweis für den F-Anschluß: ..................................................................................32
Installation and safety instructions / Montage und Sicherheitshinweise ....................................32
Contact:........................................................................................................................................34





User Manual BMM-1716

Vorwort

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for

the installation and use of the Product described herein and in particular the knowledge and skills Satellite distribution

configurations of RF signals and measurements.

Über dieses Manual

Dieses Handbuch richtet sich an Systemintegratoren, IT-Techniker und sachkundige Endbenutzer. Es enthält Informationen

für die Installation und Verwendung des hier beschriebenen Produkts und insbesondere die Kenntnisse und Fähigkeiten von

Satellitenverteilungen und Ihren Konfigurationen von HF-Signalen und entsprechender Messungen.

Important Notes!

This manual is for use by qualified personnel only. Handling this device or system requires special electronic technical

knowledge. To reduce the risk of electrical shock or damage to the equipment, do not perform any servicing other than

the installation and operating instructions contained in this manual unless you are qualified to do so. This device operates

in the given voltage and frequency range without requiring manual adjustment.

Do not open the top case w/o unplugged power source because serious injury or death may be the result! Inside are

components under risk from electrostatic discharge. To avoid equipment damages do not touch these components or,

observe the respective handling rules! For continued protection against fire, the fuses may only be replaced by identical

fuses with the same electrical specifications which are designed for the corresponding fuse positions.

No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such as

translation, transformation or adaptation) without the written permission from Blankom / IRENIS GmbH.

IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it

shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.

IRENIS GmbH provides this manual without warranty of any kind, neither implied nor expressed, this includes also any

warranties regarding the merchantability and fitness for a particular purpose. IRENIS GmbH may improve this manual or

make changes in the products described herein at any point of time.

Wichtige Anmerkungen!

Dieses Handbuch ist nur für qualifiziertes Personal vorgesehen. Die Handhabung dieses Geräts oder Systems erfordert

besondere elektronische & technische Kenntnisse. Um das Risiko eines elektrischen Schlags oder einer Beschädigung des

Geräts zu verringern, führen Sie keine anderen Wartungsarbeiten als die in diesem Handbuch enthaltenen Installations- und

Betriebsanleitungen durch, es sei denn, Sie sind dafür qualifiziert. Dieses Gerät arbeitet im angegebenen Spannungs- und

Frequenzbereich, ohne daß eine manuelle Einstellung erforderlich ist.

Öffnen Sie nicht das Gehäuse mit angeschlossener Stromquelle, weil schwere Verletzungen oder Tod die Folge sein können!

Im Inneren sind Komponenten, die durch elektrostatische Entladung gefährdet sind. Um Geräteschäden zu vermeiden,

berühren Sie diese Komponenten nicht oder beachten Sie die jeweiligen Handhabungsregeln! Zum weiteren Brandschutz

dürfen die Sicherungen nur durch identische Sicherungen mit den gleichen elektrischen Spezifikationen ersetzt werden, die

für die entsprechenden Sicherungspositionen ausgelegt sind.

Kein Teil dieser Veröffentlichung darf ohne schriftliche Genehmigung der BLANKOM / IRENIS GmbH in irgendeiner Formoder

auf irgendeine Weise reproduziert oder verwendet werden, um abgeleitete Werke (wie Übersetzung, Umwandlung oder

Anpassungen) zu machen.

Die IRENIS GmbH behält sich das Recht vor, diese Veröffentlichung zu überarbeiten und von Zeit zu Zeit inhaltliche

Änderungen vorzunehmen, wobei die IRENIS GmbH nicht verpflichtet ist, eine solche Überarbeitung oder Änderung zu

vermerken.

Die IRENIS GmbH stellt dieses Handbuch ohne jegliche Gewährleistung, weder stillschweigend noch ausdrücklich zur

Verfügung, dies beinhaltet auch Gewährleistungen hinsichtlich der Marktgängigkeit und Eignung für einen bestimmten Zweck.

Die IRENIS GmbH kann dieses Handbuch jederzeit verbessern oder Änderungen an den hier beschriebenen Produkten

vornehmen.

User Manual BMM-1716

Anmerkungen:

Text and pictures herein are subject to changes w/o notifications.

The user manual will be updated in real time without special notice.

This user manual is provided only as a reference guide for technicians as examples.

All parameter data are examplesonly.

User adjustableparameters are freely selectable.

Menu views can vary slightly depending on the software version & the operability does not change as a result.

The images in this manual are for illustrative purposes only.

Alle Parameterangaben sind lediglich beispielhaft.

Technisch realisierbare Parameter sind frei wählbar.

Menüansichten können je nach Software-Stand leicht variieren; die Bedienbarkeit ändert sich dadurch nicht.

Die Bilder in dieser Anleitung dienen lediglich als Illustrationen.

The SAT IF switch matrix can be mounted into a 19“ rack or on a wall, by using the wall adaptor.

The environmental temperature may not exceed 55 °C. The main power should be disconnected for any work on the device.

The device must be grounded according to EN 60728-11 standard. The insulation of the grounding cable should be stripped

down approximately 15 mm and the cable must be fixed by using the grounding screw designated on the device.

NOTE:

After a power failure, all configured data are kept & stored in a non-volatile memory.

All assembly and connection work must be carried out before the unit is connected to the mains voltage supply!

Observe the safety instructions.

The SAT IF signals and the terrestrial signal must be fed into the corresponding connections on the back of the

de-vice using suitable cables. The output connectors are located at the front panel.

Once all signal cabling has been connected, the power supply cable can be connected and the device will

switch on. The operating status is indicated by LEDs on the front panel.

NOTE

At delivery, identical network parameters are set for all devices. The setup and configuration of several devices

within a network should therefore be carried out with each unit connected one at a time securing not to overlap

the device IP addresses.

The unit can be reset to its delivery network configuration and access data status at any time using a specific

reset operation. Firstly, remove the power plug from the mains. Then press and hold the button Reset, located

at the rear side of the device and reconnect the power plug to the mains. After a short time, the status LED next

to the button flashes red/green and the button can then be released. The network parameters will now be set to

the values shown in the following table.



Network*

IP Address

Subnet mask

Gateway

Web management port

192.168.1.128

255.255.255.0

192.168.0.1 *

admin

password

Activated outputs

OUT 1 - OUT 16

OUT 1, 5, 9, 13 to IN 1

OUT 2, 6, 10, 14 to IN 2

OUT 3, 7, 11, 15 to IN 3

OUT 4, 8, 12, 16 to IN 4

* Please adjust the Gateway address according to the routing settings in your network

User Manual BMM-1716



Front panel:

Status LED

Power supply 1

Output ports 1 - 16

Status LED

Power supply 2

LED green

Power supply 1,2 active

LED red

Power supply 1,2 not active

Rear Panel:

Power 1

Status

LED

Reset

Ethernet

100BaseT

SAT A

SAT B

Terr.

SAT C

SAT D

Ground

Power 2

Status LED indicates:

LED green flashes

Device setting is running

LED green

Device ready for operation

LED flashes green/

Red alternating

Device factory setting is running (network and password required)



Programming via the Ethernet interface

If changes are to be made to the basic configuration via the Ethernet interface, the respective HTML user

interface must be accessed via a connected computer. An internet browser is required as an operating program.

User Manual BMM-1716



System requirements:

PC/Laptop with Ethernet interface 10/100 Mbps

Internet browser (e.g. Windows EDGE, Mozilla Firefox, or others recommended)

Note on setting up a network connection:

PC and the Electronic Switch Matrix (MATRIX) are connected to the network via an Ethernet cable. If the

MATRIX device is connected directly to the PC, use a crossed-link cable (crossover cable) for connection. For

connection acquisition, the IP addresses of the devices must first be matched.

In the factory state, the IP address is: 192.168.1.128. The address of the network connection in the PC must

be adapted to the IP address of the MATRIX (subnet mask: 255.255.255.0, IP address: 192.168.1.xxx). xxx

must not be exactly the same one as of the MATRIX devices. The digits 0, 255 or already used IP addresses

are not permitted. If a proxy server is used, it must be disabled in the network connections. These settings are

P addresses,

the network connec-tion between the devices can be established.

Establishing a connection:

Enter the IP address of the device (default IP address: 192.168.1.128) into the address field of the browser

and press the Enter key to confirm.

The connection to the device is established and the associated login window is displayed:

NOTE

If the password or user name is not known or forgotten, a reset can be carried out via the button Reset, located

at the rear side of the device. The device receives the access data and basic network parameters as described

above.

User Manual BMM-1716



After successful login, the Overview menu will be displayed. This menu is used to assign the outputs to the

corresponding inputs. This can be done by clicking in the respective column (e.g. system A HH) and row (e.g.

OUT 8). After that, a green tick will be displayed in this field. Furthermore, information about the DC status, RF

status, the redundancy behaviour and the run time of the device is given in this menu. The Refresh button updates

the displayed status. At the bottom of the menu, the button Save is located. After pressing this button, the selected

values will be set.

Location

In this menu item the location of the device will be displayed. The Location can be edited in the menu item

Network Settings.

OP Hours

This menu item shows the operating time of the device.

Redundancy Status

This menu item provides information about the current status of the power supply redundancy. A green tick

shows that the redundancy is operating in an error-free state. If a red cross is displayed, no redundancy is

active.

RF Status

The RF status is used to monitor the SAT IF input signals. A green tick indicates if a signal is applied

to the corresponding SAT input connector. If a red cross is displayed, no or a too low input signal is present at



User Manual BMM-1716

DC Status

The DC status is always displayed for a group of four SAT input signals (see point 2.) and provides in-

formation about possible errors on the SAT IF inputs. A green tick shows error free operation. If a red

cross is displayed, there is an error at the associated inputs, e.g. short circuit on the connected line.



In the Menu Network Settings the Ethernet interface for the management of the device via web browser may be

configured. The values of the IP address, subnet mask, gateway and the management port must be adapted to

the local network -and individualized (see point 8.1). In addition, the MAC address of the device and information

about the connection status will be displayed. In the menu item Location, the device can be assigned to a location.

The name can contain a maximum of 24 characters. At the end of the menu, the button Save is located. After

pressing this button, the selected values will be set. Thereafter, a restart of the device takes place automatically,

which can take up to one minute.

Depending on the used browser the refreshing might stuck. Edge is not a good choice so we recommend to

use Mozilla:

Inhaltsverzeichnis

Andere Irenis Multiplexer Handbücher

Irenis

Irenis BLANKOM IPQAM-801 Bedienungsanleitung

Beliebte Multiplexer Handbücher anderer Marken

Campbell

Campbell AM416 Bedienungsanleitung

Paradyne

Paradyne SIM2000 Bedienungsanleitung

Panasonic

Panasonic WJFS616 - SWITCHER Bedienungsanleitung

Lanex

Lanex TM-77 Bedienungsanleitung

Bosch

Bosch VSS8394/01T Bedienungsanleitung

Quark-Elec

Quark-Elec QK-A035 Bedienungsanleitung

ADTRAN

ADTRAN Frameport 768 Bedienungsanleitung

Elo TouchSystems

Elo TouchSystems E247 Bedienungsanleitung

Paradyne

Paradyne Hotwire 8786 Bedienungsanleitung

RFL Electronics

RFL Electronics 9508D UCC Bedienungsanleitung

Miranda

Miranda AMX-101i Bedienungsanleitung

ShipModul

ShipModul MiniPlex-AIX NMEA-0183 Bedienungsanleitung

GE StoreSafe SDVR-10 Bedienungsanleitung

Pickering

Pickering 40-613 Bedienungsanleitung

Pickering

Pickering 40-667C Bedienungsanleitung

American Fibertek

American Fibertek MTX-8410C Bedienungsanleitung

ADC

ADC HiGain ELU-319 5E Bedienungsanleitung

Paradyne

Paradyne Hotwire 8774 Bedienungsanleitung
