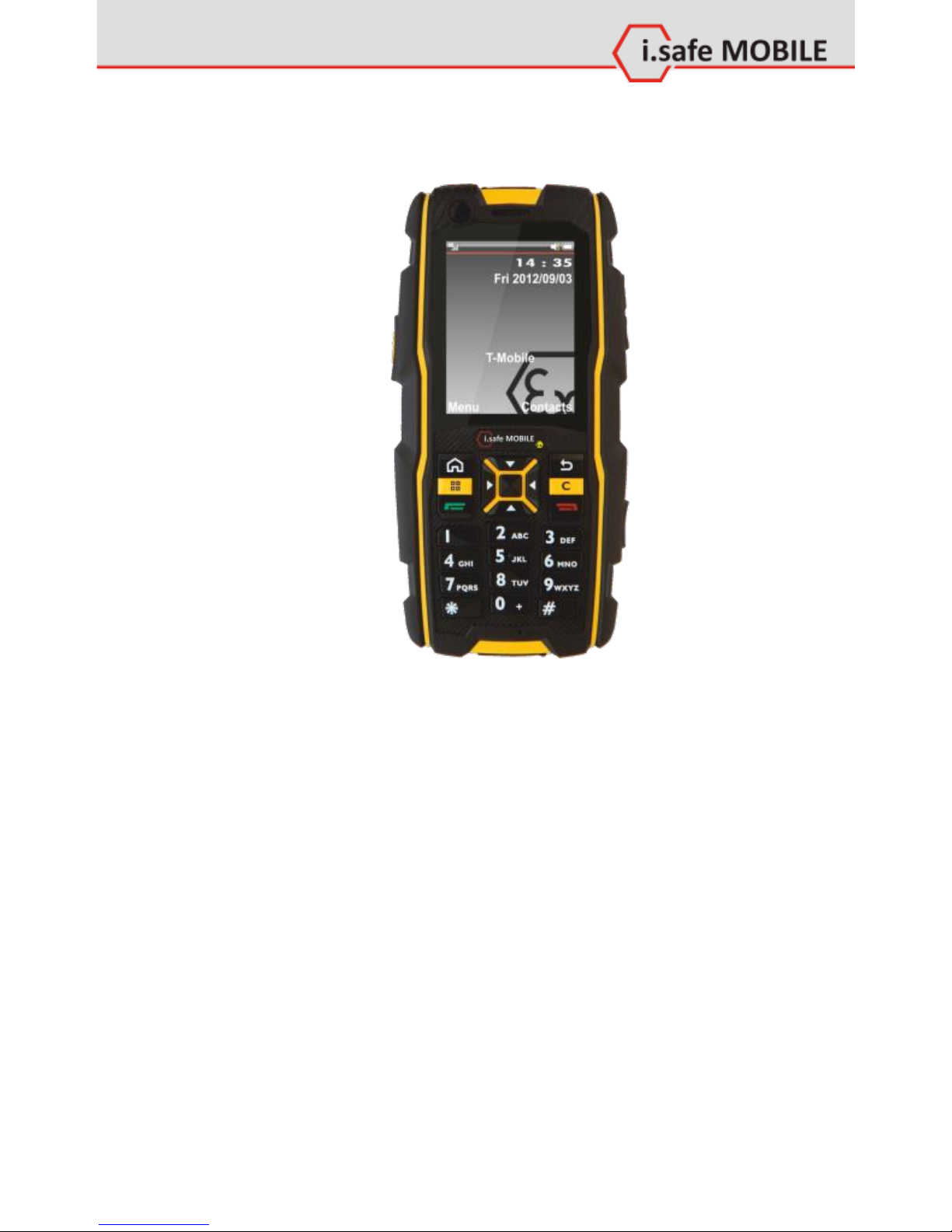

ISAFE MOBILE ADVANTAGE 1.X Bedienerhandbuch

ADVANTAGE 1.x

Quick Start Manual

and

Safety Instructions

Schnellstartanleitung

und

Sicherheitshinweise

Template: TEMPMD01REV00

Document No. 1005DI01REV00

Version: 2012-10-23

Reservation: Technical Data is subject to change without no-

tice. Changes, errors and misprints may not be used as a basis

for any claim for damages.

i.safe MOBILE GmbH cannot be held responsible for any data

or other loss and direct or indirect damages caused by any

improper use of this phone.

Vorbehalt: Technische Änderungen behalten wir uns vor.

Änderungen, Irrtümer und Druckfehler begründen keinen

Anspruch auf Schadensersatz.

Für Datenverluste oder andere Schäden gleich welcher Art,

die durch den unsachgemäßen Gebrauch des Mobiltelefons

entstanden sind, übernimmt die i.safe MOBILE GmbH keine

Haftung.

i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 14

97922 Lauda-Koenigshofen

Germany

Tel. +49 9343/60148-0

info@isafe-mobile.com

www.isafe-mobile.com

Note / Hinweis

This document contains a quick start guide and the safety

instructions necessary for the safe use of the mobile phone

ADVANTAGE 1.x in explosive atmospheres. The first part de-

tails the English instructions, the second part the German

translation.

More detailed instructions on the use of the phone can be

found at www.isafe-MOBILE.com or directly at i.safe MOBILE

GmbH.

Dieses Dokument enthält die notwendigen Sicherheitshinwei-

se für die sichere Verwendung des Mobiltelefons

ADVANTAGE 1.x in explosionsfähigen Bereichen. Der erste

Teil enthält die englischen Anweisungen, der zweite Teil die

deutsche Übersetzung.

Detailliertere Informationen erhalten sie unter www.isafe-

MOBILE.com oder direkt bei der i.safe MOBILE GmbH.

Contents

1Introduction 5

2Ex-Specifications 6

3Faults and Damages 7

4Ex-relevant Safety Regulations 8

5Further Safety Advises 9

6Keys 12

7First Steps 13

7.1 Battery 13

7.1.1 Installing and Extracting the Battery 13

7.1.2 Charging the Battery 13

7.1.3 Battery Use 14

7.2 Installation of the SIM Card 14

7.3 Installation of the Micro-SD Card 15

8i.safe PROTECTOR 15

9Status Icons 16

10 Specifications 17

11 Troubleshooting 17

12 Maintenance 19

Safety Instructions

1Introduction

This document contains information and safety regulations

which are to be observed without fail for safe operation of

the mobile phone ADVANTAGE 1.x under the described con-

ditions. Non-observance of this information and instructions

can have serious consequences and / or may violate regula-

tions.

Please read the manual and these safety instructions before

using the phone. In case of contradicting information, the text

of these safety instructions shall apply.

In case of any doubt, the German version shall apply.

The current EC declaration of conformity, EC and IECEx certifi-

cates of conformity, safety instructions and manual can be

found at www.isafe-mobile.com, or requested from i.safe

MOBILE GmbH.

Safety Instructions

2Ex-Specifications

The ADVANTAGE 1.x is a mobile phone suitable for use in

potentially explosive atmospheres (zones 1, 21, 2 and 22) in

accordance with directives 94/9/EC (ATEX 95) and 99/92/EC

(ATEX 137), as well as the IECEx scheme.

Ex-markings

ATEX II 2G Ex ib IIC T4 Gb

II 2D Ex ib IIIC T135°C Db IP6X

EPS 12 ATEX 1 463 X

2004

IECEx: Ex ib IIC T4 Gb

Ex ib IIIC T135°C Db IP6X

IECEx EPS 12.0022X

Temperature range: -20 ... +60°C

Manufactured by:

i.safe MOBILE GmbH

i_PARK TAUBERFRANKEN 14

97922 Lauda-Koenigshofen

Germany

3Variants

ADVANTAGE 1.0 is equipped with a 2 MP camera,

ADVANTAGE 1.1 is not equipped with a camera.

Safety Instructions

4Faults and Damages

If there is any reason to suspect that the safety of the phone

has been compromised, it must be withdrawn from use and

removed from any ex-hazardous areas immediately.

Measures must be taken to prevent any accidental restarting

of the phone.

The safety of the phone may be compromised, if, for exam-

ple:

malfunctions occur.

the housing of the phone or the battery shows damage.

the phone has been subjected to excessive loads.

the phone has been stored improperly.

markings or labels on the phone are illegible.

It is recommended that a phone which shows or which is

suspected of faults and damages is returned i.safe MOBILE

GmbH for inspection.

Safety Instructions

5Ex-relevant Safety Regulations

Use of this phone assumes that the operator observes the

conventional safety regulations and has read and understood

manual, safety instructions and certificate.

The following safety regulations must also be complied with:

Inside ex-hazardous areas all openings of the phone must

be closed. The battery has to be fixed by the two screws

and the covers of the USB and Headset interfaces have to

be closed.

The battery may only be exchanged or charged outside ex-

hazardous areas.

The phone may only be charged outside ex-hazardous

areas using the i.safe PROTECTOR USB-cable or other

equipment approved by i.safe MOBILE GmbH.

USB-connections to other equipment are only allowed

outside ex-hazardous areas using the i.safe PROTECTOR

USB-cable or other equipment approved by i.safe MOBILE

GmbH.

Use only the appropriate battery type BPA01A.

It is not allowed to carry spare batteries into ex-hazardous

areas.

The phone may be charged only at temperatures in be-

tween 0°C ... 45°C.

The phone must not be exposed to abrasive acids or bases.

The phone must not be taken into zones 0 or 20.

Only accessories approved by i.safe MOBILE GmbH may be

used.

Safety Instructions

6Further Safety Advises

Do not touch the screen of the phone with sharp objects.

Dust particles and nails may scratch the screen. Please

maintain the screen clean. Remove dust on the screen with

a soft cloth gently, and do not scratch the screen.

Charge the phone under indoor conditions only.

Please do not put the phone in environments with exces-

sive temperatures, as this could lead to heating of the bat-

tery, resulting in fire or explosion.

Do not charge the phone near any flammable or explosive

substances.

Do not charge the phone in environments with much dust,

humidity, or excessively high or low temperatures (the

permitted charging temperature range is 0 ... 45°C).

Do not use the phone in areas where regulations or legisla-

tives prohibit the use of a mobile phone.

Do not expose the phone, battery or charger to strong

magnetic fields, such as are emitted from induction ovens

or microwave ovens.

Do not attempt to open or repair the phone. Improper

repair or opening can lead to the destruction of the phone,

fire or explosion. Only authorized personnel are allowed to

repair the phone.

Only use accessories approved by i.safe MOBILE GmbH.

Please do not directly connect the poles of the battery to

avoid short-circuiting the battery.

Power off the phone in hospitals or other places where the

use of mobile phones is prohibited. This phone may affect

proper work of medical equipment, such as pacemakers, so

always keep a distance of at least 15 cm between the

phone and these devices.

Observe all corresponding laws that are in force in the

respective countries regarding the use of mobile phones

while operating a vehicle.

Safety Instructions

Please power off the phone and disconnect the charging

cable before cleaning the phone.

Do not use any chemical cleaning agents to clean the

phone or the charger. Use a damp and anti-static soft cloth

for cleaning.

Do not discard old and abandoned lithium batteries into

the trash, send them to designated waste disposal loca-

tions or return them to i.safe MOBILE GmbH.

The user alone is responsible for any and all damages and

liabilities caused by malware downloaded when using the

network or other data-exchange functions of the phone.

i.safe MOBILE GmbH cannot be held responsible for any of

those claims.

Warning

i.safe MOBILE GmbH will not assume any liability for damages

caused by disregarding any of these advices or by any inap-

propriate use of the phone.
