ISLABIKES eJoni Bedienungsanleitung
www.islabikes.co.uk
eJoni
Owner’s manual
eJoni
1. Brake pads
2. Saddle
3. Seatpost
4. Seatpost clamp
5. Saddle clamp
6. Stem bolts
7. Rim
8. Spokes
9. Tyres
10. Chain
11. Rear derailleur
12. Cassette
13. Frame
14. Fork
15. Cranks
16. Pedals
17. Rear light
18. Front light
19. Charging point
20. Motor
21. Motor cable (Non driveside Chainstay)
22. PAS sensor
23. PAS cable (Driveside Chainstay)
Setting up your eJoni
The Bicycle
1
2
12
3
4
5
6
7
8
9
10
13
14
15
16
17
18
19
20
21
22
11
23
www.islabikes.co.uk
24. iWoc TRIO controller
25. Brake levers
26. Stem
27. Headset
28. Stem bolt
29. Handlebars
30. Gear shifters
25
27
29
2628
30
24
eJoni
The iWoc Controller
Up Button
Short Press: Increase Assist
Long Press: Lights On/O
Middle Button
Long Press: On/O
Down Button
Short Press: Decrease assist
Long Press: Walk mode
Indicator LED
First Colour: Assist Level
Second Colour: Battery Level
www.islabikes.co.uk
Step 1 of 13
Remove front wheel and fork packaging
1. Remove front wheel
protection packaging.
2. Remove fork protector.
DO NOT PULL BRAKE
when caliper spacer
is removed. Please
keep caliper spacer for
transportation when wheel
is removed.
3. Remove brake caliper spacer
eJoni
Step 2 of 13
Install quick release and secure front
wheel in fork
1. Install front quick release (QR)
skewer from pedal box.
Ensure QR skewer springs
orientation is correct .
2. Put front wheel into the fork.
Ensure (QR) lever is not on
gear side.
Correct
Incorrect
www.islabikes.co.uk
Step 2 of 13
Install quick release and secure front
wheel in fork continued
3. Hold QR lever in fully ‘open’
position and turn nut
clockwise. Do not fully
tighten nut.
4. Clamp the QR to fully closed
position in line with the fork.
The QR lever should start to feel tight at 90 degrees as you close –
if it is too tight or too loose you can adjust by holding lever ‘open’
again and turning nut.
Check front wheel is correctly installed. Firstly, lift the front end of
the bike o the ground by the handlebars and strike the top of the
wheel rmly with the palm of your hand. Secondly, push and pull
the wheel from side to side. If there is no movement from either of
these actions the wheel is installed correctly.
Tighten
Clamp
eJoni
Step 3 of 13
Handlebar set up
3.1. Turn handlebars clockwise and align with front wheel.
3.2. Tighten the two stem clamp bolts Max. 7Nm.
3.1. Turn
3.2. Tighten
Do not adjust headset bolt during initial setup unless:
Handlebar height adjustment is necessary. See step 4.
Play is detected in the headset.
Headset bolt
3.3. Check the stem is tight by
standing at the front of the
bike with the wheel clamped
between your legs. While
holding the grips, gently try
to turn the handlebars. The
handlebars should not move
independently to the wheel.
www.islabikes.co.uk
3.4. IMPORTANT - Check the headset for unwanted play (back and forth
movement). While holding the front brake only, rock the bike back
and forth, you should not be able to hear or feel a rocking sensation.
Placing a nger between the headset bearing cover and frame while
rocking the bike back and forth can help detect this movement.
Step 3 of 13
Handlebar set up
3.5.
If you are unsure if there is play in the headset, attempt to rotate a headset
spacer located under the stem, the headset spacer should not be easily
rotated. If it is possible to rotate the headset spacer, then continue to 3.6.
If you cannot rotate a headset spacer, proceed to step 5 of 13.
eJoni
Step 3 of 13
Handlebar set up

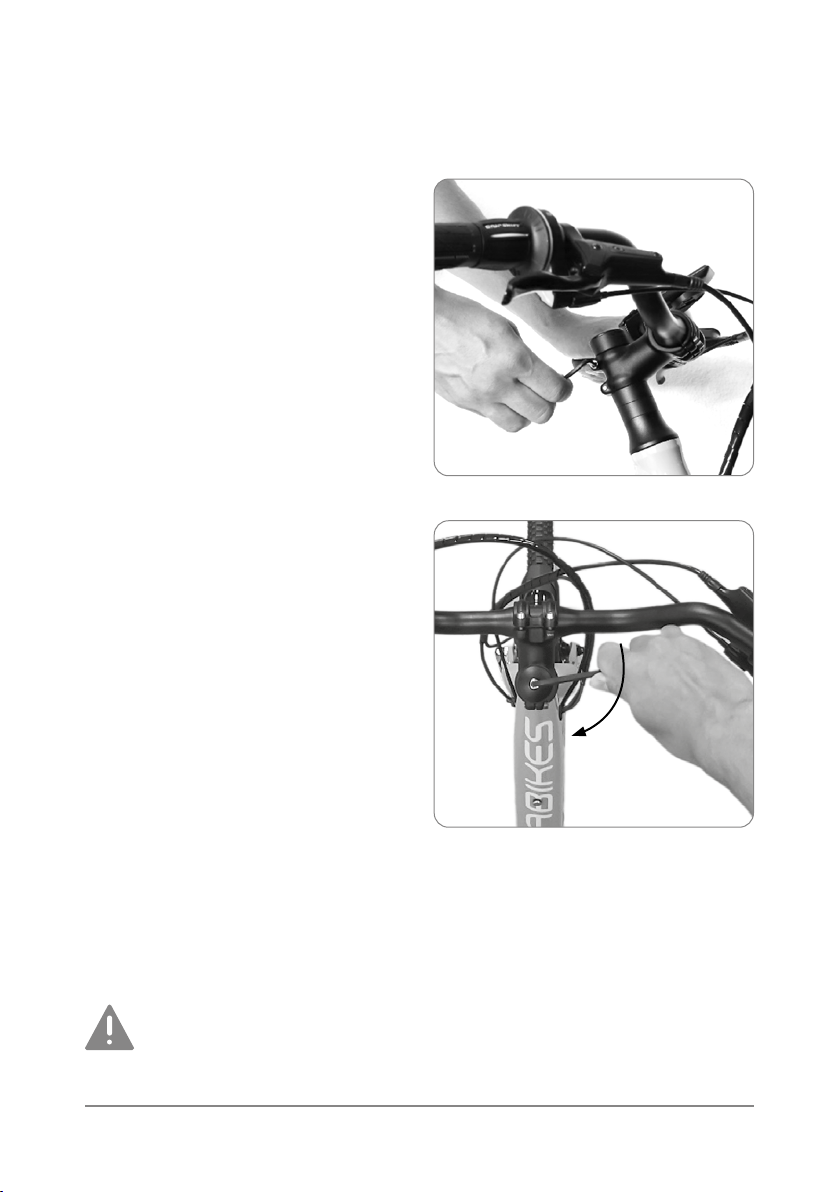

3.6. Loosen the two stem
clamp bolts.
3.7 Using the supplied 5mm hex
key, turn the headset bolt 90°
clockwise to remove the play.
3.8 Re-tighten the two stem clamp bolts.
3.9 Restart the process from step 3.3.
If in doubt, please consult our technical support team on
