IWILL DX400-SN (Version 1.2A)

High-End Workstation Motherboard User's Manual

FB11360030000

-2-

Contents

Motherboard Description

1. Overview………………………………………………………………………..…………4

Feature Summary

Manufacturing Options

2. Motherboard Layout…………………………………………………………………...6

Supported Processors

Installing the Processors

Installing the Retention Mechanism

3. System Memory…………………………..…………………………………………...12

MEC on motherboard

MEC8 Usage

ECC Memory

Memory Installation

4. Intel 860 Chipset……………………………………………………………………….17

AGP & AGP Pro50

USB

IDE

RTC, CMOS SRAM and Battery

5. I/O Controller…………………………………………………………………………..21

Serial Port

Infrared Support

Parallel Port

Diskette Driver Controller

Keyboard and Mouse Interface

6. Audio Subsystem……………………………………………………………………..23

Audio Codec

Audio Connectors

CD-ROM audio mixer connector

ATAPI-style telephony connector

7. Hardware Management Features…………………………………………………..25

Hardware Monitor Subsystem

Chassis Intrusion Detection Connectors

Fan control and Monitoring

8. Power Management Features………………………………………………………27

Software Support ofACPI

Hardware Support

Power Connectors

-3-

Fan Connectors

AOL2 Technology

Wake on Lan Technology

Wake on Ring Technology

Wake on USB

9. LAN subsystem………………………………………………………………………..30

Intel 82550 Lan Controller

Alert On LAN Component

LAN subsystem software

RJ-45 LAN connector LEDs

10. Jumper Setting & Connector……………………….……………………………….32

Back Panel Connector

FAN Connectors

Peripheral Connector

Front Panel Connectors

Jumper Setting

Thermal Sensor

Connector Specification

11. BIOS Setup………………………………….………………………………….……….42

BIOS Introduction

Main Menu

Standard CMOS Features

Advanced Boot Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP/PCI Configurations

Security Features

CPU Smart Setting

PC Health Status

12. Fast!UTIL (On-Board SCSI BIOS Utility)…………………………….…………….58

Configuration Settings

Scan SCSI Bus

SCSI Disk Utility

Select Host Adapter

Exit Fast!UTIL

13.Appendix…………….…………………………………………………………………..62

Beep Codes

BIOS Protection/Auto Recovery Feature

AWARD BIOS POST CONTROL FLOW

-4-

Motherboard Description

1.Overview

This section provides a summary of the DX400-SN motherboard’s features and the manufacturing options

available.

Feature Summary

This table summarizes the DX400-SN motherboard’s major features.

Item Description Remark

CPU Supports Dual Intel Xeon (socket 603) processor

Supports CPU speed from 1.3 GHz up to 2GHz and higher

Chipset Intel 860 chipset

MCH (1012 OLGA) –Memory & Graphics controller

ICH2 (360 EBGA) –I/O controller

FWH (32 PLCC) –BIOS & Management controller

P64H (241 mBGA) –64-bit Bus Master PCI Expander

Memory One MECC

Supports PC600/PC800 DRDRAM modules

Supports maximum memory capacity up to 4GB.

(when using MEC8)

I/O Control Winbond W83627HF SIO low pin count (LPC) interface I/O controller

Graphics AGP universal connector support AGP4X/AGP Pro 50

(1.5 V Only)

Peripheral

Interfaces Supports one floppy connector

Supports two ATA/100 IDE connectors

Supports two external COM connector

-5-

Supports one external Parallel connector

Supports four external USB 1.1 connectors

Supports two internal USB 1.1 connectors

Supports one external PS/2 keyboard connector

Supports one external PS/2 mouse connector

Supports one Front-Panel connector

PCI Supports three 32-bit/33MHz Bus Master PCI slot

Supports two 64-bit/66MHz Bus Master PCI slots

H/W Monitoring Supports Voltage sense to detect out of range values

Supports three Fan Speed Monitoring and Control

Supports three Temperature Monitoring

Supports Chassis Intrusion detection.

Management Resume by LAN/Ext. Modem/PS2 keyboard/PS2 mouse/RTC

Supports Intel LDCM/LDSM (optional)

Supports ACPI

Supports APM

Supports SMBUS

Supports DMI

Supports PnP

Supports BIOS Flash Control to provide H/W & S/W BIOS protection

Supports AC-Loss Recovery

Software Focus on the Windows NT 4.0/Windows 2000/Redhat Linux

Corelogic Patch utility for Windows 2000(T.B.D.)

SCSI Driver Set for Windows NT 4.0/Windows 2000/Redhat Linux

H/W Monitoring utility for Windows NT 4.0/Windows 2000(T.B.D.)

Power Supply Limitation Supports WTX power connectors only

Misc. On-board Buzzer

8-layer PCB design

ATX form-factor with 305mm x330mm board size

Specifications -Optional Components

The following on-board components are optional at the time of purchase:

Please contact with IWILL to determine which options are available to you.

Options

Audio Audio Codec’97 (AD1881A) compatible using an AD1881

audio codec

LAN Support for LAN on motherboard

* Intel 82550 Local Area Network (LAN) Controller

* Alert on LAN 2 device

* RJ45 LAN connector

Qlogic Ultra 160

SCSI Controller Support three SCSI Interface Onboard

* Two 68pin SCSI connector

* One 50pin SCSI connector

-6-

2 Motherboard Layout

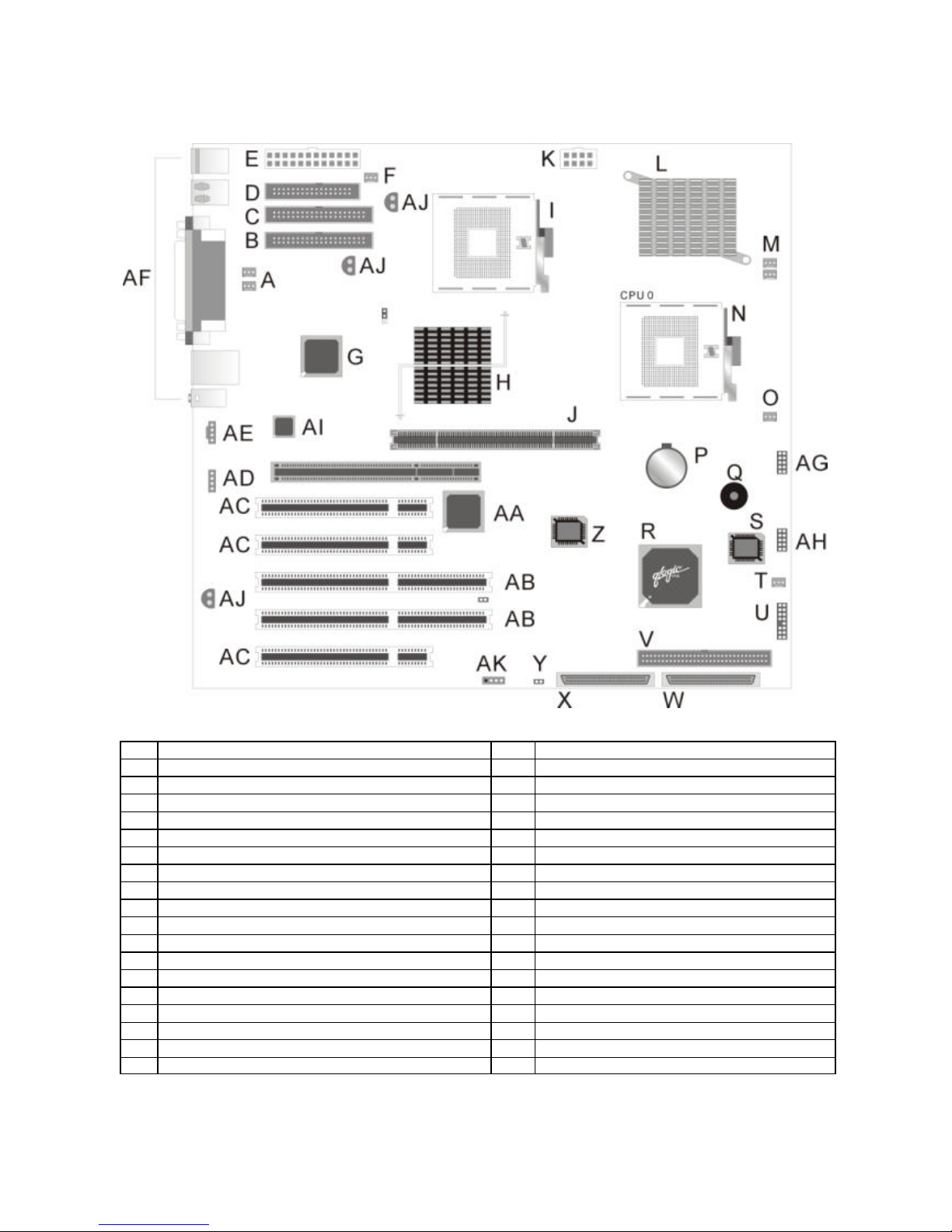

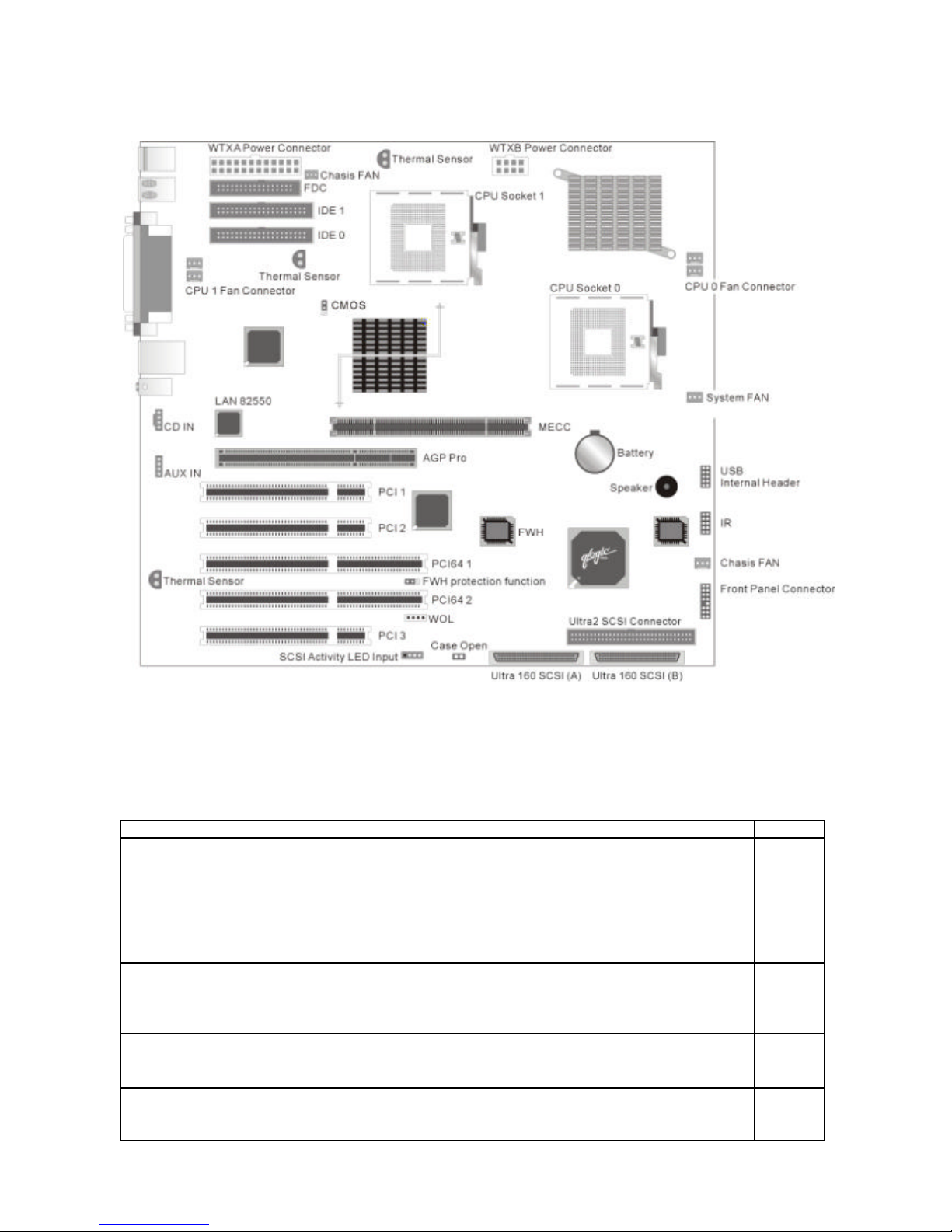

The picture shows the location of the major components on the motherboard.

ACPU 1 Fan Connector QInternal Speaker

BPrimary IDE Connector RQlogic 12160 SCSI Controller

CSecondary IDE Connector SSCSI controller ROM

DDiskette Drive Connector TFront 90x90mm System Fan Connector

EWTX Power Connector A UFront Panel Connector

FRear 120x120mm Case Fan Connector VUltra2 SCSI Connector

82801BAI/O Controller Hub (ICH2) WUltra-160 SCSI Connector B

HIntel 82860 Memory Controller Hub (MCH) XUltra-160 SCSI Connector A

ICPU 1 Socket YRear Chassis Intrusion Detection

JMemory Expansion Card Connector (MECC) Z82802AB Firmware Hub (FWH)

KWTX Power Connector B AA

Intel 82806AA PCI 64 Hub (P64H)

LDC-to-DC Converter AB

PCI64 Slots

CPU 0 Fan Connector AC

PCI Slots

NCPU 0 Socket AD

Aux_In Connector

Front 80x80mm System Fan Connector AE

CD-ROM Connector

PBattery AF

Rear Panel Connectors

USB Internal Header AH

IR Connector

LAN 82550 Chipset AJ Temperature Sensor

SCSI Activity LED Input

-7-

Supported Processors

This section describes the processors supported by the DX400-SN motherboard and how to install them.

The DX400-SN Motherboard only supports Intel Pentium Xeon processors with a Front

Side bus speed of 400 MHz . If two processors are installed, both processors must run the

same core frequency speed. Installing processors of different core frequencies speed may

damage the motherboard and processors.

The processor is packaged in a Organic Land Grid Array (OLGA). The Pentium Xeon Processors implement

integrated L2caches. The Pentium Xeon processor increases Performance for server and workstation

applications by adding either 512KB or 1MB of integrated L3 cache, which is also 8-way set associative.

The System Bus uses Source-Synchronous Transfer (SST) of address and data to improve performance and

enables data transfers at a frequency of 400MHz.This allows the processors to have 3.2GB/sec data transfer

rate .The control signals and bus phases are based on 100MHz system clock. This enhanced bus protocol

and internal architecture increases performance beyond previous levels.

The Processor Information ROM is a 128 byte read –only device that incorporates Intel processor specific

data .The OEM EEPROM, also known as the Scratchpad EEPROM, is a 128-byte read/write EEPROM in

which an OEM may program system specific data. The Thermal Sensor monitors the temperature of the

processor die.

Installing the Processors and Retention Mechanism

Single processor:

Install the processor in the socket marked ‘CPU0’

For Dualprocessors

the following values must be identical for both processors:

·Host bus speed

·Processor core frequency

·Cache size

·Cache type (either discrete or advanced transfer)

·Operating voltages

Installing the retention on the motherboard.

-8-

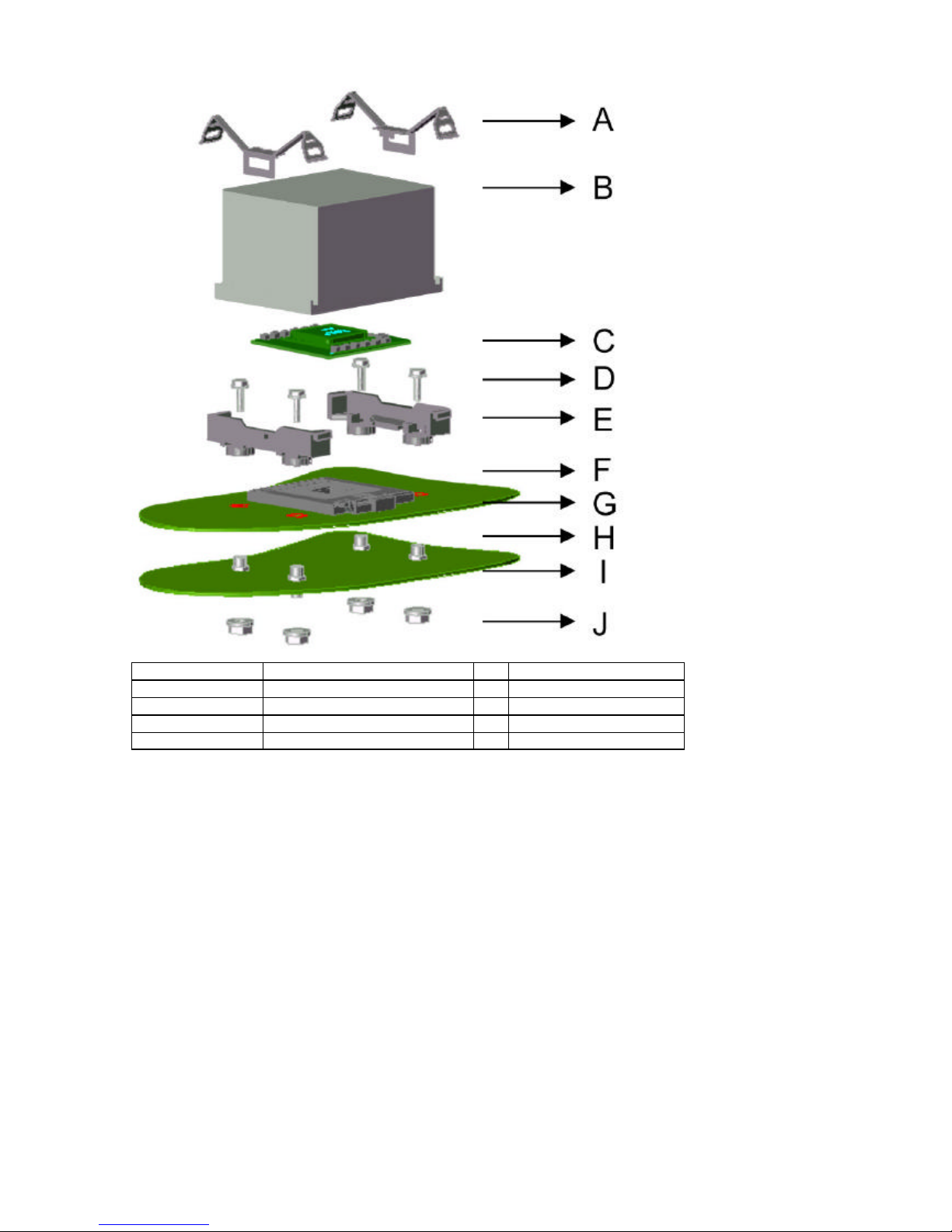

AClip F

Socket

BHeatsink G

CProcessor H

Screw

DScrew IChassis

ERetainer JNuts

-9-

Processor installation.

a. Be sure the first pin position in the right direction and install the processor(C), see figure down below.

b. There is a handle at the side of socket603 (F), and it should be fully pulled up or the processor(C) can not

be installed on it. After that, pull down the handle of socket603 (F).

c. If only one processor will be installed on motherboard, it should be installed in the socket P0 and leave the

socket P1 with nothing.

Screws:

a. Support the motherboard (G) on the chassis (I) after nuts (J) and screws (H) have screwed on the chassis

(I) first, see the figure down below.

b. Screw the retainer (E) on the chassis (I) thru motherboard (G), so that the retainer (E) will be fixed on the

motherboard (G).

Socket P1

Socket P0

-10 -

Heatsink installation.

a. Before installing a heatsink (B), it should be sure that the processor(C) had be installed.

b. Put some thermo grease or stick a thermo pad at the bottom of heatsink (B).

c. Put the heatsink (B) on the processor(C) and make sure they

contact with each other well by thermo grease or thermo pad,

see figure in the right.

d. Put the clips (A) on the side-edge of heat, which the side with fillister, and make sure the key of clip (A) slid

into the fillister.

e. Push the both ends of clip (A) once at a time with the fastener retainer (E).

There are three major steps about the Pentium Xeon processor installation for a DX400-SN

motherboard.

1. Motherboard and retainers installation.

2. Processors installation.

3. Heatsinks installation.

1. Motherboard and retainers installation.

To install the motherboard on the chassis, it should be clarify the method of fixing fastener retainers (E) first.

(see figure3)
