IWILL DVD266u-RN Bedienungsanleitung

DVD266u-RNVersion 1.0B

TableofContent

FB01342420001

Quick Installation ....................................................... .3

ItemChecklist...............................................................................3

BeforeInstallation........................................................................3

Layout...........................................................................................4

Jumpers/Connectors..................................................................6

Feature....................................................................... 12

MotherboardComponentsPlacement......................................12

BlockDiagram..............................................................................14

Specifications..............................................................................15

HardwareSetup......................................................... 17

Install theProcessor..................................................................17

Install MemoryModules..............................................................18

IWILL 6ChannelsAudio/SuperAudio(Optional)..........................19

ATXPowerSupplyConnector....................................................22

Back Panel...................................................................................23

Chapter1QuickInstallation

BIOSSetup .............................................................24

BIOSSetup.................................................................................24

MainMenu...................................................................................26

StandardCMOSFeatures..........................................................26

AdvancedBIOSFeatures ...........................................................30

AdvancedChipsetFeatures........................................................33

IntegratedPeripherals...............................................................35

PowerManagementSetup..........................................................40

PnP/PCIConfigurations.............................................................44

PCHealthStatus.........................................................................46

IWILL SmartSetting....................................................................46

LoadFail SafeDefaults..............................................................48

LoadOptimizedDefaults............................................................48

SetSupervisor/UserPasswordSetting....................................49

Save&ExitSetup.......................................................................50

ExitWithoutSaving....................................................................50

OnboardAudio......................................................51

AudioFeatures............................................................................51

DriverInstallation.......................................................................53

TheAudioRack..........................................................................55

Chapter1QuickInstallation

[V]The Motherboard

[V]Operation manual

[V]ATA100/66 IDEcable

[V]Floppycable

[V]PowerInstallerCD

[V]6-ChannelAudio(Bracket)

Optional

IWILL SuperAudio(forSPDIF)

USB riserkit

ThermalSensorforSystem

Infrared portcable

ItemChecklist

Users must follow these guidelines to ensure the

motherboard is protected during installation.

1.Make sure your computer is powered-off .

2.The motherboard, like all other electronic equipment,

is sensitive to static. Please take the proper precautions

when handling it. If possible, ground yourself by touching a

metal table or desk. keep the board in its conductive

wrapping until it is configured and ready to be installed in

your system.

3.Keep all magnets away from both your hard and floppy

disk drives, especially magnetic screwdrivers. Keep both

floppy and hard disks apart if disassembed.

4.Keep water and liquids away from your computer and its

components.

BeforeInstallation

QuickInstallation

Chapter1QuickInstallation

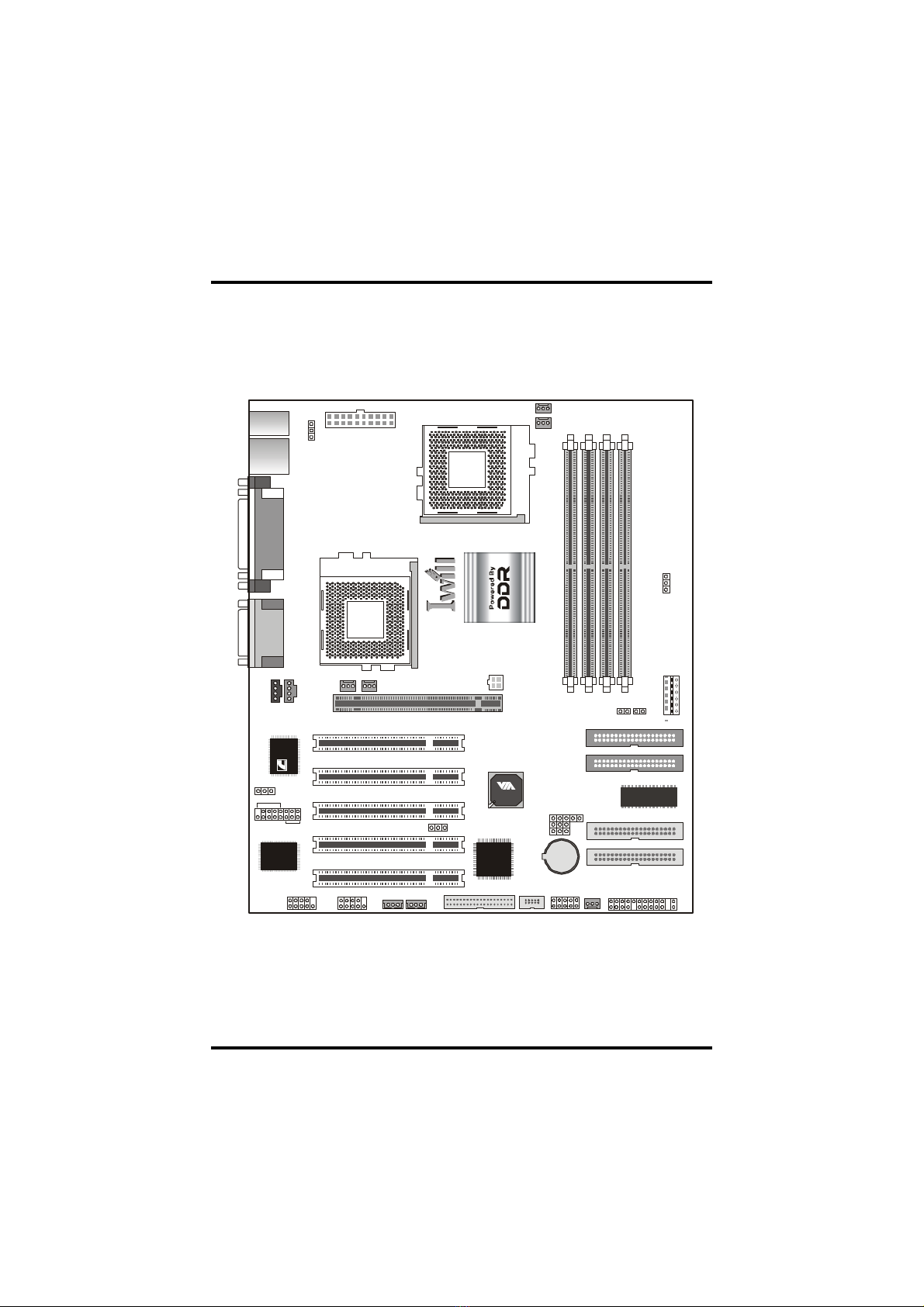

Layout

VT8233

HightPoint

PCI5

PCI4

SPDIF

IWILL 6 CH bracket

PCI3

PCI2

PCI1

CPU1 FAN

CPU1

CPU0 CPU0 FAN

FAN

ATX

KB_ON

AUX_IN ATX 12v

CD_IN AGP PRO

DVD266u-RN

C3DX

HSP56

CMI8738

Winbond

Audio

RAID

USB1 USB2 WOL MDM FDC

READER

RAID-IDE0

IDE1

SMBUS

Flash

Clear CMOS

IDE0

Case

Tmp

AT PWR

DRAM Voltage

RAID-IDE1

FSYS

Front Panel Connector

Chapter1QuickInstallation

Connectors/ Panel and Jumper Definition

JP1 (Clear CMOS Jumper)

JP6 (Keyboard Power On)

JP7 (DRAM Voltage)

JP8 (Audio Jumper)

JP16 (Flash Protect Jumper)

JP20 (IDE RAID Jumper)

J34A/ J34B (Internal USB1&2 connector)

J37 (ATX Power connector)

J37A (ATX 12V connector)

J37B (AT-PWR connector)

J40 (CPU1 FAN)

J41 (System FAN)

J41A (Temperature Sensor header)

J42 (Case Open)

J43 (Front panel connector)

J45 (Infrared connector)

J46 (Wake-ON-LAN header)

J47 (Wake-ON-Modem)

J48 (SMBus connector)

J53 (AUX_IN connector)

J54 (CD_IN connector)

J64 (SPDIF & 6CH bracket [Optional])

J66 (FAN)

J67 (CPU0 FAN)

Chapter1Quick Installation

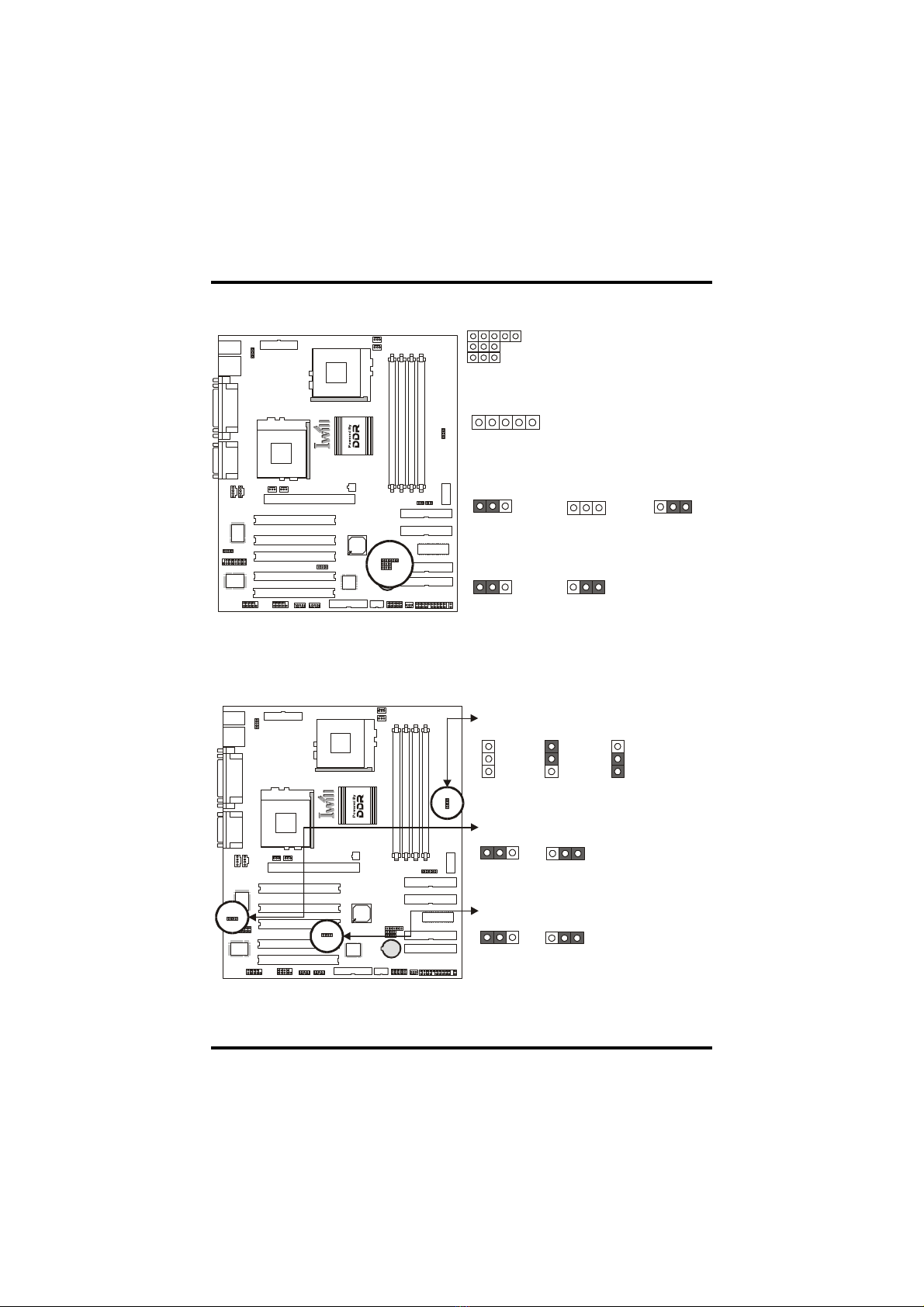

Jumpers/Connectors

JP1

JP16

J48

Control by BIOS

(Default)

PIN Assignment

1: SMBUSCLK

2: NC

3: GND

4: SMBDATA

5: VCC

SMBus (J48)

Flash (JP16)

Clear CMOS (JP1)

1 2 3 4 5

1 2 3

Protected

by H/W

Flashable

by H/W

Normal (Default)

Clear CMOS

Normal

(Default)

DRAM Voltage (JP7)

RAID (JP20) [DVD266u-RN only]

Audio (JP8)

1 2 3

Increase 5%

Increase 10%

Enabled

(Default) Disabled

DisabledEnabled

(Default)

Chapter1QuickInstallation

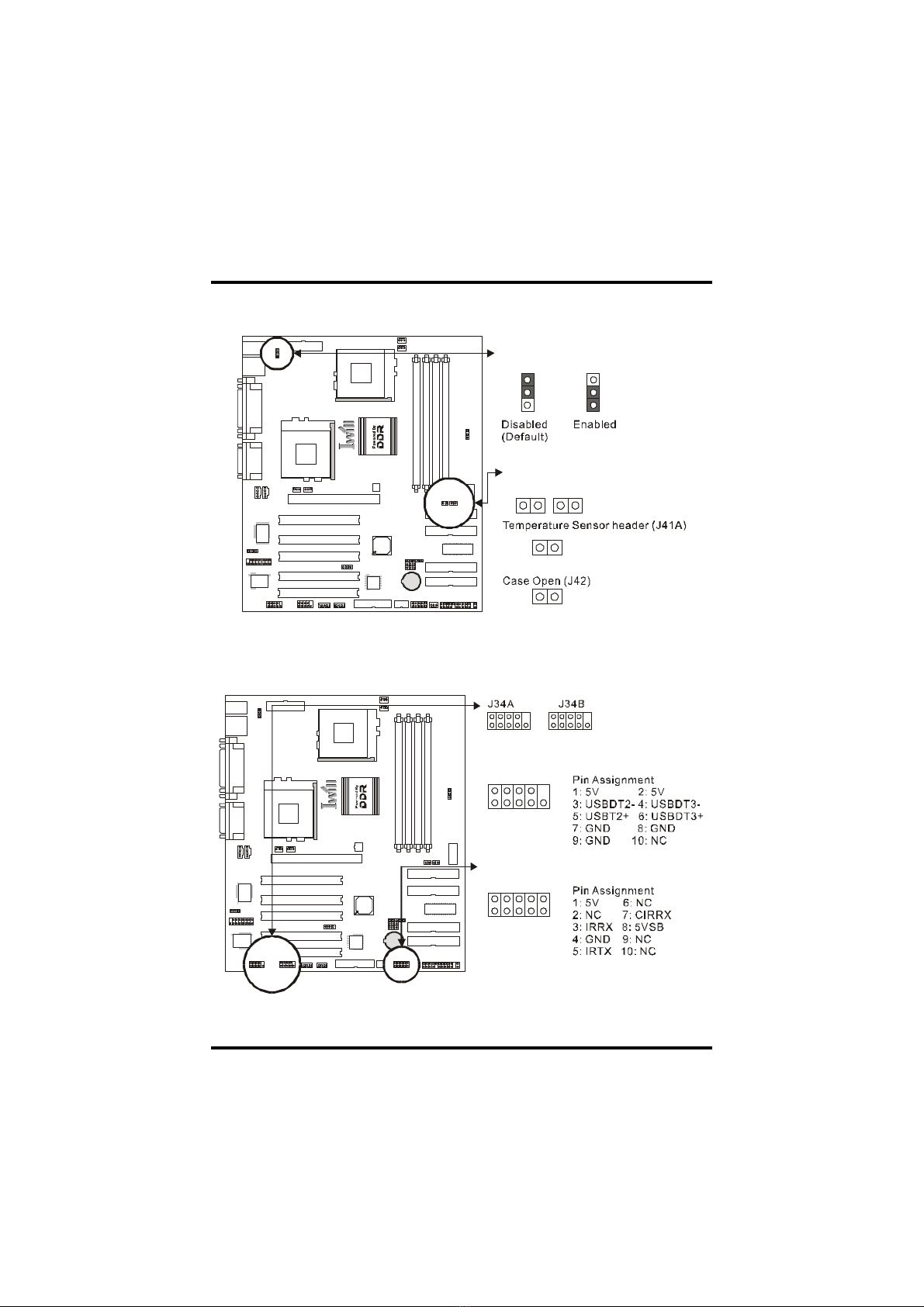

KB_On (JP6)

Tmp (J41A)/ Case (J42)

J41A

J42

1 2

USB1 (J34A)/ USB2 (J34B)

IR (J45)

1 3 5 7 9

1 2 3 4 5

6 7 8 9 10

2 4 6 8 10

Chapter1QuickInstallation

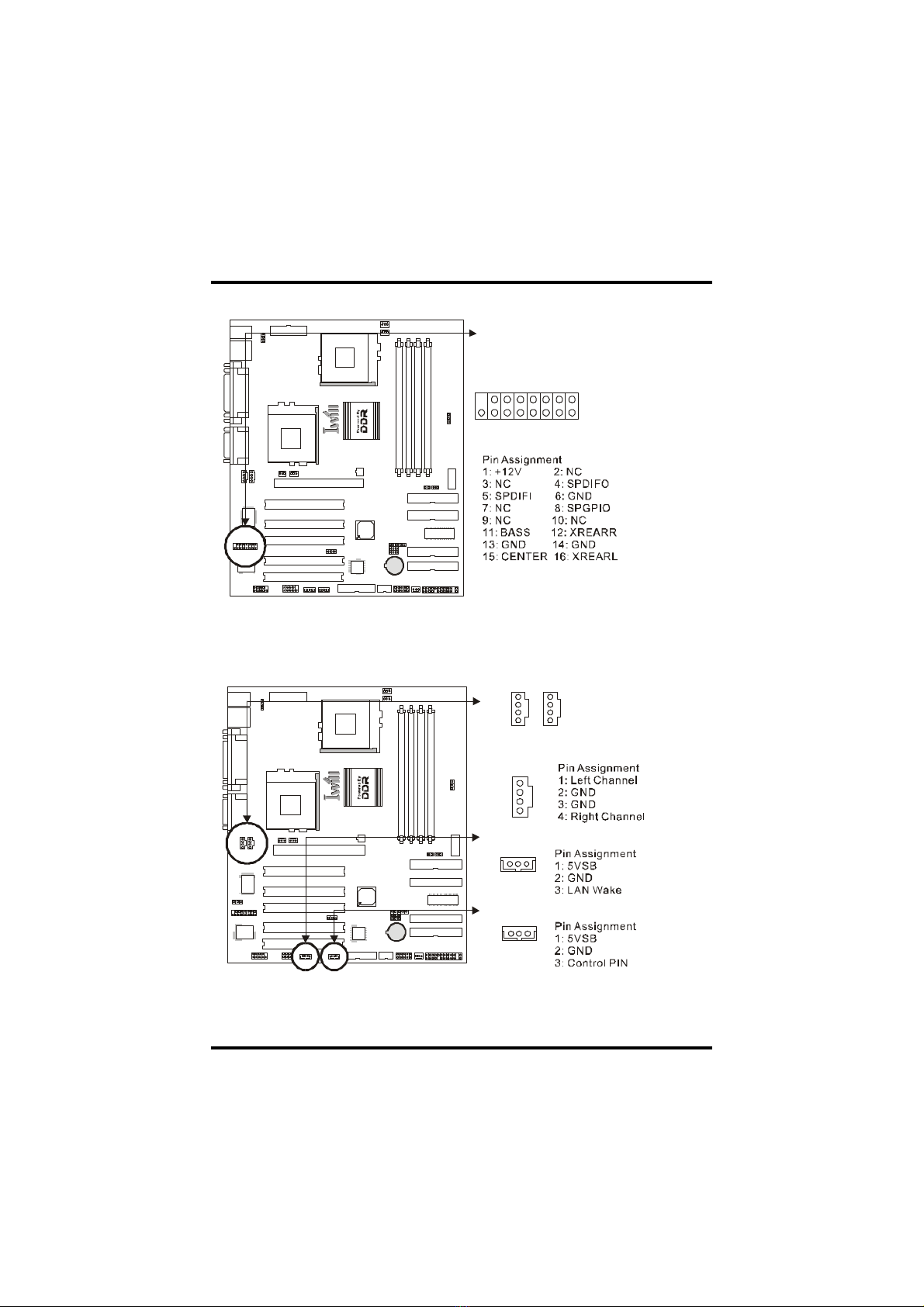

SPDIF & 6CH bracket (Optional)

J64

1 3 5 7 9 11 13 15

2 4 6 8 10 12 1416

CD_IN (J54)/ AUX_IN (J53)

Wake-ON-LAN (J46)

Wake-ON-Modem (J47)

J54

J53

1 2 3

Chapter1QuickInstallation

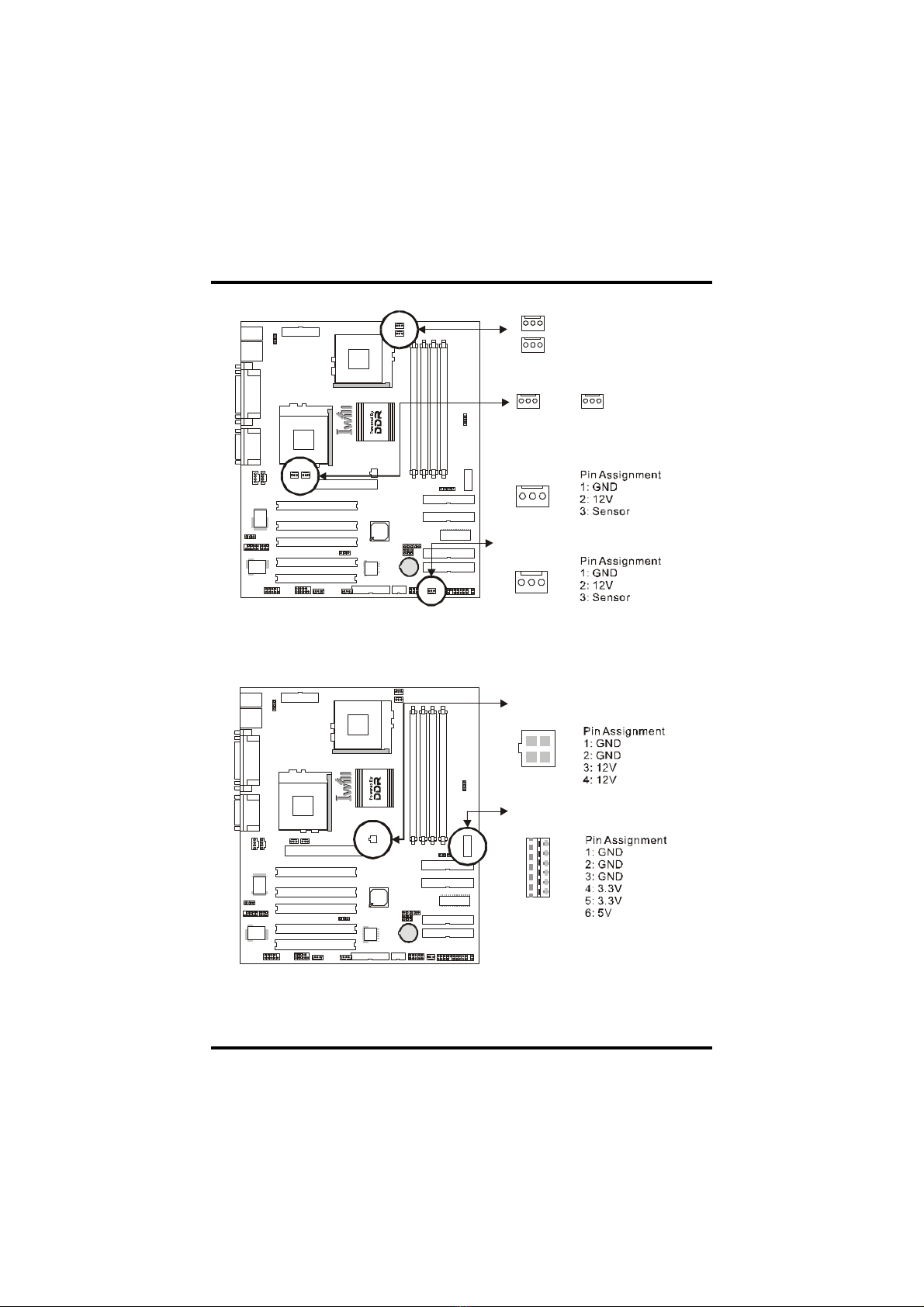

CPU FAN

System FAN(J41)

CPU0 FAN (J67)

CPU1 FAN (J40)

FAN

FAN (J66)

1 2 3

AT-PWR (J37B)

ATX12V (J37A)

Chapter1QuickInstallation

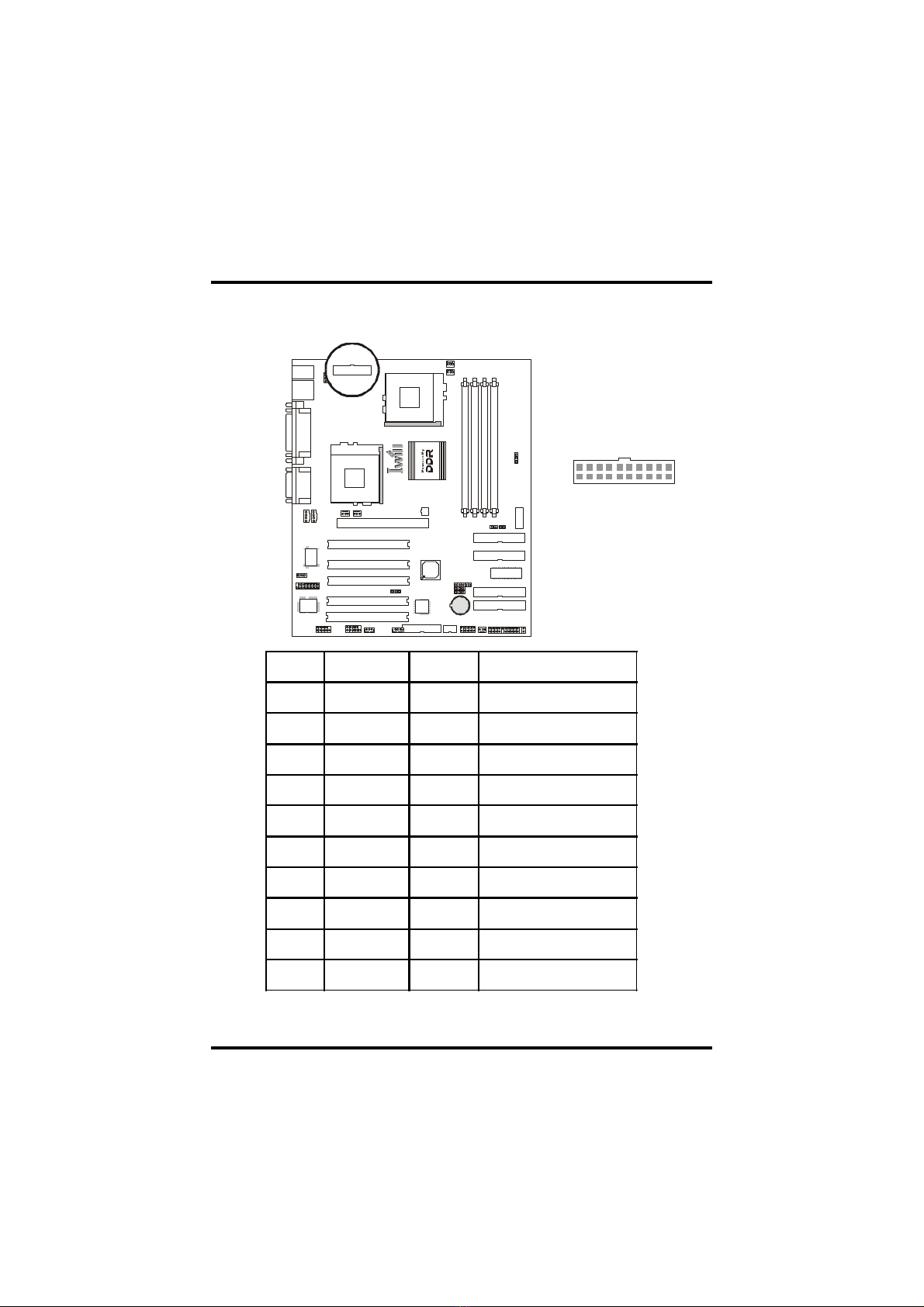

PIN No. Definition PIN No Definition

1+3.3V 11 +3.3V

2+3.3V 12 -12V

3Ground 13 Ground

4+5V 14 Power Supply On

5 Ground 15 Ground

6+5V 16 Ground

7Ground 17 Ground

8Power Good 18 -5V

9+5V 19 +5V

10 +12V 20 +5V

ATXpowerconnector(J37)
