IWILL VD133 Bedienungsanleitung
1
VA133 series V1.6B FB11342350000
Table of Content
Quick Installation .........................................................3
1.1Layout........................................................................................ 3
1.2 Jumpers ..................................................................................... 4
1.3 Expansion Slots / Sockets ......................................................... 7
1.4 Connectors ................................................................................ 9
1.5 Form Factor............................................................................. 15
Overview ...................................................................... 17
Features....................................................................... 20
3.1 Motherboard Components Placement ...................................... 20
3.2 Back Panel .............................................................................. 22
3.3 Block Diagram ........................................................................ 23
3.4 Specifications.......................................................................... 24
Hardware Setup.......................................................... 26
4.1 Before Installation................................................................... 26
4.2 Jumper setting.......................................................................... 26
4.3 Install the Processor ................................................................ 29
4.4 Install Memory Modules ......................................................... 33
4.5 Install PCI Expansion Cards.................................................... 34
4.6 Usage of the AMR slot ............................................................ 35
2VD133ProSeries
Chapter 1 Quick Installation
4.7 Usage of the AGP slot ............................................................. 35
4.8 Connect Devices and Power Supply ....................................... 36
BIOS Setup.................................................................. 46
5.1 Introduction ............................................................................. 46
5.2 Main Menu .............................................................................. 47
5.3 Standard CMOS Features........................................................ 48
5.4 Advanced BIOS Features ........................................................ 51
5.5 Advanced Chipset Features..................................................... 55
5.6 Integrated Peripherals ............................................................. 59
5.7 Power Management Setup ....................................................... 64
5.8 PnP/ PCI Configurations.......................................................... 68
5.9 PC Health Status...................................................................... 70
5.10 IWILL Smart Setting.............................................................. 71
5.11 Load Fail-Safe Defaults ........................................................72
5.12 Load Optimized Defaults....................................................... 73
5.13 Set Supervisor / User Password Setting................................ 73
5.14 Save & Exit Setup ................................................................. 74
5.15 Exit Without Saving............................................................... 74
Appendiex CPU FREQUENCY SETUP ................................... 74
Power Installer CD ..................................................... 76
6.1 Software Installation ............................................................... 76
6.2 How to use the Power installer CD......................................... 76
6.3 Installing Operating Systems ................................................... 79
3
VD133ProSeries
Chapter 1 Quick Installation
Chapter 1
Quick Installation
1.1 Layout
4VD133ProSeries
Chapter 1 Quick Installation
1.2 Jumpers
1.2.1 JP1 (CMOS) Clear CMOS jumper
The jumper is for BIOS setting value.
1.2.2 JPA & JPB CPU FSB select jumper
ycneuqerFA3PJB3PJ
zHM663-23-2
zHM0013-22-1
zHM3312-12-1
OTUAffOffO
1.2.3 J41A (Tsys) System temp. sensor header
5
VD133ProSeries
Chapter 1 Quick Installation

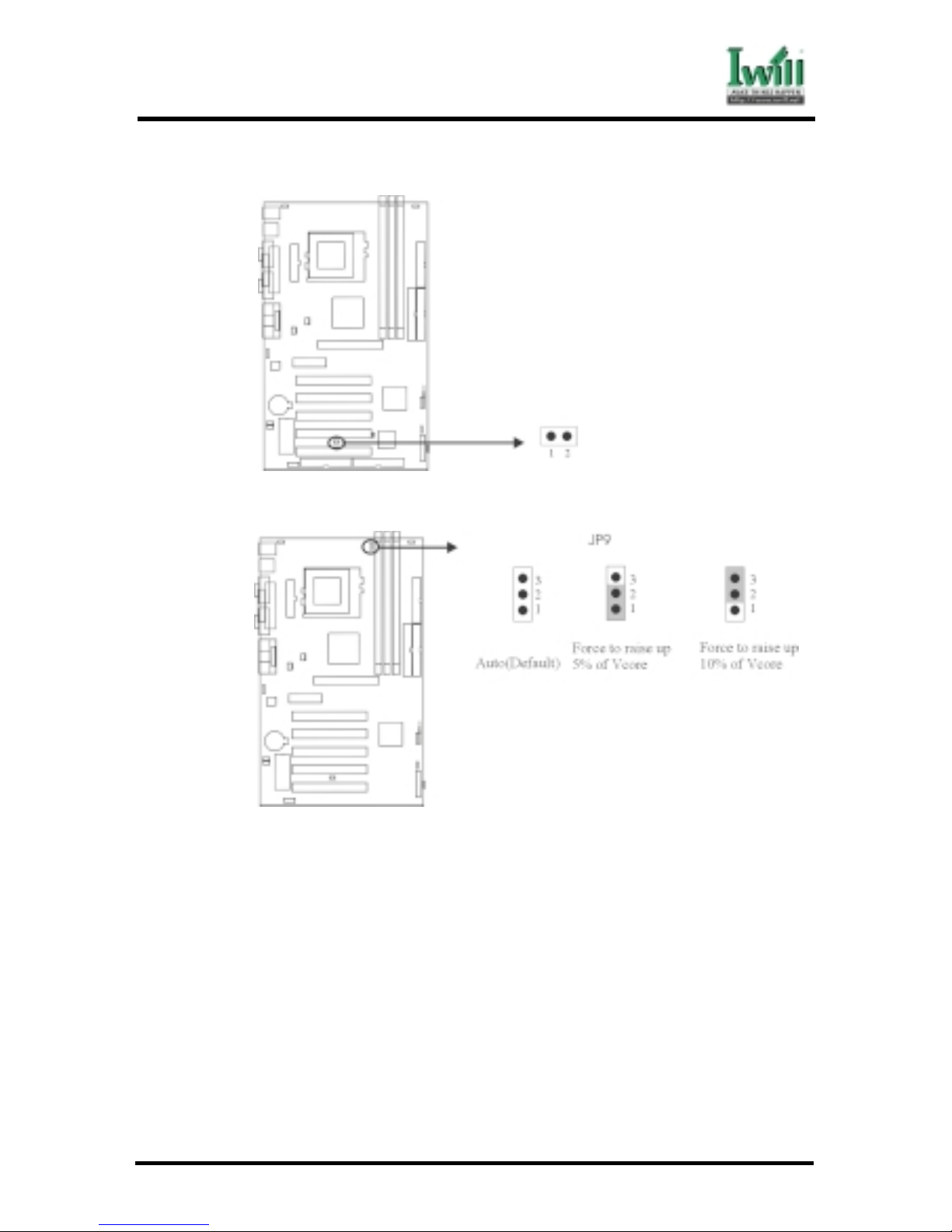

1.2.4 PCI compatibility jumper
1.2.5 JP9(Vcore+) CPU core voltage select jumper
6VD133ProSeries
Chapter 1 Quick Installation
1.2.6 VIO select jumper
1.3 Expansion Slots / Sockets
1.3.1 J1(Socket 370) Processor socket
7
VD133ProSeries
Chapter 1 Quick Installation

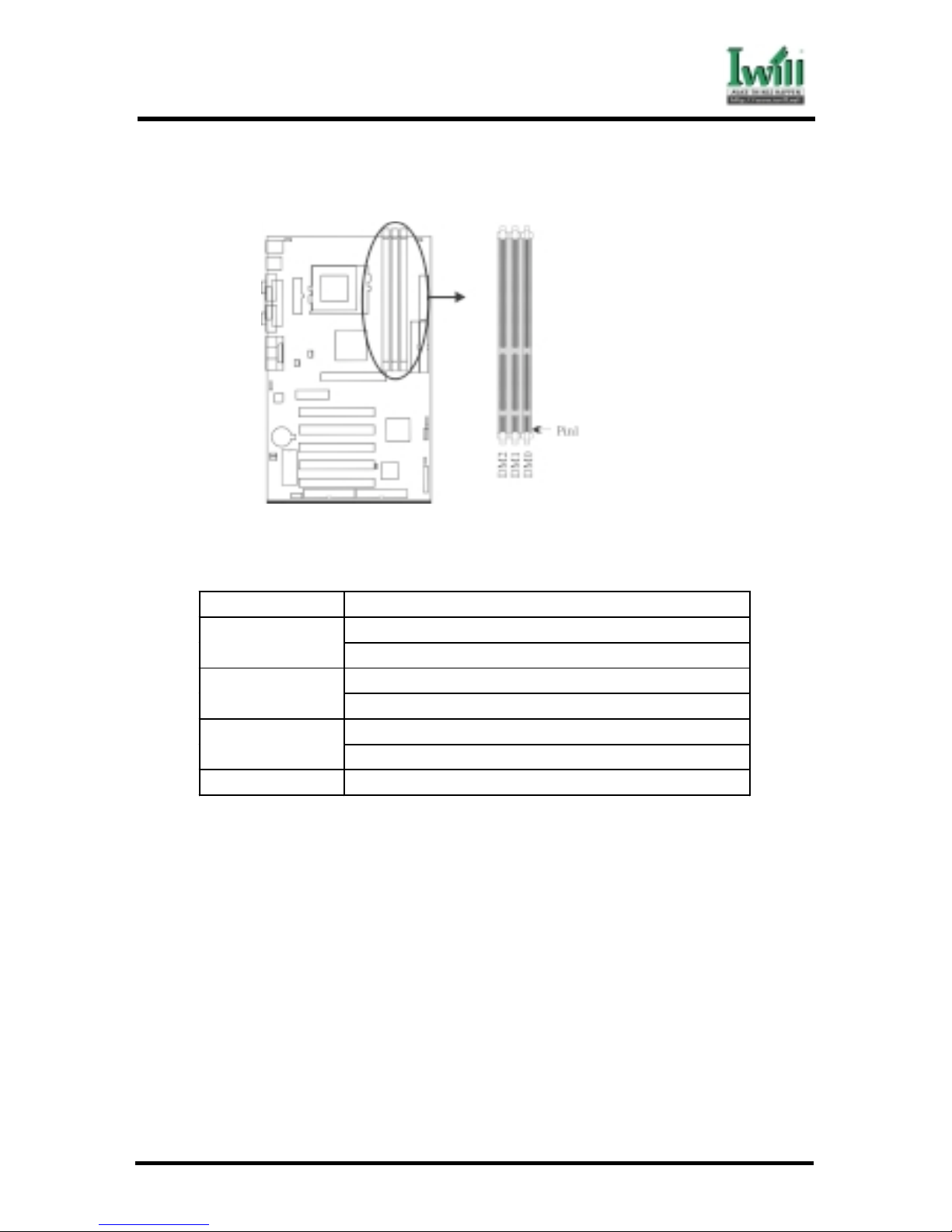

1.3.2 J3—J5 (DM0—DM2) 168-Pin DIMM Sockets
Install memory in any combination as follows:
0
Location Support Module Type
Single-Side ModuleDM0 Double-Side Module
Single-Side ModuleDM1 Double-Side Module
Single-Side ModuleDM2 Double-Side Module
Total System Memory (Max1.5 GB)
8VD133ProSeries
Chapter 1 Quick Installation
1.3.3 J12—J16 (PCI 1—PCI 5) PCI expansion slots
The connectors are Bus Master PCI Expansion Slots.
1.3.4 J11 (AGP) AGP Slot
9
VD133ProSeries
Chapter 1 Quick Installation
1.4 Connectors

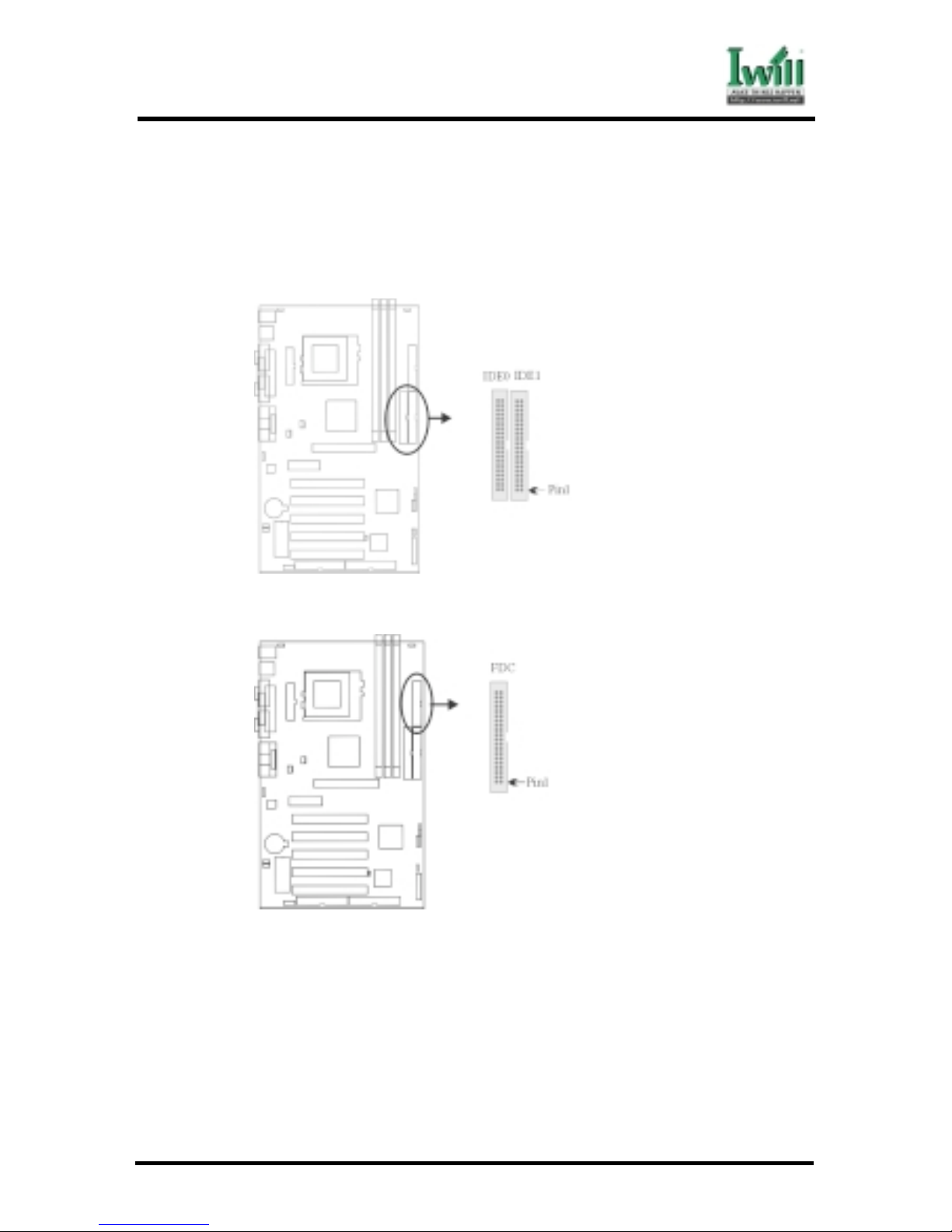

1.4.1 J28 (IDE0) Primary ATA/66 IDE channels
1.4.2 J29 (IDE1) Secondary ATA/66 IDE channels
1.4.3 J30 (FDC) Floppy connector
10 VD133ProSeries
Chapter 1 Quick Installation
1.4.4 J37 ATX power connector
1.4.5 J39(FCPU)&J41(FSYS)
fan connectors on this motherboard. The J39 (FCPU) is designed to support CPU fan;
the J41 (FSYS) is for system fan used .
