FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 1 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

TABLE OF CONTENTS

1. Revisions ______________________________________________________________________________________ 2

2. Read This First _________________________________________________________________________________ 2

3. Instrument Labeling______________________________________________________________________________ 3

4. Operation and Abbreviations ______________________________________________________________________ 4

5. Locating and Installing the Indicator and Remote Alarm Display (RAD and Alert Light) ________________________ 8

6. EDM-900/930 Key information installation __________________________________________________________ 10

7. Routing the Wiring Harnesses_____________________________________________________________________ 11

8. Power Connection ______________________________________________________________________________ 11

9. Probe Wiring __________________________________________________________________________________ 12

10. Wiring Markings _______________________________________________________________________________ 12

11. Exhaust Gas Temperature Probe (EGT) Installation ___________________________________________________ 12

12. RADIAL Engine EGT_____________________________________________________________________________ 13

13. Turbine Inlet Temperature (TIT) Probe Installation (optional) ___________________________________________ 13

14. Cylinder Head Temperature (CHT) Probe Installation__________________________________________________ 14

15. Radial Engine CHT (spark plug gasket) _____________________________________________________________ 14

16. Outside Air Temperature (OAT) Probe Installation ____________________________________________________ 14

17. Induction Air (IAT), Compressor Discharge Temperature Probe Install (optional)____________________________ 14

18. Carburetor Probe Installation (optional) ____________________________________________________________ 15

19. Oil Temperature Probe Installation ________________________________________________________________ 15

20. Oil Pressure Sensor Installation ___________________________________________________________________ 15

21. Fuel Pressure Sensor Installation __________________________________________________________________ 16

22. Ammeter Shunt Installation _______________________________________________________________________ 18

23. General Fuel Flow Transducer Installation __________________________________________________________ 19

24. Fuel Level Sender Wiring Types ___________________________________________________________________ 20

25. Fuel Flow Totalizer, Refuel Question _______________________________________________________________ 26

26. GPS Interface _________________________________________________________________________________ 27

27. Manifold Pressure (MAP) Sensor __________________________________________________________________ 27

28. RPM Sensor installation _________________________________________________________________________ 29

29. EDM-900/930 Specifications and Limitations_________________________________________________________ 30

30. EMI Radio Test and functional check:_______________________________________________________________ 31

31. Component Parts_______________________________________________________________________________ 32

32. Weight and Balance Data ________________________________________________________________________ 33

33. Pilot Programming _____________________________________________________________________________ 34

34. Programming the HP Constant ____________________________________________________________________ 35

35. Programming the MAP __________________________________________________________________________ 35

36. Selecting Fuel Pressure Type (EDM-900 only)________________________________________________________ 35

37. Customizing Non-Primary Data (EDM900 only) ______________________________________________________ 36

38. K Factor______________________________________________________________________________________ 36

39. Fine tuning the K Factor _________________________________________________________________________ 37

40. Adjusting the K Factor___________________________________________________________________________ 38

41. Programming Accumulate Trip Total _______________________________________________________________ 38

42. Trouble Shooting _______________________________________________________________________________ 39

43. Connector Pin Assignments on EDM, J1 through J5 _______________________________________________ 41

44. Connector Pin Assignments on EDM, J1 through J5 ___________________________________________________ 42

45. J3 RPM, MP, Oil-P_____________________________________________________________________________ 45

46. Appendix A Fuel Flow install Report 503 ___________________________________________________________ 49

47. Appendix B ICA _______________________________________________________________________________ 49

48. Appendix C Connector Pin Assignments on EDM, J1-J2 Only with ARINC 429 _____________________________ 50

The Owner of the EDM-900/930 must keep this manual

J.P. INSTRUMENTS

PO BOX 7033

HUNTINGTON BEACH CA Last printed 1/22/2013 10:53:00 AM

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 2 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

1. Revisions

REV Description Date Approval

GAdded new pictures of 900 and 930, page 6. Abbreviations page 4. Revised how the

JPI data base functions, page 3. Added revision box. Page 2. Added fuel level

calibration, page 22. Renumbered all pages.

9-28-2011 JFP

HRevised to include new trouble shooting section for ICA and renumber pages. Updated

pressure sensors to i2s 12-02-2011 JFP

IRevised TSO Label to show lighting change and added ARINC 429 wire chart 1-18-2013 JFP

2. Read This First

The following notes apply to a new installation. Read this section before proceeding.

The JPI warranty found in the back of the pilots guide clearly states that JPI will replace defective parts under

warranty, but does NOT cover labor to remove or install any parts.

The most common cause of probe problems is poor terminal crimps. Crimp ring terminals with AMP tool or

equivalent. Fold back the wire double before crimping terminals.

Do not use aluminum fittings or Teflon tape or pipe sealant with the FXT-201 or FXT-231 fuel flow transducer.

Write down the K-factor engraved on the side of the fuel flow transducer here _______. Once the transducer is

installed and covered with the fire sleeve, you will not be able to access this K factor.

Determine the locations of all holes before drilling to ensure that nothing interferes with the probe, clamp, clamp

screw or wire.

Provide service loops at the instrument so that it can be moved for maintenance or troubleshooting.

Thermocouple wire length is not critical. Trim to required length, allowing for service loops at the engine so that

probes can be swapped with probes on adjacent cylinders for troubleshooting purposes.

Dress all wires away from high temperature components such as exhaust stacks.

Never splice thermocouple wire using copper wire. Use only K-type thermocouple wire. Solder using zinc

chloride flux such as Nokorode brand – rosin flux alone will not work.

Observe correct polarity on all probe wires. Connect like colors together (red to red, yellow to yellow).

The instrument must be grounded at the engine, not at the avionics ground.

Record the installation of the EDM-900 or EDM-930 on a FAA form 337. Make an entry in the aircraft logbook.

Note: Removal of probes, sensors and the instrument is the reverse of the installation procedure.

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 3 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

3. Instrument Labeling

The TSO label on the instrument is marked as to the instrument configuration.

The part number of the instrument is as follows:

Model designation system by part number for EDM-900/930

Model Number / Part Number Description

EDM-900 PN 790000-A- [XXX] TFT (liquid crystal) Type Display

EDM-930 PN 790000-C- [XXX] TFT (liquid crystal) Type Display

INSTRUMENTS THAT CAN BE PRIMARY IF IN POH NON-PRIMARY INSTRUMENTS

CHT

4-9 FUEL

FLOW RAD

Alert Light EGT

4-9 Time to

empty Fuel Remaining

Fule USED

OIL

TEMP FUEL

PRESS TIT OAT

CARB Required

to WP Shock Cooling

OIL

PRESS RPM CDT Volts

Amps Reserve at

WP Differential EGT

Normalize

MAP FUEL

Quantity IAT MPG Percent of HP

Example PN 790000-(X)-(XXX) (X) denotes EDM-900 or EDM-930, (XXX) denotes Part Number for a specific

aircraft with or without and engine STC. Each PN is specific to a Make and Model Aircraft with or without

STC. In which the information is gathered from the Aircraft POH or STC Data sheet.

Aircraft type

w/engine STC No. if

applicable

JPI assigned Data Base Part No. per

Limits found in the POH or engine STC

for a specific aircraft

Part No. Displayed on 930

RAD at Start-up or 900

message area

Cessna 182-P 534 790000-X-534

Cessna 182-P, STC12345NW 875 790000-X-875

3.1 Primary TSO Label

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 4 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

4. Operation and Abbreviations

The EDM-900/930 is a combined electronic indicating system which simultaneously displays to the pilot powerplant

and aircraft systems operating parameters. It includes the following indicating systems; replacing all previous

primary digital and/or analog instruments: Message Area Abbreviation in parenthesis. (X)* denotes cylinder No.

Gauge Function

Message Area

Alarm Abbreviation

Primary Primary

Engine rotational speed RPM xxxx

Engine Manifold Pressure MAP xx.x in hg

Engine Cylinder Head Temp CHT2 xxx oF

Engine Oil Temperature

O-T xxx oF

Engine Oil Pressure O-P xxx oF

Fuel Pressure F-P xx PSI

Fuel Flow to engine F-F xx.x GPH

Comp. Discharge Temp. CDT xxx oF

Turbine inlet Temp. Left side TIT-L xxxx oF

Turbine Inlet Temp. Right side TIT-R xxxx oF

Single Turbine Inlet Temp. TIT xxxx oF

Non-Primary Non-Primary

Exhaust Gas Temp. EGT2 xxxx oF

Shock Cooling of CHT CLD xx o/MIN

Differential Temp. of EGT DIF xx oF

Bus Voltage Volts xx.x

Amperage Load AMPS xx

Outside Air Temp. OAT xx oF

Estimated Time to Empty Est. T to E xx:xx H:M

Fuel used to date USED xx.x GAL

Estimated Remaining fuel Est. REM xx GAL

Estimated Fuel required to Waypoint Est. WP REQ xx GAL

Estimated Fuel Remaining at Waypoint Est. WP RES xx GAL

Nautical Miles per Gallon ECON xx.x MPG

Brightness, Dim control DIM/BRT

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 5 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

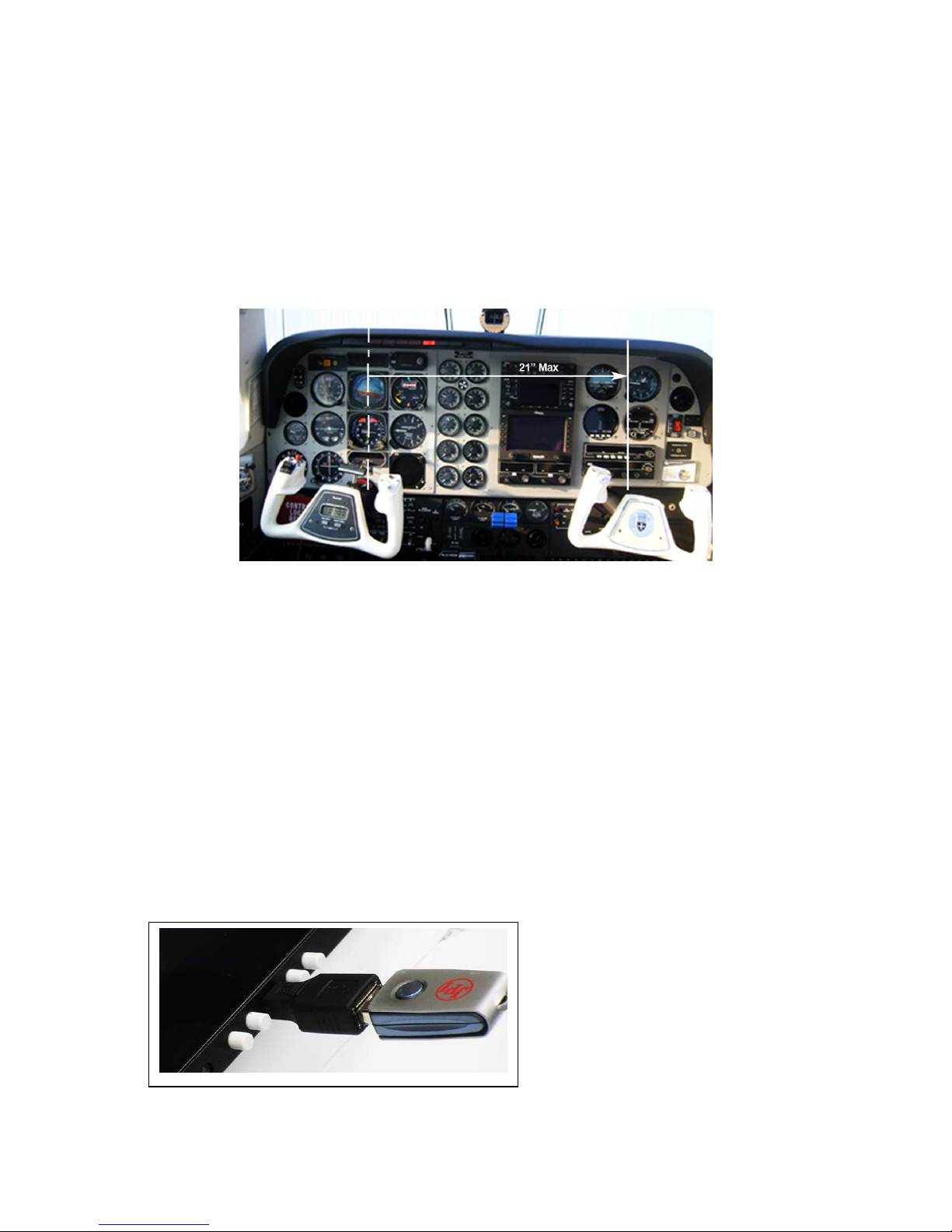

4.1 Remote Alarm Light EDM 900

The remote alarm light is a Red or Yellow light depending on the alarm condition. The EDM-900 incorporates a

single light that alerts the pilot that a problem existing within the engine. This light is place in with the primary flight

instruments and required only if the display is more than 8 inches from the center of the instrument “T” to a max of

21 inches. It is a single light that changes color with condition and the label associated with the light must be lit by

a post light or such that you can see the word “ENGINE”.

4.2 Remote Alarm Display (RAD) Operation EDM-930

The RAD is a 0.2” high, 8 character independent display found on the EDM-930 only. The RAD will still function if

the main display is inoperable. An alarm—such as the CHT is 480° on cylinder number 2—is displayed as

480CHT2. The label CHT2 will flash whenever an over-temperature exists and will extinguish when the temperature

falls below the limit temperature. Other alarms would be displayed as, for example: 2780 RPM.

The RAD is located directly in front of the pilot and displays digital caution and limit excedances when any of the

parameters have reached its preset trigger point. Whenever limit alarms are not triggered, the RAD continuously

displays MAP and RPM.

On initial startup or whenever power is turned on, the words EDM-930 PRIMARY” are displayed, followed by the

make and model of the aircraft with STC information for which the primary limits were set

Alarm hierarchy for the EDM-900/930

When a measurement limit is reached, the pilot should momentarily depress the STEP button on the EDM-900/930

instrument to extinguish the particular flashing alarm acronyms. If another function has also reached its limit, that

label will then begin to flash. The pilot should continue to monitor the affected parameters as he would if a

conventional analog display had reached a limit. The bar graph functions of CHT, EGT, and TIT remain displayed

for easy reference should one of these limits be reached. Alarm hierarchy is shown in the table below.

1. OILP_LO.

2. FP_LO.

3. OILT_HI.

4. CHT.

5. TIT.

6. FLVL.

7. REM.

8. FP_HI.

9. MAP.

10. DIF.

11. CLD.

12. RPM.

13. OILT_LO.

14. VOLTS.

15. OILP_HI.

16. AMPS.

17. CDT.

18. RES.

19. EGT.

20. Fuel Flow.

Dimming

Automatic dimming is provided to dim both the panel display and the remote alarm display. Dimming can also be

accomplished manually to change the Automatic setting. Tapping the far right button below the display decreases

brightness. Continuously holding this button increases brightness. The display starts up in the max brightness mode.

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 6 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

EDM-930 Display

RAD

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 7 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

EDM-900 TFT Flat panel display

Portrait Mode

EDM-900 TFT Flat

panel display

Landscape Mode

EDM-900 system mounts in a 3.125 inch diameter instrument panel hole in either a portrait or landscape position

depending on panel hole location. By holding the Step button ( first on left) for approx. 10 seconds and arrow will

appear on the display showing which way the rotation will use as up. Use the LF (Second from left) button to index

the rotation arrow. When the proper position is achieved, tap the step button Tap STEP to save the new rotation.

At this point properly the rotation will be saved and the unit will reboot to the new rotation. The rotation will not

occur if the engine is running.

Remote Alert Light

With the placard

“Engine”

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 8 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

5. Locating and Installing the Indicator and Remote Alarm Display (RAD and Alert Light)

Single Engine Aircraft EDM-900/930

A) The EDM-900/930 display should be located as close as possible to the pilot with an unobstructed view

and for easy access to the buttons on the instrument. The least desirable view angle is landscape looking

up. To improve the view angle call the factory. A remote display is also provided for alarm indications and

should be directly in front of the pilot.

B) The RAD PN-790749 mounts in a 5/8 inch hole in the panel directly in front of the pilot for the EDM-930

and an alert light for the EDM-900 is mounted in a 3/8 dia hole.

The diagram below should be used as a guide for cutting and drilling the mounting and buttonholes in the

instrument panel. The dimensions shown are for the finished cutout. Allow extra clearance for any panel finish such

as powder coat. The EDM mounts from behind the panel through this cutout. Fabricate the appropriate cut-out

using the fig below as a guide. If the panel has too many holes for a clean installation, it is recommended that a

0.10” aluminum overlay panel be constructed and installed over the original instrument panel and the EDM be

installed into this overlay panel. The Remote Alarm Display PN-790749 mounts in a 5/8 inch hole in the panel

immediately above the Attitude Gyro / D.G. / HSI +/- 0.5 inches from their centerline directly in front of the pilot.

4.1 Figure 1:

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 9 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

Mounting bracket for the EDM-900

EDM-900 Model: Mounts in a standard 3.1/8” instrument hole. First, place the mounting bracket on the

instrument and tighten the clamp hex screw until you can just remove the instrument from the bracket. The

Mounting bracket is then placed behind the instrument panel hole and screwed (6-32 x ½” screws) in place using

the existing holes. Three screws should be used leaving one hole vacant on either side of the hex screw. Locate

the hex screw in a location that you can easily get to from the rear of the panel. The body of the instrument is 3.0

inches in diameter and 2.0 inches deep less connectors.

FAA Approved Installation Manual for the Report No 908

EDM-900 and EDM-930 Page 10 of 56 Rev I

Primary Engine Data Management System Date 1-18-2013

5. EDM Display Installation

Choose the Proper Installation Location

The display is best located within the natural scan and easy reach of the pilot. The recommended mounting location

is defined as the distance from the vertical centerline of the Primary Flight Instruments to the outer edge of the

further most gauge displayed on the EDM.

HORIZONTAL ORIENTATION:

The EDM display may be mounted from the vertical centerline of the Primary Flight Instrument “T” to a maximum of

21” to the further most gauge of the EDM display and to the left of the centerline as much as needed.

VERTICAL ORIENTATION:

The EDM display is to be mounted within +/- 10” from the horizontal centerline of the Primary Flight

Instrument “T”. The installer should insure that the EDM display is not obstructed by either

the glare shield or the control wheel.

The installing A&P and IA must insure that the installation location complies with the viewing angle requirements

listed above.

6. EDM-900/930 Key information installation

Aircraft specific configuration information is loaded differently on both the EDM-900 and the EDM-930. The

configuration data is the same for both instruments. The data for the EDM-900/930 is loaded via the mini USB port

on the EDM-900 and a standard USB port for the EDM-930.

Andere Handbücher für EDM-900

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere J.P. Instruments GPS Handbücher

J.P. Instruments

J.P. Instruments EDM-700 Handbuch

Beliebte GPS Handbücher anderer Marken

Raven

Raven Cruizer II Handbuch

Hama

Hama 53118 Bedienungsanleitung

Garmin

Garmin SOUNDER 125 Bedienungsanleitung

Garmin

Garmin DEZL 580 Bedienungsanleitung

Jigabot

Jigabot EX Bedienungsanleitung

Pointer

Pointer Cellocator CelloTrack XT LTE Installationsanleitung

Queclink

Queclink GV55LITE Bedienungsanleitung

Voxson

Voxson Voxtrack GPS500 Gebrauchsanweisung

Garmin

Garmin ECHOMAP PLUS Bedienungsanleitung

Starcom Systems

Starcom Systems Kylos Compact Bedienungsanleitung

Garmin

Garmin 15 H Series Bedienungsanleitung

Cobra

Cobra Marine MC 600Ci Bedienungsanleitung

Cellocator

Cellocator CelloTrack T Bedienungsanleitung

Enfora

Enfora Mini-MT GSM2228UG001 Bedienungsanleitung

Magellan

Magellan eXplorist 100 Bedienungsanleitung

LTE

LTE G50B Bedienungsanleitung

Garmin

Garmin DEZL OTR500 Bedienungsanleitung

SkyGolf

SkyGolf SkyCaddie SG1 Bedienungsanleitung
