Jack K4-D Series Bedienungsanleitung

K4-D系列使用说明

K4-D series’use manual

一、规格 First. specification

表1

机种名称

type

小头式高速绷缝机

High Speed Computerized Cylinder-bed Interlock Machine

型式

model name

缝迹形式

Stitch type

ISO 标准：406/407/602/605

ISO standard：406/407/602/605

用途

use

针织、编织产品的包边缝、包缠缝

Knitting, knitting products of the wrap seam 、wrapping

缝纫速度

Sewing speed

最高转速 The maximum speed：5500RPM

出厂转速 Factory speed：4000RPM

针幅

Needle width

3根针 3Needle：5.6mm、6.4mm

2根针 2Needle：2.8mm、3.2mm、5.6mm、6.4mm

差动送布比

Differential feed

ratio

0.8-1.3

缝迹长度

Stitch length

1.5mm-4.5mm

使用机针

Needle type

UY128GAS 11#、14#

（标准 standard：11#）

针杆行程

Needle bar stroke

33mm

压脚高度

Presser foot

height

7.0mm

体积

volume

纸箱体积 Carton size：675mm×450mm×602mm

机器体积 Machine size：500mm×380mm×260mm

重量

weight

净重 net weight：52Kg 毛重 Gross weight：62Kg

二、各部分的名称 Second, the name of each part

图Figure2-1

Operatio

n panel

Silicone oil

reservoir

(Upper)

PLUG

Oil sight

window

Needle bar guard

Presser foot

adjustment

screw

Thread take-up

guard

Finger guard

Indication

plate

Stitch

adjustment

knob

Thread

tension

Thread

guide

Eye guard

简介：K4机器电控与机械一体，可以在机器上调节电控相关参数，实现了人性化的

人机交换模式，操作便利！

Introduction：K4 , which control box is integrated into machine head,

parameters can be adjusted on machine directly, achieved interpersonal

exchange, easy and convenient to operate！

三、安装方法 Third, the installation method

1、台板尺寸及其安装方法

1, table size and installation method

图3-1

2、链条的安装

2. the installation of the chain

图3-2

脚踏板链条如上图所示安装

Pedal chain installed as shown above

四、关于加油、注油 Fourth, on the Lubrication, oiling

注意：为了防止机器突然启动造成人身事故，请关掉电源，确认电机确实停止转动

后再进行操作！

Note: In order to prevent personal accident caused by the sudden start of

the machine, please turn off the power, make sure the motor does stop

turning and then operate!

1、出厂加油

机器出厂时，机油均被排放，因初次使用缝纫机前，请一定要加入机油，推荐

使用机油：白油 22#，加油时请拿开标有 OIL 的加油口盖子，把机油加到油尺的上

下刻线之间，加油完成后转动缝纫机，看油窗是否有机油喷出，如果没有机油喷出，

请进行检修。

When the machine is shipped from the factory, the oil is discharged. Be

sure to add the oil before using the sewing machine for the first time. It is

链条 1

链条 2

挂钩

Chain 1

hook

Chain 2

1, the factory refueling

recommended to use the oil 22#. When filling, open the plug marked with

OIL and add the oil between the upper and lower engraved lines. Turn on

the sewing machine after refueling to see if there is any oil spilled in the oil

window. If there is no oil spilled, please carry out overhaul.

图4-1

注意：为了防止机器突然启动造成人身事故，请关掉电源，确认电机确实停止转动

后再进行操作！

Note: In order to prevent personal accident caused by the sudden start of

the machine, please turn off the power, make sure the motor does stop

turning and then operate!

2、出厂注油

机器出厂首次使用或较长时间没有使用缝纫机时，请一定向针杆滴 2-3 滴机油，

滴在针杆扎头与针杆的连接处，确保针杆机构润滑。

2, factory oiling

When the machine is used for the first time in the factory or when the

sewing machine is not used for a long time, be sure to drop 2-3 drops of oil

to the needle bar and drop it at the junction of the bar head and needle bar

to ensure the needle bar mechanism is lubricated.

被加油机构（fueling agencies）

图Figure4-2

五、缝纫机的使用方法

Fifth、the use of sewing machines

注意：为了防止机器突然启动造成人身事故，请关掉电源，确认电机确实停止转动

后再进行操作！

Note: In order to prevent personal accident caused by the sudden start of

the machine, please turn off the power, make sure the motor does stop

turning and then operate!

1、机针的安装方法

安装机针时，机针头部需要完全插入针古里，且机针凹槽部位向里侧。

1, the needle installation method

When installing the needle, the needle head needs to be completely

inserted into the needle clamp, and the needle groove is to the inside.

图5-1

注意：为了防止机器突然启动造成人身事故，请关掉电源，确认电机确实停止转动

后再进行操作！

Note: In order to prevent personal accident caused by the sudden start of

the machine, please turn off the power, make sure the motor does stop

turning and then operate!

2、穿线方法

2, threading method

①、标准穿线法：①, standard threading method:

图5-2

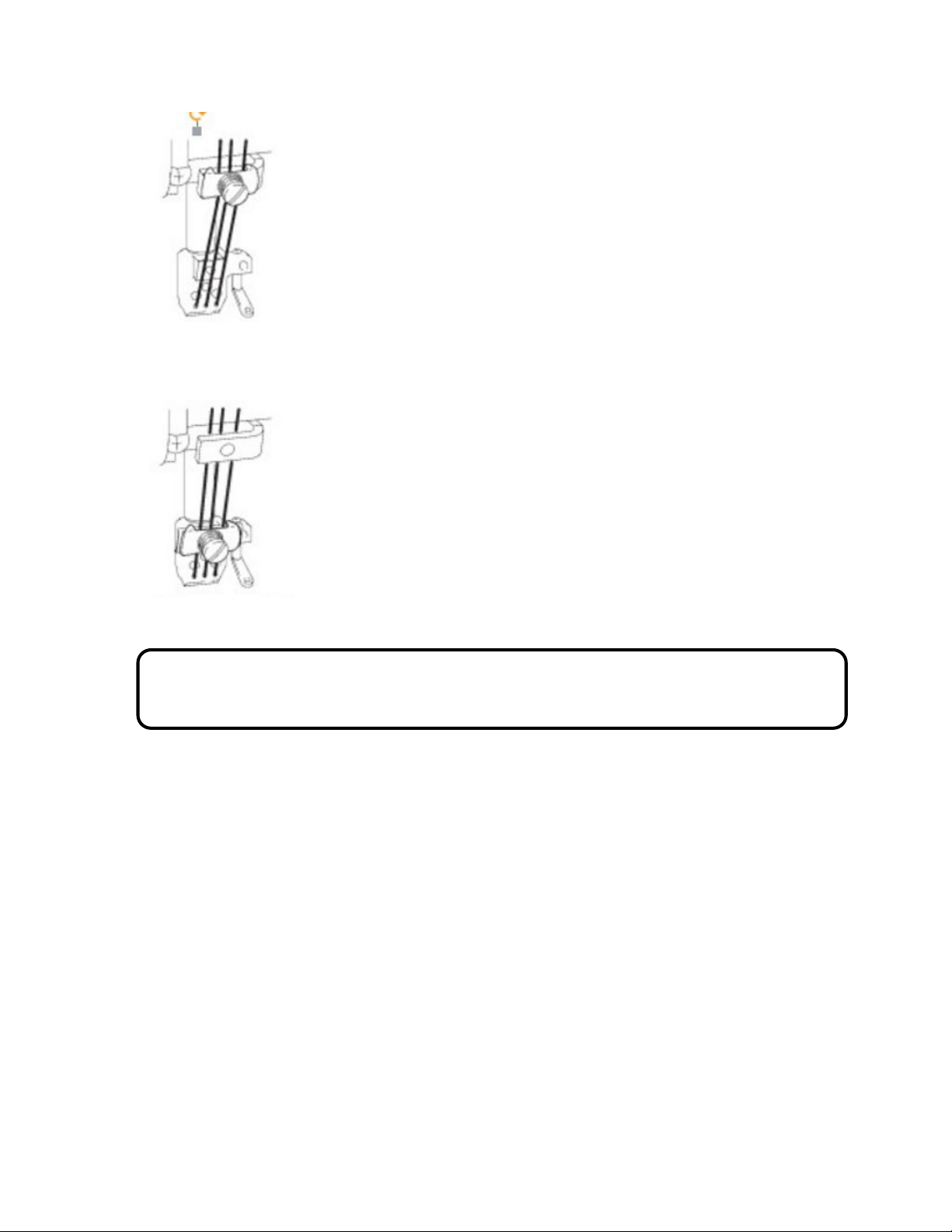

当机针线伸缩量较大时：When the needle thread stretching in a larger amount

figure5-3

当机针线伸缩量较小时:When the needle thread stretching in a smaller amount

figure5-4

注意：为了防止机器突然启动造成人身事故，请关掉电源，确认电机确实停止转动

后再进行操作！

Note: In order to prevent personal accident caused by the sudden start of

the machine, please turn off the power, make sure the motor does stop

turning and then operate!

3、针距调节

3, stitch length adjustment

机器针距可以在 1.5mm-4.5mm 范围内任意调整（实际缝料线迹长度，随布

料的种类和厚度有所不同），缝纫机针距的调节是通过旋转针距调节旋钮调节的，

顺时针旋转，针距变大，逆时针旋转，针距变小。

Machine stitch length can be adjusted within the range of

1.5mm-4.5mm (actual sewing stitch length, depending on the type and

thickness of the cloth). The sewing machine stitch length is adjusted by
