SERVICINGMANUAL

JEMGOLD(660)

CONTENTS

SERVICE ACCESS

FACE COVER.........................................................................................................2

BED COVER...........................................................................................................3

FRONT COVER ......................................................................................................4

REAR COVER ........................................................................................................5

MECHANICAL ADJUSTMENT

THREADTENSION .................................................................................................6

PRESSER BAR HEIGHT AND ALIGNMENT ...........................................................7

DISTRIBUTIONOFNEEDLE SWING ......................................................................8

NEEDLE DROP ......................................................................................................9

NEEDLE BAR HEIGHT .........................................................................................10

HOOKTIMING .........................................................................................................1]

NEEDLE CLEARANCE TO HOOK .......................................................................12

BACKLASH (LOWER SHAFT GEAR)...................................................................13

FEED DOG HEIGHT .............................................................................................14

STRETCH STITCH BALANCE ..............................................................................15

BUTTONHOLE STITCH BALANCE .......................................................................16

ADJUSTING THE LINE TACK WIDTH AND

DISENGAGEMENT CLEARANCE OF CAM FOLLOWER............................17

WIRINGOF TERMINAL BLOCK ............................................................................18

SERVICE ACCESS

FACE COVER

(Toremove)

1. Remove the screw and remove the face cover as shown below.

(Toattach)

2. Follow the above procedure in reverse.

SERVICE ACCESS

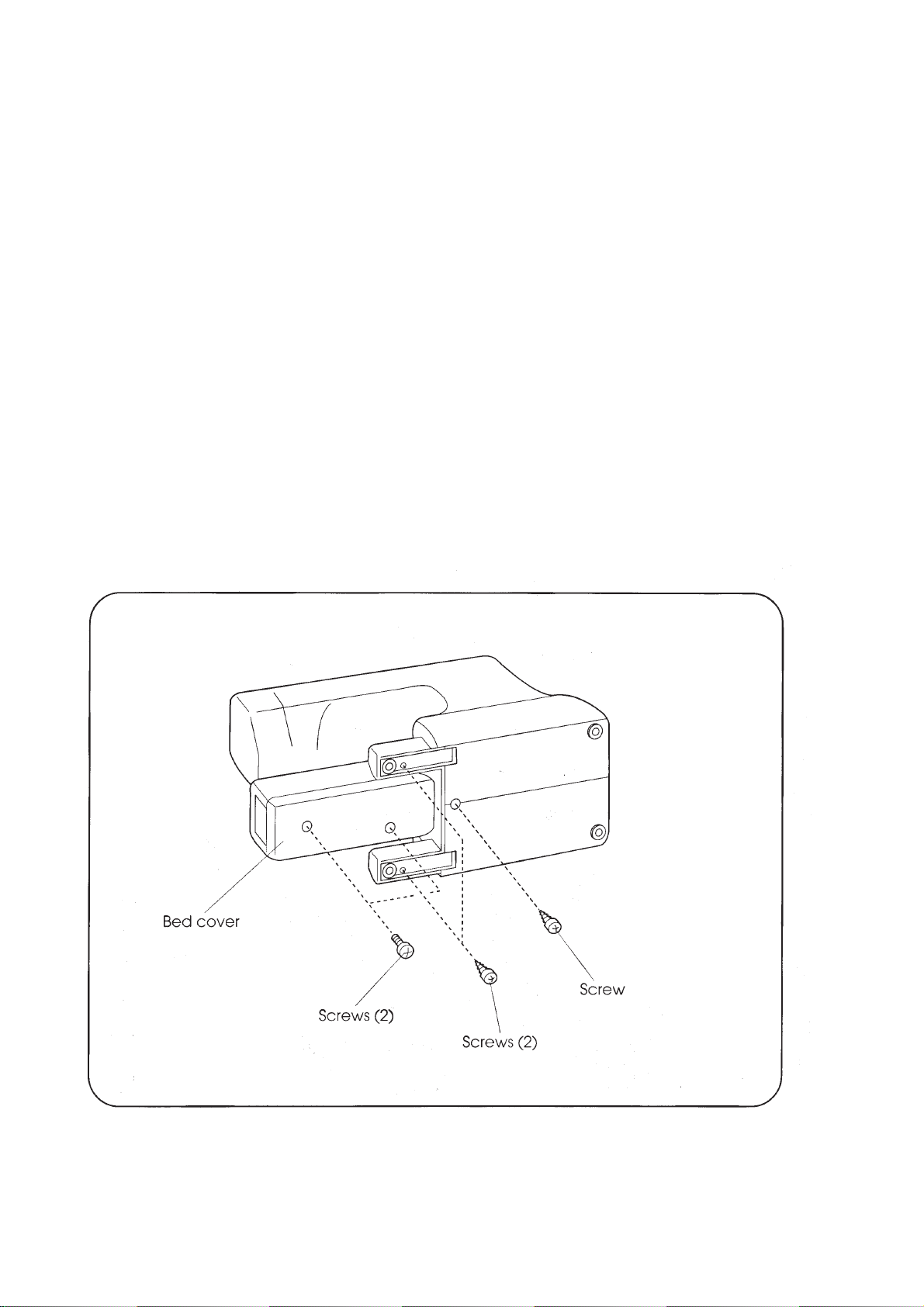

BED COVER

(Toremove)

1. Loosen the 5 screws and remove the bed cover.

(Toattach)

2. Follow the above procedure in reverse.

SERVICE ACCESS

FRONT COVER

(Toremove)

1. Remove the face cover and bed cover (see pages 2, 3).

2. Pull out the pattern selector dial.

3. Remove the screw (A) and rubber cushion.

4. Loosen the screws (B), (C), (D) and remove the front cover.

(Toattach)

5. Follow the above procedure in reverse.

SERVICE ACCESS

REAR COVER

(Toremove)

1. Remove the face cover, bed cover and front cover (see pages 2, 3, 4).

2. Remove the screws (A), (B), (C), (D), (E) and rear cover.

(Toattach)

6. Follow the above procedure in reverse.

MECHANICAL ADJUSTMENT

THREADTENSION

The standard upper thread tension should be 75 - 90 g when pulling the thread (white color

cotton thread #50) in the direction of the arrow with the tension dial set at 4. (Make sure

the presser foot is lowered.) If the tension is out of the standard range, adjust it as follows:

1. Remove the front cover (see page 4).

2. If the thread tension is too tight turn the adjusting dial in the direction of (A).

If the thread tension is too loose turn the adjusting dial in the direction of (B).

3. Check the thread tension and attach the front cover.

MECHANICAL ADJUSTMENT

PRESSER BAR HEIGHT AND ALIGNMENT

The standard presser bar height is 6.0 mm between the bottom surface of the presser foot

and the needle plate when the presser bar lifter is in the up position.

1. Remove the face cover (see page 2).

2. Raise the presser foot and loosen the presser bar bracket screw and adjust the height

(6.0 mm).

3. Check to see if the presser foot is parallel to the openings of the feed dog on the

needle plate. If not, readjust it.

4. Tighten the presser bar bracket screw while holding the presser bar to keep the foot

parallel to the openings.

5. Attach the face cover.

MECHANICAL ADJUSTMENT

DISTRIBUTIONOFNEEDLE SWING

If the timing of the needle swing is not correctly adjusted, the needle will move sidewise

while it is in the fabric. The needle should start to swing from a position 2-3 mm above the

needle plate in its right outflow.

1. Remove the front cover (see page 4).

2. Set the pattern selector dial to maximum zigzag width (stitch length dial at any

position).

3. Loosen the worm set screws (2 pcs.).

4. Hold the worm in place with a screwdriver or wrench and turn the hand wheel slightly.

a) If the needle starts swinging too soon, turn the hand wheel in the direction of A

(clockwise).

b) If the needle starts swinging too late, turn the hand wheel in the direction of B (counter-

clockwise).

5. Tighten the worm set screws (2 pcs.).

6. Reattachthe front cover.

MECHANICAL ADJUSTMENT

NEEDLE DROP

When the pattern selector dial is set at “straight stitch”, the needle should be positioned at

the center of the needle plate hole.

When the pattern selector dial is set at “zigzag stitch”, in maximum zigzag width, the

clearance between the needle and the edge of the needle plate hole should be equal, 0.2

mm or more, at the left and right needle drop positions.

If not, make adjustment as follows:

1. Remove the face cover (see page 2).

2. Set the pattern selector dial at maximum zigzag width.

3. Turn the set screw to adjust the needle drop position.

4. Reattach the face cover.
