Jaroby ULTIMATE Bedienungsanleitung

490, rue de l'Argon

Quebec (Québec) G2N 2C9

Phone: 418-849-8095 Fax : 418-849-0077

www.jaroby.com

OWNER’S MANUAL

ULTIMATE ULTIMATE-B

HIGH EFFICIENCY WOOD STOVE

Revised December 04, 2013

ULTIMATE and ULTIMATE-B

Certified and tested

according to UL-1482-00

and ULC-S627-00 norms.

TABLE OF CONTENTS

WARNING...............................................................................................................................................3

NOTICE....................................................................................................................................................5

Creosote................................................................................................................................................5

SPECIFICATIONS - ULTIMATE and ULTIMATE-B.......................................................................6

INSTALLATION.....................................................................................................................................7

Vertical installation inside a masonry chimney ....................................................................................8

Exterior vertical installation.................................................................................................................8

Vertical installation on a cathedral roof...............................................................................................9

Cross installation................................................................................................................................10

Vertical installation.............................................................................................................................10

CLEARANCES......................................................................................................................................11

FLOOR PROTECTOR.........................................................................................................................12

DOOR ADJUSTMENT.........................................................................................................................13

LIGHTING.............................................................................................................................................13

FANS AND THERMODISC.................................................................................................................14

PREVENTIVE MEASURES AND MAINTENANCE.......................................................................15

Replacement part l ist............................................................................................................................16

INSTALLATION OF THE FIREBRICKS.........................................................................................17

Figure 1 . 0..........................................................................................................................................18

WARRANTY .........................................................................................................................................20

READ CAREFULLY THIS MANUAL AND KEEP IT FOR FURTHER

REFERENCES.

INSTALLATION OF THIS APPLIANCE MUST BE DONE BY A QUALIFIED AND

CERTIFIED TECHNICIAN AND IN CONFORMITY WITH THE OWNER'S MANUAL

GUIDE PROVIDED WITH THIS APPLIANCE. THE INSTALLATION MUST BE IN

ACCORDANCE WITH LOCAL AND NATIONAL APPLICABLE REGULATIONS AND

THE APPLICABLE BUILDING CODE.

Warning! Never modify this appliance!

WARNING

Before installing, please take a few minutes to read this handbook. Keep it in a sure place

and easily reachable for future references. If this appliance is not properly installed, it

could cause fire damages to the property, injuries and death. To reduce fire hazards,

follow instructions contained in this handbook.

Contact an official inspector (ex: a fireman) or your insurance company for installation

permit. Always respect the provincial and municipal building codes of your region.

Do not connect this appliance to a chimney that already serves for another wood stove.

The existing chimney should be inspected before any installation. In doubt, consult a

specialist.

Never use a non-isolated exterior conduct or a single pipe as an exterior exit.

Minimum clearances found in this manual must be observed.

Install all firebricks before lighting the stove (if it is not already done).

Never use a non-isolated exterior duct or a pipe to evacuate chimney smoke.

Do not install in a mobile house.

Keep all combustible material (clothing, furniture, wood, matches, plastic, etc) at a

distance of at least 91.5 cm (3 feet) from the appliance.

Do not use chemicals or fluids to light the fire. Waste and other flammable materials such

as gasoline, naphtha or engine oil should not be burnt in your stove.

This appliance is approved to burn wood. Do not use any other combustible.

Wood should not be stocked within the recommended minimums clearances or in the

necessary space for the loading and the ashes evacuation.

Do not burn wet or freshly cut wood. Do not use construction debris such as pieces of

2x4 or plywood.

If the appliance starts to glow red, over firing is happening. Do not add fuel. Immediately

close the doors and the air intake of the appliance until everything becomes normal again.

Do not charge the appliance beyond the firebricks height.

Ashes must be evacuated frequently, remove it with a small steel shovel.

Very hot while in operation. Keep the children away. Can cause burns by contact.

Considering the need of air for the combustion, a window or a door must be half opened

sometimes (fresh air drainage) to balance the pressure in the house, especially if:

-A fan already evacuates air towards outside (kitchen, bathroom.)

-You want to avoid smoke spillage when lighting the appliance and when reloading

the wood.

It is recommended to have a smoke detector near the appliance.

You should contact your municipal or provincial fire department to have knowledge

of the procedure to be followed in case of a chimney fire. Think of an emergency

plan.

In case of a chimney fire:

-Hermetically close the doors and the air intakes.

-Water the combustible material adjacent to the chimney.

-Ring the alarm, evacuate the house if necessary and call the firemen.

-Never touch the pipes until the fire is not completely extinct.

-Do not use the chimney until it has been inspected or repaired.

Keep all the doors closed while the appliance is in function. Frequently verify the

ceramics cords; they must always be in good condition.

The chimney pipe should not pass close to water, gas or oil pipes, or close to electric wire

or other types of conduits, of combustible materials in the roofs, the attics, the walls or

the floors. If you have to make it pass through a wall or a part of combustible

construction, do not forget that the installation must be in accordance with the

CAN/CSA-B365. Use at least 12 feet of a 6 inches diameter vertical chimney.

NOTE:

FOLLOW THESE

INSTRUCTIONS IN ORDER

TO AVOID FIRE HAZARDS,

WOUNDS AND PROPERTY

DAMAGES.

NOTICE

The Ultimate was conceived to safely function the doors closed and only when burning

firewood. Any change, modification or unauthorized installation will automatically

cancel the certification of the appliance, its guarantee, its homologation and the appliance

might become dangerous.

During the first hours of operation of your appliance, you must gradually heat it without

exceeding 300°F (145°C), in order to let the paint cook slowly and to facilitate its

adhesion with metal. It is normal that a light smoke is released from the paint during the

first hours of use.

Even if this nuisance is temporary, open the windows and the doors in order to ensure

good ventilation. This special paint is conceived to tolerate temperatures until 1200°F

(650°C).

REOSOTE

The wood burning slowly produces tar and other organic steams, which forms a whole

called “creosote”. The steam condenses in the cool chimney when the wood is burning

slowly. In this way, creosote residues are formed on the walls. Creosote can take several

forms: tarry liquid, soot dust or deposits in crystal form. When in fire, the creosote

releases a very strong heat and can be the cause of a chimney fire.

- Do not knock on the glasses or violently close the doors.

- Do not use the appliance when a glass is broken or damaged.

- Do not build the fire close to the glass.

- Keep the door closed when using the appliance.

- Do not connect the Ultimate with a chimney or a flue serving another heating

appliance

SPECIFICATIONS - ULTIMATE AND ULTIMATE-B

Combustible Wood

Recommended surface 500 à 3000 ft² (46,5 à 278,70 m²)

Evacuation pipe diameter 6 in (15,24 cm)

Chimney minimal height 12 ft (3,66m)

Dimensions

Exterior height 35.8 in. (90,9 cm)

Exterior width 27,5 in. (70,0 cm)

Exterior depth 37 in. (94 cm)

Door openning 16 X 10,5 in. (41,0 X 27,0 cm)

Interior height 13,5 in. ( 34,3 cm)

Interior width 20,5 in. (52,1 cm)

Interior depth 25,25 in. (64,1 cm)

Maximal length of log 25 in. (64 cm)

Combustion duration 6 to 12 hours

Weight 460 pounds (208 kg)

Clearances

Back 10 in. (25,4 cm)

Lateral 20 in.(50,8 cm)

Floor to Ceiling 84 in. (213,4 cm)

INSTALLATION

A good installation is extremely important for a safe and efficient use of your J. A. Roby

Inc. appliance. If you doubt on the way to install the appliance correctly, seek for

professional installation service. We suggest you to call masters fitters.

1. Withdraw firebricks placed inside the appliance in order to reduce the weight and

to facilitate the installation.

2. You must install a fireproof protector under the appliance, which must exceed of

18 inches to the front and of 8 inches on each side.

3. The free space shall not be reduced except under the approval of the authorities

responsible for the application of the building code.

4. Install the chimney and an insulated wall thimble for an installation passing

through a wall according to the instructions from the chimney manufacturer.

5. The chimney must exceed any part of the building or other obstruction within a 10’

(3.04m) distance by a height of 2’(0.6.m) rising above the roof to a minimum of 3’

(0.0m) from the uppermost point of contact.

6. Install the firebricks in accordance with the recommended instructions for your

model.

7. The appliance should not be connected to an hot air conduct

8. Installation of an interior chimney is always preferable to an exterior chimney

being heated up by the ambient air in the house and the gases which circulate will

cool more slowly.

ERTICAL INSTALLATION INSIDE A MASONRY CHIMNEY

The Ultimate and Ultimate-B models must be installed in

accordance with the applicable local laws or the CAN/CSA -

B365 ULC S635, ULC S640, UL 1777 norms. For the

chimney, follow the chimney manufacturer's instructions.

XTERIOR VERTICAL INSTALLATION

The Ultimate and Ultimate-B models must be

installed in accordance with the applicable local

laws or the CAN/CSA - B365 ULC S635, ULC

S640, UL 1777 norms. For the chimney, follow

the chimney manufacturer's instructions.

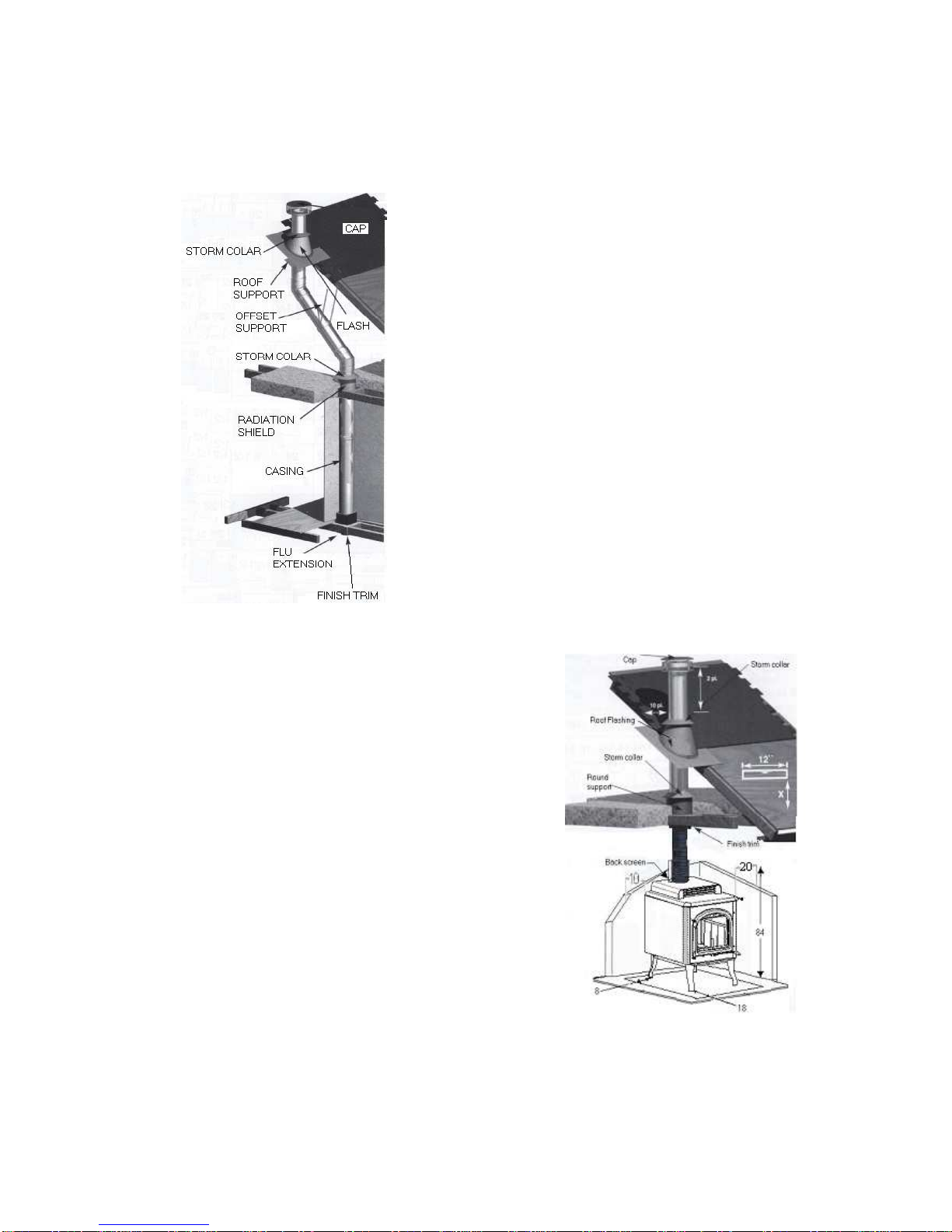

ERTICAL INSTALLATION ON A CATHEDRAL ROOF

The Ultimate and Ultimate-B models must be installed in accordance with the applicable

local laws or the CAN/CSA - B365 ULC S635, ULC S640, UL 1777 norms. For the

chimney, follow the chimney manufacturer's instructions.

ROSS INSTALLATION

The Ultimate and Ultimate-B models must be

installed in accordance with the applicable local

laws or the CAN/CSA - B365 ULC S635, ULC

S640, UL 1777 norms. For the chimney, follow

the chimney manufacturer's instructions.

ERTICAL INSTALLATION

The Ultimate and Ultimate-B models must be

installed in accordance with the applicable

local laws or the CAN/CSA - B365 ULC

S635, ULC S640, UL 1777 norms. For the

chimney, follow the chimney manufacturer's

instructions.
