Jason.L Elements 4 Person Workstation Bedienungsanleitung

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

Tools Required: Power screwdriver.

2 persons required for installation

Special Note: No pre-drilled holes or nut inserts are

provided. Wood screws will be required to be drilled

directly into underside of desk top.

Page 1 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Phillip Head M6*15 Wood Screw (silver) x16

Phillip Flat Head M6*20 Screw (gold) x24

H6x30 x16

SCREWS

Page 2 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

COMPONENTS

Desk top x4

(1800mm x 800mm)

Top plate x6

Leg core insert x4

Leg core return x6

Leg sleeve x12

Sleeve cover x12

Fold Scren x12

Base Foot x12

Core cover x6

Sleeve Cap x12

Extandable Beam x4

Screen x2 (1800mm)

Rod Brackets for screens x2

2 way screen connector x1

Page 3 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

Unwrap all leg components.

Remove sleeve cap (J) and sleeve

cover (F) from all leg sleeves.

Insert base foot (H) into leg sleeve (E)

by rotating base foot (H) clockwise.

Insert sleeve cap (J) onto leg core (D)

for all legs.

Insert leg sleeve (E) onto leg core (D)

for all legs. TIP: Keep height adjustment

holes pointing outwards.

Place leg core insert (C) onto leg core

(D) for all legs.

Place core cover (I) onto leg core (D)

for all legs.

Place sleeve cover (F) over leg sleeve

(E) for all legs.

Page 4 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

Connect extendable Beams (K) to Legs Core (D)

Tighten Top Plates (B) to middle legs core (D) by tightening Screw (P).

Tighten Top Plates (B) to outer legs core (D) by tightening Screw (P).

Page 5 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

Attach outsider legs + beam to Desk Tops by tightening Scews (O).

Attach middle leg to Desk Tops by tightening Scews (O).

Page 6 of 6

Need help!

Call us on

1300 527 665

www.jasonl.com.au

ASSEMBLY INSTRUCTIONS

Elements 4 Person

Workstation

Size: 1800mm

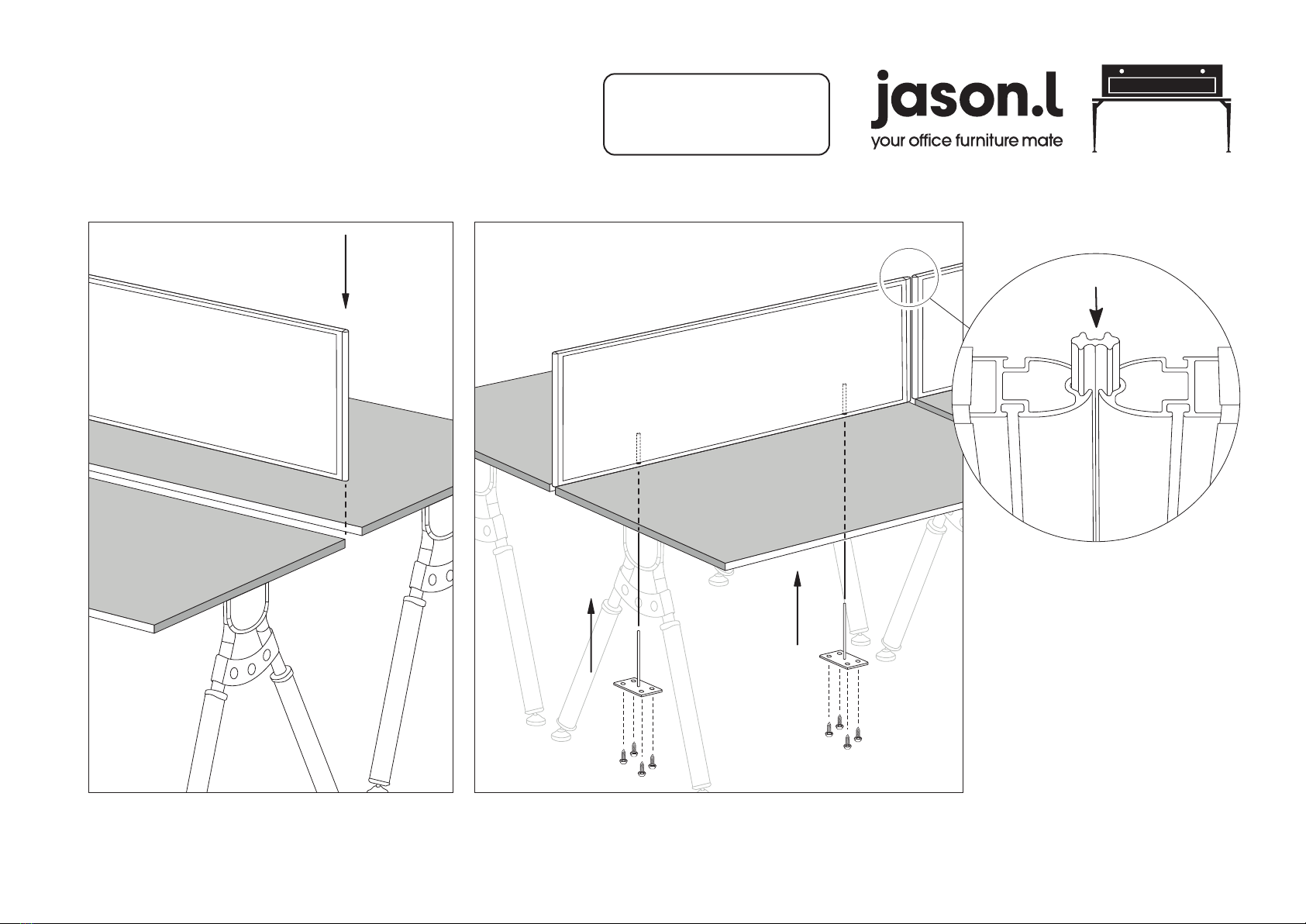

Place 10mm Rod Brackets (M) into designated screen holes.

Drill desk tops (A) with H6x30 screws (Q) to assemble the screens.

Place screens (L) in the gap, aligned with desk tops (A).

Using an Allen key remove top 2 caps

from all screens (L) uprights. Bring two

partition towards one another and slide

the 2 way connector rod (N) - down

between the two screen uprights.
