Jbc ALE250 Bedienungsanleitung

ALE250

Auto Feed Iron

INSTRUCTION MANUAL

Auto Feed Iron ........................................................................................................................................... 1 unit

Includes: C250403 Cartridge

Guide set - Ref. GALE10V-A - Ø 1 mm / 0.039 in

Manual ......................................................................................................................................................... 1 unit

Ref. 0028271

Guide set - Ref. GALE10V-A

C250403

Packing List

The following items are included:

This manual corresponds to the following reference:

- ALE250-A

ø 0,6

3,2x1,5

2,2 x 1

ø 3,8

ALE250 Auto Feed Iron works with C250 cartridges. Find the model that best suits your soldering needs

in www.jbctools.com

Compatible Cartridges

Conical Bent Chisel Chisel Bent Bevel

USB-B

Connector

Features and Connections

Auto Feed Iron

Ref. ALE250-AALU Control Unit

Main Switch

Control Screen

Solder Reel Stand

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

AP250

AL250

SF280

SF250

ALE250

AP250

AL250

SF280

SF250

ALE250

1. Loosen the cartridge screw to release the cartridge. Place the a new one into the auto-feed iron.

Mark

Guide tube

Ref . 0002401 - Ø 0,9 - 1 mm (0.035 - 0.04 in)

Changing cartridge

For a safe cartridge change, unplug the tool or turn the station off before following these guidelines:

2. Align the tip of the cartridge with the solder guide tube.

Important: It is essential to insert the cartridge till the end for a good connection. Use the mark as

reference. Tighten the cartridge screw (1).

3. You must leave a gap of 8 to 10 mm (0.31 - 0.40 in) between the tip and the end of the Guide tube.

4. Loosen the guide screw. Adjust the guide tube and tighten the screw.

8-10 mm

(0.31 - 0.40 in)

AP250

AL250

SF280

SF250

ALE250

Accessories

Fume Extractor

Ref. F4468 - 2 m (78.74 ft) lenght.

The fume extractor for AL250 is an easy & safe solution to suck the fume generated at the solder joint.

Before carrying out maintenance, always allow the equipment to cool.

- Before carrying out maintenance, always unplug the stand and the tool.

- Check periodically that the metal parts of the tool and the stand are clean to ensure detection of

the tool when it is in the stand. Use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only. Repairs should only

be performed by a JBC authorized technical service.

Maintenance

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

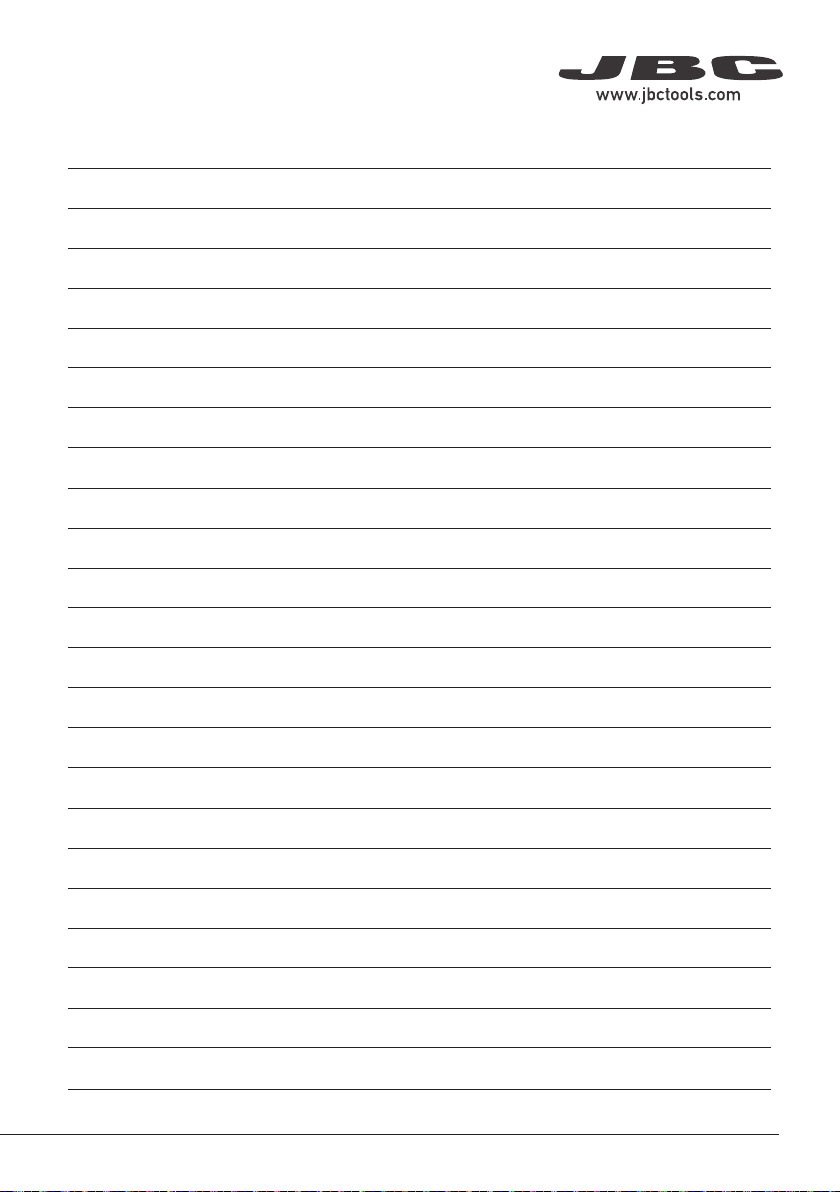

Notes

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

This product should not be thrown in the garbage.

In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must

be collected and returned to an authorized recycling facility.

Warranty

JBC’s 2 year warranty covers this equipment against

all manufacturing defects, including the replacement

of defective parts and labour.

Warranty does not cover product wear or misuse.

In order for the warranty to be valid, equipment must

be returned, postage paid, to the dealer where it was

purchased.

Get 1 extra year JBC warranty by registering here:

https://www.jbctools.com/productregistration/

within 30 days of purchase.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm 130 mm

para manuales - color gris

200 mm

300 mm

0 0 2 82 71-12 2 1

Specifications

ALE

Auto Feed Iron

Ref.: ALE250-A

- Total Net Weight: 148 gr / 0.33 lb

- Dimensions: 35 x 21 x 182 mm / 1.42 x 0.83 x 7.16 in

- Solder Wire Diameter: Ø 1 mm / 0.039 in

- Package Dimensions / Weight: 300 x 125 x 65 mm / 257 g

(L x W x H) 11.81 x 4.92 x 2.56 in / 0.57 lb

Complies with CE standards.

ESD safe
