Jbc DR560-A Bedienungsanleitung

Desoldering Iron

Ref. DR560-A

English 2

Page

Español 10

www.jbctools.com

Packing List

Ref. DR560

Desoldering Iron

Tips .............................................. 3 units

Ref. C560005*

Ref. C560013*

Ref. C560004*

Desoldering Iron ........................ 1 unit

Ref. DR560-A

C560003 already inserted

The following items should be included:

Union

flanges ......... 1 u.

R ef. 0 0113 56

Tip cleaning

set ................. 1 u.

Ref. 0965970*

Internal

gasket .......... 1 u.

Ref. 0019208*

It contains 2 gaskets

Filter

box ................ 1 u.

Ref. 0780840

It contains 10 filters

Spanner ...... 1 u.

Ref. 0780550*

Spiral

Filter ............. 1 u.

Ref. 0812330*

Long tip

cleaning set

..........................1 u.

Ref. 0965760*

Cleaning

stick .............. 1 u.

Ref. 0786640

Metal Solder

Collector .... 1 u.

Ref. 0812630*

Glass Solder

Collector ..... 1 u.

Ref. 0812620*

Manual ......... 1 u.

Ref. 0008867

*DR560-A Desoldering Iron accessories included in the Ref. 0010261

www.jbctools.com

Desoldering process

When desoldering, use a tip with a diameter larger than the pad being desoldered. This will achieve

maximum suction and thermal efficiency.

The vacuum pump will continue to run for a few seconds. This makes sure that the vacuum

circuit is completely empty. If there are any solder remains left on a terminal, just resolder it

with fresh solder and repeat the desoldering operation.

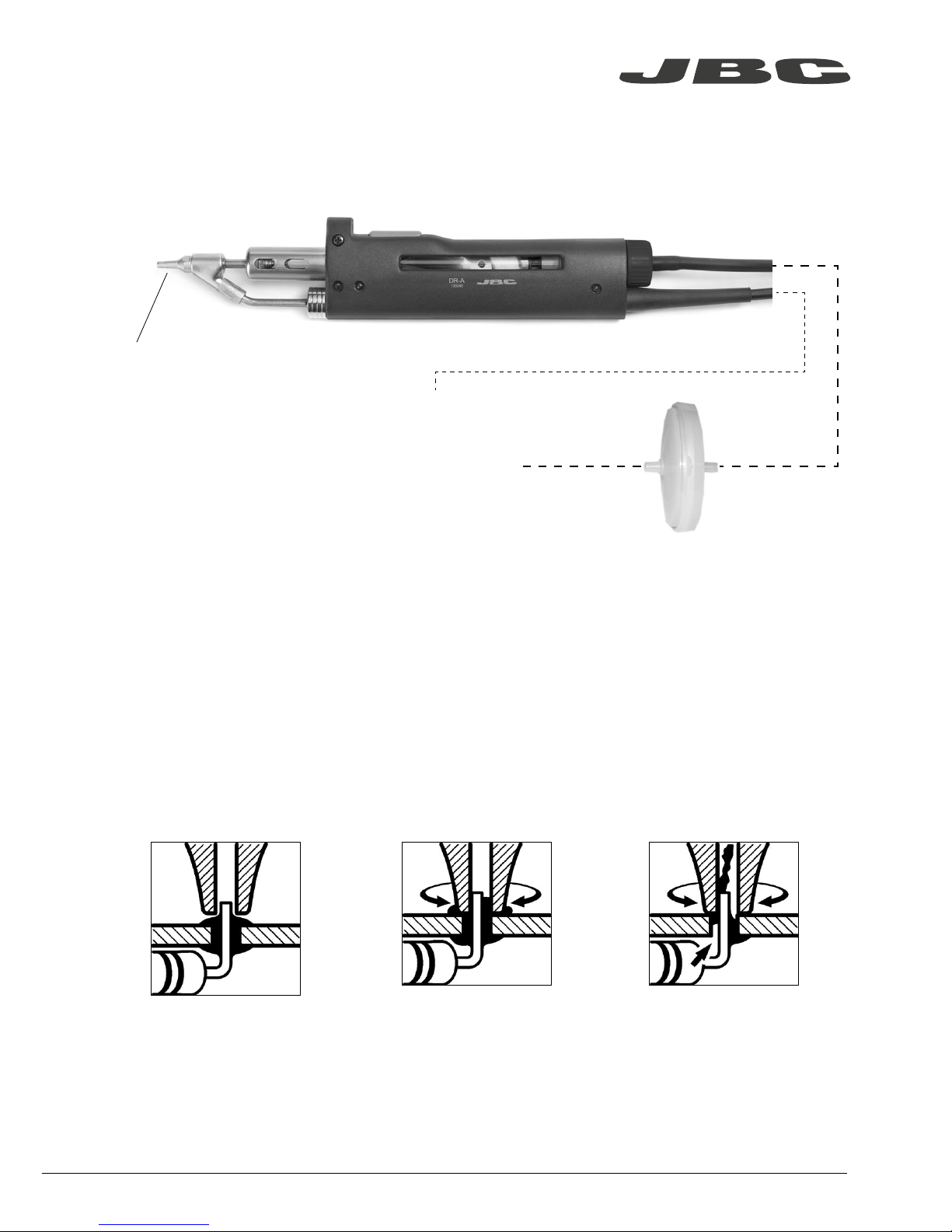

Connection

Desoldering Iron

Ref. DR560-A

Tip

Ref. C560003

to desoldering module

to stand

Suction Filter

Ref. 0821830

Supplied with desoldering module

1. Apply the tip so that it fits

over the component terminal.

2. When the solder liquefies,

gently rotate the tip so that the

terminal can be lifted off.

3. Then press the vacuum

pump button long enough to

suck up the solder.

www.jbctools.com

A ø

B ø

C560-001 C560-002

C560-003

C560-004 C560-009

C560-014

Changing Tips

This operation should be done while the tip is

hot and at a minimum temperature of 250°C,

so that any tin left inside is still molten.

- Use the special spanner to unscrew the tip

- Fit the new tip, and tighten with the

spanner so that it is airtight.

250º C min.

C560-001 A=1,4 B=0,6 max. pin=0,4 mm

(A=0.05 B= 0.02 max. pin= 0.01 in)

C560-002 A=1,8 B=0,8 max. pin=0,6 mm

(A=0.07 B= 0.03 max. pin= 0.02 in)

C560-003 A=2,7 B=1 max. pin=0,8 mm

(A=0.1 B= 0.04 max. pin= 0.03 in)

C560-004 A=3,2 B=1,3 max. pin=1,1 mm

(A=0.12 B= 0.05 max. pin= 0.04 in)

C560-009 A=5 B=1,3 max. pin=1,1 mm

(A=0.19 B= 0.05 max. pin= 0.04 in)

C560-014 A=2,5 B=0,8 max. pin=0,6 mm

(A=0.09 B= 0.03 max. pin= 0.02 in)

Compatible Tips

The DR560 uses C560 tips. Find the model that best suits your needs in www.jbctools.com

See here some of them in real size:

washer

Changing the heating element (Ref. DSV-DR)

Important

For a proper connection it is

essential to insert the car-

tridge as far as the mark.

Important

Before placing, make sure to

insert the internal gasket into

the Solder Collector.

Compatibility

The DSV-DR also works with

the previous version DR5600

Desoldering Iron (Ref.

5600010). In this case, you

must take out the washer with

a pliers.

1. Removing

Loosen the deposit lid (a), remove the screw (b) and withdraw the heating element (c).

2. Placing

Insert the new one (a), tighten the lid (b) and then the screw (c).

For this operation, turn off the station or disconnect the tool and wait until the tool temperature

drops to room temperature.

Recommended: Remove the

lid in a vertical position and

follow the cleaning guideli-

nes in the tool and station

manuals.

mark

www.jbctools.com

Maintenance

Before carrying out maintenance or storage, always unplug the tool.

- Check periodically that the metal parts are clean to ensure it is detected when on the stand.

Always use a damp cloth or alcohol.

- Periodically check all cables and tubes connections.

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

Glass Solder Collector Maintenance

2. Next remove the spiral and clean the inside

part of the collector with the cleaning stick.

- Check the filter and replace it if it is dirty or

damaged.

1. For cleaning, the top must be unscrewed with

the DR560 in a vertical position.

3. Insert the filter and the spiral filter which must

be inserted in place between the 2 lines on the

solder collector.

Before placing, make sure to insert the internal

gasket into the solder collector.

Finally screw on the top to close the unit.

Check filter

Check

internal joint 2

Tip Care

- Use the largest rod possible to clean the tip.

- Important: DO NOT press the pushbutton

vacuum pump while tinning the desoldering

tip, as the fumes given off by the flux would

quickly soil the ducts and filter of the air

circuit.

www.jbctools.com

It is imperative to follow safety guidelines to protect health and prevent electric

shock, injury, fire or explosions.

Safety

- Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire.

- The temperature of accessible surfaces may remain high after the unit is turned off.

Handle with care.

- Do not leave the appliance unattended when it is on.

- It is necessary to turn the station off before changing tips.

- Heat can cause inflamable products to ignite even when out of sight.

- Be careful with the remains of liquid tin. In contact with skin, it can cause burns.

- Avoid flux coming into contact with skin or eyes to prevent irritation

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when

working to avoid personal harm.

- This appliance can be used by children over the age of eight and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge once they have been

given adequate supervision or instruction concerning use of the appliance and understand the

hazards

involved.

- Children must not play with the appliance. Maintenance shall not be carried out by them unless

supervised.

- Weight: 0.4 kg (0.91 lb)

Complies with CE standards

ESD protected housing “skin effect”

Specifications

www.jbctools.com

Ref. DR560

Desoldering Iron

Composición

Puntas ................................. 3 unidades

Ref. C560005*

Ref. C560013*

Ref. C560004*

Desoldering Iron

Desoldador .............................. 1 unidad

Ref. DR560-A

Punta C560003

incluida

Los siguientes artículos deben estar incluidos:

Union

flanges

Bridas de

unión ........... 1 ud.

R ef. 0 0113 56

Tip cleaning set

Juego de limpieza

de puntas ... 1 ud.

Ref. 0965970*

Internal gasket

Junta

interna ........ 1 ud.

Ref. 0019208*

Contiene 2 juntas

Filter box

Caja de

filtros ........... 1 ud.

Ref. 0780840

Contiene 10 filtros

Spanner

Llave para

puntas ........ 1 ud.

Ref. 0780550*

Spiral Filter

Filtro en

espiral.......... 1 ud.

Ref. 0812330*

Long tip

cleaning set

Juego largo de

limpieza de

puntas ........ 1 ud.

Ref. 0965760*

Cleaning stick

Bastoncillo de

limpieza del

depósito ..... 1 ud.

Ref. 0786640

Metal Solder

Collector

Depósito metálico

de estaño ... 1 ud.

Ref. 0812630*

Glass Solder

Collector

Depósito de

estaño ........ 1 ud.

Ref. 0812620*

Manual ...... 1 ud.

Ref. 0008867

*Accesorios del desoldador DR560-A incluidos en la Ref. 0010261
