Jbc CA-1E Bedienungsanleitung

Compact Solder Feed station

Ref. CA-E

www.jbctools.com

Packing List

The following items should be included:

Power Cord ....................1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

Manual ............................ 1 unit

Ref. 0017892

Brass Wool .................... 1 unit

Ref. CL6210

Sponge ........................... 1 unit

Ref. S0354

ww w.j bc too ls.c om

Solder reel .................... 1 unit

Ref. 0002801

Allen key Ø 2.5mm ...... 1 unit

Ref. 0780493

Mobile tube Ø 1.5mm .............................. 1 unit

Ref. 0016351

Solder Feed Iron ..................................... 1 unit

Ref. AP250-A

Supplied with

guide tube for

Ø 0.8 - 1mm

Compact Solder Feed station

Ref. CA-E

CA Control Unit ......................................... 1 unit

Ref. CA-1E (120V)

CA-2E (230V)

CA-9E (100V)

Power Socket

Main switch

Fuse

Cable collector

Brass wool tip cleaner

with antisplash

membrane

Control

Process

Adjustable Stand:

Intelligent Heat Management

Equipotential connectionUSB-B connector

Features

Solder Feed Iron

Ref. AP250-A

www.jbctools.com

Adjustable stand Cable collector (Ref. CC3702)

Adjust the tool stand to suit

your work position.

Place the cable on the collector so that the working area is free

of cable.

Tip Cleaner

Splashguard

Ref. 0017576

When using the brass wool, it prevents splas-

hing of solder particles

Antisplash Membrane

Ref. 0017574

Prevents splashing and keeps the work

area clean.

Select the option to suit your needs and improve the thermal transfer of the tip.

Brass Wool

Ref. CL6210

Very effective

cleaning method.

Leaves a small layer

of solder on the tip

preventing oxidation

between cleaning

and rewetting.

Wiper Ref. CL0160

A temperature resistant receptacle for removing excess

solder by gently tapping or wiping.

If the tip is very dirty,

JBC recommends first

cleaning it with the wiper

to remove excess solder.

Removing the Splashguard

1. Unlock the splashguard. 2. Lift off.

Lock

More cleaning options (not supplied):

Inox Wool

Ref. CL6205

Provides a superior

cleaning of the tip.

Metal Brush

Ref. CL6220

When used carefully,

it provides a more

thorough cleaning.

Sponge

Ref. S0354

Tapping:

Tap gently to remove excess

solder.

Wiping:

Use the slots to remove

remaining particles.

Wiper

Ref. CL0160

The least harmful cleaning

method. Keep the sponge

damp with distilled water to

avoid tip wear.

www.jbctools.com

2. Inserting & Aligning

2. Replace

3. Fixing

3. Insert

Pull out the remaining solder

wire from the feed tube. Use a

pliers if necessary.

Pull the trigger repeatedly until

the solder wire appears at the

tip. Always use 0.8 - 1.0 mm

diameter solder wire.

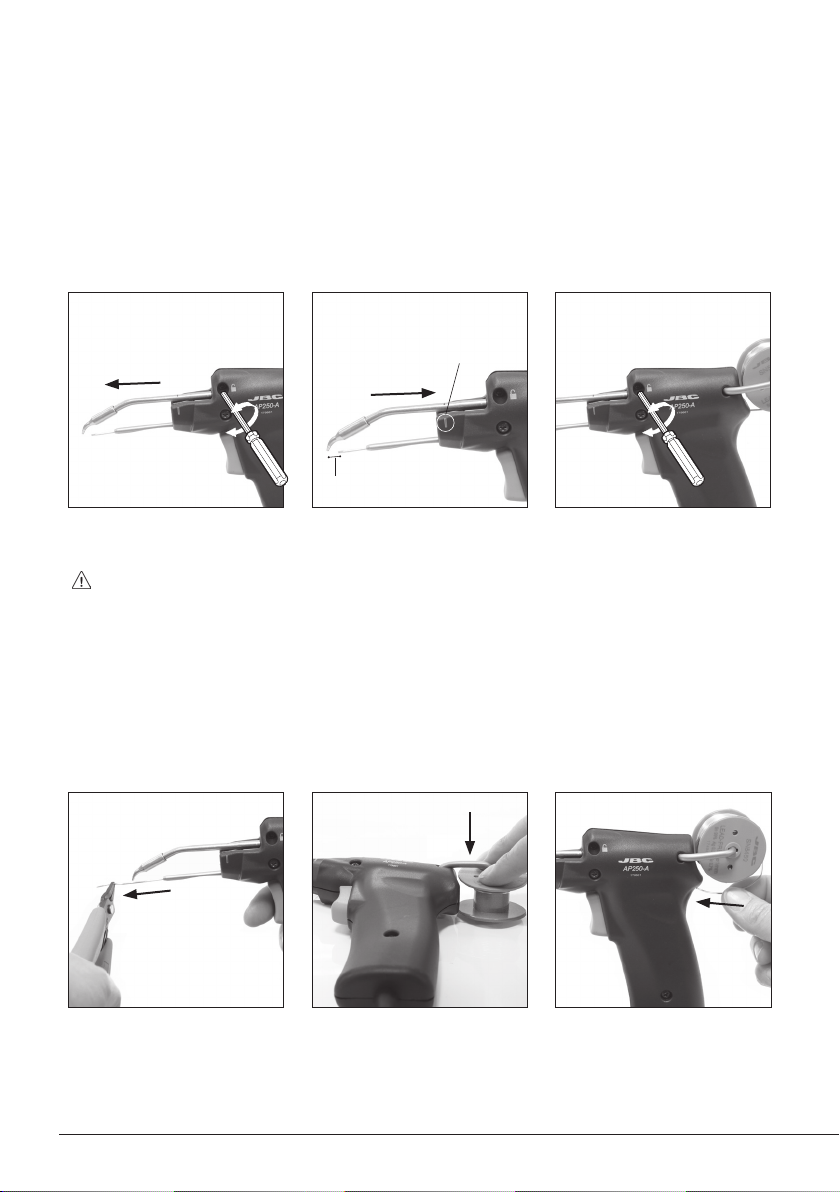

Changing cartridge

Replacing solder wire

The AP250-A Solder Feed Iron works with the C250 Cartridge Range.

Find the model that best suits your soldering needs in www.jbctools.com

To change a catridge safely, unplug the tool or turn the station off before following these guidelines:

Loosen the screw and remove

the cartridge.

Use a flat pliers if still hot.

1. Removing

1. Remove

Alignment

Important: Tighten the screw

again being careful not to

over-tighten. This is necessary

for the tool to function.

Pull off the empty reel and fit

the new one.

Important: Insert the cartrid-

ge as far as the mark for a

correct connection.

Align the tip of the cartridge

with the feed tube. Use a flat

pliers to correctly align the tip.

Mark

USB Connector

Download the latest software from our website to update your soldering station.

JBC Updater

www.jbctools.com/software.html

Update the station software via USB connection:

Cable USB AB

JBC

Manager

JBC

Updater

JBC Manager

www.jbctools.com/manager.html

Manage and monitor as many stations as your PC can handle by using the JBC Manager.

You can export data to another PC.

Create graphs of the solde-

ring process in real time with

power and temperature data.

Manager Settings

Change settings for a group

of JBC stations at

the same time.

any JBC

station

USB

Hub

Cable USB AB

www.jbctools.com

Power 5%

350

Selected temp

350

Sleep temp 150

Sleep

350

Tool in the stand, no heat

Hibernation

350

Long time

in the

stand

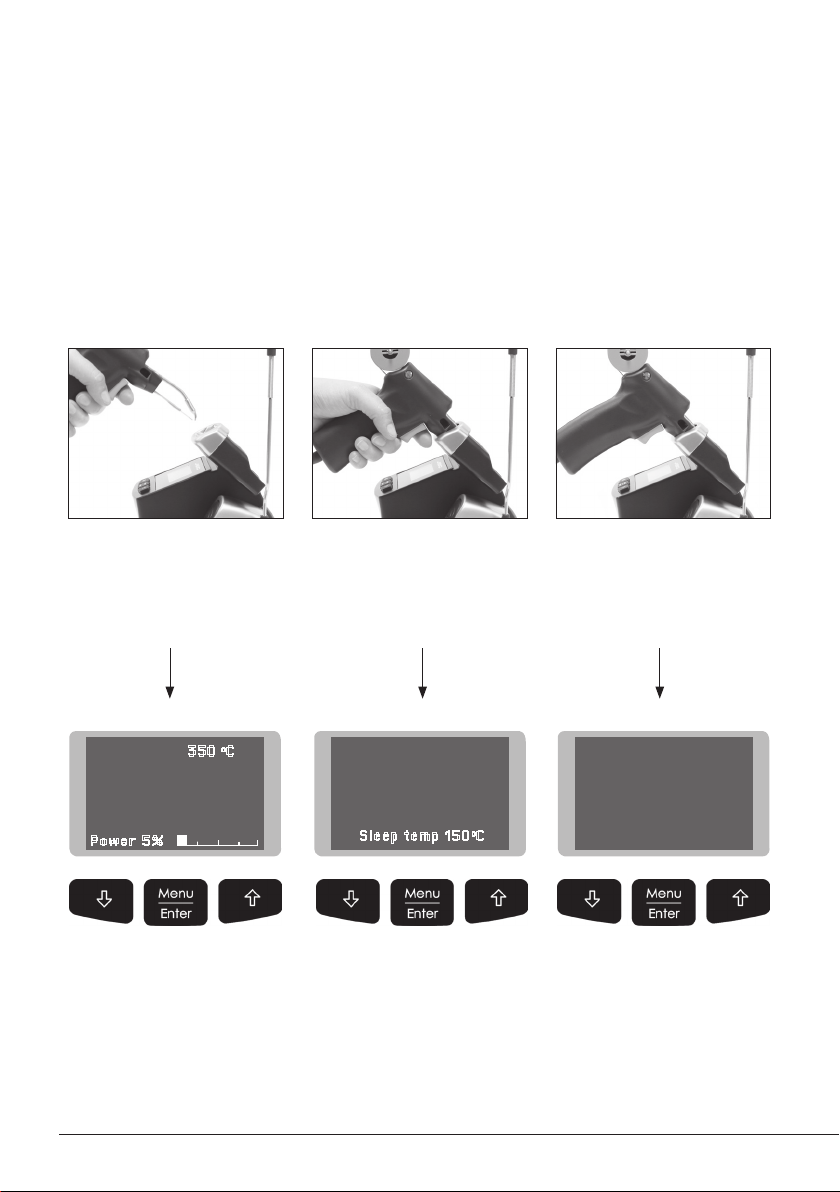

Operation

The JBC Exclusive Heating System

This revolutionary technology is able to recover tip temperature extremely quickly.

This allows the user to work at a lower temperature.

As a result, tip life increases by 5.

1. Work 2. Sleep 3. Hibernation

When the tool is lifted from the

stand the tip will heat up to the

selected temperature.

When the tool is in the stand,

the temperature falls to the

preset sleep temperature.

After longer periods of

inactivity, the power is cut off

and the tool cools down to

room temperature.

· Change temperature

(from 90 to 450ºC)

· Select temperature levels

· Fix one temperature

· Change Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

· Change Hibernation delay

(from 0 to 35 min)

Main menu

4 Counters

Program version

Exit

1 Reset settings

Station settings

Tool settings

Hibernation hours 0

No tool hours 0

6 Sleep cycles

Tool AP

Back

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

5 Help text OFF

6 Beep ON

Change PIN

1 Temp unit

Celsius

Maximum temp 400

Minimum temp 200

Metronome ----

Plugged hours 0

Working hours 0

Sleep hours 0

Counters

Tool settings

Station settings

Selected temp.

350

Power 5%

Fixed temp.

350

Levels ºC

270 350 400

-10

Sleep temp 150

Hibernationdelay 10 min

Temp adjust + O

Tool AP

Back

350

Menu Screen

Original PIN: 0105

The work screen provides

useful information of tool

status in real time.

Work Screen

Control Process

Displays a specific fixed temp.

Shown when you have selected

temp. levels. The values must be

adjusted according to the work

needs.

“Temp. Adjust” parameter.

It provides a more precise

adjustment between the selected

temp and the actual one.

www.jbctools.com

Station Settings

Minimum temperature

Set the minimum

temperature to work with.

Min. temp. by default is

200ºC (392ºF). This is consi-

dered to be a proper starting

point for leaded applications.

Maximum temperature

Set the maximum

temperature to work with.

Max. temp by default is 400°C

(750°F). This is considered

high enough to work with

most lead-free applications.

Temperature unit

Celsius (ºC) or Fahrenheit (ºF)

Recommendations

Parameter description

N/a

Warnings

The station temperature

range is 90-450ºC

(190-840ºF). Change the

temperature limits when

working with less common

applications such as low / high

melting point soldering (HMP)

or plastics (e. g. riveting).

In most cases,

working with temperatures

over 400°C (750°F) can

damage the PCB and its

components. Even in short

time periods of tip contact

with the soldering joint, the

flux may not work properly

and could seriously reduce

tip life.

If the solder joint requires

more power (e.g. multila-

yered or high dissipation

boards), JBC strongly

recommends using other

aids like preheaters.

Be careful when using these parameters as they may reduce the tip life if not used properly.

Please follow the recommended guidelines:

Parameters

Metronome

This activates a beep sound.

Frequencies vary from 1 to 50

seconds.

Help text

Activate this parameter to

receive info from the system.

Beep

Enable/disable the beep

sound of the keypad.

Change pin

Change the default security

PIN number (0105).

The PIN must be entered

every time a parameter is

changed.

Useful for setting a work rate

in repetitive jobs. The beep

lets you know the length of

time the tip must be in contact

with the soldering joint.

N/a
