JBL 1000 ARRAY Bedienungsanleitung

PARTYBOX 1000

Quick Start Guide

1What’s in the box

2 3

1) Main unit

2) Air gesture wristband

3) Air gesture wristband batteries (2x 3V CR2032)

4) Power cord*

5) Quick Start Guide, Safety sheet, Warranty card

*Power cord quantity and plug type vary by regions.

Note:

– For more information, please download the owner’s manual

from www.jbl.com

2Overview

2.1 Top panel

17 16 15 14

78 9

• Press to switch light show patterns.

• Press and hold for 2 seconds to turn the

strobe light on or off.

• Power on/off.

• Short Press to enter Bluetooth pairing mode.

• Press and hold for 20 seconds to disconnect

and pair with a new device.

• Press repeatedly to select a music source

(Bluetooth / USB / AUX / LINE IN).

• LED indicators to show the current music

source.

• DJ control keys.

• Press to record a new track. Up to 8 tracks

can be recorded.

• Press to delete the last recorded track.

• Press and hold for 2 seconds to delete all

recorded tracks.

• Press repeatedly to select a sound

effect (Drums / Keyboard / Piano / DJ /

Customized).

10)

• Press to enter color control mode to toggle

between different light colors of your PartyBox

front panel and wristband.

11)

• Press once to play or pause the music.

• Press twice to play the next track.

• Press three times to play the previous track.

12) /

• Press to decrease or increase the volume

level.

• Press both simultaneously to mute the audio

output.

13)

• Press repeatedly to switch between sound

boost level 1 and level 2 or turn off.

14)

• Press to turn the Smart DJ on or off.

Notes:

– Smart DJ analyze music rhythm and mix DJ effects with

harmonize beats.

– Smart DJ lls the void of silence between two tracks and play

music continuously with BT and USB sources.

15)

• Rotate to adjust echo volume.

16)

• Rotate to adjust the key level.

17)

• Press to cancel or restore the human voice.

Notes:

– : Support only Bluetooth and USB.

– / : Support all the sources (Bluetooth, USB,

Aux, and RCA).

– / / : Work only when the Mic is plugged.

2.2 DJ pad

Color control

Press to enter color control mode, then press

any DJ control key to select color for the light of both

PartyBox and wristband nearby. The color will stay for

5 seconds. To keep the color constant, press and hold

the DJ control keys.

1) Press and hold until the left strobe light turns on.

2) Press and hold until the right strobe light turns on.

3) Press and hold until the ring light turns off.

4) Press and hold until the panel light turns off.

Sound effects

Press repeatedly to select a sound effect (Drums /

Piano / Keyboard / DJ / Customized).

Drums (defaulted) Keyboard

Piano DJ effects

Customized effects

1) Insert a USB stick.

2) Press repeatedly to select the USB source.

3) Press repeatedly to select customized effects.

4) The sound samples stored in the USB will be

loaded. During the loading, all keys will breathe

in pink by turns (The samples will be loaded in

Alphabetical order, up to 16 samples).

Note:

– Support MP3 format only.

Recording

1) Press to start recording, when a control key is

pressed, the white LED will light on. The harder

you press the keys, the louder sound will play.

After recording for 30 seconds, the recording will

automatically stop, or press again to complete

the recording.

2) Press to record a new track. The newly recorded

track will overlap play in a loop with previously

recorded tracks. Later recorded tracks will be

shorter or equal to the first track.

3) Press to delete the last recorded track. To

delete all recorded tracks, press and hold for 2

seconds.

2.3 Back panel

1) USB

• Connect to a USB storage device.

• Charge an external USB device.

2) AUX

• Connect to an external audio device through

an audio cable.

3) LINE OUT

• Connect to the analog audio input jacks of

another analog device through RCA audio

cable.

4) LINE IN

• Connect to the analog audio output jacks of

an analog device through RCA audio cable.

5) GUITAR

• Connect to a guitar (not provided).

6) MIC

• Connect to a microphone (not provided).

7) VOLUME (MIC)

• Rotate the knob to adjust the microphone

volume to your desire loudness level.

8) VOLUME (GUITAR)

• Rotate the knob to adjust the guitar volume

to your desire loudness level.

9) GAIN

• Guitar and microphone gain control buttons

to match different sensitivity of the mic and

guitar.

3Power on

4Connections

4.1 Bluetooth

10m (33ft)

DEVICES

JBL PartyBox 1000

Bluetooth

4.2 USB

4.3 AUX

4.4 LINE IN

AUDIO OUT

LINE IN

5Air Gesture Wristband

5.1 Power on / off

• Press to power on the Air Gesture Wristband,

and it will be automatically paired with the PartyBox.

• Press to power off the Air Gesture Wristband.

PAIRING

USING

15m

Notes:

– For better performance make sure the wristband is worn

rmly.

– When the Wristband is connected to the PartyBox the LEDs

colors are sync to the PartyBox front panel.

– The Air Gesture Wristband will be connected automatically

with the closest PartyBox 1000.

– The DJ wristband has the battery life of 10 hours. When the

battery is low, the LED ashes red and the DJ wristband will

power off ve minutes later.

– Only one Wristband can connect to one PartyBox.

5.2 Control PartyBox by using Air Gesture

Wristband

Gesture Action

Clap ×2 Play sound effect 1

Shake ×4 Play sound effect 2

Rotate Switch light patterns

Notes:

– Each time you power on the device, Sound effect 1 and 2

return to the defaults.

– For the sound settings users select on the DJ pad, the last

chosen tones are synchronized to Sound effect 1 and the

chosen tones just before the last ones are synchronized to

Sound effect 2.

Mixing sound with microphone/

guitar (not provided)

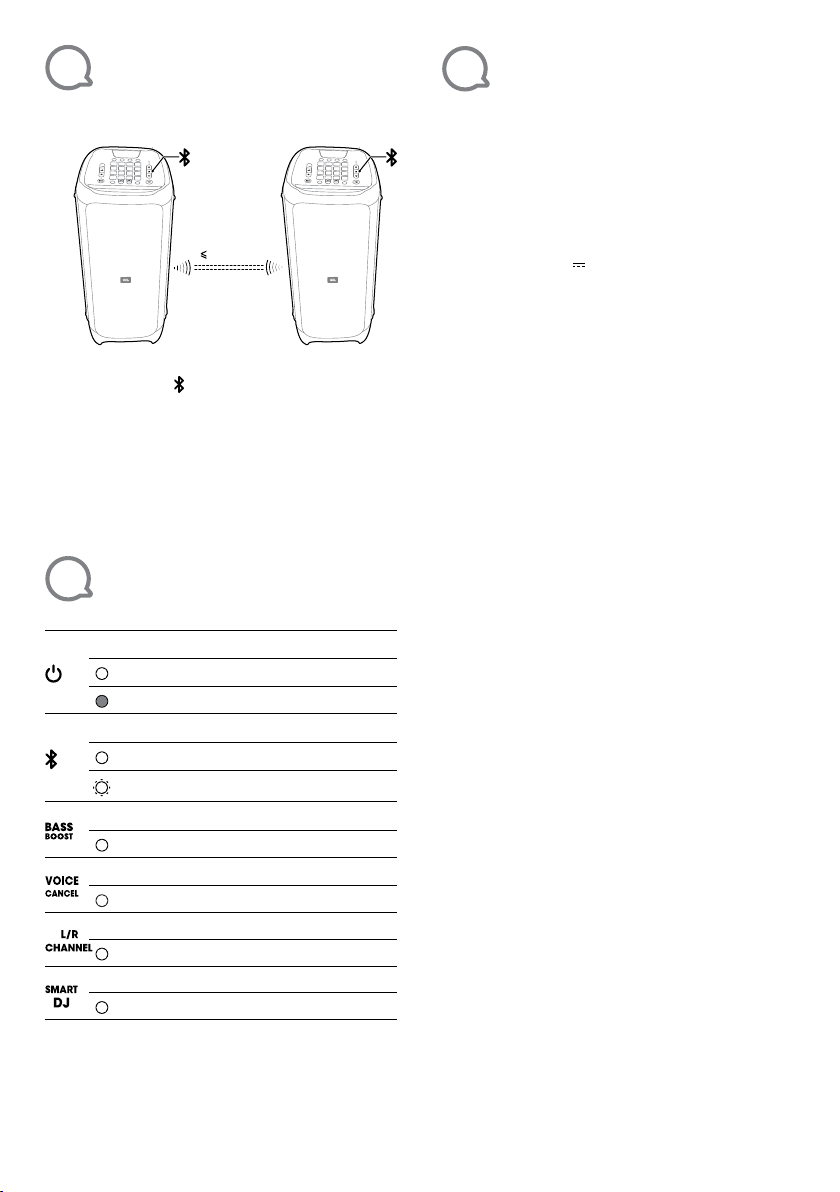

7TWS (true wireless stereo)

mode

10m (33ft)

1) Press and hold on both speakers for 5 seconds,

TWS connection will be built up.

2) Press L/R button on one speaker to toggle between

L channel / R channel and Stereo, the other speaker

will change the setting automatically.

Note:

– For best performance do not place any obstacles between

the two speakers.

8LED behavior

Off Power off

White (Constant) Power on

Amber (Constant) Standby

Off Not connected

White (Constant) Connected

White (Flashing) Pairing

Off Off

White (Constant) On

Off Off

White (Constant) On

Off Off

White (Constant) On

Off Off

White (Constant) On

9Specifications

• AC power input: 100-240V ~ 50/60Hz

• Power consumption: 150W

• Standby power consumption:

<2W with BT connecting;

<0.5W without BT connecting

• USB output: 5V 2.1A

• Speaker drivers: 1 x12" Sub woofer + 2 x 7"

Mid-range + 1 x Compression driver

• Speaker impedance: Sub woofer 3ohm / Mid-

range 4ohm / Compression driver 4 ohm

• Total output power: 1100W

• Frequency response: 30Hz -20kHz(-6dB)

• Signal-to-noise (S/N) ratio: 80dBA

• Wristband battery usage time: 10h

• Bluetooth version: 4.2

• Bluetooth profile: A2DP V1.3, AVRCP V1.6

• Bluetooth transmitter frequency range:

2402-2480MHz

• Bluetooth maximum transmitter power: 15dBm

(EIRP)

• Bluetooth transmitter modulation: GFSK, π/4

DQPSK, 8DPSK

• Bluetooth range: Approx. 10m (33feet)

• USB file system: FAT16, FAT32

• USB file format: .mp3, .wma, .wav

• Air gesture wristband: BLE technology

• Dimensions (W x H x D): 397 x 1050 x 390 mm /

15.6 x 41.3 x 15.4 in

• Net weight: 34.7 kg / 76.5 lbs
