JBL AM7212/95-WH Bedienungsanleitung

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL AM7212/95-WH

REV B

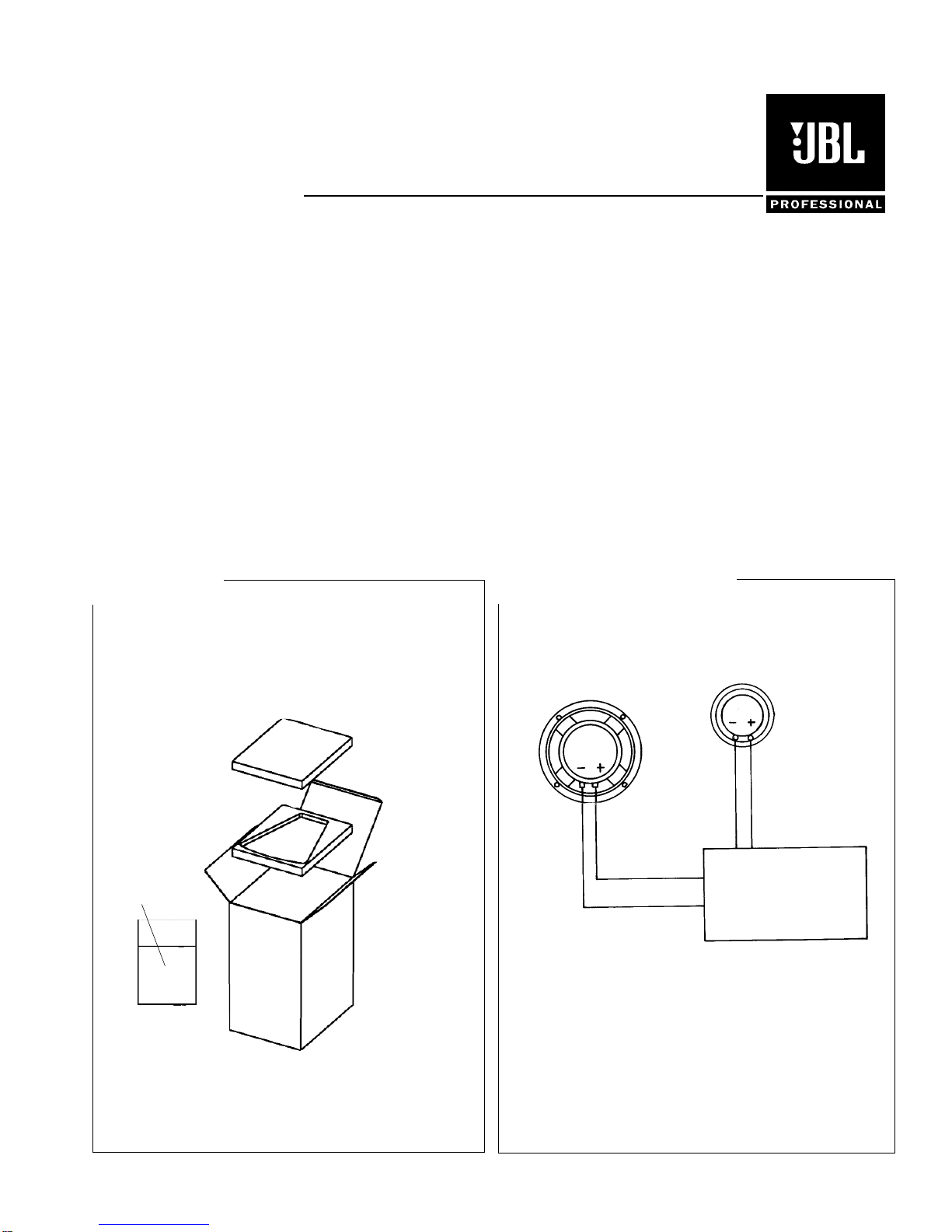

PACKAGE WIRING DIAGRAM

02-10

Technical Manual

JBL AM7212/95-WH

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• Transducer Power LF: 1000W (4000W peak), 2 hrs

Rating (AES): 700W (2800W peak), 100 hrs

HF: 100W (400W peak), 2 hrs

• Long-Term Power Passive mode: 600W (2400W peak),

Rating (IEC): 100 hrs

• Frequency Response: 42 Hz - 18 kHz (±3 dB)

• Frequency Range: 36 Hz - 20 kHz (-10 dB)

• Maximum SPL:

Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak)

HF: 133 dB-SPL cont avg (139 dB peak)

Passive mode: 123 dB-SPL cont avg (129 dB peak)

• System Sensitivity: Passive mode: 95 dB SPL

1 watt @ 1 meter

• Passive Crossover

Frequency: 1.4 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 338163-007, 338163-107 (WH)

• Low Frequency 2262HPL, 300 mm (12 in)

SYSTEM COMPONENTS:

(CONT’D)

Transducer: Differential Drive®, driver with 75 mm

(3 in) dual voice coil

• DC Resistance: 5.1 ohm

• High Frequency 2432H, 38 mm (1.5 in) exit

Transducer: compression driver,75 mm (3 in)

voice coil

• DC Resistance: 4.00 ohm +/- 0.2 ohm

• Crossover Network: 443838-001

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 7.0V Input, 10 Hz to 10 kHz

Sweep Duration: 5 seconds

B. L.F. Aural Sweep Test: 10V Input, 10 Hz to 1 kHz

C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 711 x 369 x 458 mm D

(28.0 x 14.5 x 18.0 in.D.)

• Net Weight: 51 lb (23.1 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

YEL/BLK

GRN/BLK

GRN

YEL

Network Assembly

443838-001

Driver, Low Freq.

2262HPL

(338312-004X)

Cone Repl

C8R2262

Driver, High Freq

2432H

(365512-001X)

Diaph Repl

D8R2432

SEE NETWORK SCHEMATIC PAGE

Carton

352188-001

Filler (2)

352187-001

PKG,Microfoam (4)

49790P

20” x 18” Sheets

Warranty

59660

Installation Sheet

339390-067

Sticker, Logo

339397-001

Bag

21784

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

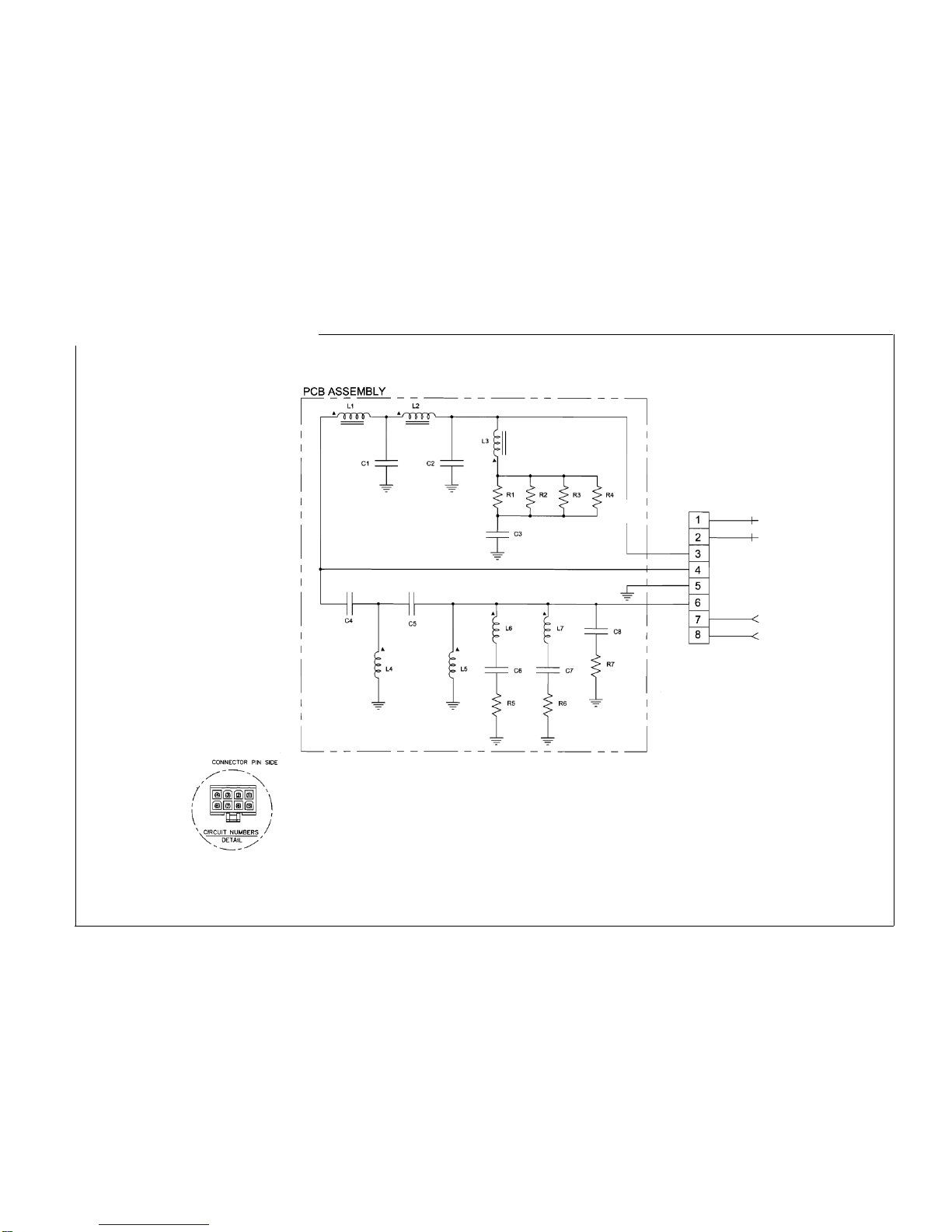

SCHEMATIC (443838-001) JBL AM7212/95-WH

JBL AM7212/95-WH

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

1.30mH 1.30mH 4.00mH

0.400mH 0.150mH

0.160mH 0.091mH

33.uF

250V 27.0uF

250V

12.0uF

250V

3.01uF

250V 2% 16.0uF

250V

18.0uF

250V 3.60uF

250V

4.70uF

250V

70.0 Ohms

70.0

Ohms

2.2 Ohms 2.7 Ohms

0.75 Ohms

GRN/BLK

GRN

RED

BLK

YEL YEL/BLK

YEL + 0.187

- 0.250

8 Pin

Connector

Molex P/N

39-01-2080 -

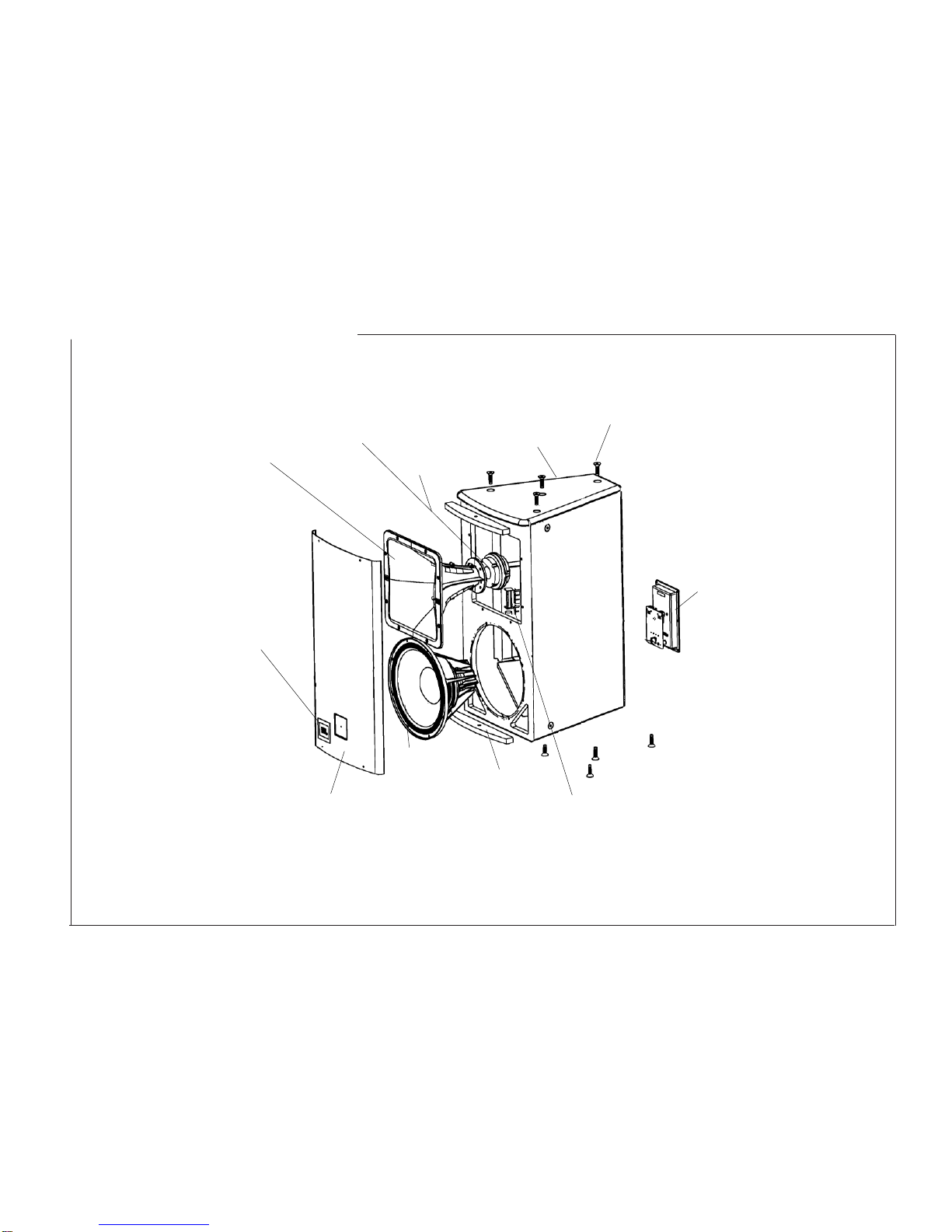

COMPONENT EXPLODEDVIEW JBL AM7212/95-WH

JBL AM7212/95-WH

Grille Assembly

338163-007

338163-107 (WH)

Screw (6)

882-51110-12

882-51160-12 (WH)

6 x 3/4

OV,PH,PTCL

ZINC,LCS

Driver, Low Freq.

2262HPL

(338312-004X)

Cone Repl

C8R2262

Screw (8)

804-01110-16

10-32 x 1

FIL,PH,BLK

ZINC,LCS

Gasket

339391-001

12”

Grille Support (2)

338623-001 Network Assembly

443838-001

Screw (8)

882-41110-10

6 x 5/8

PAN,PH,PB

BLK ZINC,LCS

Input Plate

339336-001

Screw (6)

882-41110-10

6 x 5/8

PAN,PH,PB

BLK ZINC, LCS

Input Label (HADM)

440926-005

Label

339339-079

339339-179 (WH)

Bolt (15)

352051-001

352051-002 (WH)

M10 x 25MM

HEX

Driver, High Freq. ThreadLock

2432H 352951-001

(365512-001X) 9 Gram Stick

Diaph Repl Loctite 248

D8R2432 Nut (4)

Stud (4) 834-30010-00

75815 1/4 KEPS

1/4-20 x 1.5”LG BLK ZINC,

LCS,RIGHT

Waveguide

443495-001

Screw (8)

804-41110-12

10-32 x 3/4

PAN,PH,BLK

ZINC, LCS

Logo, Grille

339401-001

339401-002 (WH)

Push Nut

350689-001

Compression Spring

350690-001

Washer

76168

BLK.715ID .75OD

Enclsoure Assembly

AM7212/95-WH

(Not Available for Sale)

Mounting Support (6)

381-00023-01

90 Degrees 2X M10

(internal)

Screw (12)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS

Mounting Bracket (3)

338652-001

(internal)

Screw (6)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS
