125 SAT (Satellite for SCS125/SCS125a)

ACOUSTIC & ELECTRICAL SPECIFICATIONS

• Nominal Impedance 8 ohms

• Max Amp Power 50 watts

• Frequency Response 200Hz – 20kHz

• Sensitivity 86 dB, 1 watt @ 1 meter

SYSTEM COMPONENTS:

• Cabinet 125SAT (Not for sale)

• Grille G02005-B

• Low Frequency Transducer 3” Shielded Midrange

(N68A45PF-02DW)

DC Resistance 4.0 ohms ±10%

• High Frequency Transducer 1/2” Dome Tweeter

(Not Replaceable)

DC Resistance ()Piezo Design

• Crossover Network 125SAT (Not Available)

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 4.0V Input 200 Hz to 20 kHz

• L.F. Aural Sweep Test 4.0V Input 200 Hz to 12 kHz

• H.F. Aural Sweep Test 2.0V Input 8 kHz to 20 kHz

PHYSICAL SPECIFICATIONS

• Enclosure dimensions: 4 3/8” x 3 3/16” x 3 3/4”

(H x W x D)

SHIPPING WEIGHT:

• 1 lbs. (.45 kg) part of the SCS125/SCS125a

WARRANTY:

• Refer to Warranty Statement packed with each product.

125SAT Speakers

SAT 125

Owner's Manual

AI0360

Warranty Card

AI0193

Plastic Bag

Outer Carton

WB1782

Foam Set

WP0344

Mural Stand

WI0409

Wall Hook

WI0408

SUB125

Optional 125SAT Speaker Stands:FS300

PACKAGING

DRIVER

HIGH FREQUENCY

DRIVER

LOW FREQUENCY

N68A45PF-02DW

+

–

+

–RECEPTACLE

NETWORK

125SAT

(Not Available)

WIRING DIAGRAM

Polyswitch 17µF 50V

++

–

–

–

+

Input L.F.

H.F.

200 µF

50V

6 Ω

10W

3Ω5W

0.3 mH

RED

RED

BLK

BLK

125 SAT SCHEMATIC

Technical Manual

125 SAT

(Satellite for SCS125/SCS125a)

JBL Incorporated 250 Crossways Park Dr. Woodbury, New York 11797 Rev1 12/2003

125SAT (Not Available)

Logo

W10778-1

Low Frequency Transducer

N68A45PF-02DW

Spacer

Not for Sale

Baffle Screw (4) 5/8"

A06t41602

Baffle Screw (2) 5/8"

A06-t41605

Tweeter Mount Screw

(2) A06-t30803

Tweeter

Grille Assembly

G02005-B

Rubber Foot (Front)

W10782

Dacron Filler

Gasket

Not For Sale

Rubber Foot (Rear)

W10781

Cabinet 125SAT

(Not For Sale)

Wall Hook

WI0408

Mural Stand

WI0409

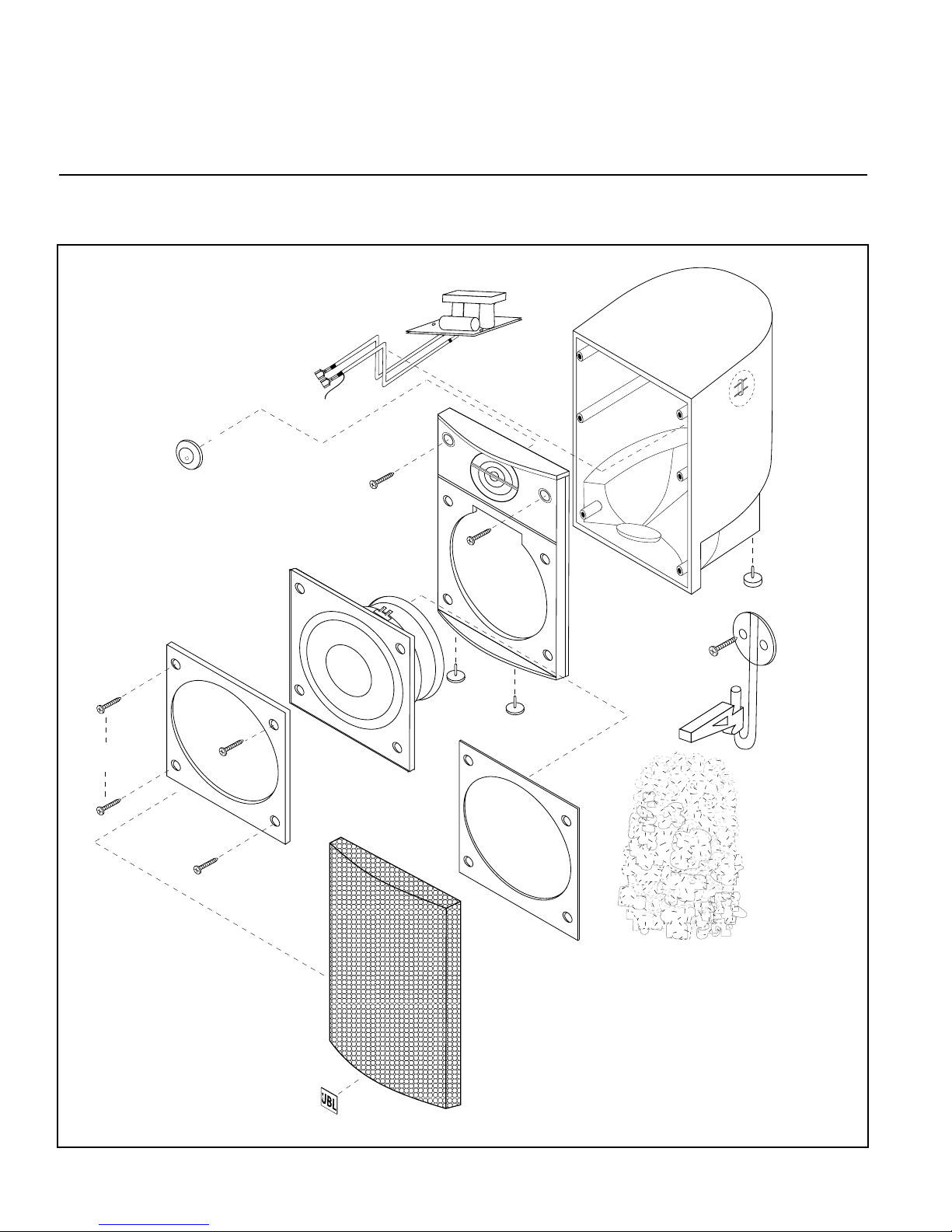

COMPONENT EXPLODED VIEW

125 SAT

(Satellite for SCS125/SCS125a)

125 SAT (Satellite for SCS125/SCS125a)

JBL Incorporated 250 Crossways Park Dr. Woodbury, New York 11797 Rev1 12/2003
