JBL FSN24 Bedienungsanleitung

THANK YOU FOR CHOOSING JBL

For more than 50 years, JBL

has been involved in every

aspect of music and film

recording and reproduction,

from live performances to the

recordings you play in your

home, car or office.

We’re confident that the

JBL products you have

chosen will provide all of the

enjoyment that you expected –

and that when you think

about purchasing additional

audio equipment for your

home, car or office, you will

once again choose JBL.

Please take a moment to

complete the enclosed

profile card. It enables us

to keep you posted on our

latest advancements, and

helps us to better understand

our customers and build

products that meet their

needs and expectations.

JBL Consumer Products

Two floor-stand posts,

with “knurled” nuts,

cone-shaped fittings,

and 19mm-long hex

head bolts installed.

Two weighted bases.

INCLUDED

ASSEMBLY 1. Unscrew the bolt from the

bottom of the post.

2. Insert the post into the

hole at the rear of the base.

3. Orient the post so that

the openings near the top

and bottom of the post

face toward the rear of

the base, making sure that

the alignment fin on the shaft

fits into its corresponding

recess in the back of the

hole on the base.

4. Slip the bolt up through the

hole in the bottom of the base

and into the threaded hole in

the bottom of the post.

5. Check the alignment

of the post and base;

tighten firmly using a

3/4-inch socket wrench.

PRODUCT LINE:

NORTHRIDGE SERIES

PRO SOUND COMES HOME™

OWNER’S GUIDE

For use with

N24 loudspeakers

MODEL NUMBERS:

FSN24 FSN26

For use with

N26 loudspeakers

FSN24,26 OM 12/8/99 2:01 PM Page 1

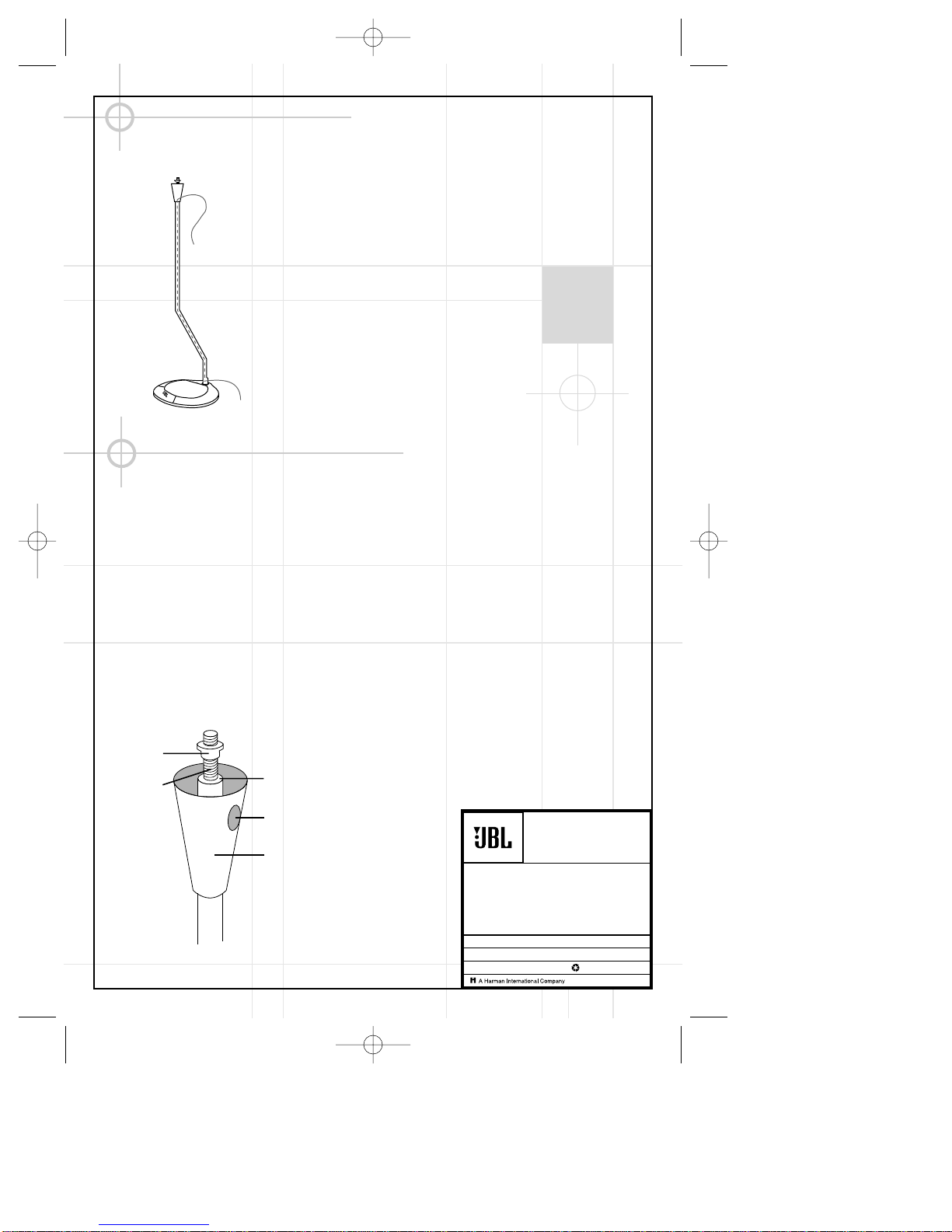

WIRE HOOKUP

ATTACH SPEAKER

“Fish”the speaker wire

through the stand posts

and bring it out through the

round hole on the cone-

shaped fitting.

1. While looking at the top of

the stand, turn the “knurled”

nut (a) that is installed on top

of the threaded shaft (b), by

hand clockwise, until it is

seated against the top of the

stand post (c).

2. Place the speaker on top

of the stand, with its stand-

attachment hole on the

bottom aligned with the

stand’s threaded shaft (b).

Be careful when starting

the threads to avoid cross-

threading (misaligning the

threads –see Step 3);

cross-threading may damage

the speaker and/or the stand.

3. Once the threads are

properly aligned and engaged

(if the threads are not

properly engaged, the

speaker will not easily rotate

on the shaft), turn the speaker

clockwise (while looking at

the top of the speaker) 8 to 10

turns. The speaker should by

then be securely attached to

the stand post. Make sure

that the speaker grille is

facing forward.

4. Using a suitable wrench

(not included), securely

tighten the “knurled”nut (a)

up against the bottom of the

speaker until the floorstand

post and the speaker are

fully locked together, so

that neither can be rotated

by hand.

5. Pull the cone-shaped fitting

(d) up against the speaker

bottom, with its speaker wire

hole (e) toward the back.

6. Connect the speaker

wires to the speaker as

outlined in the speaker’s

owner’s manual.

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

800-336-4JBL (4525) (USA only)

www.jbl.com

JBL is a registered trademark of JBL, Incorporated.

Part No.FSN24/FSN26 O/G

PRO SOUND

COMES HOME™

FSN24,26 OM 12/8/99 2:01 PM Page 2
