JBL AW595/-BK

REV A

PACKAGE WIRING DIAGRAM

02-12

Technical Manual

JBL AW595/-BK

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impediance: 8 Ohms

• Long-Term System Power

Rating (IEC): 600W, (2400W Peak),100 hrs

• Frequency Response (±3 dB):55 Hz - 19 kHz

• Frequency Range (-10 dB): 35 Hz - 20 kHz

• Maximum SPL:

Passive Mode: 128 dB-SPL cont avg (130 dB peak)

• System Sensitivity:

Passive Mode: 100 dB SPL, 1 Watt @ 1 Meter

• Passive Crossover

Frequency: 1.2 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not for Sale)

• Grille: 445176-001 (BK), 445176-002 (Gray)

• Low Frequency 2265H, 380 mm (15 in) Differential

Transducer: Drive®driver with 75 mm (3 in) dual

voice coil

• DC Resistance: 5.10 ohm +/- 10%

SYSTEM COMPONENTS:

(CONT’D)

• High Frequency 2432H, 38 mm (1.5 in) exit

Transducer: compression driver, 75 mm (3 in)

vice coil

• DC Resistance: 4.0 ohm +/- 2 ohm

• Crossover Network: 5004551

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural SweepTest: 7V Input, 10 Hz to 10 kHz

B. L.F. Aural Sweep Test: 15.0V Input, 10 Hz to 100 Hz

C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 485 x 810 x 478 mm D

(horizontal orientation): (19.1 x 31.9 x 18.8 in.D.)

• Shipping Weight: 62.5 lb (28.3 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Network

Assembly

5004551

Wire Harness

44350-001

Driver, High Freq.

2432H

(365512-001X)

Diaph Repl

D8R2432

Driver, Low Freq.

2265HPL

(338343-003X)

Cone Repl

C8R2265

YEL

YEL/BLK

GRN

GRN/BLK

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

SEE NETWORK SCHEMATIC (5004551) PAGE 2

SEE WIRE HARNESS DIAGRAM (446350-001) PAGE 3

Owner’s Manual

5012278

Carton

5012263

Filler (2)

5012264

PKG, Mircofoam (6)

49790P

70V/100V Transformer Taps: 70V: 400W, 200W, 100W

100V: 400W, 200W

JBL AW595/-BK

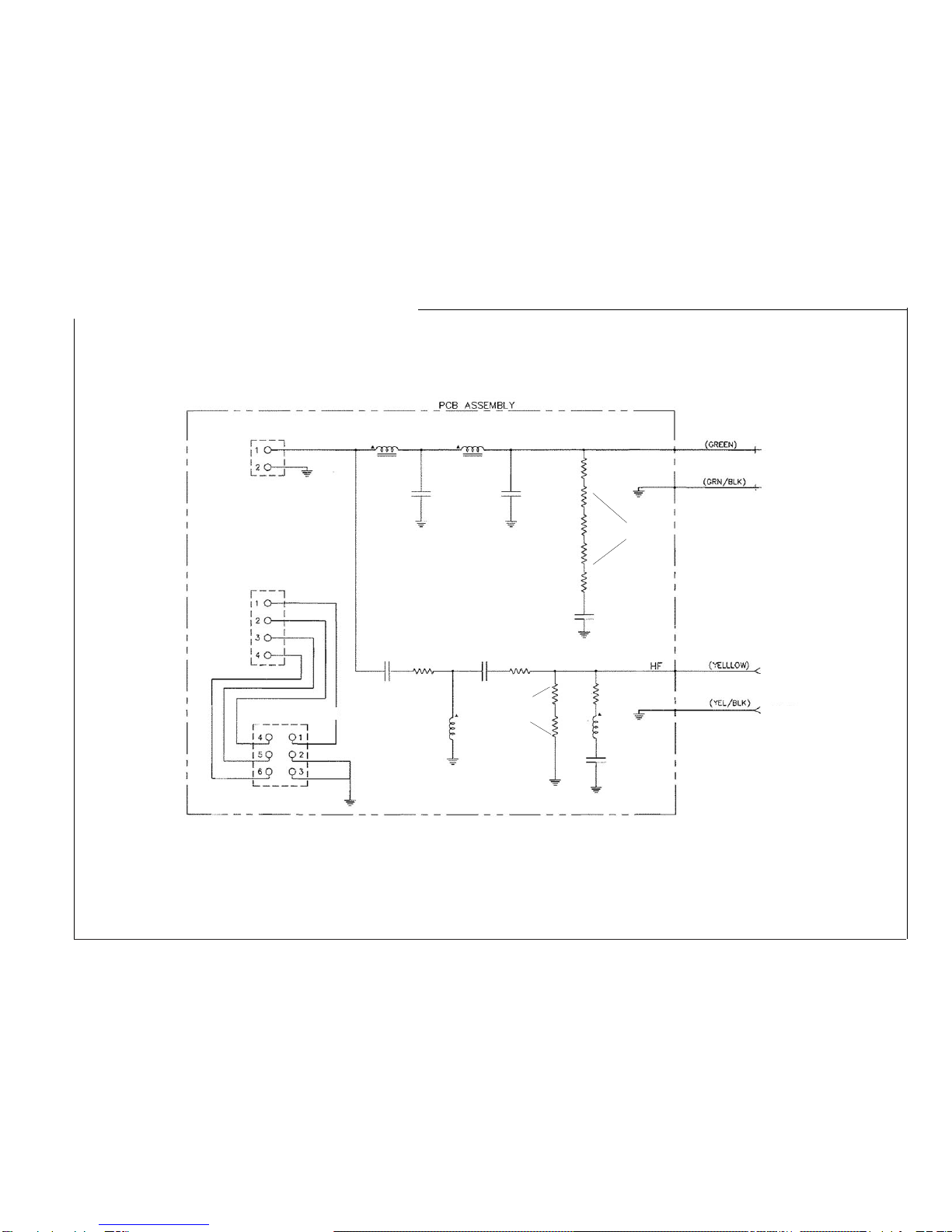

NETWORK SCHEMATIC - (5004551)

JBL AW595/-BK

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

Connector, 2-Pin

Connector, 4-Pin

Connector, 6-Pin

1.00mH 0.680mH

0.510mH 0.560mH

15.0uF

250V

24.0uF

250V 10.0uF

250V

6.80uF

250V 13.0uF

250V

6.20uF

250V

1.60 ohms

0.200

ohms

0.750

ohms

3.30

ohms

4.70

ohms

Faston, Female, + 0.187

Faston, Female, - 0.250

JBL AW595/-BK

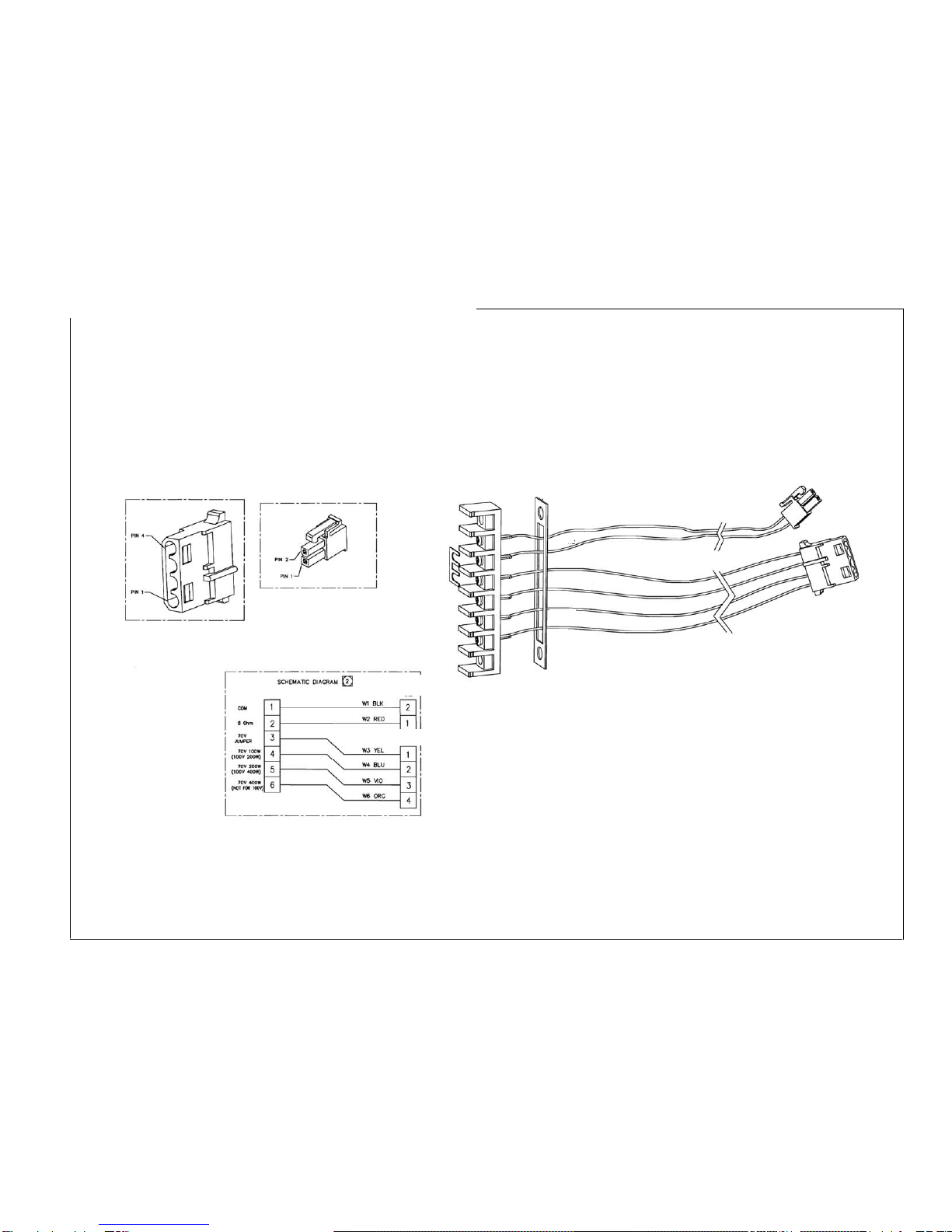

WIRE HARNESS DIAGRAM - (446350-001)

JBL AW595/-BK

BLK

RED

YEL

BLU

VIO

ORG

Molex Connector

#0390-12025

Molex Connector

#0015-244048

Molex Connector

#0390-12025

Molex Connector

#0015-244048

Barrier Strip

JBL AW595/-BK

COMPONENT EXPLODED VIEW

Enclosure for AW566/-BK

(Not Available for Sale)

Driver, High Freq.

2432H

(365512-001X)

Diaph Repl

D8R2432

Stud (4)

75815

1/4-20 x 1.5”LG

Nut (4)

834-30010-00

1/4-20 KEPS,BLK

ZINC, LCS,RIGHT

Waveguide

443495-001

Screw (8)

804-01156-16

10-32 x 1 PH,

PAN,HD,M/S

18-8

Driver, Low Freq.

2265HPL

338343-003X

Cone Repl

C8R2265

Screw (8)

874-33156-16

10-32 x 1

SOCKET, HEAD, C/S

STAINLESS, STEEL

Gasket

339391-001

Rear

Dome

71646-04

Gasket, Bracket (4)

5012025

Screw (2)

816-93556-35

M6 x 1MM x 35MM

SS,BTN,SKT

Screw (2)

818-93756-35

M-10 - 1.5 x 35MM

BUT,HD,SOCK,

C/S,8-18

Washer, Bracket (2)

5012219 (Gray)

5012026 (BK)

Wire Assembly

446350-001

Screw (2)

803-41056-16

8-32 x 1

PAN,PH,SS

Rear Cover

446147-002

446147-001 (BK)

Screw (6)

804-51156-12

10-32 x 3/4

OVL,PAN,HD,

SS,18-8

Gasket, Rear Cover

5012330

Bracket

5012380 (Gray)

5004585 (BK)

Screw (1)

818-93756-35

M-10 - 1.5 x 35MM

BUT,HD,SOCK,

C/S,8-18

Washer

364542-001

3/8 x.875

STAINLESS STEEL

NEOPRENE BACK

Grille Assembly

445176-002 (Gray)

445176-001 (BK)

Screw (14)

802-51056-20

6-32 x 1 1/4

OVAL,PH,SS

Logo Badge

5007401

Network

Assembly

5004551

Screw (6)

883-41110-12

8 x 3/4

PAN,PH,PB

BLK,ZINC,LCS

Transformer

445736-001

Screw (4)

804-41110-16

10-32 x 1

PAN,PH,BLK

Washer (4)

843-00110-00

#10 TYPE A,

BLK, ZINC

Washer (4)

843-03110-05

#10, SPLIT, BLK,

STEEL
