JBL EON 515 Bedienungsanleitung

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL EON515/230 REV E

PACKAGE WIRING DIAGRAM

03-10

Technical Manual

JBL EON515/230

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• System Power Rating: 450 W continuous, 900 W peak

• Frequency Response: 42 Hz – 18 kHz (± 3 dB) (EQ in “Flat”

position)

• Frequency Range: 39 Hz – 20kHz (-10 dB) (EQ in “Flat”

position)

• LF Power Amp: 350 W continuous at driver impedance

• HF Power Amp: 100 W continuous at driver inpedance

• Input Gain (input 3): Mic position: -Infinity to +40 dB

Line position: -Infinity to +4 dB (+20

dBu Max signal input)

• Input Gain (input 1 & 2): -Infinity to +4 dB (+20) dBu Max signal

input)

• Input Impedance: 64 K ohms (balanced) 32 K (unbal-

anced)

• Boost EQ: LF +3 dB Shelfing Filter @ 200 Hz

HF + 25 dB Shelfing Filter @ 4 kHz

• Low Cut Filter: Preset high pass @ 120 Hz

• Crossover Frequency: 2.2 kHz

SYSTEM COMPONENTS:

• Cabinet: (Not for Sale)

• Baffle/Grille Assembly: 441739-001

• Low Frequency 265F-1 380 mm (15 in) Different-

Transducer: ial Drive®integated woofer with dual

2” voice coils

SYSTEM COMPONENTS:

(CONT’D)

• DC Resistance: 1.35 ohm ±10%

• High Frequency 2414H 25.4 mm (1 in ) neodymium

Transducer: compression driver

• DC Resistance: 3.60 ohm ± 0.2%

• Input 3 connector: Balanced XLR / 1/4 inch TRS combo

jack with XLR loop through

• Input 1 & 2 connectors: Balanced 1/4 inch TRS jack

• Output (Loop/Mix switch): Balanced male XLR, +20 dBu (peak)

o/p level in MIX position

• XLR Pin Assignments: Pin 2 (+), Pin 3 (-), Pin 1 (GRN)

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 1.0Vrms Input, 20 Hz to 2 kHz

Ch 1 input all and pots full clockwise

B. L.F. Aural Sweep Test: 3.5V Input,10 Hz to 300 Hz

C. H.F. Aural Sweep Test: .75V Input, 500 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 685 x 435 x 366 mm D

(27.0 x 17.3 x 14.4 in D)

• Shipping Weight: 32.5 lbs. (14.8 kg)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Amplifier Assembly

Wire Harness Assembly

364836-001

Driver, High Freq

2414H

(342423-002X)

(SEE SCHEMATIC PAGE)

Driver, Low Freq.

265F-1

(363837-001X)

Cone Repl

C2R265-1

BLU

GRN

BLU / BLK

GRN/BLK

Fillers (2)

364823-001

Bag

322591-001

19”x16”xc42” LG

.003 THKLDPE

CLEAR

Carton

364824-001

Cord, AC, Line

425-00000-00 120V

425-00000-01 230V

Warranty 59660

Owners Manual

364822-001

(Available on web-site

only)

-+-+

JBL EON515/230

SCHEMATIC (Wire Harness)

364836-001

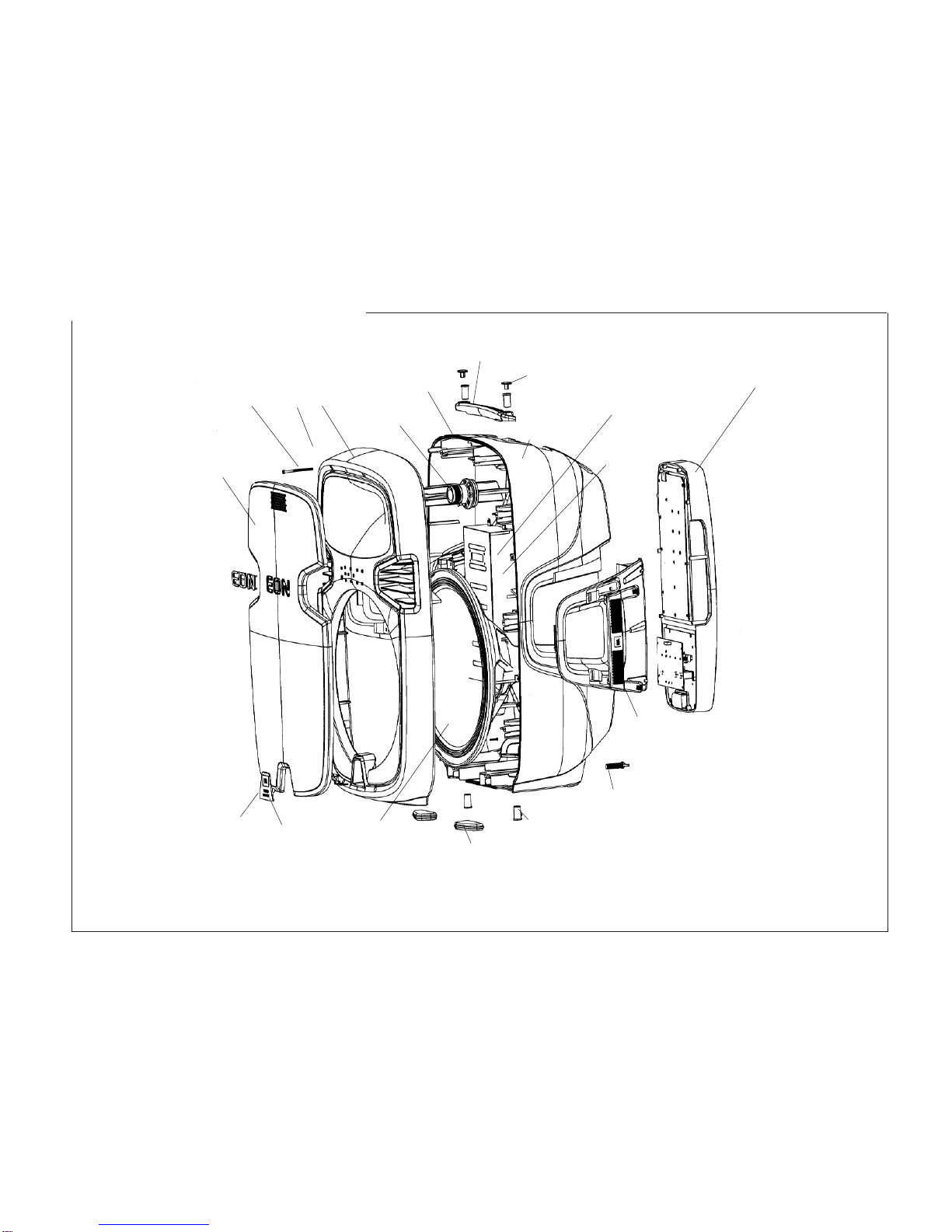

COMPONENT EXPLODEDVIEW JBL EON515/230

Screw

813-21300-10

M3 .5X 10MM

RND, PH, CLR,

ZINC LCS Rubber Foot (2)

364802-001

Fly Bolt (4)

364616-001

Nut (4)

838-00800-00

M14,REG,CLR ZINC,RH

Washer (4)

848-00100-02

M14,REG, CLR ZINC

Driver, Low Freq.

265F-1

(363837-001X)

Cone Repl

C2R265-1

Screw (8)

365626-001

M5 PTx25MM

FIL,PH,BLK,ZINC,

Thumbscrew

364983-001

Handle Pocket Assembly

365135-001

Screw (4)

365627-001

M4 X 25MM

FIL,PH,BLK, WASHER HD

Amp Board

444969-001

Input Module

442973-001

A/C Inlet PCB

365428-001

Interface PCB

138927-1_4JBL

Amplifier Gasket (2)

364821-001

Screw (12)

813-41300-15

M3 .5X 15MM

PAN,PH,CLR ZINC,LCS

Wire Harness

364836-001

Heat Sink

364674-001

Input Plate

364676-001

Logo, Heat Sink

364678-001

Cover Badge, Heat Sink

364679-001

Clip, MRX IGBT

138556-1JBL

Clip, EON 500 to -220

140323-1JBL

Silipad, EON515

140324-1JBL

Silipad, EON 500

140325-1JBL

Silipad, EON515 IGBT

138526-1JBL

Silipad, MRX

138525-1JBL

Enclosure Assembly

EON515 (Not Avail.)

Sound Dampener (3)

365625-001

Cover,Fly Bolt (2)

364805-001

Upper Handle

364654-001

Gasket,Enclosure

364835-001

Insert

365433-001

M6 x 12MM PPB TYPE

Driver,High Freq.

2414H

(342423-002X)

Screw (10)

365270-001

M4 x .65

Washer (10)

365156-001

Rubber

Screw (33)

862-41410-10

6 x 5/8

PAN,PH,HIGHLO,

BLK ZINC,LCS

Screw (4)

814-41300-06

M4 x 6MM

PAN,PHILLIPS CLEAR,

ZINC

Screw (2)

365435-001

M4 x 5MM

TREAD CUTTING

Amplifier

Sheild

365107-001

JBL EON515/230

Baffle/Grille

Assembly

441739-001

Logo Assembly

364804-001
