JBL EON15 G2 Bedienungsanleitung

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL EON15-G2 REV N

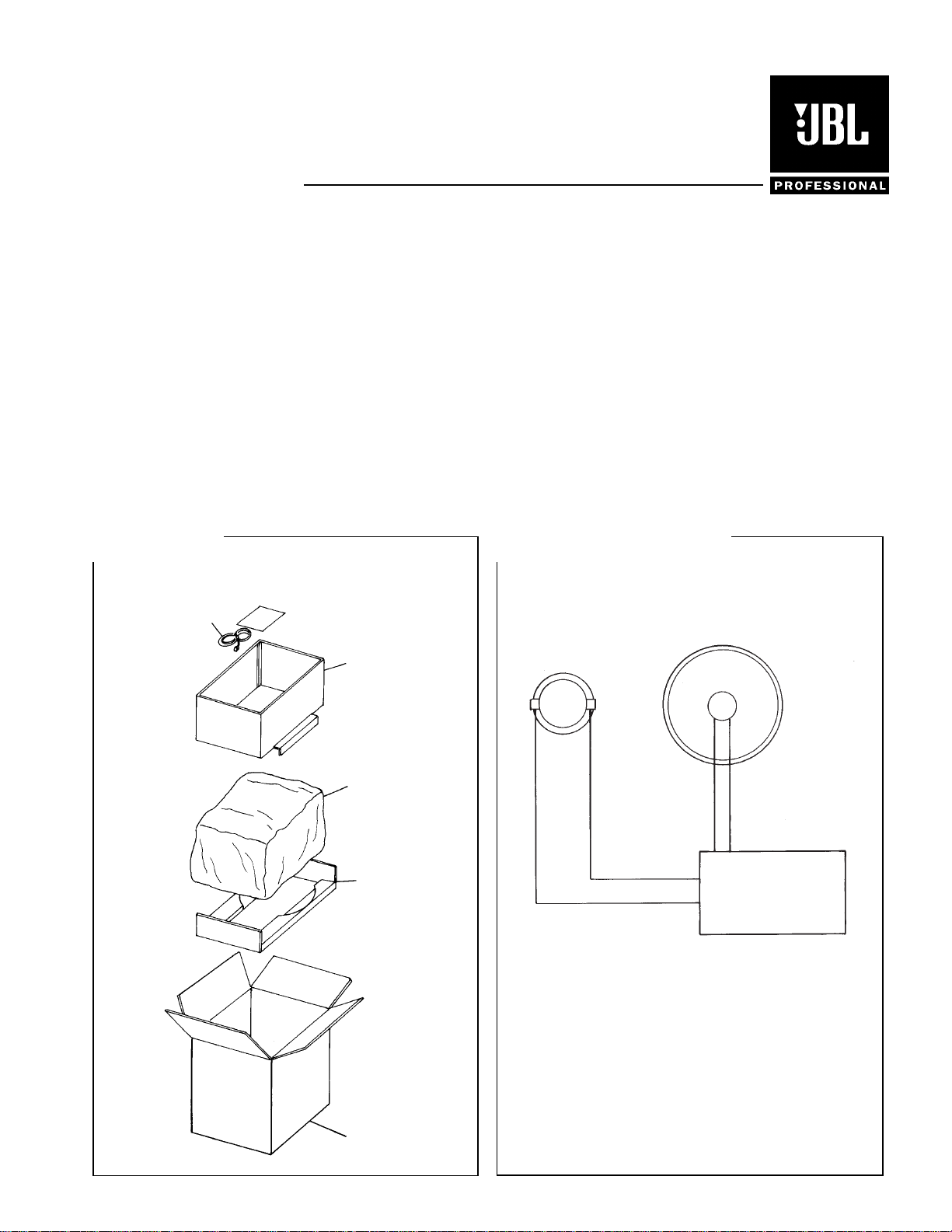

PACKAGE WIRING DIAGRAM

10-03

Technical Manual

JBL EON15-G2

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Power Capacity: 300 Watts @ Low Frequency

Driver Impedance.

100 Watts @ High Frequency

Driver Impedance

• Frequency Range: 39 Hz – 18 kHz (± 10dB)

• Sensitivity: 129 dB SPL, 1 Watt @ 1 Meter

• Crossover Frequency: 1.5 kHz

SYSTEM COMPONENTS:

• Low Frequency Integral Frame with one 15” (380 mm)

Transducer: Driver, Dual Neodymium Magnet, 2”

Differential-Drive Voice Coil

• DC Resistance: 1.4 ohm ±10%

• High Frequency JBL 2418H-1 1” (Throat Dia.)

Transducer: Compression Driver with 1.75 Dia.

Titanium Diaphragm. Ferro-fluid Cooled.

• DC Resistance: 3.7 ohm ±10%

• Input 1 Sensitivity: -44 dBu to -22 dBu for Rated Output

(Mic/Line Switch in Mic Position)

-12 dBu to +20 dBu for Rated Output

(Mic/Line Switch in Line Position)

SYSTEM COMPONENTS:

(CONT’D)

• Input 2 & 3 Sensitivity: -18 dBu to +20 dBu for Rated Output

• Output Level: +20 dBu (peak), Loop/Mix Switch in

MIX position.

• Audio Connectors: Input 1: XLR/F Balanced

Input 2 & 3: 1/4” Phone, Balanced

(TRS)

AURAL SWEEP TEST SPECIFICATIONS:

A. System Aural Sweep Test: 200mv input RMS, pot at 1/2, tone

flat.

B. L.F. Aural Sweep Test: 4.0V Input, 20 Hz to 4 kHz

C. H.F. Aural Sweep Test: 3.5V Input, 500 Hz to 20 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 686mm x 430mm x 444mm D

(27.0 x 17.0 x 17.5 in. D)

• Shipping Weight: 46 lbs. (21 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Owners Manual

981-00059-00

Carton

990-00213-00

Bag

32259-001

Bottom Tray

991-00051-00

Filler

991-00050-00

SLV, W/MIC

CUTOUTEON 15’S

Cord, AC

Line 120V

425-00000-00

Use 321101-001

Network

Seaker, High Freq

2418H-1

Diaph Repl

D8R2418-1

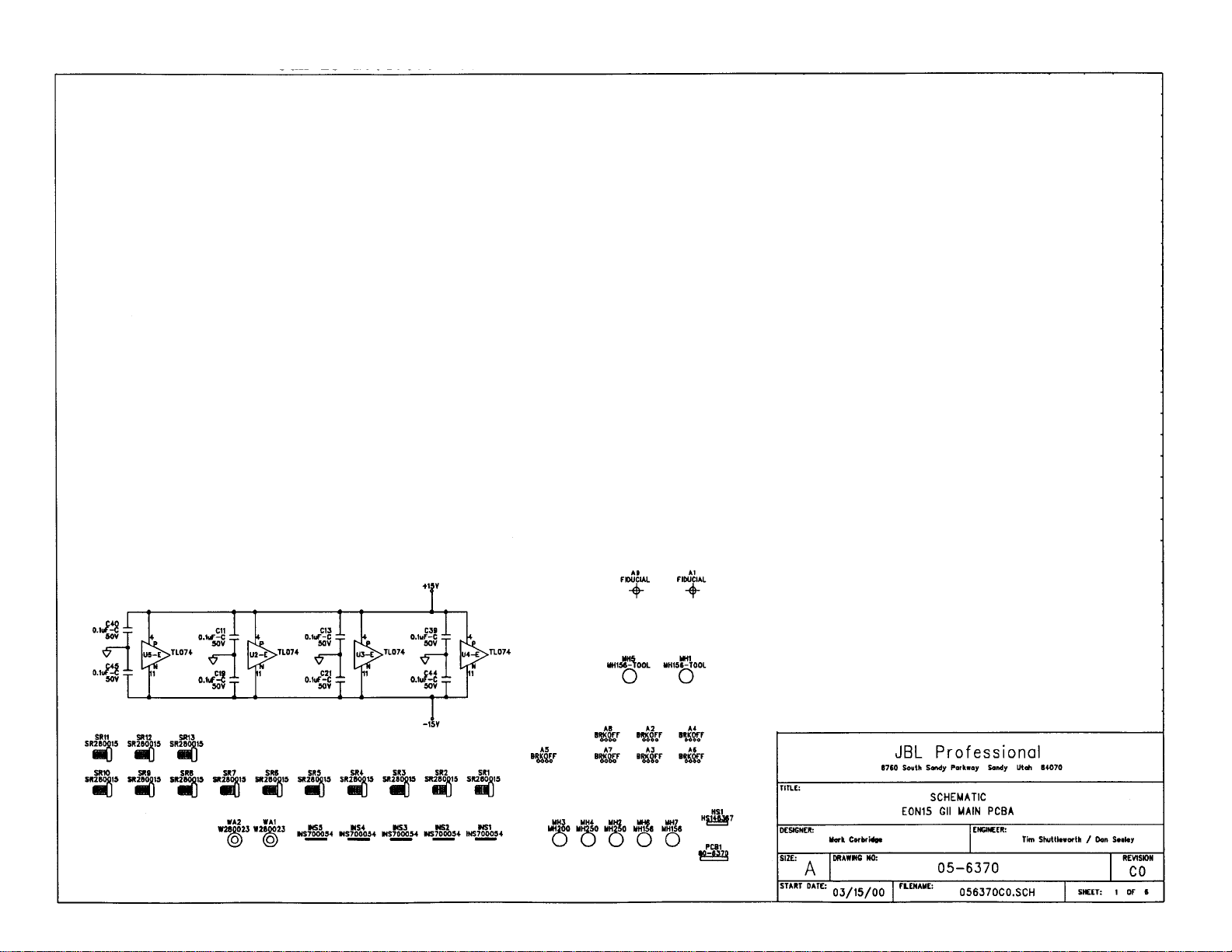

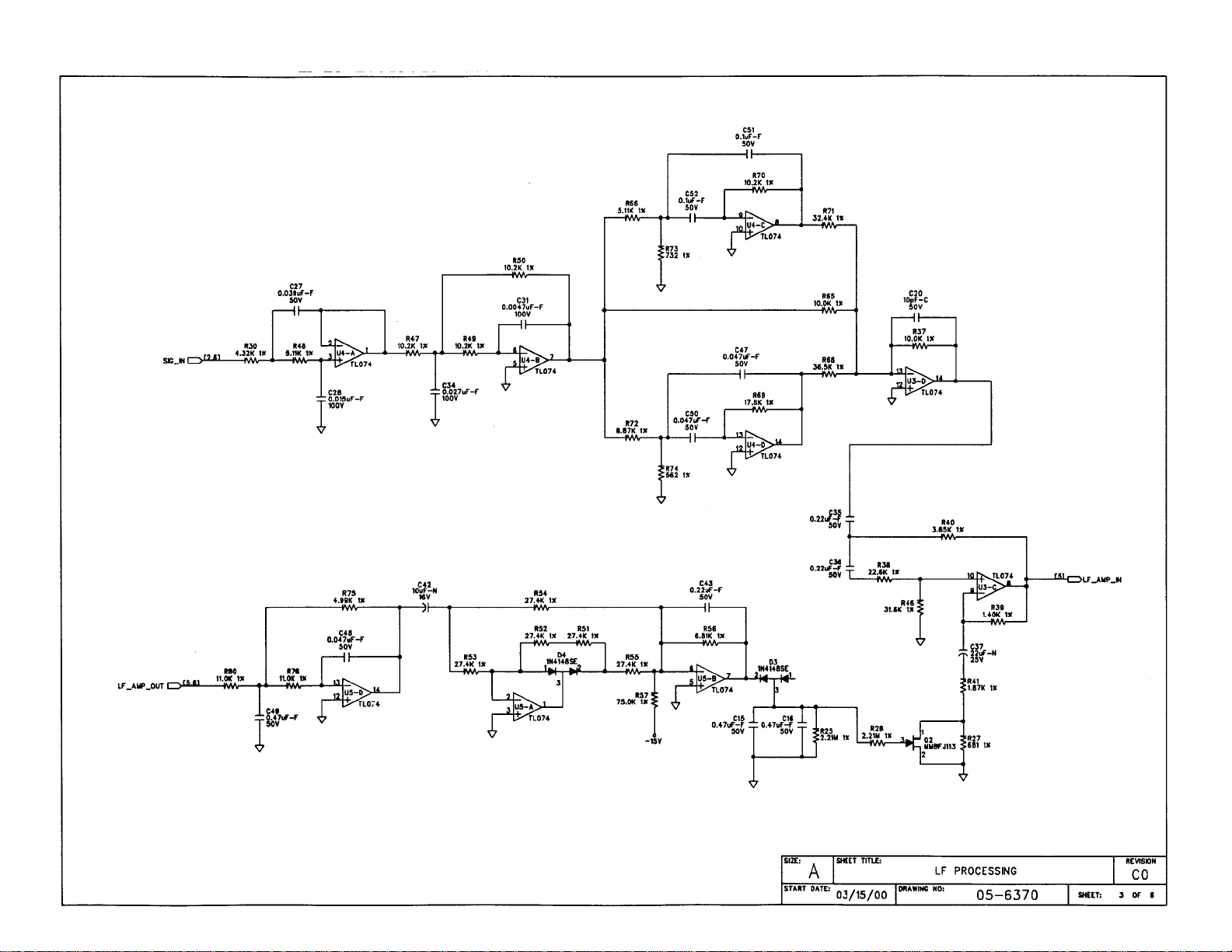

(SEE SCHEMATIC PAGES)

EON15-G2LF

Cone Repl

C2REON15P-2

WHT

RED

BLUE

BLK

Clip, Christmas Tree

321814-001

LED Assembly

(Supplied with AMP)

WIRE CONNECTION LAYOUT

Pictorial for Refference Only

L.F.

(Woofer/Baffle)

BLACK

WHITE

BLUE

RED F .187 -

F .250 +

H.F. (2418H-1)

F .205 -

F .250 +

Amplifier PCA

Transformer

AC Power Input, PCA

Signal Input, PCA

Harness Assy

(Supplied with

Signal Input)

Tree Mount Tie

925-0000-00

Ground Wires

Connect to

Aluminum Baffle

Screw (2)

905002-006

10-32 x 3/8 PN PH

JBL EON15-G2

COMPONENT EXPLODEDVIEW

Screw (18)

804-41110-20

10-32 x 1 1/4

PAN, PH, BLK

Screw (6)

864-41600-06

10-32 x 3/8 PN PH

Signal Input Assy

350317-001

Screw (2)

904902-010

MS, PPH,

10-16 x .63 ZINC

Screw (3)

904902-010

MS, PPH,

10-16 x .63 ZINC

Srew (12)

904902-010

MS, PPH

10-16 x .63 ZINC

Rear Enclousure

EON15-G2

380-90019-00

Label, 120V

EONG2

955-00150-00

AC Power Assy

EON15-G2

250-00001-01 Baffle Assy

With Cone

EON15-G2LF

Grille,

EON15-G2

128-00428-00

Spring

337972-001

Screw (2)

862-31210-20

6-20 x 1 1/4

BLK TR PH AB

Threaded

(Bottom)

Logo Grille F. EON

950-00004-00

Use P/N 321156-001

Fastener

Tinnerman

809-45310-00

Use P/N

809-90003-00

Standoff Long EON

811-90002-13

Standoff Short

EON15

811-90001-08

Use p/N

321266-001

Bezel, BLK

Copolymer;

EON15-G2

382-00358-00

Main AMP

Board Assy

EON15P-G2

339555-001

Gasket/EON15P

382-00015-00

Use P/N

321167-001

Spring Clip, EON

423-00003-00

Use P/N 321209-001

Screw (2)

905002-006

10-32 x 3/8

PN PH CLR ZN

Driver,

High Freq

2418H-1

Screw (2)

862-31210-24

6-20 X 1 1/2

TR ,PH AB

Threaded

(Top)

Gasket,

Clocking

338463-001

JBL EON15-G2

COMPONENT EXPLODEDVIEW

V/C Assy, EON-G2

220-27005-00

TPLT/BPLT EON15

339-23000-90

HX Fin Nut

806-00196-00

18-8 PLN Stainless

EONG2

Cone Repl

C2REON15P-2

Dust Dome

31385-03

Handle EON15

923-00025-00

Screw (2)

900401-020

MS, PPH

10-32 x 1.25 BLK

Nut, Special

321244-001

1/4-20

Transformer 120V/230V

EON15-G2

562-00039-00 Washer, Flat

844-90001-07

1/4-20 x 1Dia.

Bolt (1)

875-03073-52

1/4-20 x 2 3/4

CAP, YELLOW ZINC

Driver, High Freq

2418H-1

Diaph Repl

D8R2418-1

Clip Christmas Tree,

EON

321814-001

(Power LED Assembly

Supplied with AMP)

Baffle (Ref)

SLV, Gap

340-20000-90

Terminal Plug B2

362-10009-00

JBL EON15-G2
