thank you for choosing JBL. For over 50 years, JBL

has been involved in every aspect of musical and film recording

and reproduction, from live performances to monitoring the

recordings you play in your home, car, or office.

We’re confident that the JBL loudspeakers you have

chosen will provide every note of enjoyment that you expected –

and that when you think about purchasing additional audio

equipment for your home, car, or office, you will once again

choose JBL.

Please take a moment to complete the enclosed profile card.

It enables us to keep you posted on our latest advancements,

and helps us to better understand our customers and build

products that meet your needs and expectations.

JBL Consumer Products

HT1F, HT1D OM 7/22/98 2:39 PM Page 1

one. Speaker Placement

The HT1F and HT1D are THX®

licensed home theater loud-

speakers. When combined with

the HT PS300 powered sub-

woofer, a THX controller, and

THX amplifiers, the

JBL HT Series loudspeaker

system will deliver state-

of-the-art home theater

experience to your home.

The HT Series loudspeakers

also deliver clear accurate

stereo music reproduction.

Introduction

Properly placing your speaker

components is vital to achiev-

ing the maximum sonic per-

formance. Please follow the

recommendations in this

guide, to properly position

your speakers.

Note: Do not attempt to

install any type of mounting

brackets onto your speakers.

Drilling Holes in the product

or improperly installing

mounting brackets may void

your JBL warranty and cause

a safety hazard. Contact JBL

or your dealer/installer for

additional information.

<2 ft.

• The left and right speakers

should be at the exact same

height, with the tweeter’s

height positioned at the

midpoint of the screen.

• The center channel speaker

must be vertically oriented.

Placing the speaker horizon-

tally will result in less precise

center channel performance.

• If necessary, tilt the center

channel so that the tweeters

are aimed at the listening area.

HT1F Front Channel Loudspeakers

Placement Tips

Direct view or rear

projection TV.

Front projection system.

Place center speaker behind

acoustically transparent

screen.

<2 ft.

Alternate front speaker

placement.

HT1F, HT1D OM 7/22/98 2:39 PM Page 2

Preparing the Speaker Cable

1. Determine the length of

wire necessary to connect

your amplifier to the speaker

farthest away. Remember to

allow for extra cable to be

able to conceal it under

baseboards, run it around

corners, etc.

2. Make the cables for both

speakers this length. Keeping

both cable lengths the same

will help maintain proper

signal balance and imaging.

3. Separate the two conduc-

tors that make up each cable,

for about one inch. Then strip

off about 3/8" of insulation.

4. Twist each conductor’s thin

wires into a tightly bunched

spiral.

5. Identify a difference

between the two conductors.

This may be done in various

ways, depending upon the

type and brand of cable you

are using.

• Different color wire

• A strand of thread in one

conductor

• A colored line on one con-

ductor’s outer insulation

• Raised ribs on one conduc-

tor’s outer insulation

• A printed (+) marking on

one of the insulators

Some of the More Common Differentiating Marks Are:

Wire Length Recommended Speaker Cable Size

Up to 20 ft. 16 gauge

Up to 50 ft. 14 gauge

Greater than 50 ft. 12 gauge or heavier

two. Hookup

Connection Tips

– +– +– +

– + – +

Front Speakers

Left Center Right

Left

HT1F

Right

HT1F

– +

Center

HT1F

Receiver/Amplifier

– +– +

– + – +

Surround Speakers

Left Right

Left

HT1D

Right

HT1D

Receiver/Amplifier

HT1D

HT1F

HT1F, HT1D OM 7/22/98 2:39 PM Page 3

2– 3 ft.

HT1D Surround Loudspeakers

• Place the surrounds to the

sides, or slightly behind, the

listening position with the

speaker terminals placed

against the wall.

• Place surround speakers

with the port tubes facing the

screen. (One speaker will

appear “upside-down”. This

will not affect sound quality.)

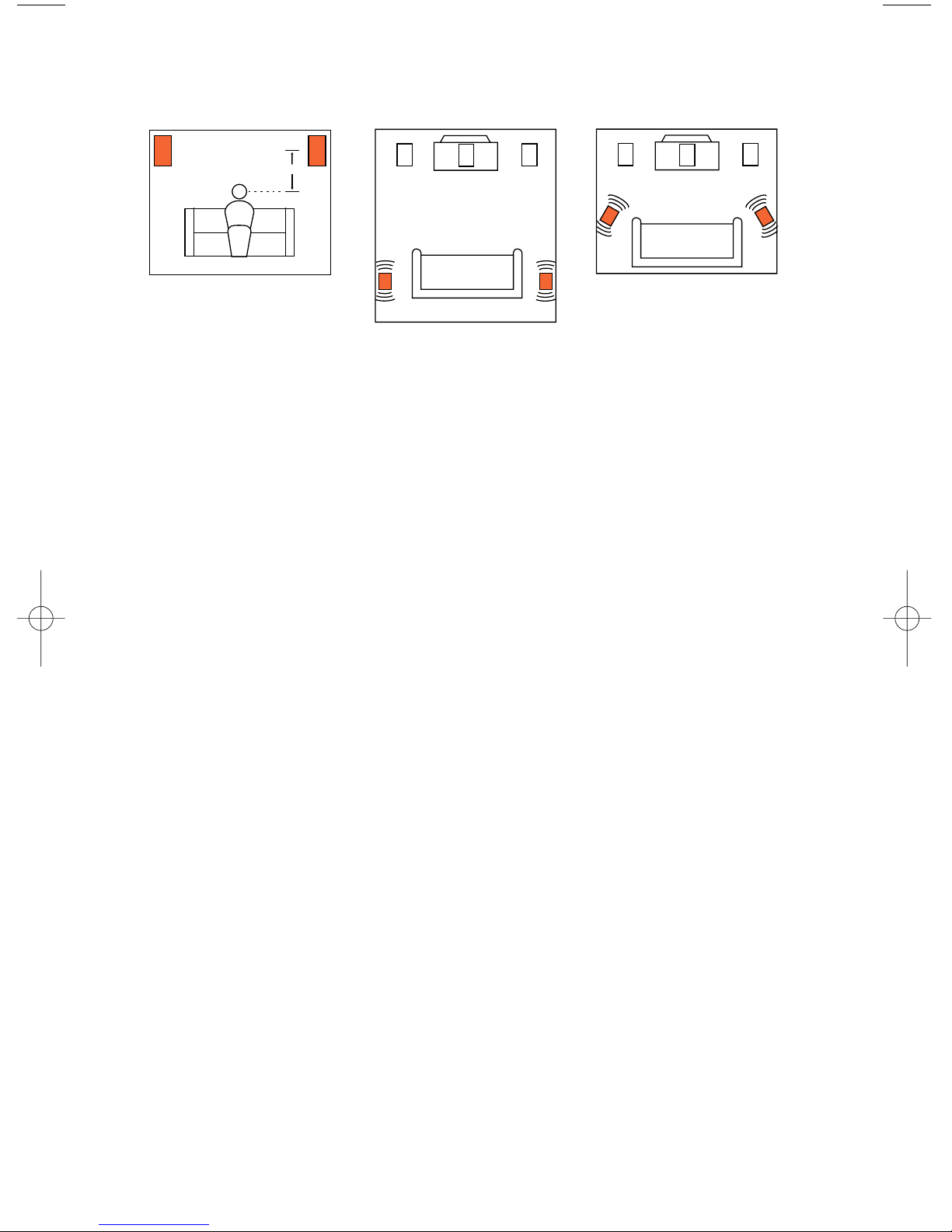

Placement Tips

Alternate surround

placement.

HT1F, HT1D OM 7/22/98 2:39 PM Page 4

If the sound seems to come

from instead of between

the speakers, check the

following:

• Make sure the polarity

(+ and –) of the speaker

inputs are connected properly.

• The speakers are too far

from the back or side walls or

are too far apart. Experiment

with the speaker placement.

If there is very low or no

output from any of the

speakers, check the

following:

• Receiver or processor/

amplifier is on and a source is

playing.

• Review proper operation of

your receiver/processor.

If there is very low or no

output from one or more

speakers, check the

following:

• Check the “Balance” control

on your receiver/processor.

• Check the surround level on

your receiver/processor.

• Check all wires and connec-

tions between the receiver/

amplifier and the speakers.

Make sure all wires are con-

nected and that none of the

speaker wires are frayed, cut,

or punctured.

• Review proper operation of

your receiver/processor.

If the system plays at low

volumes but shuts off as

volume is increased, check

the following:

• Check all wires and con-

nections between receiver/

amplifier and the speakers.

Make sure all wires are con-

nected and that none of the

speaker wires are frayed, cut,

or punctured.

• If more than one pair of

speakers is being used, check

the minimum impedance

requirements of your receiver/

amplifier.

Troubleshooting

HT1F, HT1D OM 7/22/98 2:39 PM Page 5

HT1F

High Frequency Drivers

2 x 1" pure titanium

Midrange Drivers

2 x 5" high polymer laminate

Frequency Response

70Hz – 20kHz

Recommended Amplifier

Power*

10 – 130 watts

Sensitivity

87dB @ 1 watt/1 meter

Impedance

8 ohms

Crossover Frequency

2800Hz

Dimensions (HxWxD)

17-1/2 x 10 x 8-1/2 inches

445 x 254 x 216mm

Weight

21 lbs/9.5 kg

HT1D

High Frequency Drivers

2 x 1" pure titanium

Midrange Drivers

2 x 5" high polymer laminate

Frequency Response

100Hz – 20kHz

Recommended Amplifier

Power*

10 – 130 watts

Sensitivity

87dB @ 1 watt/1 meter

Impedance

6 ohms

Crossover Frequency

2800Hz

Dimensions (HxWxD)

13-7/8 x 9-1/4 x 7-3/4 inches

352 x 235 x 197mm

Weight

15 lbs/6.8 kg

Specifications

Declaration of Conformity

We, JBL Europe A/S

Kongevejen 194B

DK-3460 Birkerød

DENMARK

declare in own responsibility, that the products described

in this owner’s manual are in compliance with technical

standards:

EN 50 081-1/1992

EN 50 082-1/3.1995

Steen Michaelsen

JBL Europe A/S

Birkerød. DENMARK. 8/96

JBL Consumer Products

80 Crossways Park West, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

1-800-336-4JBL (4525) (USA only)

JBL is a registered trademark of JBL, Incorporated.

THX is a registered trademark of Lucasfilm Ltd.

Manufactured under license of Lucasfilm Ltd.

Printed in USA 10/96 Part No. HTOM

Occasional refinements may be

made to existing products

without notice, but will always

meet or exceed original

specifications unless otherwise

stated.

*Undistorted continuous power

per channel.

A Harman International Company

HT1F, HT1D OM 7/22/98 2:39 PM Page 6
